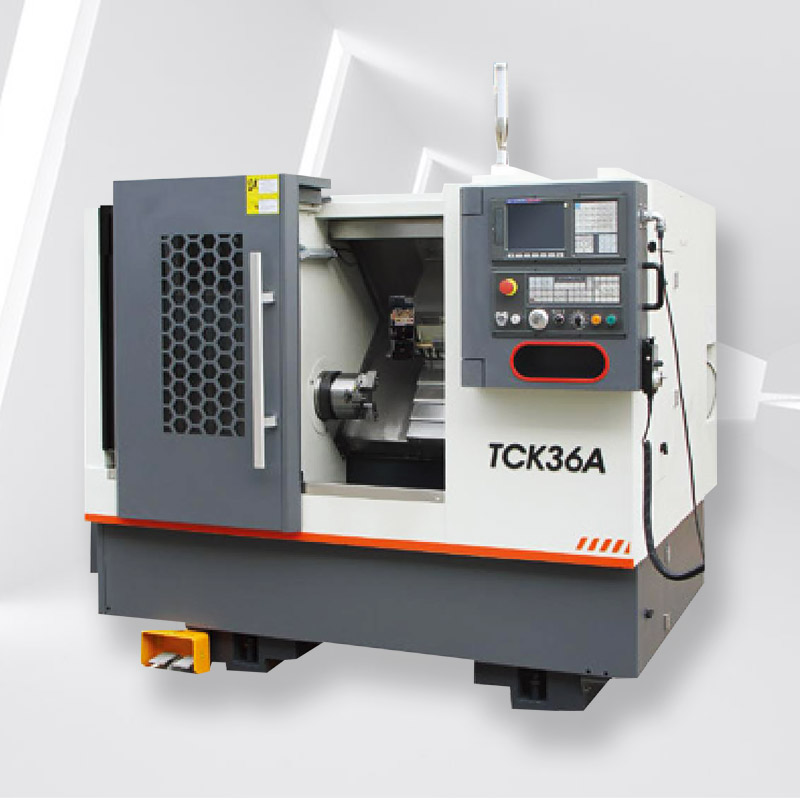

Slant Bed CNC Lathe TCK36A

Slant Bed CNC Lathe is a two-axis linkage semi-closed-loop CNC lathe. According to the contemporary advanced design and manufacturing technology, it implements the latest national precision standards and our factory's stiffness standards, and is equipped with domestic and foreign advanced functional components. All movements are safe and reliable.

CNC Turning Center is suitable for processing rotary parts with complex shapes. It can process cylindrical surfaces, curved surfaces, tapered surfaces, stepped surfaces, various internal and external threads, drilling, reaming, reaming and rolling, etc. It is especially suitable for the processing of large quantities of parts. CNC Turning Center mechatronics design, easy to operate and maintain.

Advantage

1. The Slant Bed CNC Lathe bed adopts a 45-degree integral structure with an integral spindle, good rigidity and high precision.

2. Inclined Bed CNC Lathe adopts large-size linear guides, ball screws and special bearings for heavy-duty screws, and its performance is more stable and reliable.

3. CNC automatic lathe X-direction stroke is 440mm, and the number of tools is large; Z-direction stroke is 360mm, which is convenient for drilling and boring deep holes and using truss manipulators.

4. Inclined Bed CNC Lathe is equipped with an external large-capacity hydraulic station and a high-power oil pump to solve the problem of loose clamping of hydraulic clamps in high temperature weather.

5. CNC automatic lathe adds a stainless steel internal overall protective cover to avoid damage to electrical components caused by water mist and moisture entering the electrical box.

6. Large-angle side chip removal, convenient and reliable.

Product Application Industry

The inclined Bed CNC Lathe machine is used to process small and medium shaft and disc parts. It can turn various threads, arcs, cones and the inner and outer surfaces of the rotary body. The horizontal cnc lathe machine is widely used in plumbing equipment, valves, electrical appliances, instruments, automobiles , motorcycles, bearings and other industries.

Video

Product Parameter
