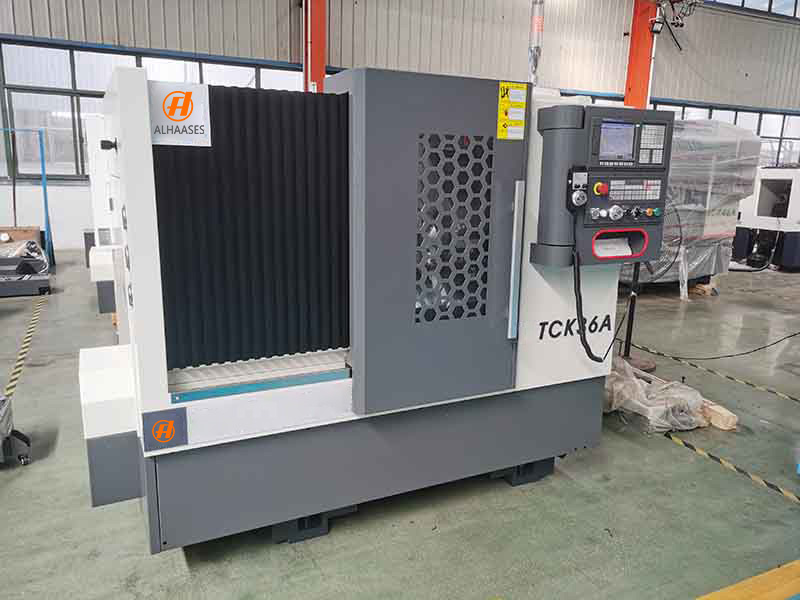

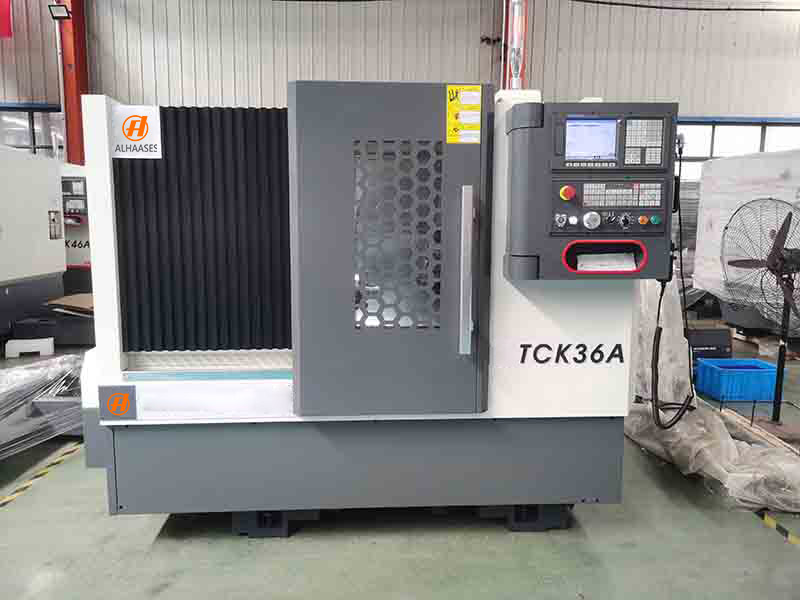

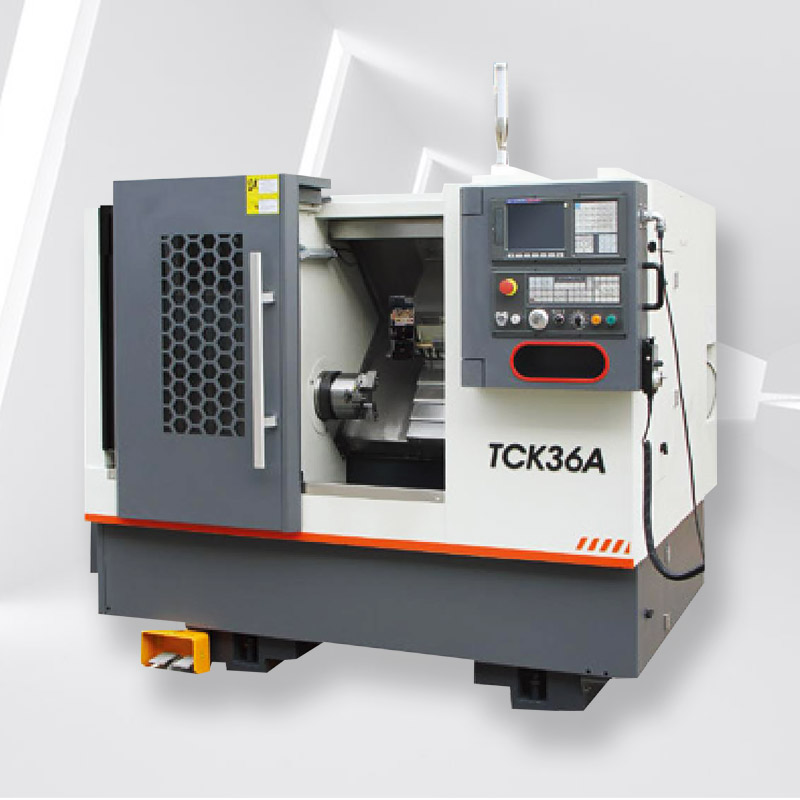

TCK36A Slant Bed CNC Lathe
The inclined bed structure (36°/45° tilt design) improves chip removal efficiency, makes operation more convenient, facilitates loading and unloading of workpieces, and reduces operator fatigue.
High-rigidity integrated bed, the bed is made of high-strength cast iron, and undergoes secondary aging treatment to ensure that it will not deform during long-term processing.
High-precision spindle unit, the spindle adopts high-precision rolling bearings, with high rotation accuracy, suitable for high-speed and efficient processing.
The Y-axis and C-axis can be expanded to achieve turning and milling compound processing.

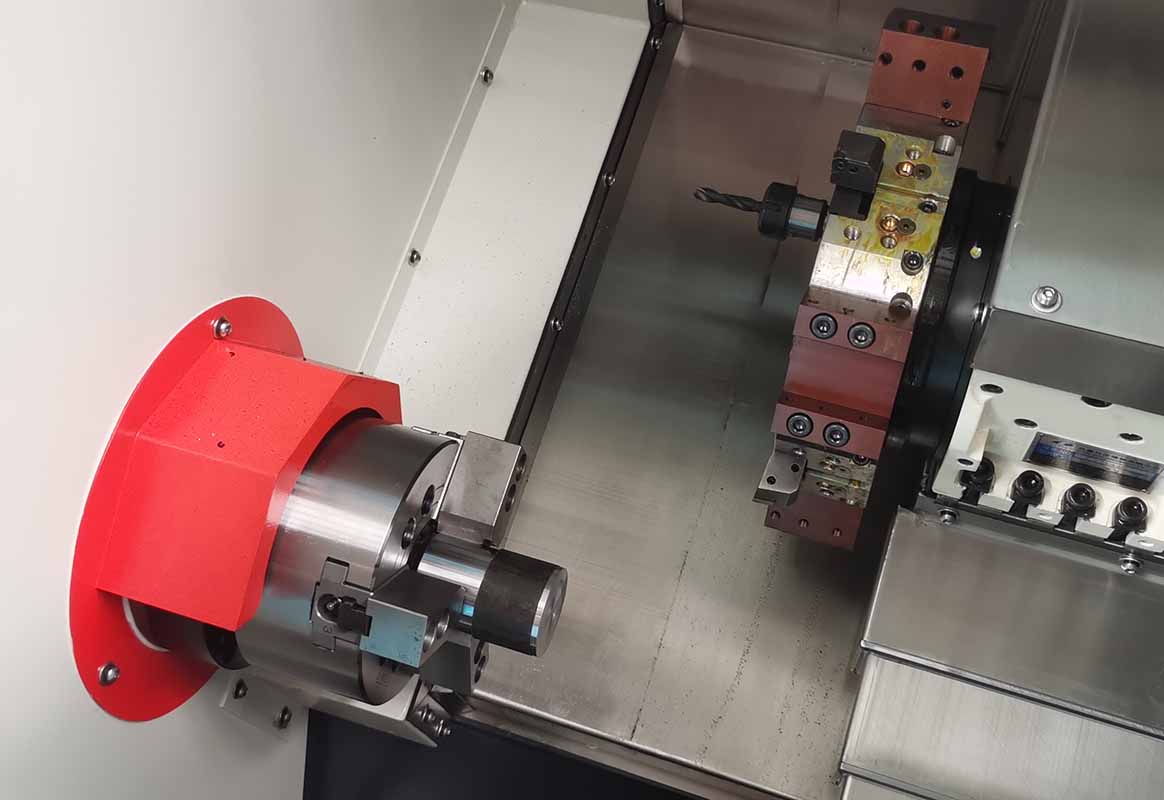

TCK36A Slant Bed CNC Lathe, servo turret/hydraulic turret, fast tool change, accurate positioning, and reduced non-cutting time.
Fully enclosed protection design ensures safe operation, prevents chips from splashing, and keeps the processing environment clean.
Automatic lubrication system realizes automatic lubrication of each moving part and extends the life of the machine tool.
Advantage
TCK36A Slant Bed CNC Lathe, the inclined bed structure makes the processing chip removal smoother, suitable for long-term automatic operation.
Small footprint, compact layout, suitable for batch production of small to medium-sized workpieces, saving factory space.
High precision stability, suitable for high-precision processing scenarios, such as turning of complex surfaces.
High degree of automation, can be matched with automatic loading and unloading system to form an unmanned production line.
Product application industry

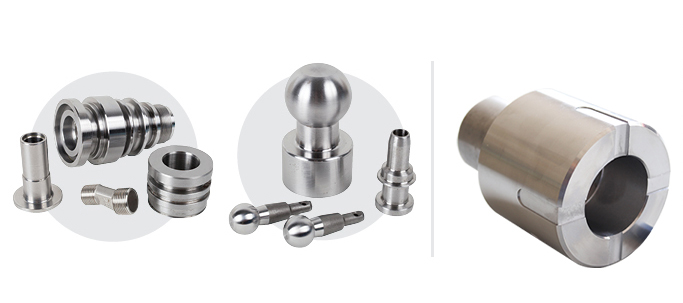

TCK36A Slant Bed CNC Lathe is particularly suitable for batch turning of small to medium-sized rotating parts in the automotive industry, such as hub centers, bushings, flanges, steering components, etc. It is an indispensable CNC turning equipment in the automotive parts processing production line.
Application in the medical device industry: Main processing workpieces; 1. Orthopedic implants 2. Surgical instrument accessories 3. Medical tubes and joints 4. Medical equipment parts
Application in the hardware machinery industry: Main processing workpieces; 1. Standard parts & fasteners 2. Engineering machinery parts 2. Engineering machinery parts 2. Engineering machinery parts
Video
Product Parameter
| Item | Unit | TCK36A |
| Maximum upper turning diameter of bed | mm | Φ360 |
| Maximum machining diameter on tool post | mm | Φ140 |
| Maximum processing length | mm | 300 |
| Spindle speed | rpm | 4000 |
| Spindle hole diameter | mm | 48 |
| Weight | KG | 2200 |
| Machine size | mm | 2200×1600×1850 |
