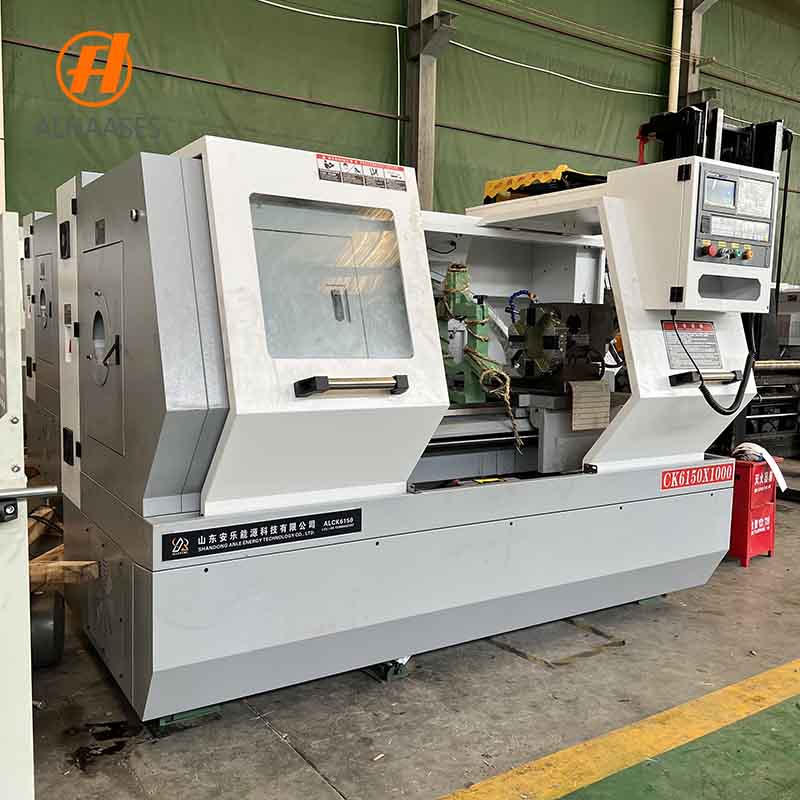

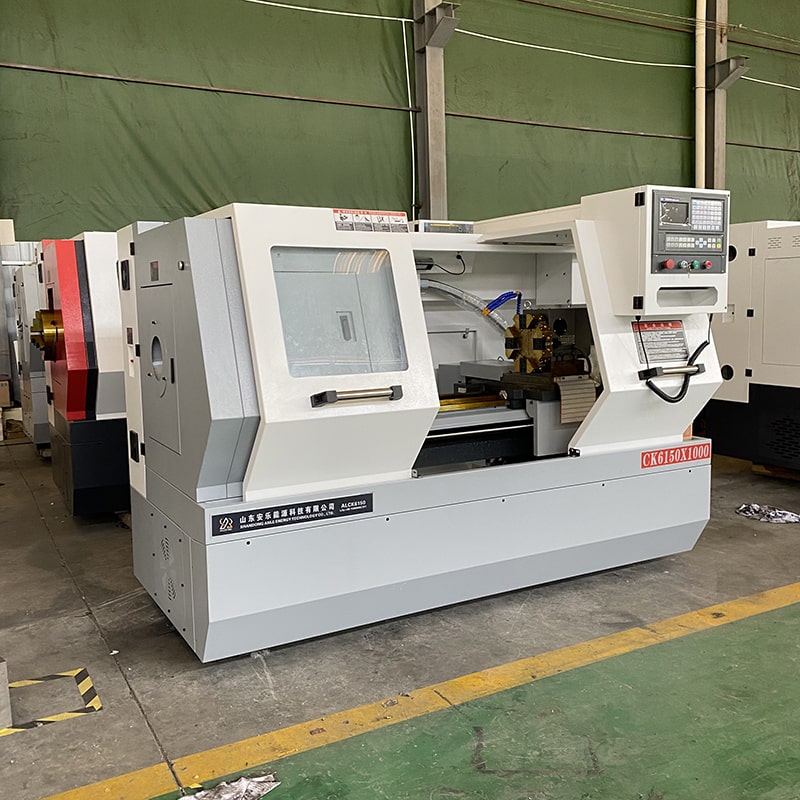

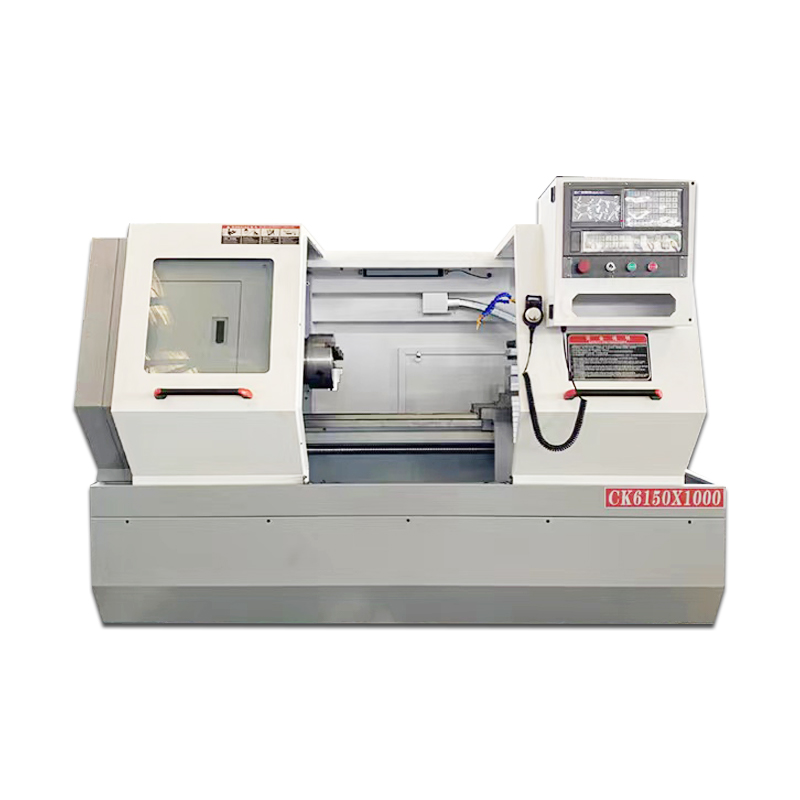

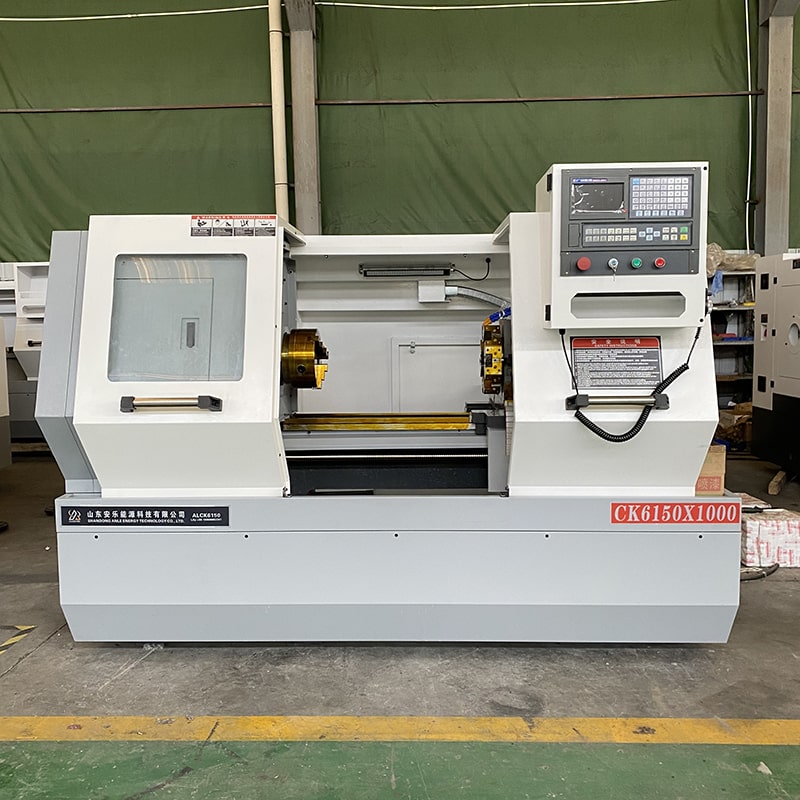

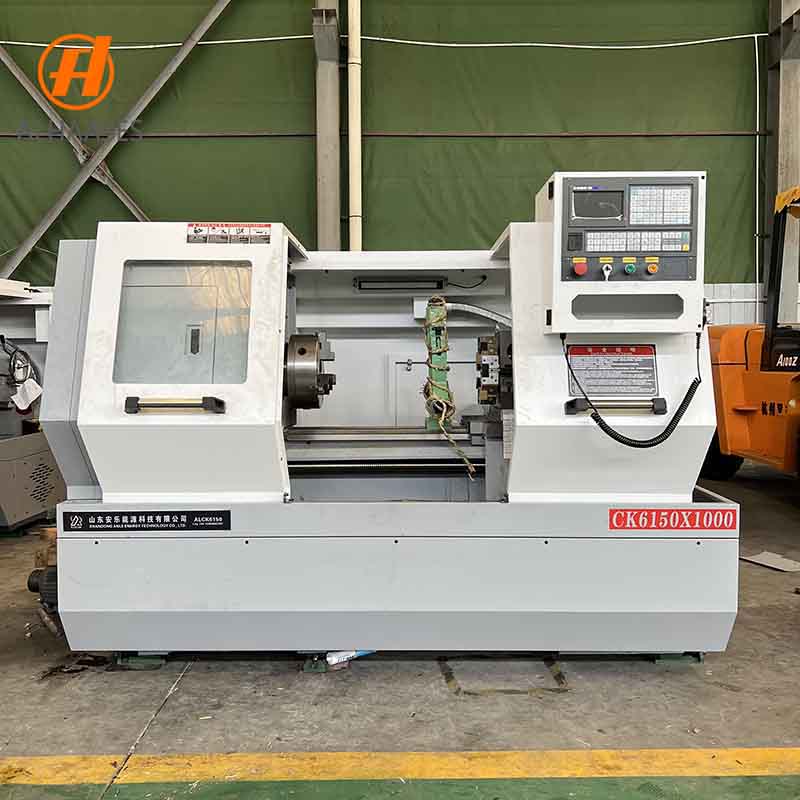

large CNC lathe CK6150X1000
Brand - ALLESCNC
Model - CK6150
Dimensions - 3030x1600x2050mm
Price - $9,999(Standard Edition)/$13,500(Pro Edition)
Availability - 400 pieces of inventory available for sale every month
Certification - Meeting CE Standards in Terms of Quality & Safety
Payment Method - T/T/ Credit Cards
One-Year Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)
CK6150X1000 CNC lathe is equipped with a high-power spindle motor, high processing efficiency, suitable for mass production.
Low maintenance cost, simple and stable structure, reduced maintenance times, lower operating costs.
Adapt to a variety of materials, suitable for processing carbon steel, stainless steel, cast iron and other materials, with a wide range of applications.
Flexible programming, support G code programming and human-machine interface operation, suitable for operators with different skill levels.
The features of CK6150X1000 Flat Bed CNC Lathe are as follows:
The bed of CK6150X1000 is usually made of high-quality cast iron, which is aging-treated to ensure high rigidity and stability. High-precision linear guides and ball screws are used to ensure processing accuracy and repeatability.
CK6150X1000 has high-efficiency processing and CNC system control, which can achieve high-speed cutting and complex shape processing. It is suitable for processing various parts with complex shapes and high precision requirements, such as shafts and disc parts.
Automatic tool changing system (such as turret) can be configured to improve production efficiency and automation.In addition to basic turning functions, drilling, boring, thread processing and other operations can also be performed.
Product Application Industry
1. In mechanical manufacturing, CK6150X1000 is used to process various mechanical parts, such as gears, shafts, sleeves, etc.
2. In the automotive industry, CK6150X1000 is used to produce key components such as engine parts, gearbox parts, and axles.
3. In aerospace, CK6150X1000 is used to process precision parts for aircraft and spacecraft.
CK6150 Flat Bed CNC Lathe – Standard and Optional Configurations
Standard Configurations
High-rigidity flat bed structure
GSK CNC system

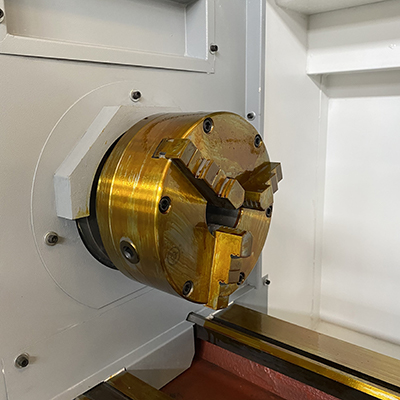

Manual 3-jaw chuck

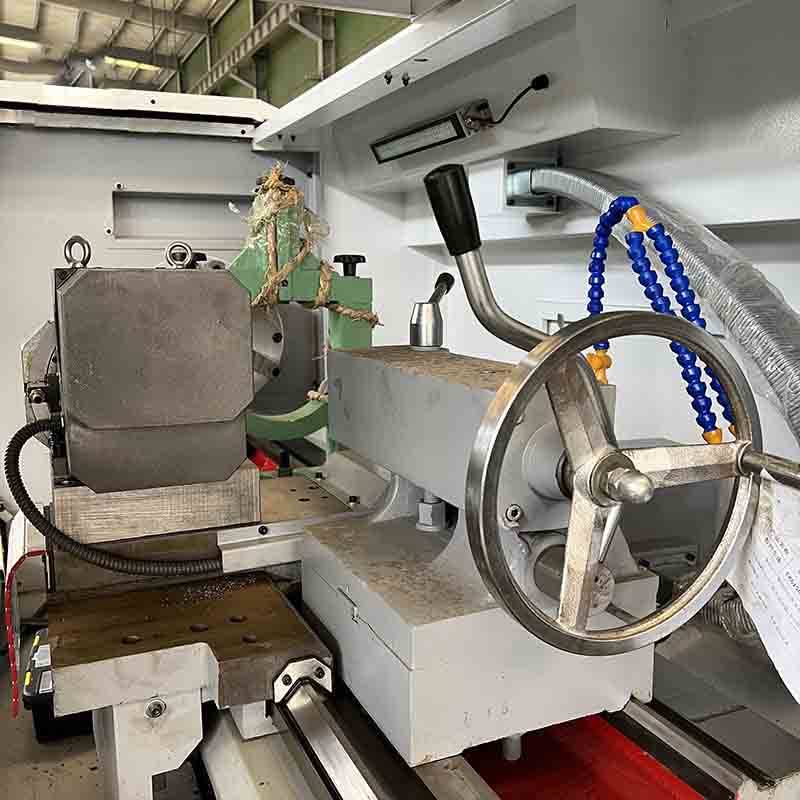

Tailstock with manual quill
Cooling system
Centralized lubrication system
Work light
Protective full enclosure
Standard tool post (manual tool post)
Optional Configurations

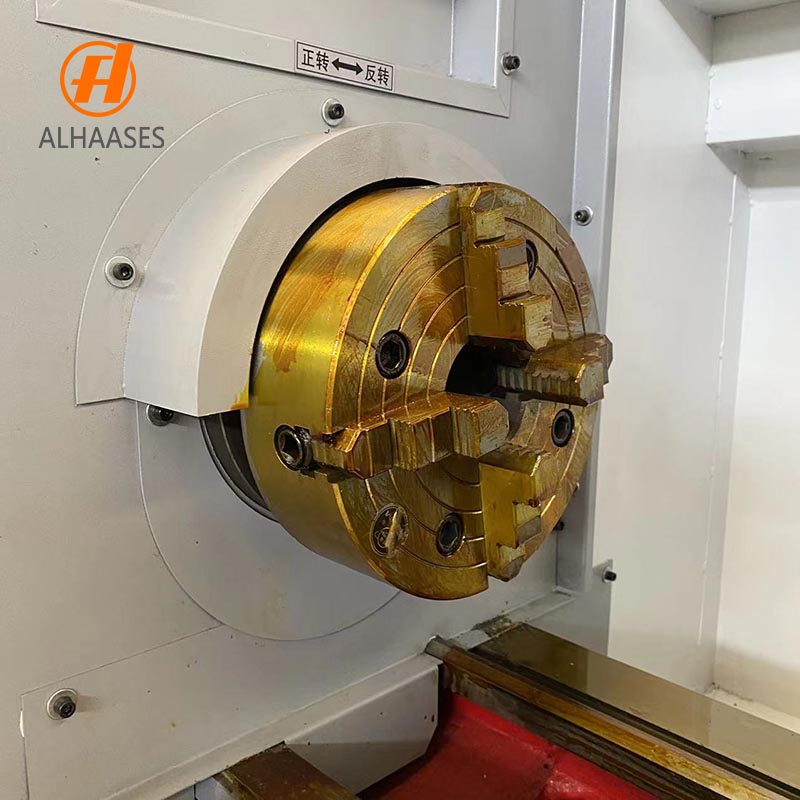

Hydraulic 3-jaw or 4-jaw chuck
Hydraulic tailstock

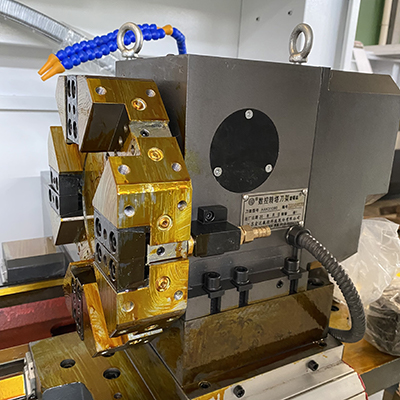

Hydraulic turret or servo turret (6 / 8 stations)
Automatic chip conveyor
Automatic tool changer (ATC)
Pneumatic system
Spindle oil cooler
Customized steady rest and follow rest
Bar feeder
Precision measuring probes
Siemens, Fanuc, KND CNC system (customized upon request)
Video
Product Parameter
| Item | Unit | CK6150*1000 |
| Max swing over bed | mm | Φ500 |
| Maximum swing over slide | mm | Φ290 |
| Maximum cutting diameter | mm | Φ500 |
| Maximum processing length | mm | 1000 |
| X/Z axis maximum stroke | mm | 300/1000 |
| X/Z axis minimum displacement unit | mm | 0.001 |
| Spindle hole diameter | mm | Φ82 |
| Diameter of tailstock sleeve | mm | Φ65 |
| Machine size | mm | 3030*1600*2050 |
CK6150 CNC Lathe Customer Notice
Dear Customer,
Thank you for choosing the CK6150 CNC Lathe manufactured by our company. To ensure safe and efficient operation of this equipment, please carefully read the following instructions:
1. Installation and Environmental Requirements
The machine should be installed on a solid and level foundation to prevent uneven flooring from affecting machining accuracy.
The operating environment should be clean and dry, avoiding excessive moisture, dust, or strong vibrations.
Recommended ambient temperature: 10℃–40℃, avoiding prolonged exposure to high or low temperatures.
Allow sufficient space around the machine for operation, maintenance, and heat dissipation.
2. Electrical and Operational Safety
The machine must be connected to a proper three-phase power supply (380V/50Hz or customer-specified voltage) with reliable grounding.
Operators must be professionally trained and familiar with CNC system operations and safety regulations.
Before starting the machine, check that the emergency stop switch is functioning properly and that all safety devices are in place.
Never reach into the working area or touch rotating parts while the machine is in operation.
3. Usage and Maintenance
Ensure that the workpiece is securely clamped, the correct tools are selected, and the program is properly set before machining.
Avoid overload cutting during operation to prevent damage to the spindle or tools.
Check the lubrication system daily, and keep guideways and lead screws adequately lubricated.
Regularly clean chips and coolant to maintain machine cleanliness and prevent blockages or corrosion.
Inspect electrical, hydraulic, and transmission components according to the maintenance schedule, and replace wear parts in a timely manner.
4. Warranty and Service
The machine has a 12-month warranty (starting from the date of arrival at the customer's site).
During the warranty period, we provide free repair or replacement for parts damaged due to product quality issues.
Damage caused by non-quality issues (such as misuse, improper operation, or power abnormalities) will incur service charges as appropriate.
Our company provides long-term technical support and spare parts supply to ensure smooth operation of your equipment.
5. Special Notes
Before use, please carefully read the Operation Manual and strictly follow all operating procedures.
It is recommended that customers maintain a machine record to track operation status and maintenance history.
In case of a fault, immediately stop the machine and contact after-sales service personnel. Do not attempt to disassemble or repair the machine yourself.
