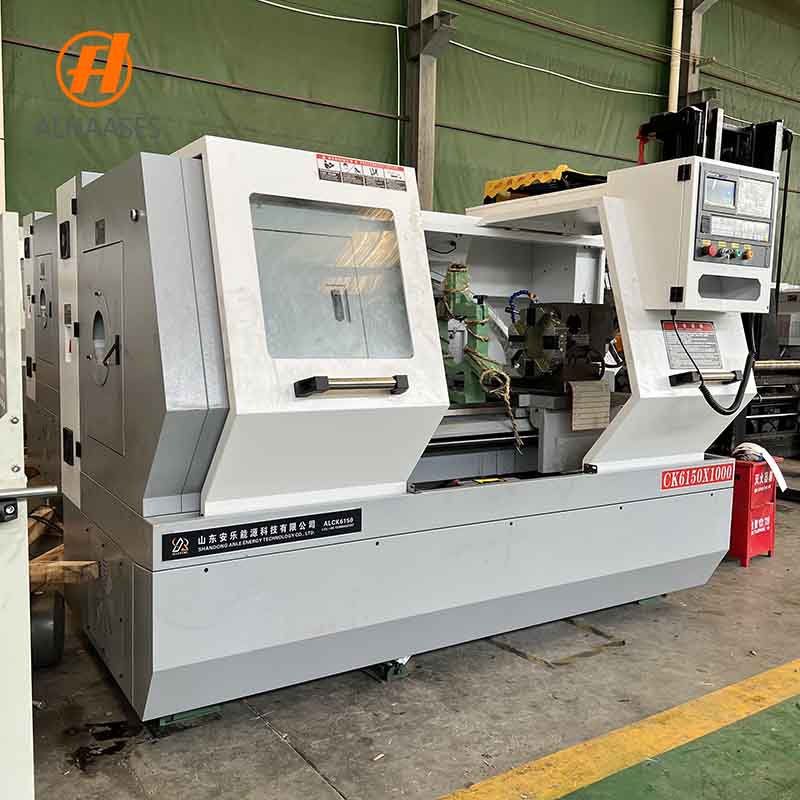

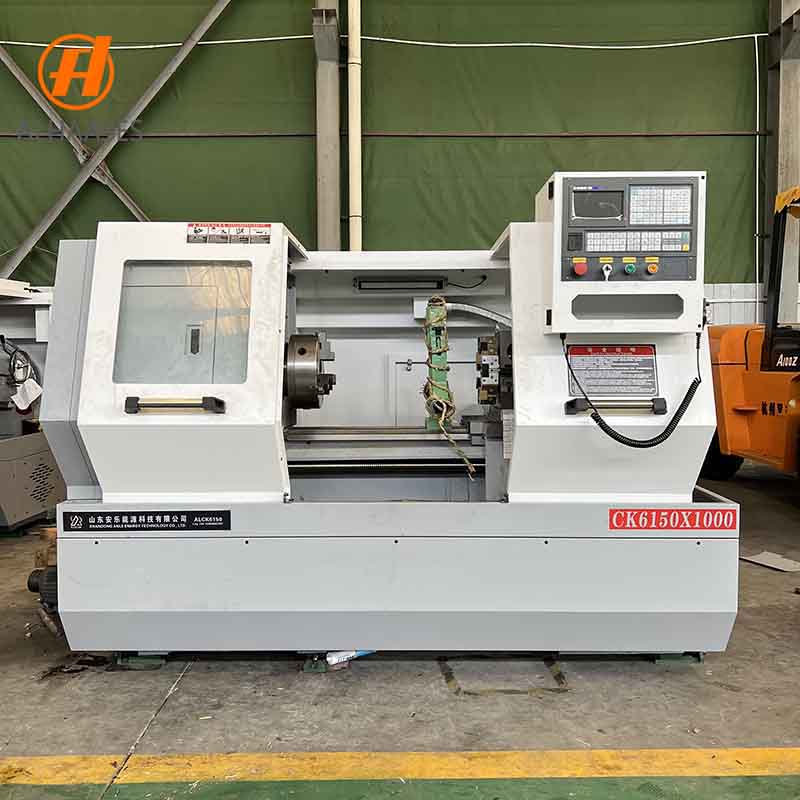

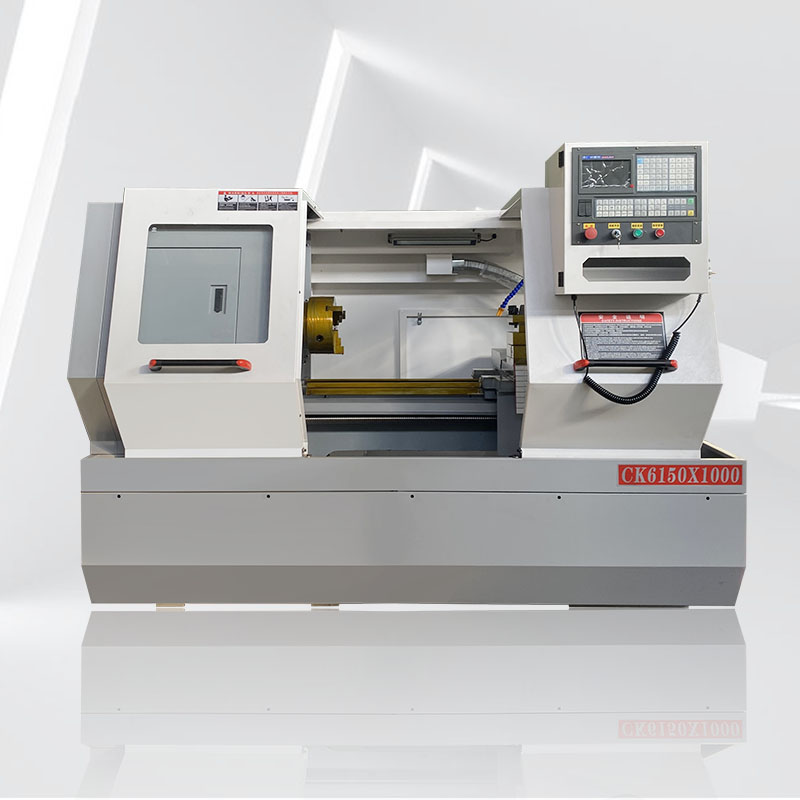

CK6150X1000 cnc lathe diy
CK6150X1000 has a strong and durable structure. The machine bed adopts high-strength cast iron structure to ensure rigidity and vibration resistance. Reasonable design reduces the internal stress of the machine and increases the service life. CK6150X1000 CNC lathe performs well in various mechanical processing
CK6150X1000 is a CNC lathe model, commonly used for high-precision and high-efficiency metal processing
CK6150X1000 CNC lathe is widely used in various manufacturing industries. It is a processing equipment with superior performance and flexibility.
The features of CK6150X1000 Flat Bed CNC Lathe are as follows:
The bed of CK6150X1000 is usually made of high-quality cast iron, which is aging-treated to ensure high rigidity and stability. High-precision linear guides and ball screws are used to ensure processing accuracy and repeatability.
CK6150X1000 has high-efficiency processing and CNC system control, which can achieve high-speed cutting and complex shape processing. It is suitable for processing various parts with complex shapes and high precision requirements, such as shafts and disc parts.
Automatic tool changing system (such as turret) can be configured to improve production efficiency and automation.In addition to basic turning functions, drilling, boring, thread processing and other operations can also be performed.
Product Application Industry
1. In mechanical manufacturing, CK6150X1000 is used to process various mechanical parts, such as gears, shafts, sleeves, etc.
2. In the automotive industry, CK6150X1000 is used to produce key components such as engine parts, gearbox parts, and axles.
3. In aerospace, CK6150X1000 is used to process precision parts for aircraft and spacecraft.
Video
Product Parameter
| Item | Unit | CK6150*1000 |
| Max swing over bed | mm | Φ500 |
| Maximum swing over slide | mm | Φ290 |
| Maximum cutting diameter | mm | Φ500 |
| Maximum processing length | mm | 1000 |
| X/Z axis maximum stroke | mm | 300/1000 |
| X/Z axis minimum displacement unit | mm | 0.001 |
| Spindle hole diameter | mm | Φ82 |
| Diameter of tailstock sleeve | mm | Φ65 |
| Machine size | mm | 3030*1600*2050 |
