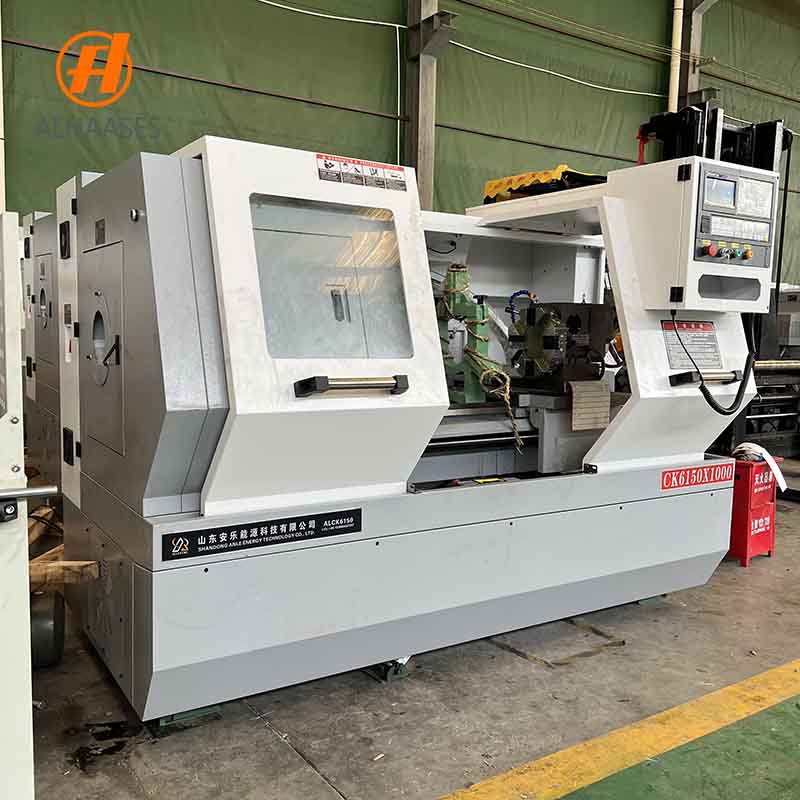

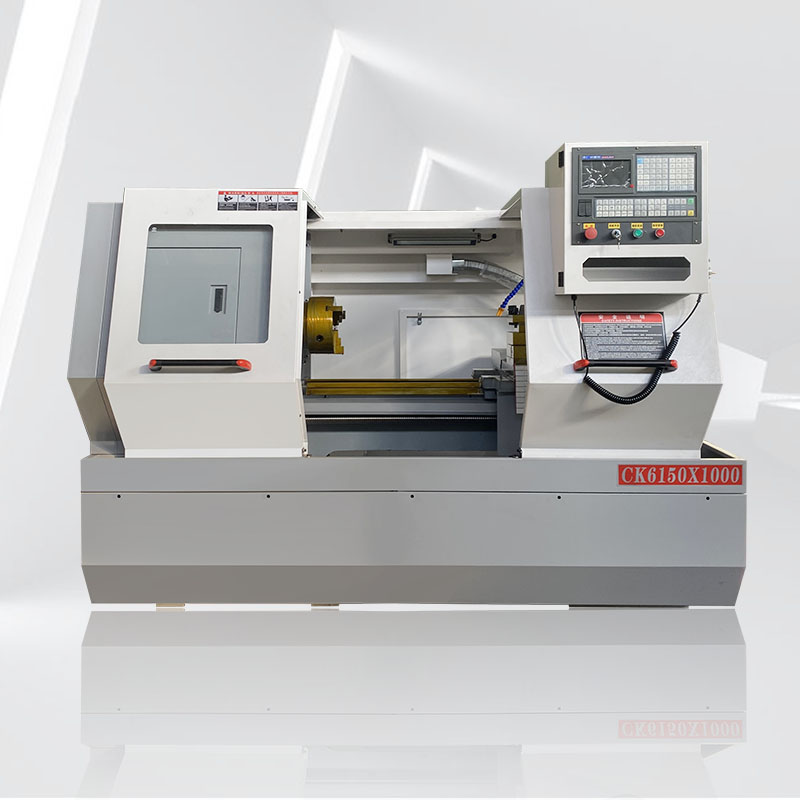

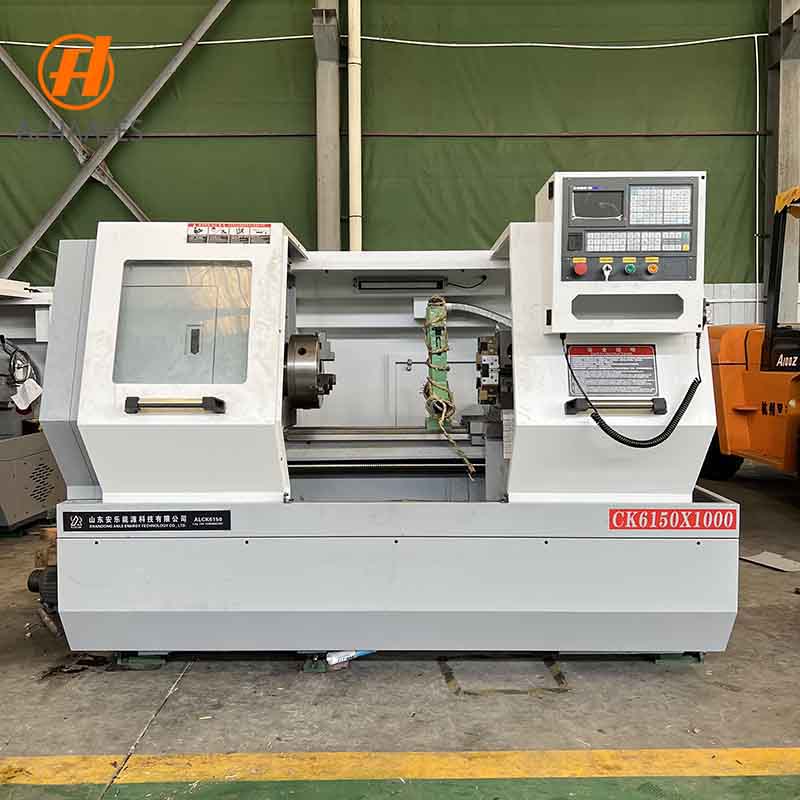

large CNC lathe CK6150X1000
CK6150X1000 is a widely used CNC lathe with high precision, precise spindle and guide rails to ensure the machining accuracy of the workpiece. Strong stability, with a solid integral cast iron structure, effectively reducing vibration and deformation, and extending the service life of the machine tool. High degree of automation, supporting automatic loading and unloading and processing processes, helping to reduce manual intervention and improve production efficiency. Easy to operate, equipped with a CNC system, a friendly operating interface, and simplified programming and control processes.
CK6150X1000 CNC lathe is equipped with a high-power spindle motor, high processing efficiency, suitable for mass production.
Low maintenance cost, simple and stable structure, reduced maintenance times, lower operating costs.
Adapt to a variety of materials, suitable for processing carbon steel, stainless steel, cast iron and other materials, with a wide range of applications.
Flexible programming, support G code programming and human-machine interface operation, suitable for operators with different skill levels.
The features of CK6150X1000 Flat Bed CNC Lathe are as follows:
The bed of CK6150X1000 is usually made of high-quality cast iron, which is aging-treated to ensure high rigidity and stability. High-precision linear guides and ball screws are used to ensure processing accuracy and repeatability.
CK6150X1000 has high-efficiency processing and CNC system control, which can achieve high-speed cutting and complex shape processing. It is suitable for processing various parts with complex shapes and high precision requirements, such as shafts and disc parts.

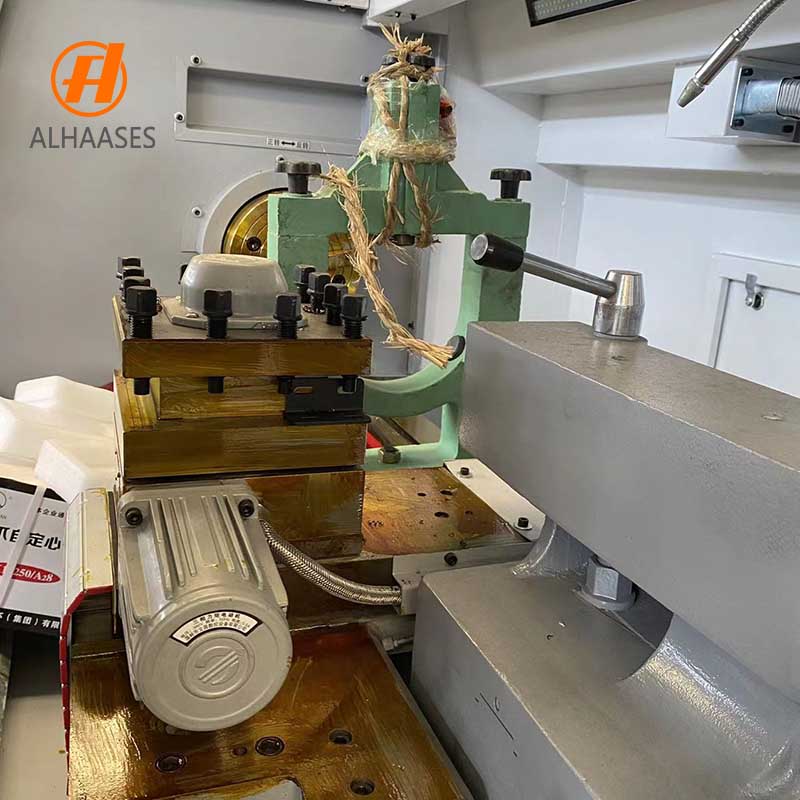

Automatic tool changing system (such as turret) can be configured to improve production efficiency and automation.In addition to basic turning functions, drilling, boring, thread processing and other operations can also be performed.
Product Application Industry

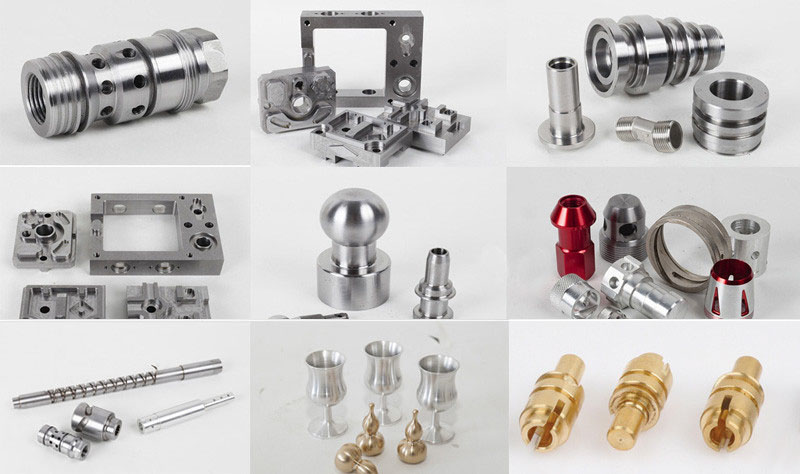

1. In mechanical manufacturing, CK6150X1000 is used to process various mechanical parts, such as gears, shafts, sleeves, etc.
2. In the automotive industry, CK6150X1000 is used to produce key components such as engine parts, gearbox parts, and axles.
3. In aerospace, CK6150X1000 is used to process precision parts for aircraft and spacecraft.
Video
Product Parameter
| Item | Unit | CK6150*1000 |
| Max swing over bed | mm | Φ500 |
| Maximum swing over slide | mm | Φ290 |
| Maximum cutting diameter | mm | Φ500 |
| Maximum processing length | mm | 1000 |
| X/Z axis maximum stroke | mm | 300/1000 |
| X/Z axis minimum displacement unit | mm | 0.001 |
| Spindle hole diameter | mm | Φ82 |

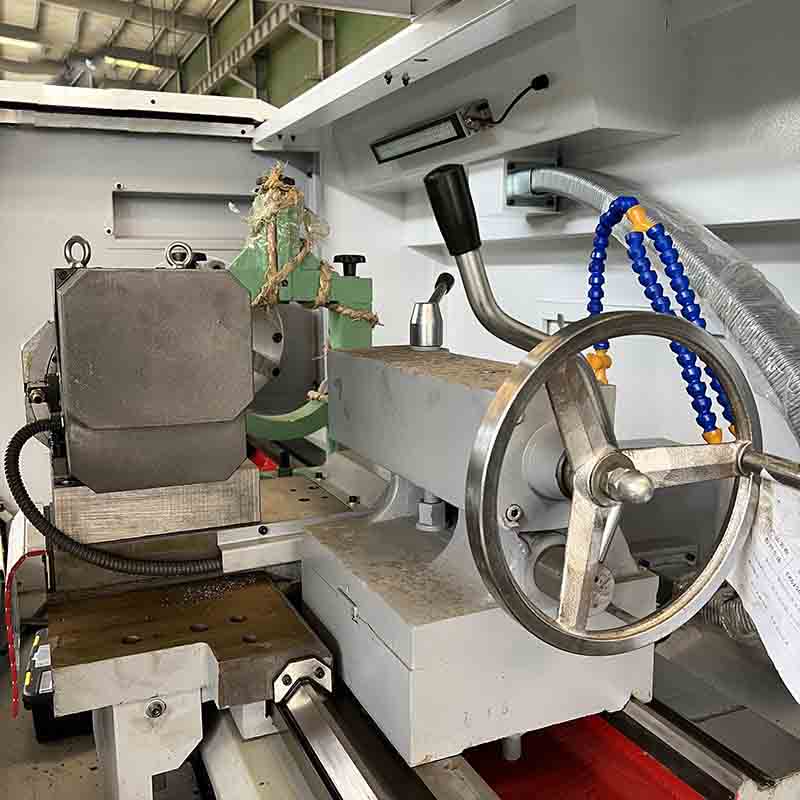

| Diameter of tailstock sleeve | mm | Φ65 |
| Machine size | mm | 3030*1600*2050 |
