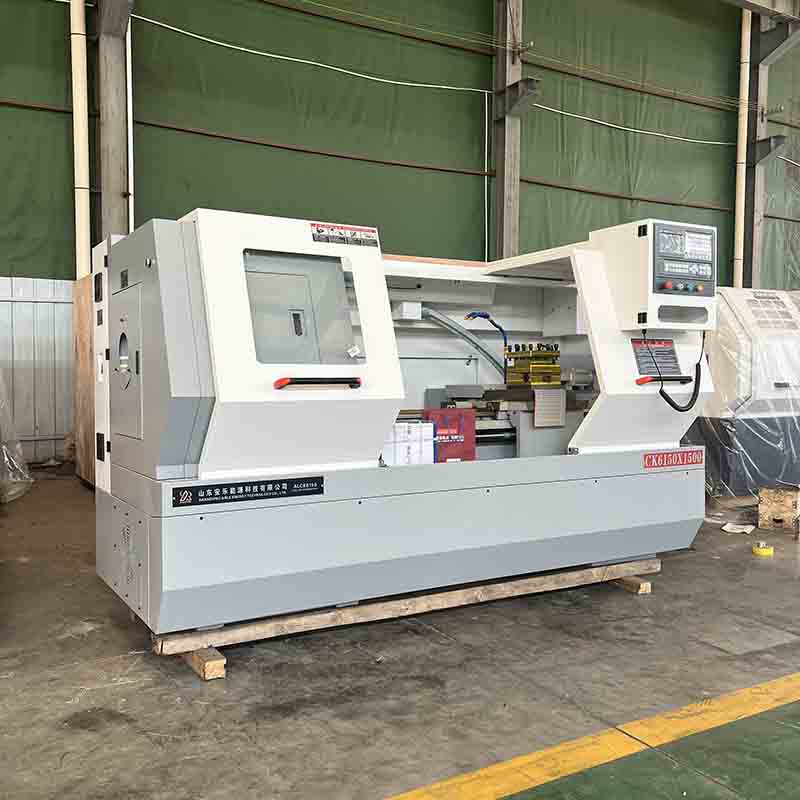

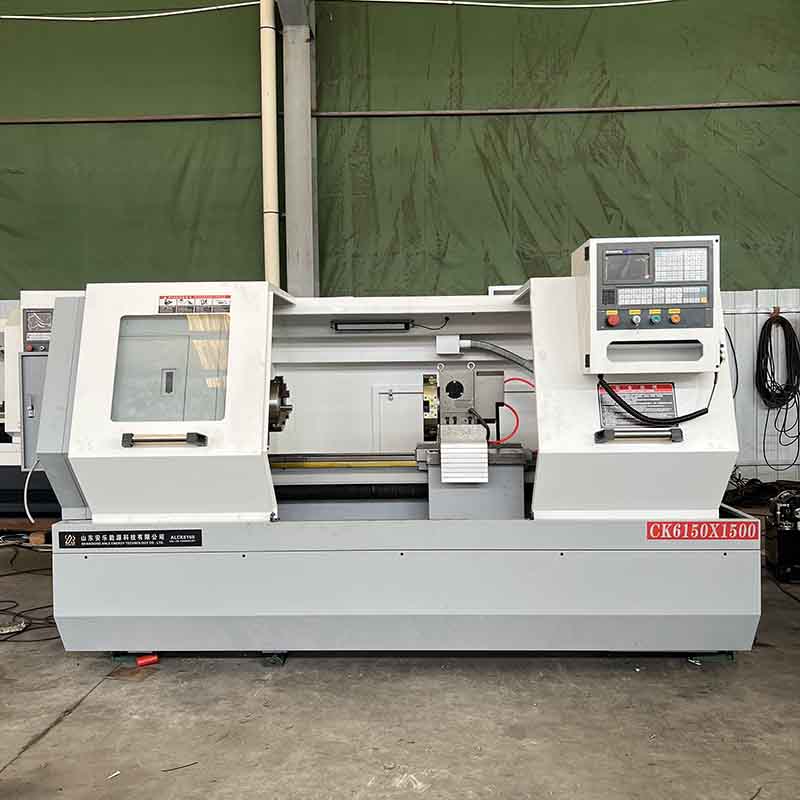

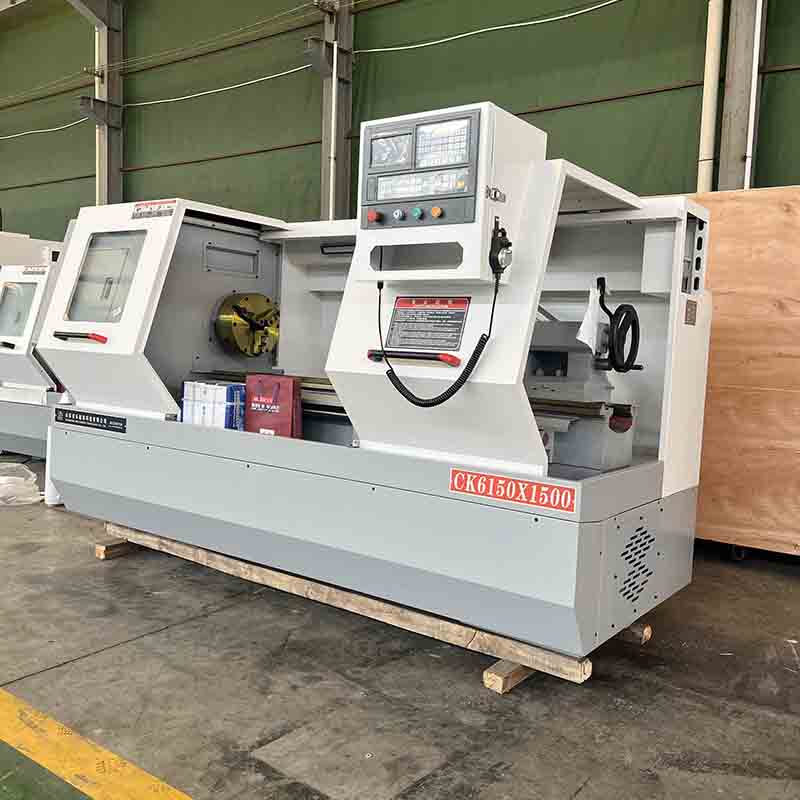

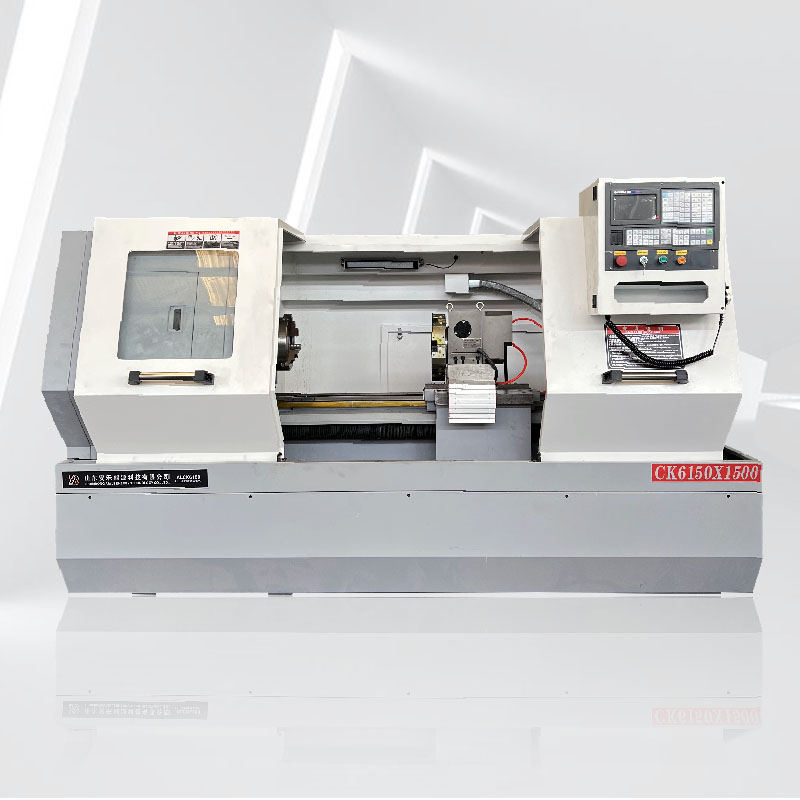

ALHAASES CNC turning machine integrates turning, milling, drilling, tapping and other functions with one device, and can perform compound processing such as end face and side face milling, drilling, tapping, etc. CNC turning machine is especially suitable for complex shapes and high precision requirements The machining of rotary parts.

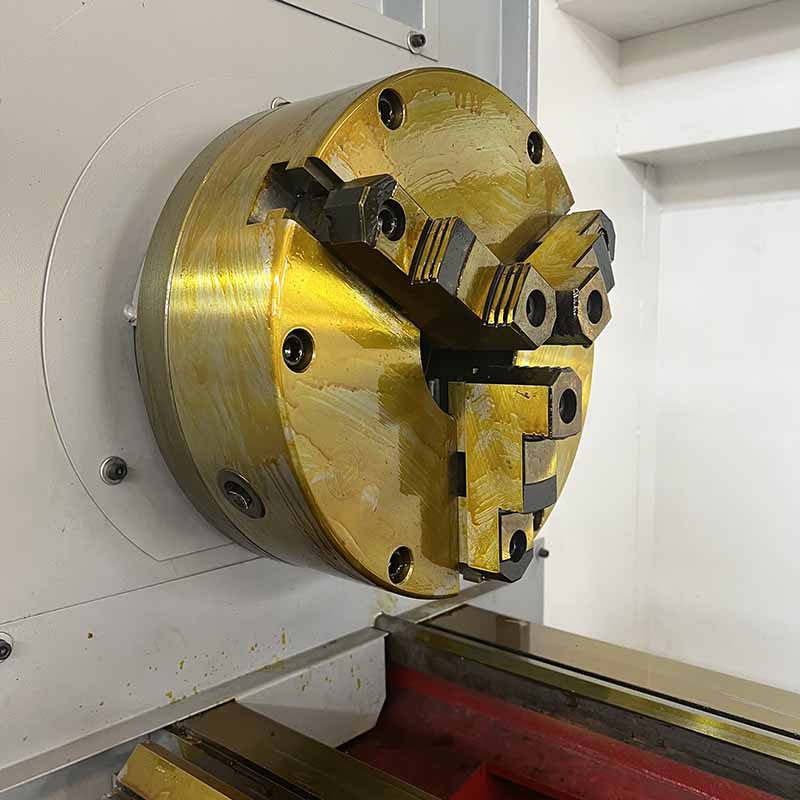

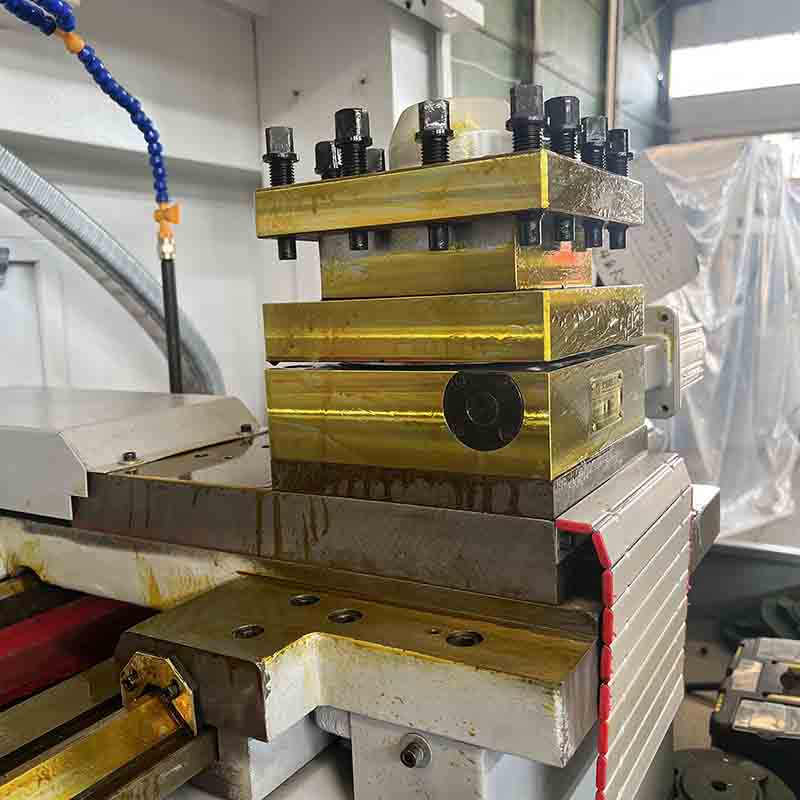

The CNC turning machine is designed with a flexible spindle clamping auxiliary mechanism, which improves the rigidity of the parts during processing. The direct tool change system saves the complicated steps of the tool change program and shortens the idling time of the tool change, achieving efficient processing and saving costs for users.
Product Application Industry
The cnc turning lathe realizes complex, precise, small batch and multi-variety parts processing, and is a flexible and high-efficiency automatic machine tool. cnc turning lathe is especially suitable for processing complex parts or high-precision mass parts.
cnc turning lathe is suitable for high-efficiency and powerful precision machining of disk and shaft parts in industries such as automobiles, aerospace, national defense, ships, petroleum, and general machinery.
Video
Product Parameter
| Item | Unit | CK6150*1500 |
| Max swing over bed | mm | Φ500 |
| Maximum swing over slide | mm | Φ290 |
| Maximum cutting diameter | mm | Φ500 |
| Maximum processing length | mm | 1500 |
| X/Z axis maximum stroke | mm | 1500 |
| X/Z axis minimum displacement unit | mm | 0.001 |
| Spindle hole diameter | mm | Φ82 |
| Diameter of tailstock sleeve | mm | Φ65 |
