PRODUCT

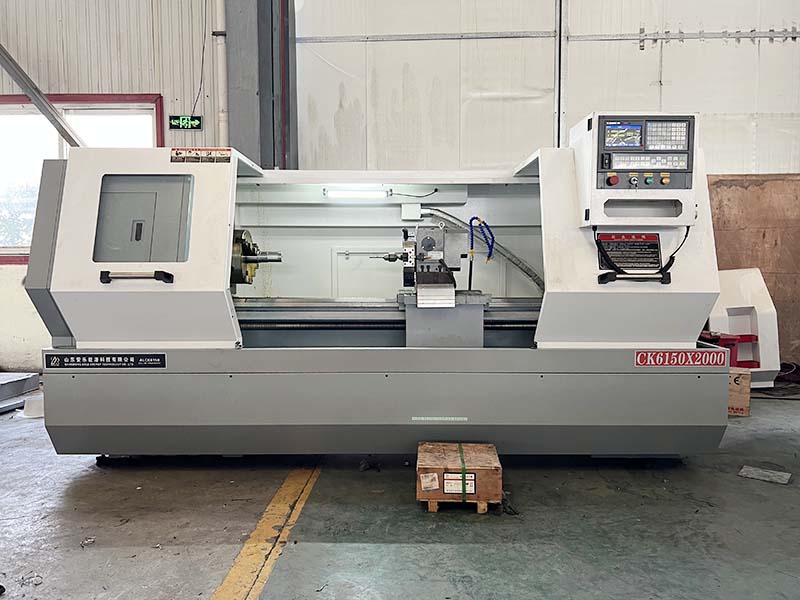

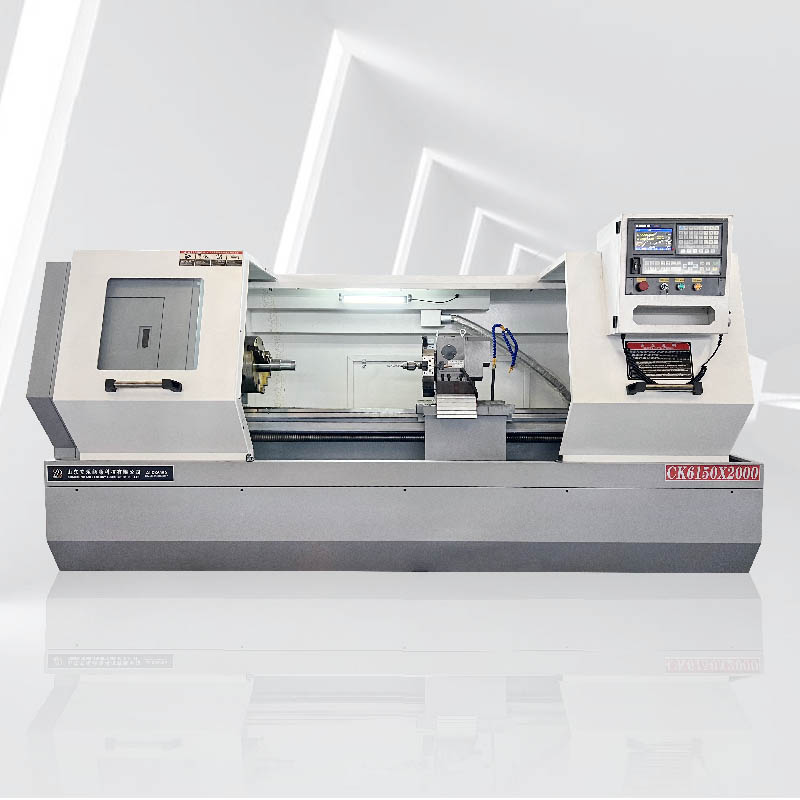

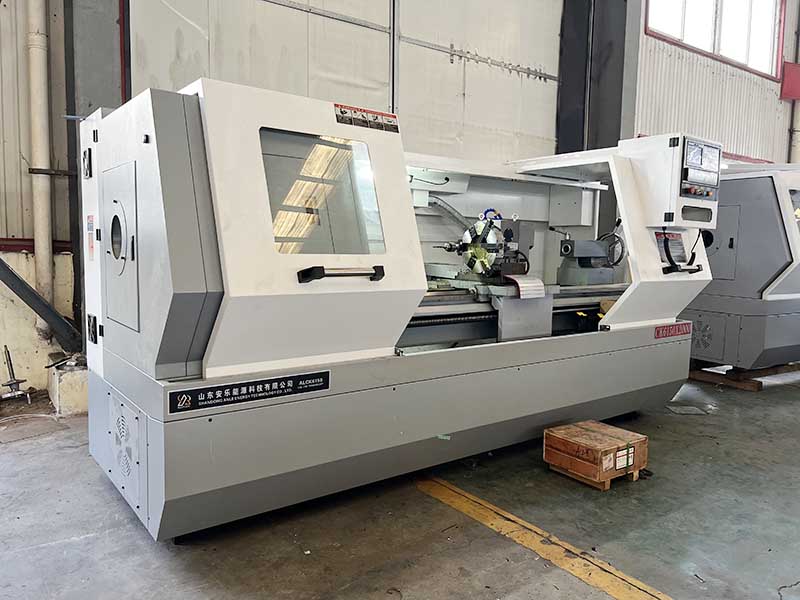

CK6150X2000 is suitable for machining long-axis workpieces, with a maximum machining length of 2000mm, which is very suitable for work scenarios that require long-distance turning. The bed structure is made of high-quality cast iron and has been aging treated to ensure the high rigidity and stability of the equipment.
CK6150X2000 is equipped with high-precision linear guides and ball screws, which can achieve high-precision machining and ensure repeatability. It can process a variety of shapes and complex parts, including outer circles, inner holes, end faces, threads, etc.
Features of CK6150X2000 CNC lathe
1. Due to the large processing length of CK6150X2000, it is very important to ensure the positioning and fixation of the workpiece. If necessary, use a center stand or a tool rest for support.
2. When programming CK6150X2000, the characteristics of long workpieces need to be considered to avoid processing errors caused by excessive deflection.
3. For CK6150X2000, choose the appropriate tool according to the workpiece material and processing requirements, and pay attention to tool wear during long-term processing. Since the workpiece is large, be sure to pay attention to safety during operation, especially during loading and unloading and processing, to prevent accidents.
Product Application Industry
1.CK6150X2000 is used for processing large shaft parts in mining machinery and equipment. In the power equipment industry, it is used for processing key parts such as rotor shafts and generator main shafts in power generation equipment. It is suitable for processing shaft parts in large transformers.
2.CK6150X2000 is used in the military industry to process key long shafts and large rotating parts in military equipment, such as missile launcher shafts and rotating parts of artillery.
3.CK6150x2000 CNC lathes are widely used in various industries, especially in industrial fields that require processing long shafts and large parts. Its high precision, high rigidity and large processing capacity enable it to effectively meet the processing needs of various complex parts in these industries.
Video
Product Parameter
| Item | Unit | CK6150X2000 |
| Max swing over bed | mm | Φ500 |
| Maximum swing over slide | mm | Φ290 |
| Maximum cutting diameter | mm | Φ500 |
| Maximum processing length | mm | 2000 |
| X/Z axis maximum stroke | mm | 2000 |
| X/Z axis minimum displacement unit | mm | 0.001 |
| Spindle hole diameter | mm | Φ82 |
