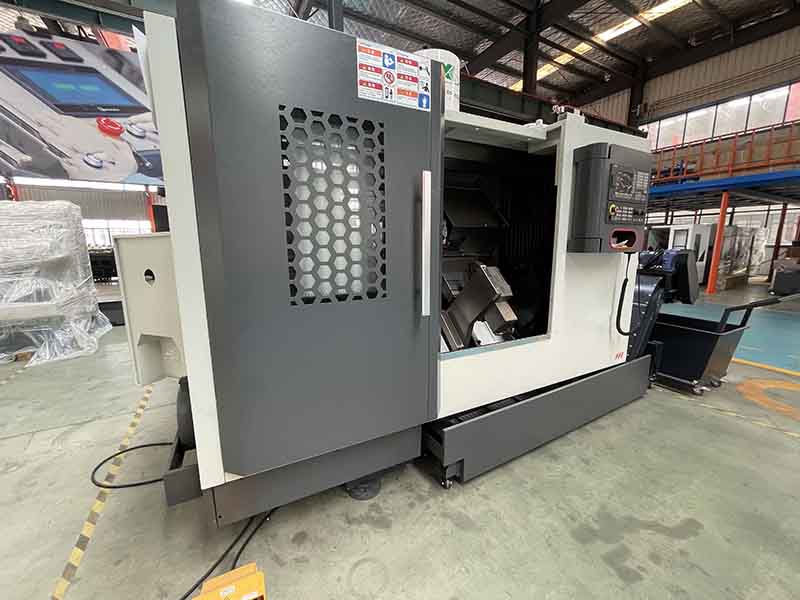

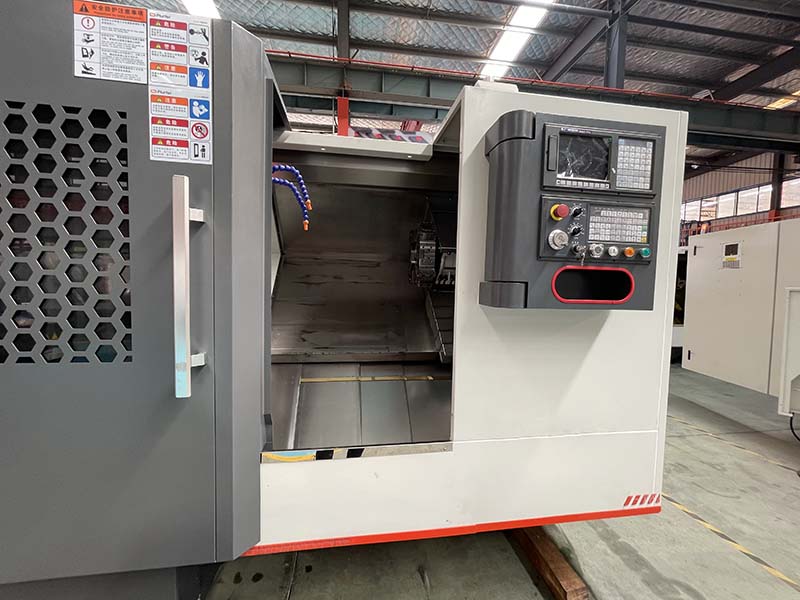

Slant Bed CNC Turning TCK56A
TCK56A Slant Bed CNC Turning is a high-precision, high-rigidity, and high-efficiency CNC machining equipment, which is widely used in the precision machining of various metal parts.The inclined bed structure (generally 45°) is rigid and has smooth chip removal, making it suitable for high-speed and efficient processing. The structure is more stable and has good shock resistance, which helps to improve processing accuracy. It is easy to achieve automatic loading and unloading and automatic chip removal, thereby improving the degree of automation.

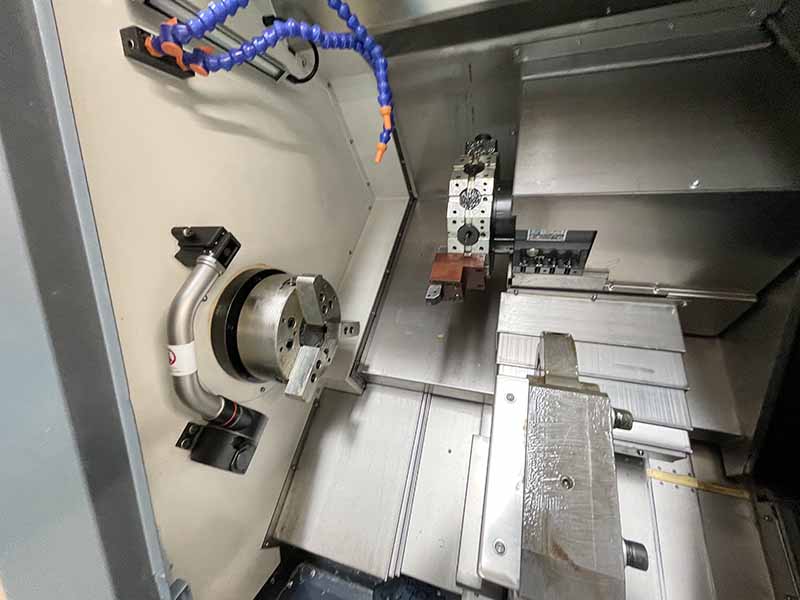

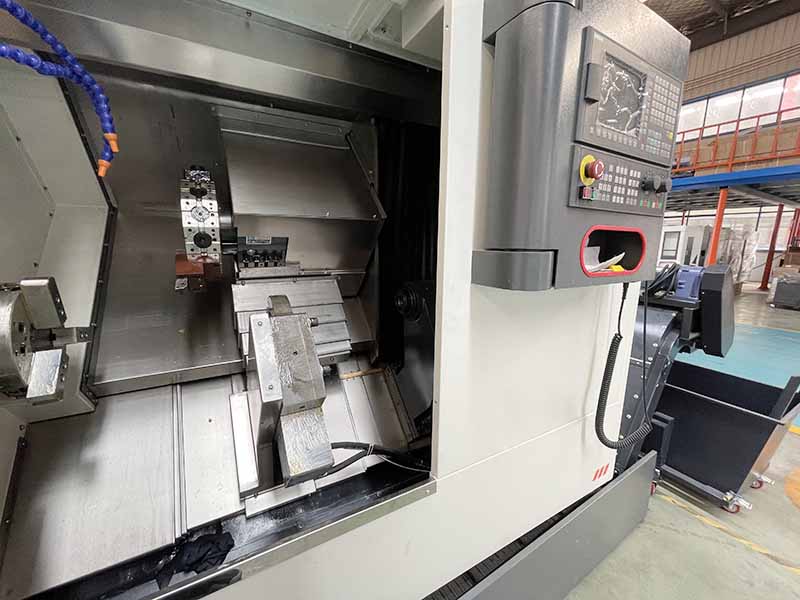

Slant Bed CNC Turning TCK56A, high-precision spindle unit, adopts high-precision spindle bearings, supports high speed and low noise operation; can be equipped with hydraulic or servo turrets, tool change is fast and accurate, and non-cutting time is reduced.
High-speed ball screw and linear guide: X/Z axis adopts high-precision ball screw and high-rigidity linear guide, with high positioning accuracy and fast dynamic response; with high repeatability positioning accuracy, it is suitable for mass production of complex precision parts.
Features of Slant Bed CNC Turning Center TCK56A:
TCK56A has a wide processing range. This type of machine tool usually has a multi-axis linkage function, which can complete a variety of processing tasks such as turning, drilling, tapping, etc., and adapt to diverse production needs.
Slant Bed CNC Turning TCK56A has automatic lubrication and centralized control. The automatic lubrication system effectively extends the service life of the machine tool. It is equipped with a CNC system (such as Fanuc, Siemens or domestic systems), with a friendly interface and easy operation.
Flexible optional configuration, automatic feeder, manipulator, chip conveyor, etc. can be added to achieve flexible production; support Y-axis, C-axis and other multi-functional expansion (some customized models).
Product Application Industry
Slant Bed CNC Turning TCK56A In the manufacturing of automotive parts, it processes engine shafts, gears, connecting shafts, clutch parts, etc. In aerospace, it is suitable for processing small and complex parts of lightweight and high-strength materials such as titanium alloys and aluminum alloys. In medical equipment, it is suitable for processing precision small accessories such as orthopedic screws, surgical instruments, etc. In hardware and precision machinery, it processes various metal parts such as shafts, sleeves, connectors, tool accessories, etc. In general machinery manufacturing, it processes motor housings, hydraulic components, fasteners, etc. in batches.
Video
Product Parameter
| Item | Unit | TCK56A |
| Max. swing dia. over bed | mm | Φ560 |
| Max. swing dia. over slide | mm | Φ300 |
| Max. processing length | mm | 500/1000 |
| Spindle speed | rpm | 4000 |
| Spindle hole diameter | mm | 65 |
| Weight | KG | 4250 |
| Machine size | mm | 2950/3450×1860×1850 |
