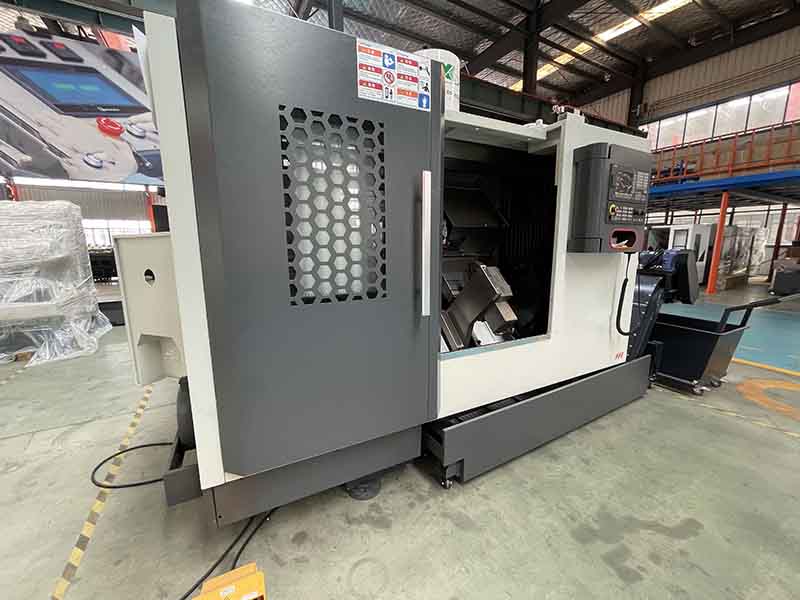

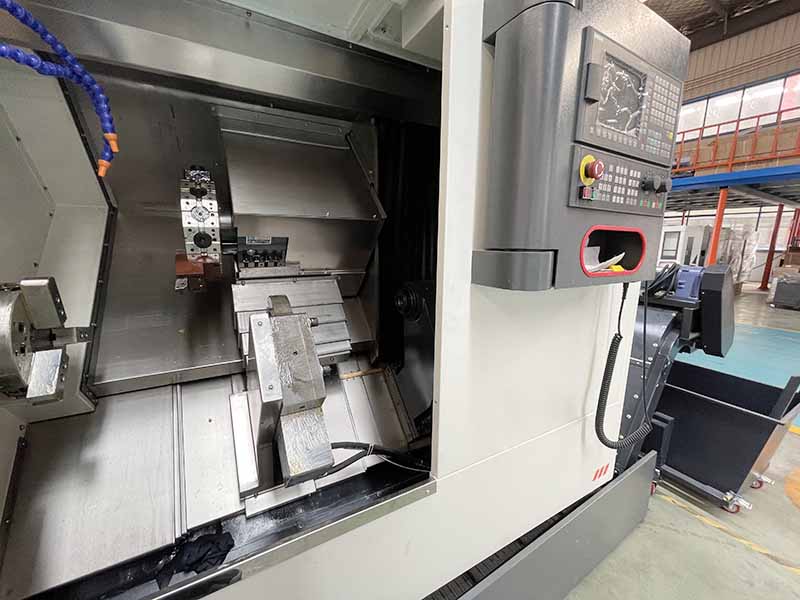

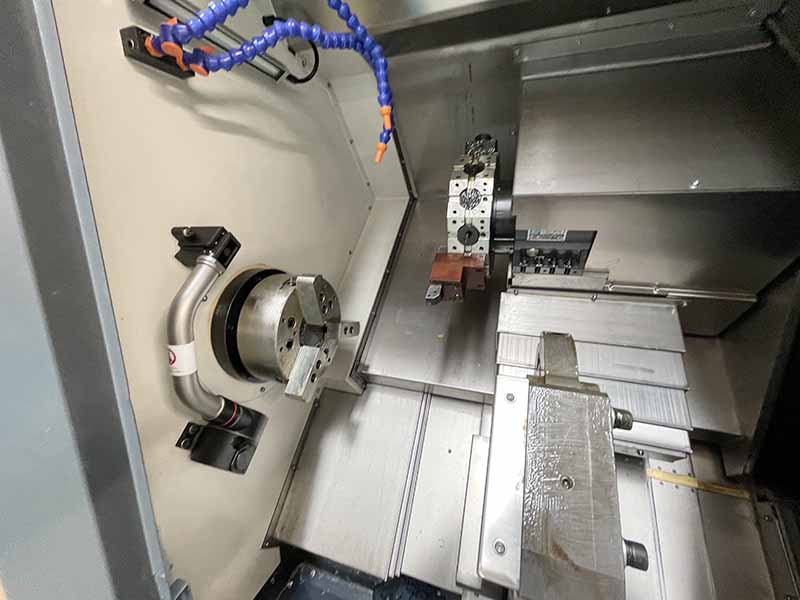

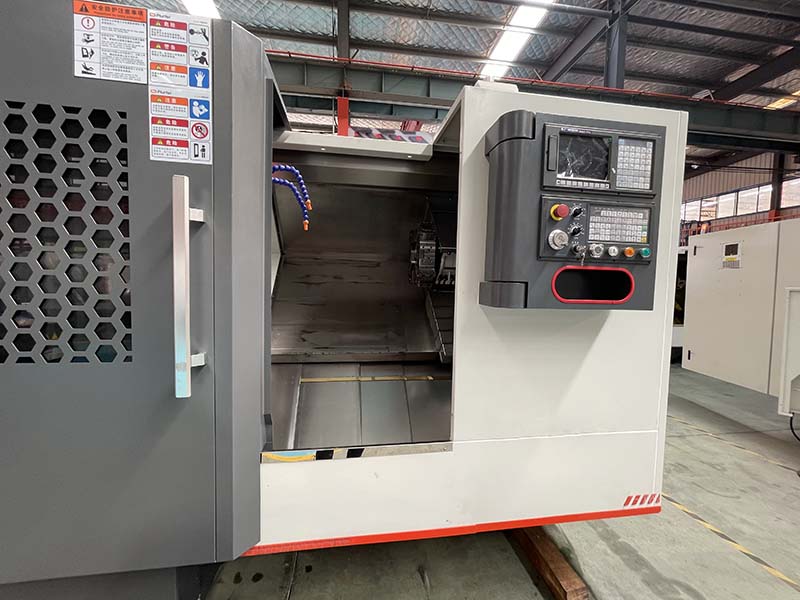

TCK56A Slant Bed CNC Turning
The TCK56A inclined bed design improves the overall rigidity and vibration resistance of the machine tool, helping to maintain stability and precision during processing. Due to the inclination of the bed, the chips can slide naturally, reducing the possibility of chip accumulation, improving the cleanliness of the working environment, and also helping to extend the life of the tool.
TCK56A is usually equipped with a high-precision spindle and servo motor, which can achieve high-precision processing, especially suitable for precision processing of complex parts.
TCK56A has high efficiency, and the inclined bed design optimizes the clamping and processing process of the workpiece, making the replacement and positioning of the workpiece faster and reducing the processing time.
Features of Slant Bed CNC Turning Center TCK56A:
TCK56A has a wide processing range. This type of machine tool usually has a multi-axis linkage function, which can complete a variety of processing tasks such as turning, drilling, tapping, etc., and adapt to diverse production needs.
TCK56A has a high degree of automation and is equipped with an advanced CNC system. It supports automatic tool change and automatic operation of processing programs, further improving production efficiency and consistency.
TCK56A has good stability, the center of gravity of the inclined bed is lower, the machine tool runs more smoothly, reduces vibration during high-speed processing, and helps to extend the service life of the machine tool.
Product Application Industry
Small CNC lathes slowly cut material from a workpiece, producing a precise finished or complex part. Many industries use these machines because of their flexible equipment.
Slant-bed CNC lathe machining can produce both flat and threaded parts. In the case of alloy wheel CNC lathes, machine shops can produce three-dimensional parts, the complexity of which varies greatly depending on how the CNC lathe for sale is constructed.
CNC lathe turning is very precise for both small and large workpieces. Typically, the workpiece is held in place on a single or CNC turning center. If necessary, the machinist can also install a chuck or fixture to hold the workpiece.
Video
Product Parameter
| Item | Unit | TCK56A |
| Max. swing dia. over bed | mm | Φ560 |
| Max. swing dia. over slide | mm | Φ300 |
| Max. processing length | mm | 500/1000 |
| Spindle speed | rpm | 4000 |
| Spindle hole diameter | mm | 65 |
| Weight | KG | 4250 |
| Machine size | mm | 2950/3450×1860×1850 |
