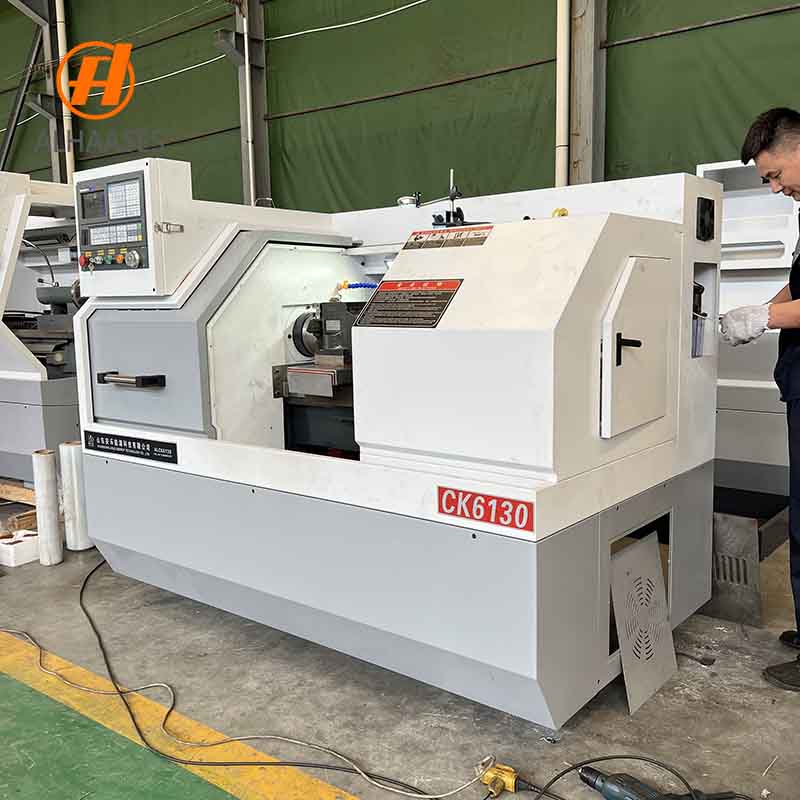

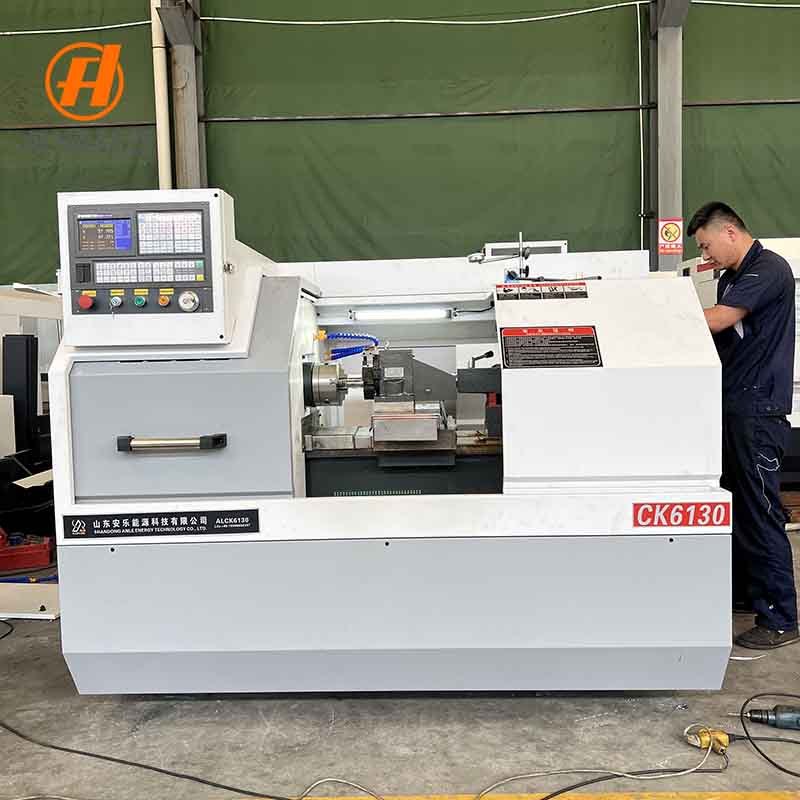

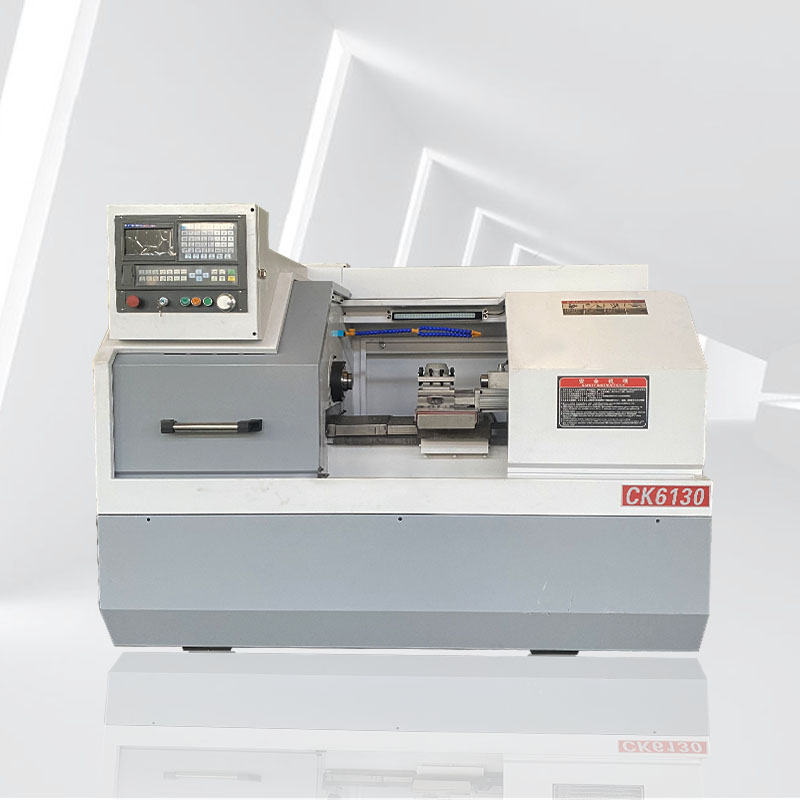

The CK series CNC turning center is affordable, easy to use, and has the precise control and flexibility of the FANUC CNC system. Easy to learn and easy to operate, it is ideal for starting a workshop, or as an initial investment in switching to CNC machining.
Application of CNC Turning Lathe

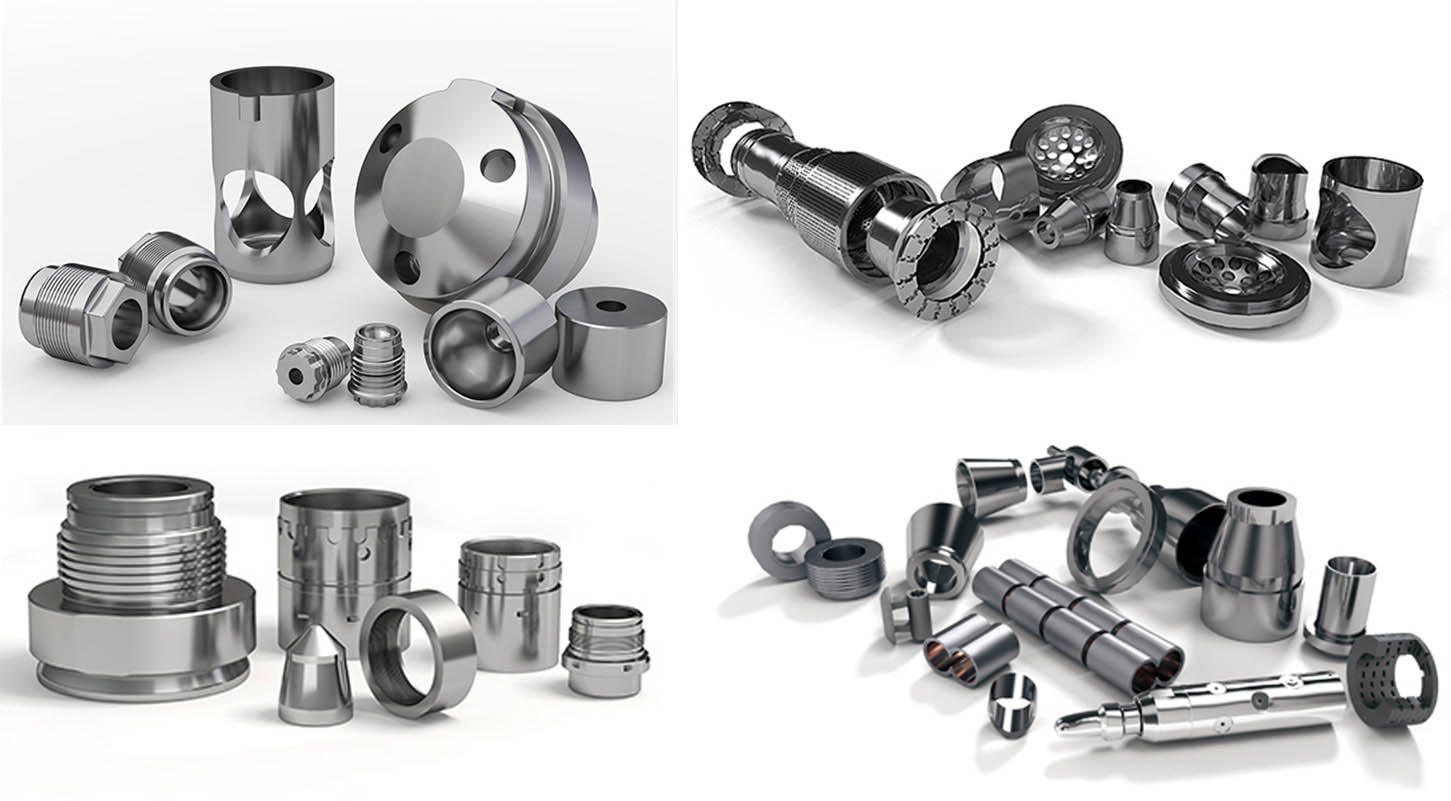

CNC turning lathe can machine high precision and complex parts by turning and milling.
CNC turning lathe is versatile and can machine high-precision parts in many industries. Including automotive, electronics, aerospace, gun manufacturing, sports, motorcycle parts & accessories, etc.
The Mini cnc lathe can produce flat surfaces and threads or, in the case of special custom lathes, quite complex three-dimensional products.

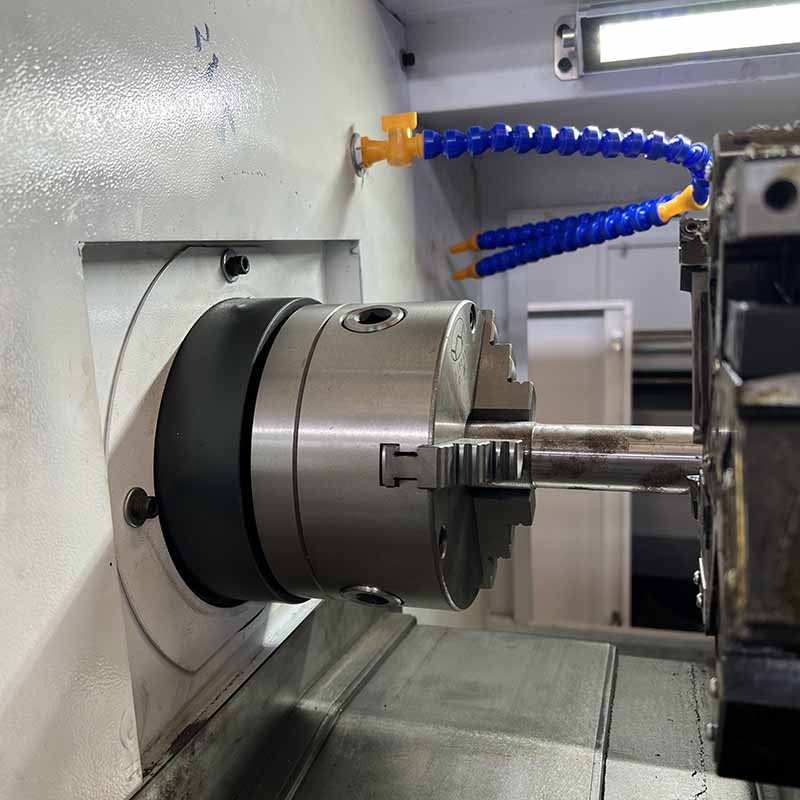

The cnc lathe machine can be used for small and large parts with great precision. The workpiece is usually held firmly in place by one or two centers, but the material can also be held in place with collets or jigs.
Some of the items the Mini cnc lathe can make include baseball bats, camshafts, bowls, crankshafts, clubs, signs, musical instruments, and table and chair legs.
Video
Product Parameter
| Item | Unit | CK6130 |
| Max swing over bed | mm | Φ300 |
| Maximum swing over slide | mm | Φ130 |
| Spindle hole diameter | mm | Φ48 |
| With hollow chuck pull rod through hole | mm | Φ40 |
| Spindle speed limit | rpm | 2200 |
| X stroke | mm | 280 |
| Z stroke | mm | 500 |
| X axis repeat positioning accuracy | mm | 0.01 |
| Z axis repeat positioning accuracy | mm | 0.01 |
| Dimensions (length × width × height) | mm | 1600×1100×1650 |
