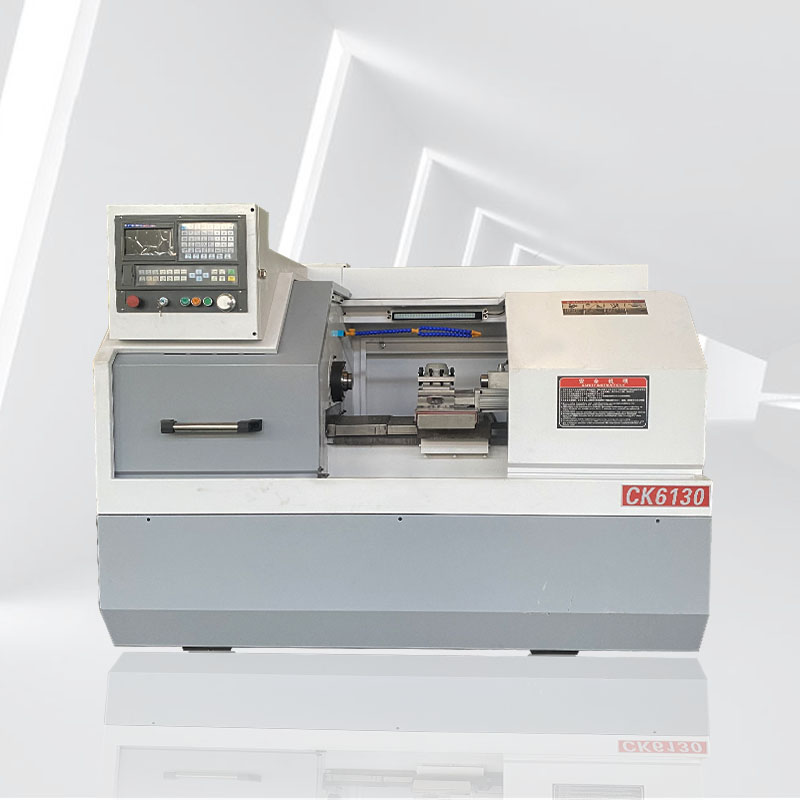

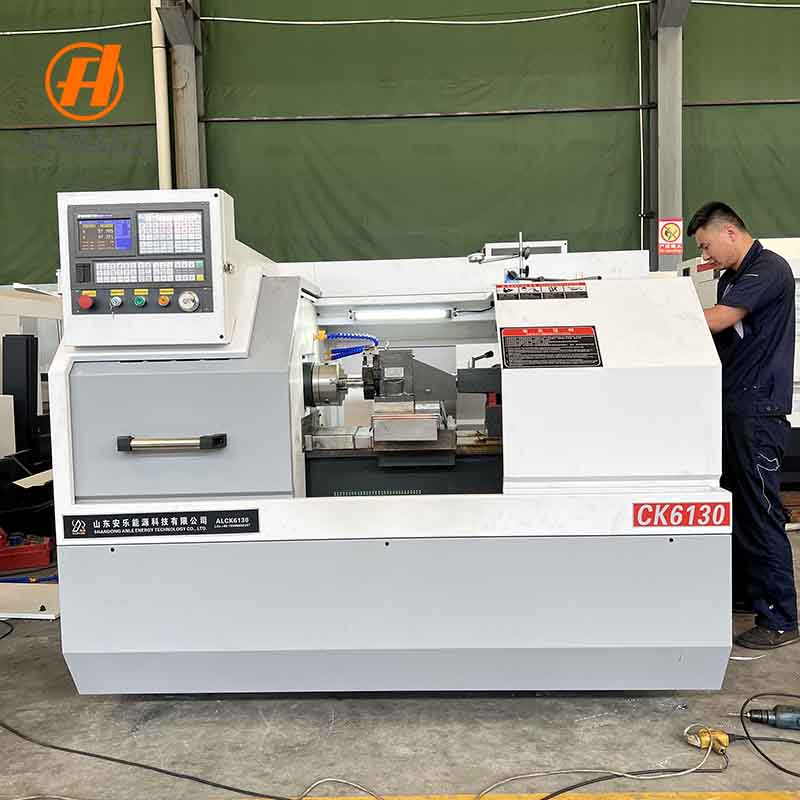

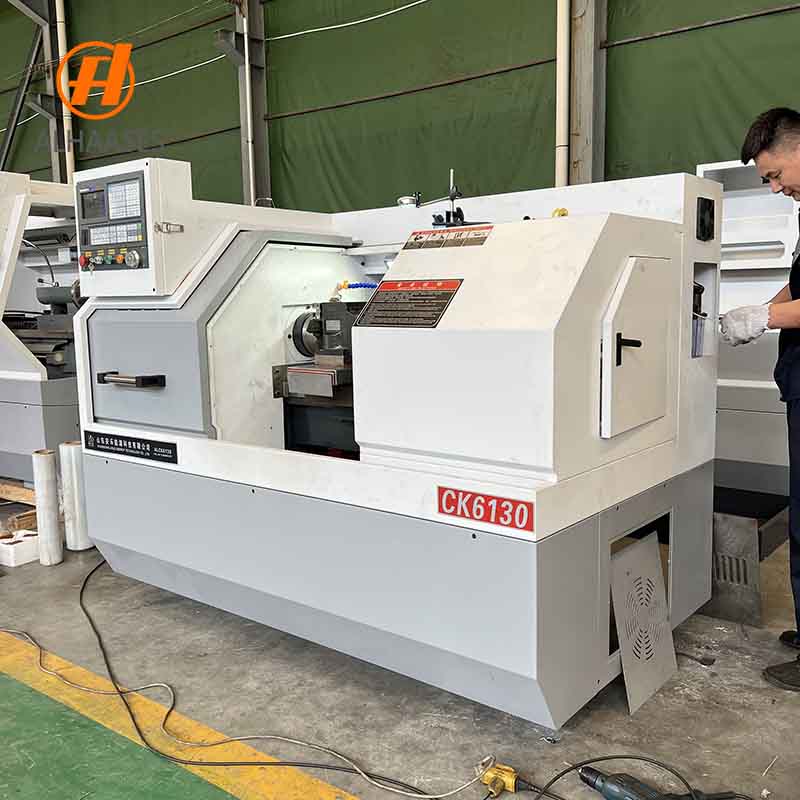

CK6130 small cnc lathe
CK6130 small CNC lathe has become an indispensable precision processing equipment in many industries due to its high precision, high efficiency, versatility and good stability. It is widely popular in the field of mechanical processing.
The automation function of the CK6130 CNC lathe supports automatic tool changing system and automatic measurement function, which reduces manual operation and improves production efficiency and processing accuracy.
In terms of versatility, the CK6130 CNC lathe is equipped with a multi-station turret, which can perform a variety of processing operations such as turning, drilling, boring, etc., and has strong adaptability.
The CNC lathe has a good cooling system: the advanced cooling system effectively reduces the heat generated during the processing, prolongs the tool life, and improves the processing quality.
CK6130 CNC Lathe Of Features
1. Wide processing range: It can process parts of various materials, such as steel, aluminum, copper, plastic, etc., with strong adaptability.
2. Cost saving: High-efficiency processing capacity and automation function reduce production cycle and labor cost, and improve production efficiency.
3. High reliability: The use of high-quality components and structural design ensures the long-term stable operation and low failure rate of the machine tool.
4. Suitable for small batch production: Due to its high precision and versatility, it is suitable for small batch and multi-variety production needs, with high flexibility.
CNC Lathe Specifications
| Item | Unit | CK6130 |
| Max swing over bed | mm | Φ300 |
| Maximum swing over slide | mm | Φ130 |
| Spindle hole diameter | mm | Φ48 |
| With hollow chuck pull rod through hole | mm | Φ40 |
| Spindle speed limit | rpm | 2200 |
| X stroke | mm | 280 |
| Z stroke | mm | 500 |
| X axis repeat positioning accuracy | mm | 0.01 |
| Z axis repeat positioning accuracy | mm | 0.01 |
| Dimensions (length × width × height) | mm | 1600×1100×1650 |
Standard：
CNC systems: GSK CNC systems
Turret: Four-station turret

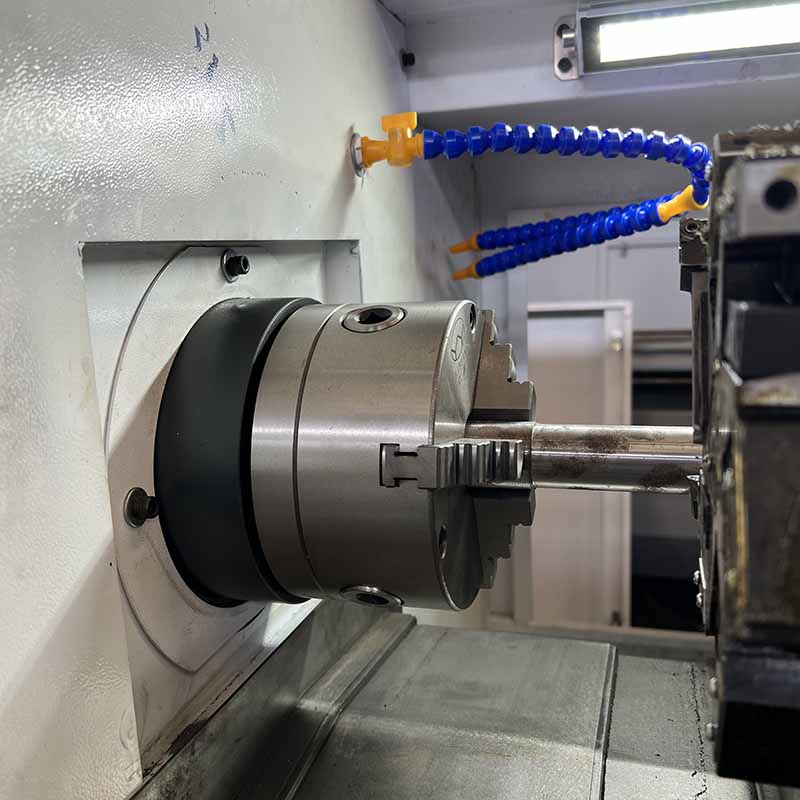

Chuck: Manual three-jaw chuck
Optional：
CNC systems: Fanuc, Siemens and other CNC systems
Chuck: Hydraulic chuck

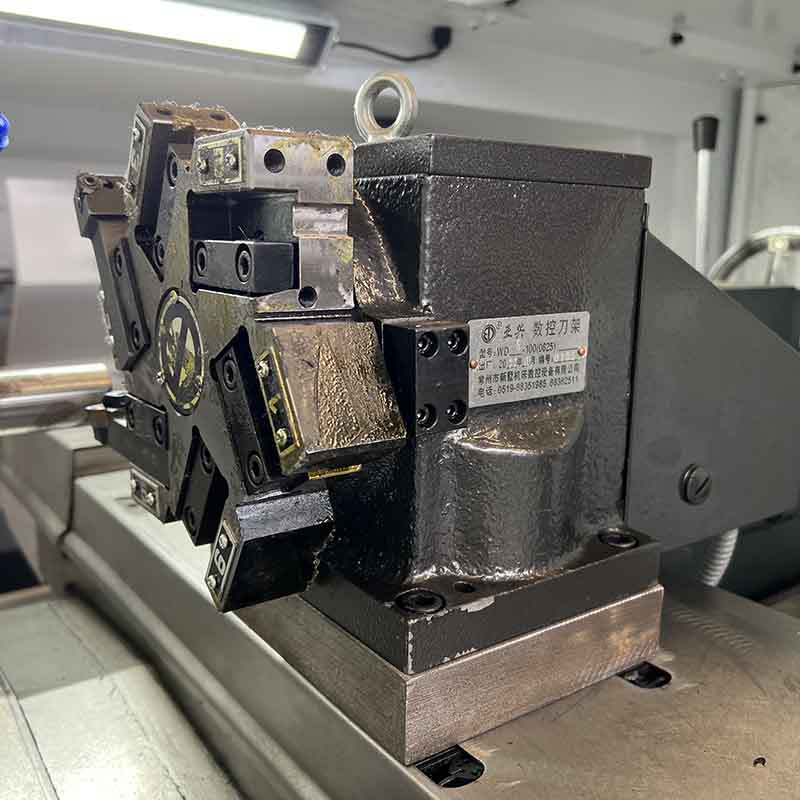

Turret: 6/8/12 station turret
Feeding device: Automatic Bar Feeder
