PRODUCT

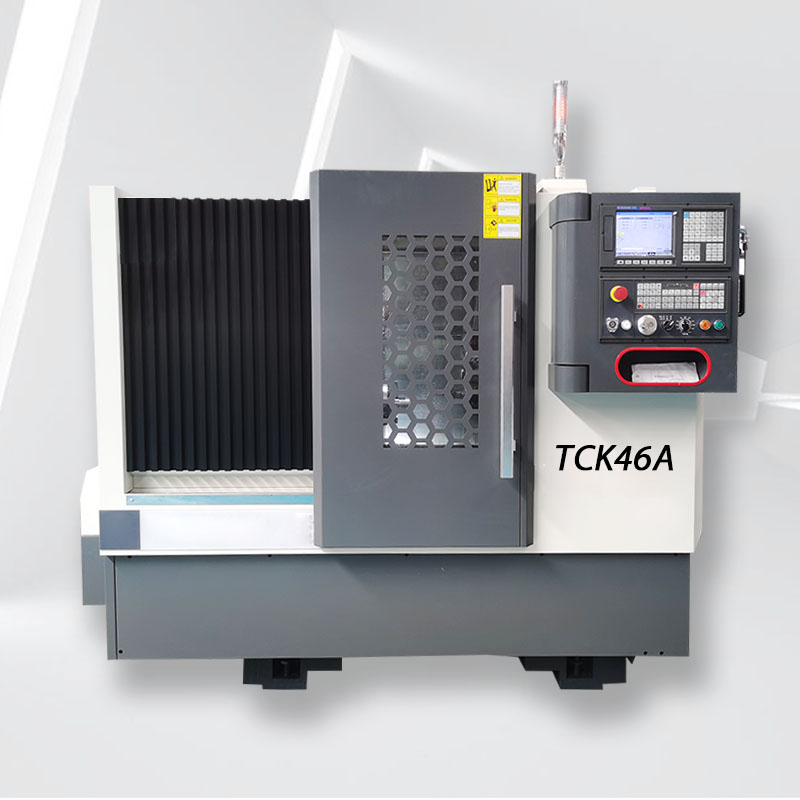

Slant Bed CNC Lathe For Metal TCK46A
ALHAASES CNC Slant Bed CNC Lathe can realize various processes such as turning and drilling of the outer circle, end face, thread and other parts of various materials such as shafts and discs, and is suitable for efficient processing and manufacturing of small parts.
ALHAASES CNC Slant Bed CNC Lathe is a resin sand process casting the whole bed, after aging treatment, beautiful appearance, good rigidity and high precision
ALHAASES CNC Slant Bed CNC Lathe adopts a 45° inclined bed and linear guides, which can move faster and improve machining accuracy
Slant Bed CNC Lathe adopts high-quality scraper plate to prevent the guide rail from being scratched, and the guide rail surface is plastic-coated, with good wear resistance and high precision
Product Features:
45 degree inclined bed
Higher speed spindle unit,Optional homemade spindle
Higher rigidity cast iron
Integrated automatic lubrication
One-piece Casting slant bed CNC lathe
optional power turret
Product Application Industry
TCK series inclined Bed CNC Lathe adopts inclined bed, which is suitable for processing various small and medium shaft and disc workpieces. It has the characteristics of simple programming, reliable structure, convenient operation and high degree of automation.
Inclined Bed CNC Lathe is suitable for turning various internal and external turning Cylindrical surface, conical surface, arc surface and other rotating surfaces, and used for turning various threads, are commonly used high-efficiency CNC machining equipment in the field of machining.
Video
Product Parameter
| Item | Unit | TCK46A |
| Max. swing dia. over bed | mm | Φ460 |
| Max. swing dia. over slide | mm | Φ260 |
| Max. processing length | mm | 350 |
| Spindle speed | rpm | 3500 |
| Spindle hole diameter | mm | 56 |
| Weight | KG | 3000 |
| Machine size | mm | 2500×1700×1890 |
