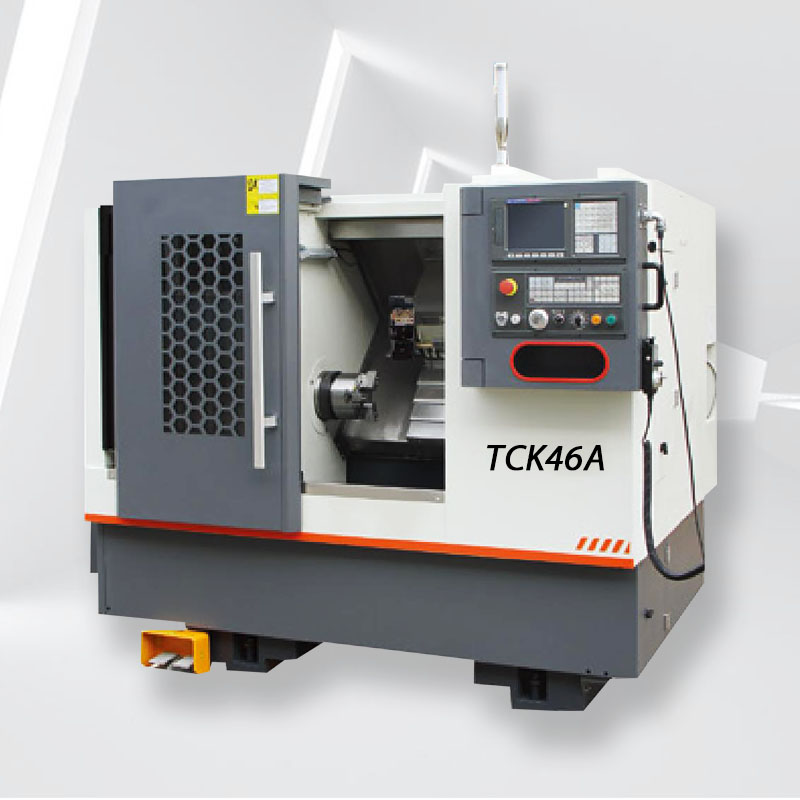

Slant Bed CNC Lathe TCK46A
ALHAASES CNC Slant Bed CNC Lathe can realize various processes such as turning and drilling of the outer circle, end face, thread and other parts of various materials such as shafts and discs, and is suitable for efficient processing and manufacturing of small parts.
Inclined Bed CNC Lathe is a high-speed, high-precision, high-reliability inclined bed lathe. The main components such as the bed frame, the bed, and the spindle box are all cast with high-strength materials to ensure the long-term stability of the machine tool.
The inclined Bed CNC Lathe adopts a 45° overall inclined bed structure and is equipped with high-precision pre-tightened Taiwan linear rolling guides. The machine tool has high positioning accuracy and smooth chip removal, and is suitable for high-speed and high-precision machining.
Product Features
1.Slant Bed CNC Lathe linear rolling guide meets high-speed and high-efficiency requirements, reduces frictional resistance and temperature rise deformation, improves machining accuracy, and can ensure long-term stability of cutting machining accuracy.

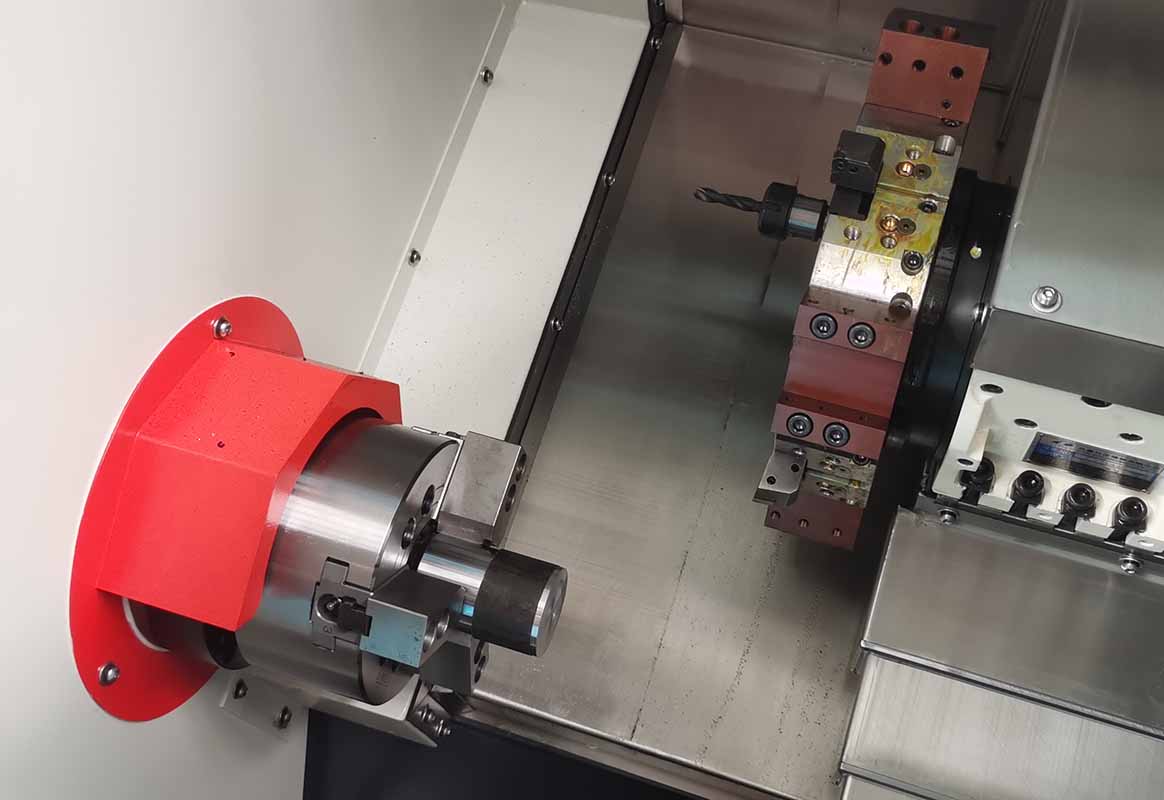

2. Slant Bed CNC Lathe adopts domestic or imported high-rigidity horizontal turret tool post, which has high positioning accuracy and small deformation during heavy cutting.
3. Standard configuration of CNC slant bed lathe: stepless spindle speed regulation, hydraulic chuck, hydraulic tailstock, horizontal eight-station tool holder, closed protection.
Product application industry
CNC lathes can be used in various fields such as aerospace, metallurgy, automobile industry, rail transit, medical care, education, construction machinery, clean sources, machine tools, and machine tools.
Video
Product Parameter
| Item | Unit | TCK46A |
| Max. swing dia. over bed | mm | Φ460 |
| Max. swing dia. over slide | mm | Φ260 |
| Max. processing length | mm | 350 |
| Spindle speed | rpm | 3500 |
| Spindle hole diameter | mm | 56 |
| Weight | KG | 3000 |
| Machine size | mm | 2500×1700×1890 |
