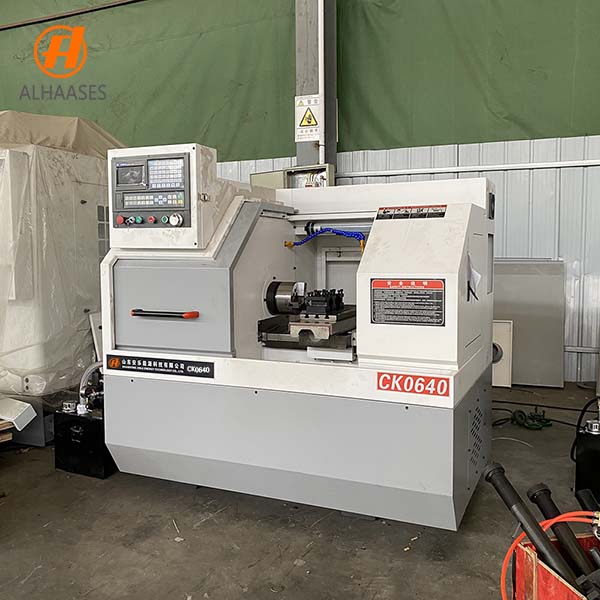

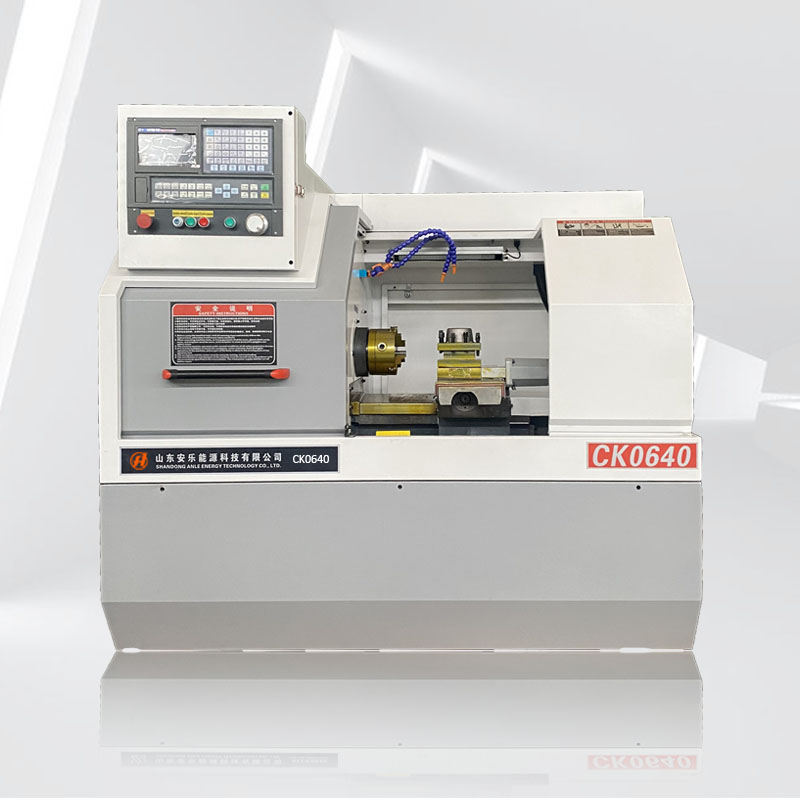

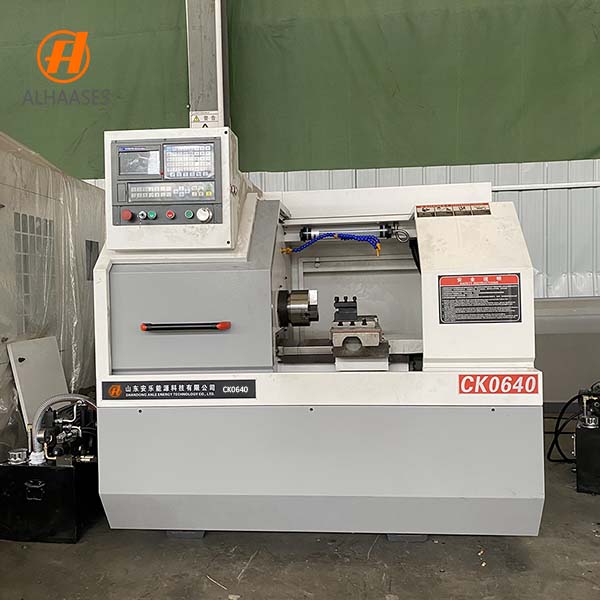

cnc mini lathe CK0640
The 0640 CNC lathe is generally a small device with a small footprint, suitable for factories or workshops with limited space.This type of lathe uses a high-precision ball screw and guide rail system, which can achieve micron-level processing accuracy and is suitable for the production of precision parts.
The CK0640 CNC lathe is equipped with a user-friendly CNC system with simple programming operations, and is suitable for mass production and personalized customized parts processing.
The lathe has a compact structure and good rigidity, which can maintain stable processing performance under high load and reduce vibration and errors.
The CK0640 CNC lathe can perform a variety of turning operations, such as turning outer circles, inner holes, threads, grooving, etc., and is suitable for a variety of processing techniques.
Due to its high processing accuracy and high degree of automation, the 0640 CNC lathe can significantly improve processing efficiency and reduce manual intervention and defective products.
Features of CK0640 CNC lathe
The CK0640 small CNC lathe has a relatively low price and low maintenance cost, making it very suitable for small and medium-sized enterprises and individual processing households.
The processing program can be quickly changed to meet the production needs of different products, especially suitable for small batch and multi-variety production mode.
Due to its high precision, the 0640 CNC lathe can reduce material waste and energy consumption, making the processing process more environmentally friendly.
Product application industry
CK0640 small CNC lathe is used to process small precision parts such as housings, connectors, screws, etc. of electronic components.
Processing small automotive parts such as bushings, bearing seats, nuts, etc.
Precision parts in the medical industry, such as surgical instruments and medical instrument parts, can be processed by 0640 CNC lathe.
The watch industry has extremely high requirements for the precision of parts. 0640 CNC lathe can process precision parts such as watch cases and watch bracelets.
Used to produce some small aerospace parts, requiring high precision and reliability.
Product Parameter
| Item | Unit | CK0640 |
| Max swing over bed | mm | Φ250 |
| Maximum swing over slide | mm | Φ120 |
| Spindle hole diameter | mm | Φ48 |
| With hollow chuck pull rod through hole | mm | Φ40 |
| Z stroke | mm | 220 |
| Dimensions (length × width × height) | mm | 1620×1340×1680 |
Standard:
CNC systems: GSK CNC systems

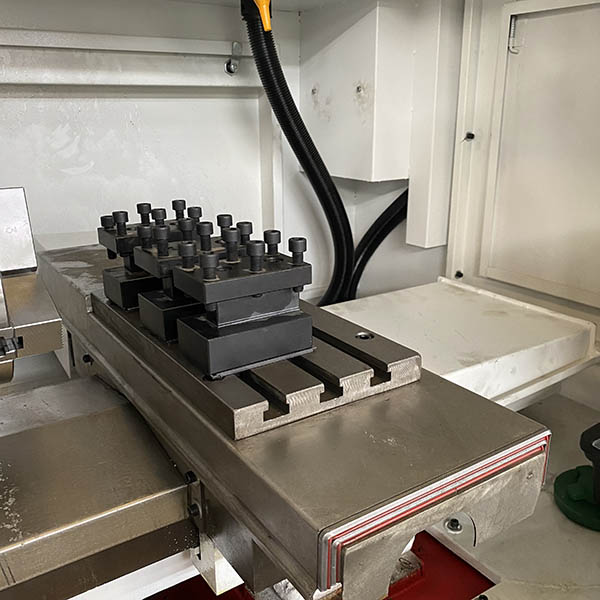

Turret: Tool holder

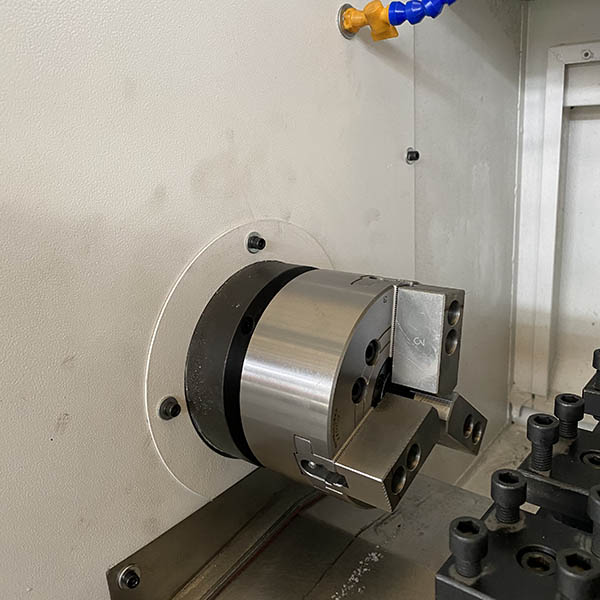

Chuck: Manual chuck
Optional:
CNC systems: Fanuc, Siemens and other CNC systems
Chuck: Hydraulic chuck
Turret: Four-station turret
Feeding device: Automatic Bar Feeder
