PRODUCT
Mini CNC lathes typically have multiple functions and can perform various machining operations such as turning, drilling, and threading. By changing tools and adjusting programs, they can meet different machining requirements and enhance production flexibility.
Mini CNC lathes usually have multiple machining functions, including turning, boring, threading, milling, and more. They are suitable for small-batch and multi-variety machining needs.

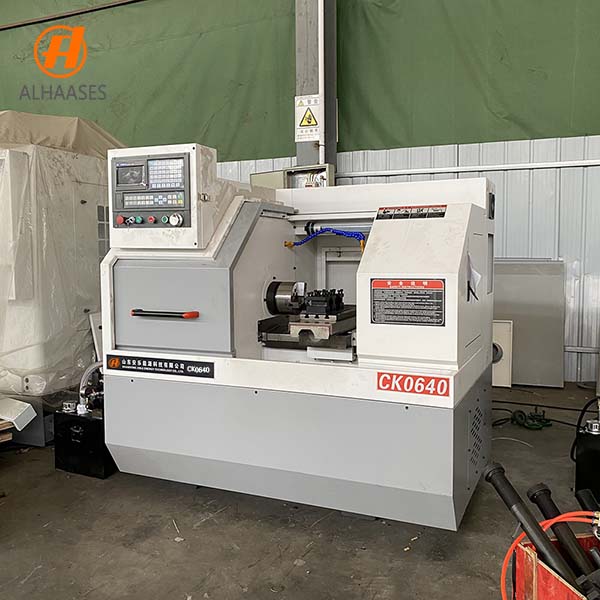

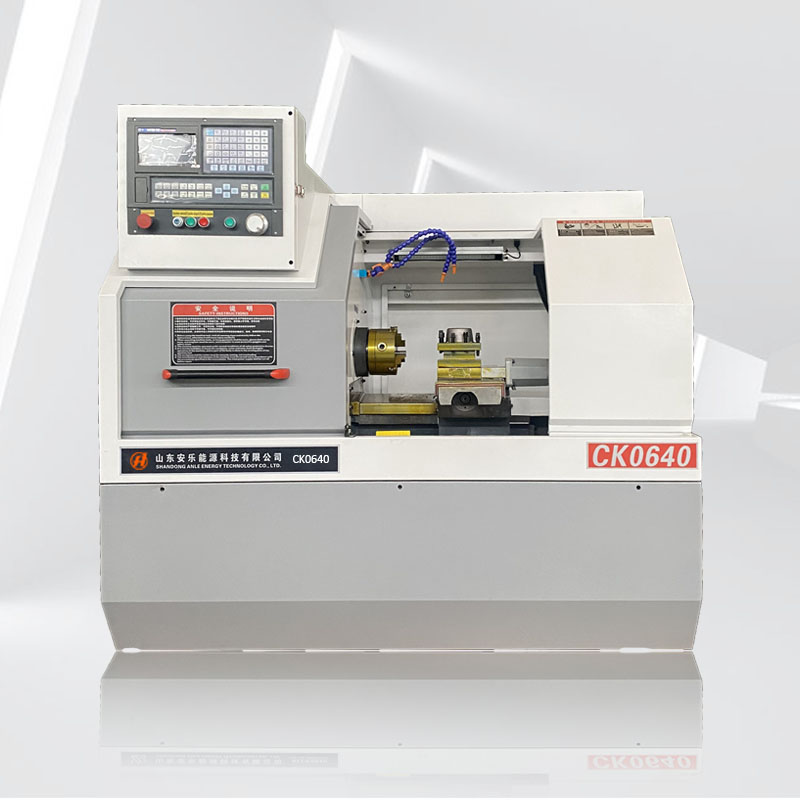

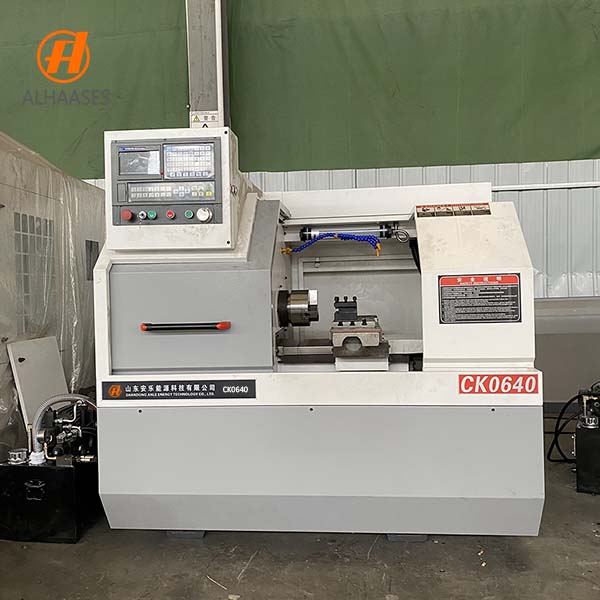

Features of CK0640 CNC lathe
1.CNC turning machine typically adopt high-precision guideways, ball screws, and other transmission devices, allowing them to achieve high machining accuracy and repeatable positioning accuracy, making them suitable for precision machining tasks with high requirements for workpieces.
2.The CNC system has high precision and repeatability, enabling it to achieve high-precision machining. Compared to manual operations, CNC lathes can control the tool's position, speed, and cutting parameters more stably, thereby improving machining quality and workpiece consistency.
3.CNC turning machine can be integrated with other automation equipment, sensors, and robots to achieve automation and intelligence in the production line. This improves production efficiency, continuity, and intelligence.
Product application industry
CNC lathes play a crucial role in the automotive manufacturing industry. They are used for machining engine components, brake systems, suspension systems, transmission systems, and body components, among others. CNC lathes efficiently handle complex machining tasks, enhancing production efficiency and product quality.
In the aerospace industry, CNC lathes are utilized for machining aircraft engine components, wings, and other complex aerospace parts. These components often require high precision and quality machining, which can be achieved with CNC lathes.
Product Parameter
| Item | Unit | CK0640 |
| Max swing over bed | mm | Φ250 |
| Maximum swing over slide | mm | Φ120 |
| Spindle hole diameter | mm | Φ48 |
| With hollow chuck pull rod through hole | mm | Φ40 |
| Z stroke | mm | 220 |
| Dimensions (length × width × height) | mm | 1620×1340×1680 |
Standard：
CNC systems: GSK CNC systems

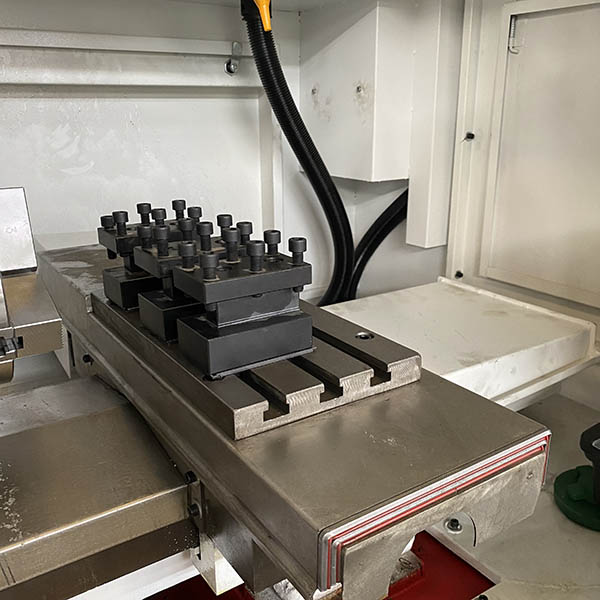

Turret: Tool holder

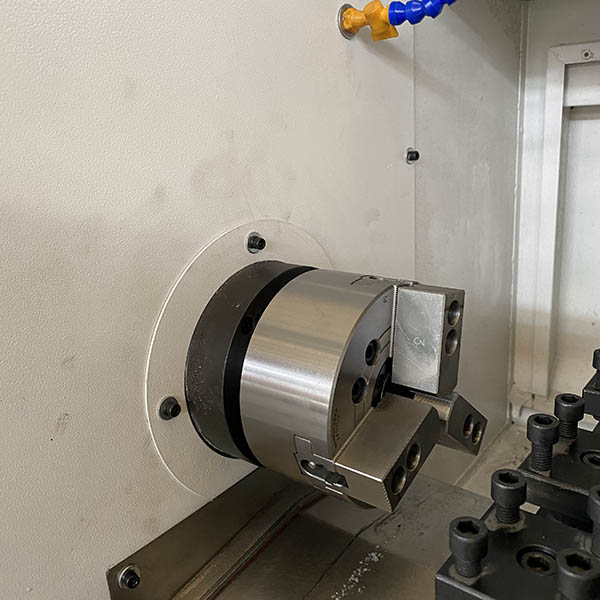

Chuck: Manual chuck
Optional：
CNC systems: Fanuc, Siemens and other CNC systems
Chuck: Hydraulic chuck
Turret: Four-station turret
Feeding device: Automatic Bar Feeder
