PRODUCT
Precise control: The operation of the flat car can be precisely controlled by the CNC system, which can achieve high-precision positioning and movement.
High degree of automation: The CNC flat car can be pre-programmed to achieve automated operation, reduce manual intervention, and improve work efficiency.
Versatility: Different tools and accessories can be configured as needed to adapt to different work tasks, such as handling, loading and unloading, stacking, etc.

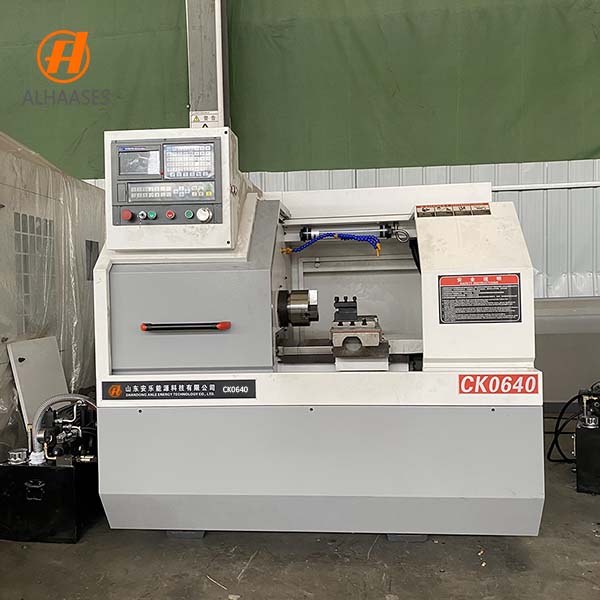

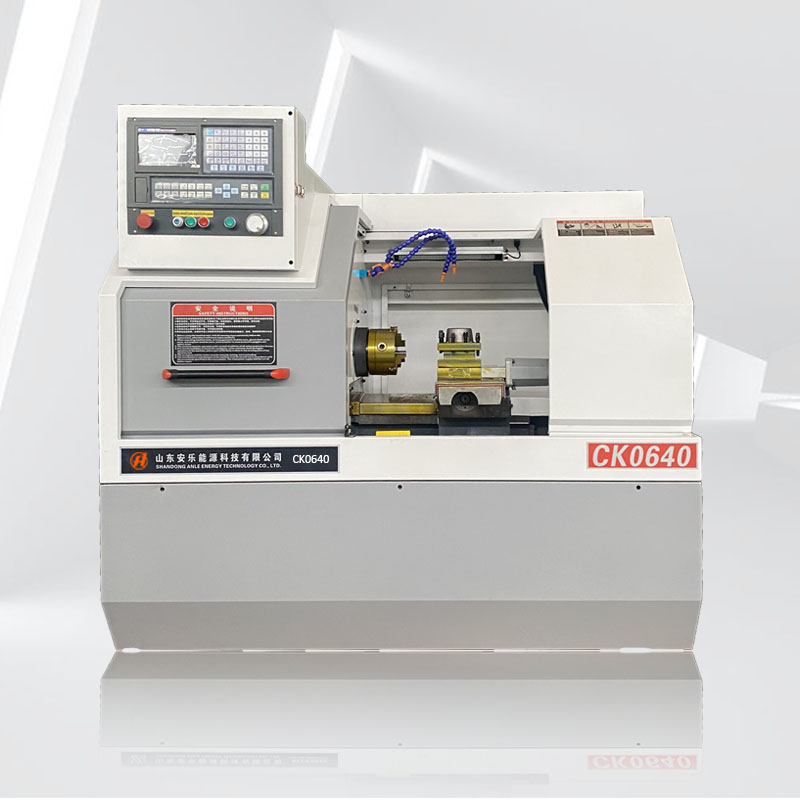

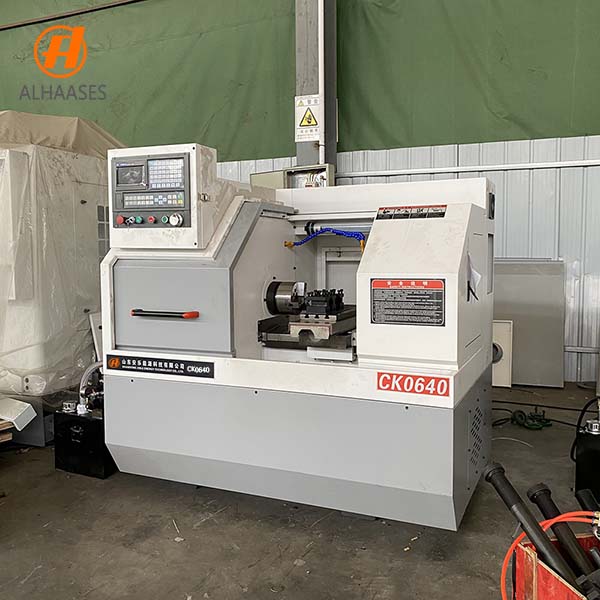

Features of CK0640 CNC lathe
1. Improve production efficiency: The automated control system makes the operation faster and more accurate, significantly improving the efficiency of handling and transportation.
2. Reduce labor costs: The high degree of automation reduces dependence on manual labor and reduces labor costs.
3. Reduce error rates: The precise CNC system reduces human errors and improves work quality and product consistency.
4. Improve safety: Equipped with a variety of safety devices, such as anti-collision, anti-tipping, anti-overload, etc., to reduce the probability of accidents and ensure operational safety.
Product application industry
CNC lathes can be used in the automotive industry to process parts, engine parts, transmission system parts, suspension system parts, etc., as well as body parts manufacturing and body structural parts, bearings and wheels.
CNC lathes can be used in the aerospace industry to process aircraft parts, manufacture aircraft engine parts, wing structural parts and landing gear parts, etc., as well as spacecraft parts, rockets, satellites and other spacecraft precision parts.
CNC lathes can be used in the machinery manufacturing industry to process machine tool parts, manufacture and process parts of various machine tools. And used to process transmission devices, manufacture various gears, shafts, bushings and other transmission parts.
Product Parameter
| Item | Unit | CK0640 |
| Max swing over bed | mm | Φ250 |
| Maximum swing over slide | mm | Φ120 |
| Spindle hole diameter | mm | Φ48 |
| With hollow chuck pull rod through hole | mm | Φ40 |
| Z stroke | mm | 220 |
| Dimensions (length × width × height) | mm | 1620×1340×1680 |
Standard:
CNC systems: GSK CNC systems

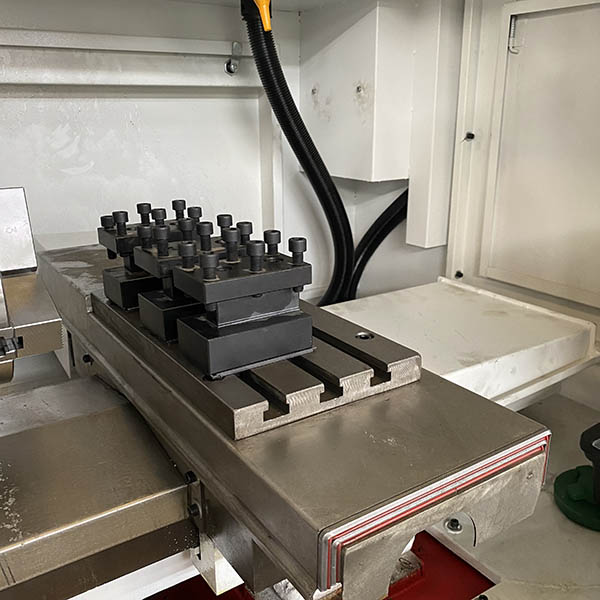

Turret: Tool holder

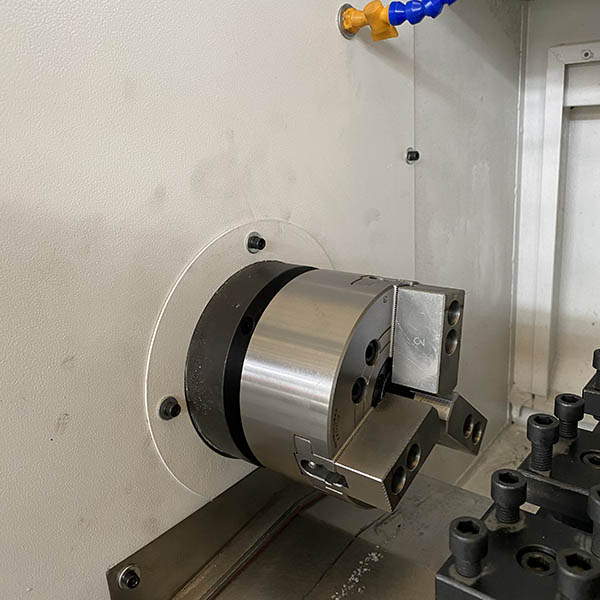

Chuck: Manual chuck
Optional:
CNC systems: Fanuc, Siemens and other CNC systems
Chuck: Hydraulic chuck
Turret: Four-station turret
Feeding device: Automatic Bar Feeder
