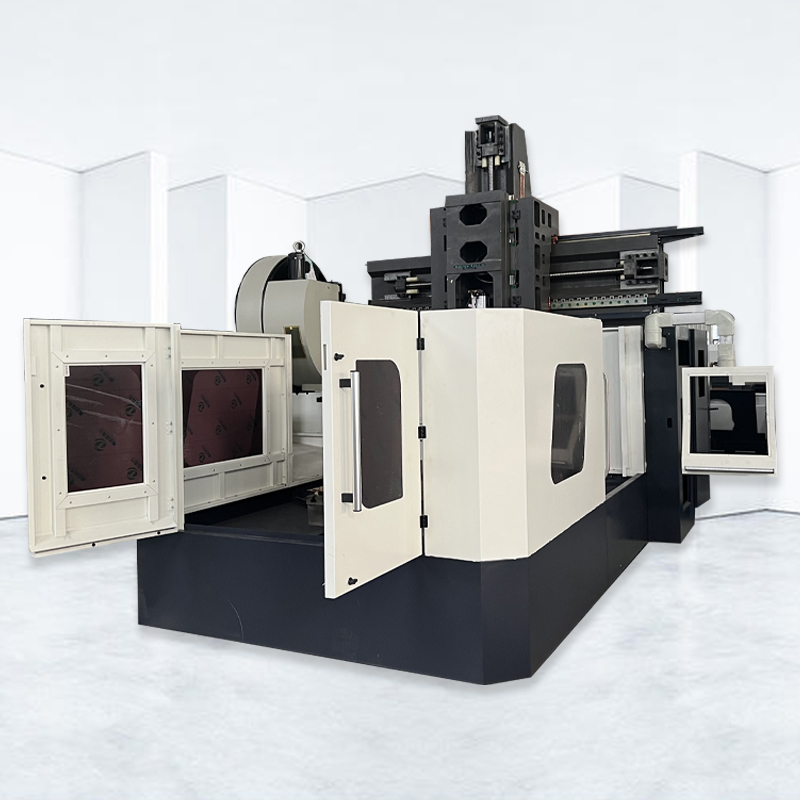

GMC1813 CNC Gantry Milling Machine
The GMC1813 CNC Gantry Milling Machine is a gantry type CNC machining center designed for large and heavy metal workpieces. It is suitable for milling, drilling, boring and general machining of large plates, molds, frames and structural parts.
GMC1813 CNC Gantry Milling Machine
The GMC1813 CNC Gantry Milling Machine is a gantry type CNC machining center built for machining large and heavy metal workpieces. It combines a rigid gantry structure with CNC control, making it suitable for machining large plates, molds and structural components.
Key Features
- Gantry type CNC milling machine design for large workpieces
- Large working table and high load capacity
- CNC control for repeatable machining accuracy
- Rigid gantry structure and guideways for stable heavy cutting
- Suitable for milling, drilling, boring and general machining
Applications
The GMC1813 CNC Gantry Milling Machine can machine large plates, molds, frames, structural parts and other large metal components. The actual application depends on the workpiece material, size and machining requirements.
Why Choose GMC1813
This gantry type CNC machining center provides a practical combination of large working area, high load capacity and CNC control for manufacturers who need reliable performance in large part machining.
Technical Specifications
| Model | GMC1813 |
| Working Table Size | 2000 × 1000 mm |
| Workbench Load Capacity | 4000 kg |
| T-Slot Width | 7 × 150 × 22 mm |
| X-Axis Travel | 1800 mm |
| Y-Axis Travel | 1300 mm |
| Z-Axis Travel | 770 mm |
| Spindle End Face to Table Distance | 150 - 920 mm |
| Gantry Width | 1300 mm |
| Machine Dimensions (L × W × H) | 5300 × 3500 × 3800 mm |
| Machine Weight | 16 T |
Typical Applications
Typical applications include large plate milling, mold machining, frame processing, structural part milling and other large component machining processes on gantry type CNC machines.
Request a Quote
Contact us for the complete technical specifications, configuration options, delivery information and quotation for the GMC1813 CNC Gantry Milling Machine.
