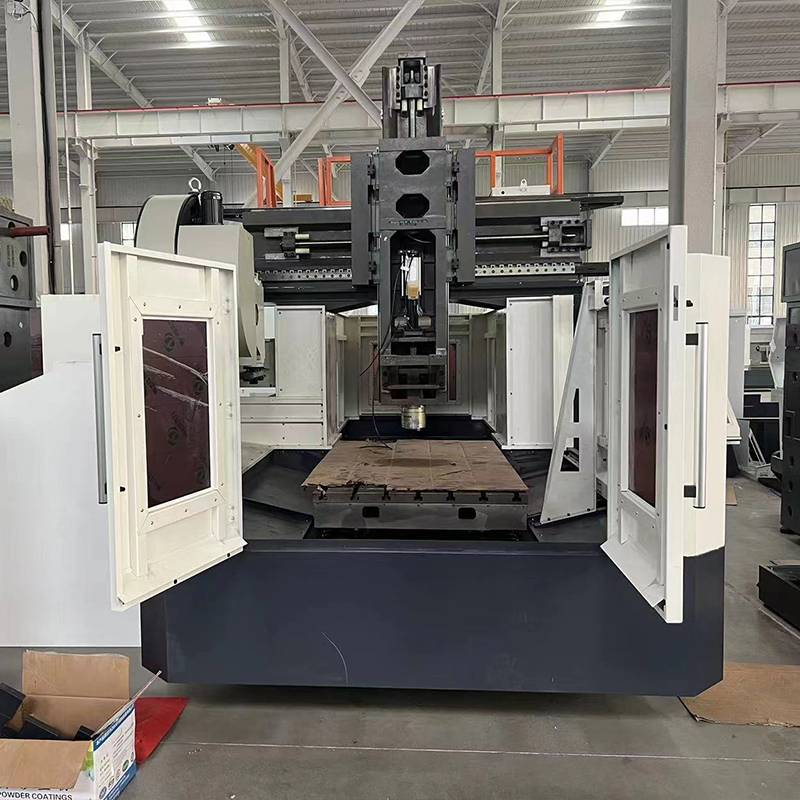

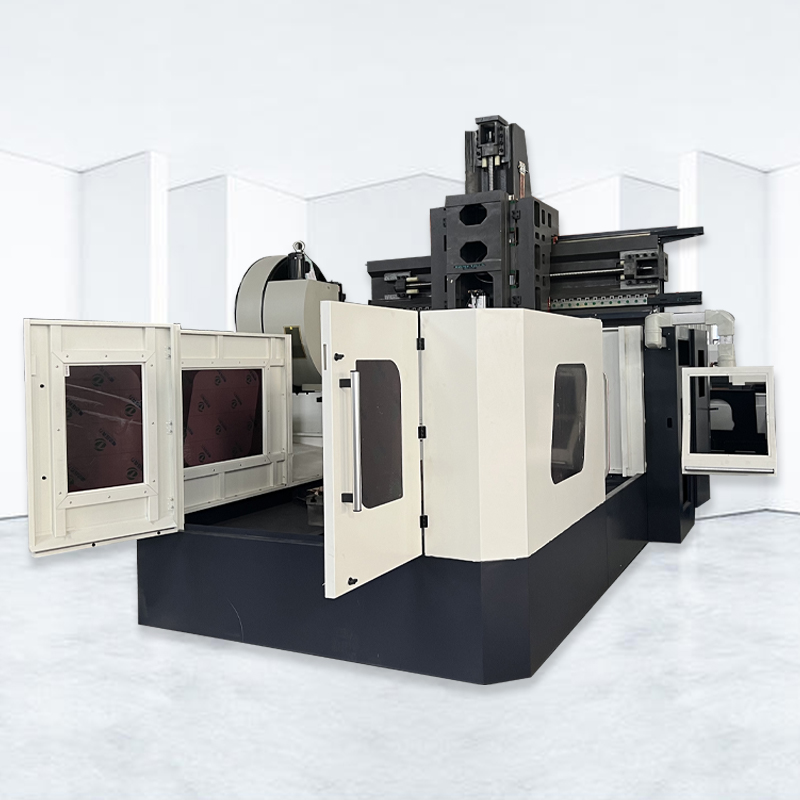

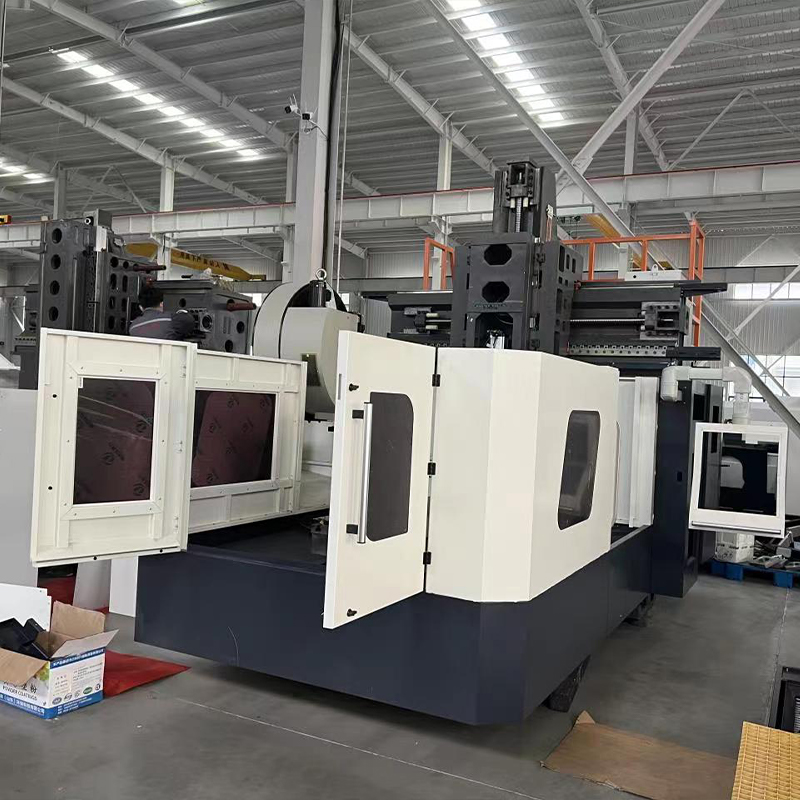

GMC1813 CNC Gantry Milling Machine
The GMC1813 is a heavy-duty, high-precision, and high-rigidity CNC gantry milling machining center. Featuring a three-axis travel of X1800 × Y1300 × Z770 mm, a worktable size of 2000 × 1000 mm, and a maximum load capacity of 4 tons, the machine weighs approximately 16 tons in total, classifying it as a medium-sized, heavy-duty gantry machining system.
Features of Gantry type CNC milling machine

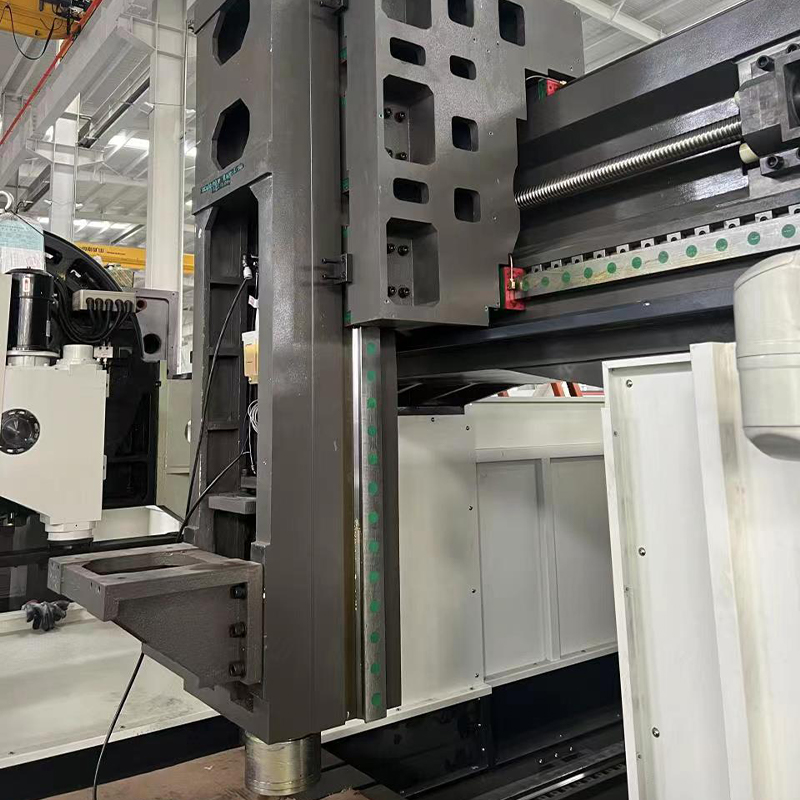

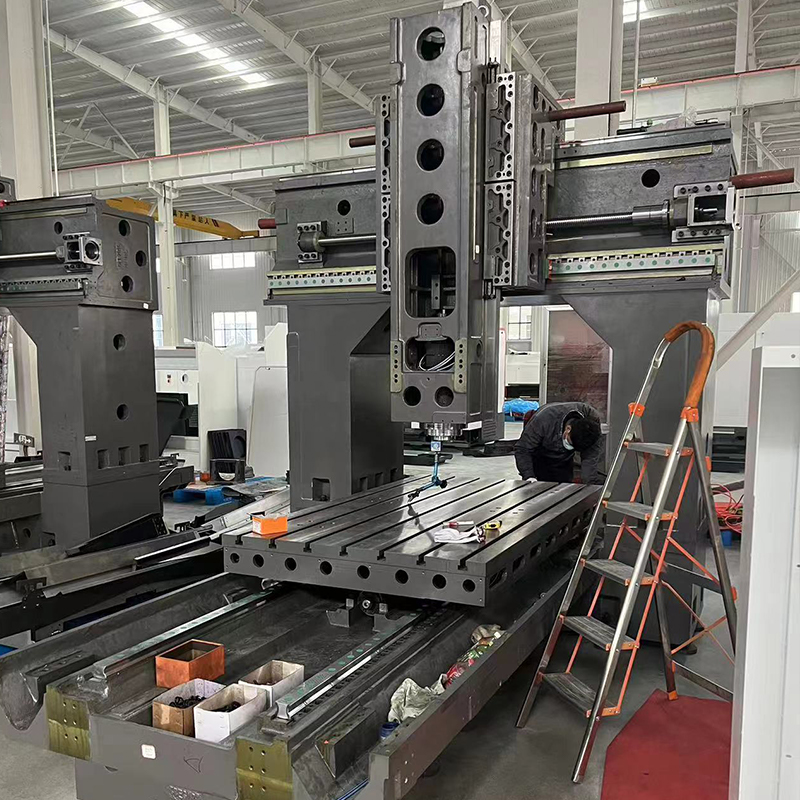

The machine features an integrated, heavy-duty cast iron bed combined with a box-section crossbeam and a wide-span gantry structure. Subjected to aging treatment, it exhibits exceptional rigidity, superior vibration damping, and long-term precision stability. It is equipped with a high-torque BT50 spindle (15/18.5 kW), heavy-duty roller linear guides, and precision pre-tensioned ball screws. Paired with a mainstream CNC control system (GSK, Syntec, or Fanuc options available), the machine enables multi-process machining—including milling, boring, drilling, reaming, and tapping—in a single clamping setup. It serves as an ideal processing solution for large-scale parts such as molds, plates, box-type components, and machine frames.
Product application industry
Mold Industry: Injection Molds, Die-Casting Molds, Stamping Dies, Mold Bases, Large Mold Plates.
Automotive / New Energy: Vehicle Frames, Crossbeams, Battery Trays, Motor Housings, Jigs & Fixtures.
Aerospace: Structural Components, Supports, Enclosures, Aluminum/Titanium Alloy Parts (Small to Medium-Sized).
Construction Machinery: Enclosures, Machine Frames, Connecting Plates, Precision Finishing of Welded Assemblies.
Wind Power / Energy: Flanges, Supports, Hub Molds, Large Plate-Type Components.
General Machinery / Sheet Metal: Large Machine Frames, Welded Bases, Enclosures, Cover Plates, Machine Tool Beds/Bases.
Packaging / Printing / Textile: Large Roller Molds, Side Panels, Machine Frames, Mold Plates.
Video
Product Parameter
| Item | Unit | ALGMC1813 |
| Working desk size | mm | 2000*1000 |
| Workbench bearing | kg | 4000 |
| T-slot width | mm | 7-150*22 |
| X-axis travel | mm | 1800 |
| Y-axis travel | mm | 1300 |
| Z axis travel | mm | 770 |
| X/Z axis travel | mm | 500/3000 |
| Spindle end face to table distance | mm | 150-920 |
| Gantry is too wide | mm | 1300 |
| Host Dimensions | mm | 5300*3500*3800 |
| Host weight | T | 16 |
