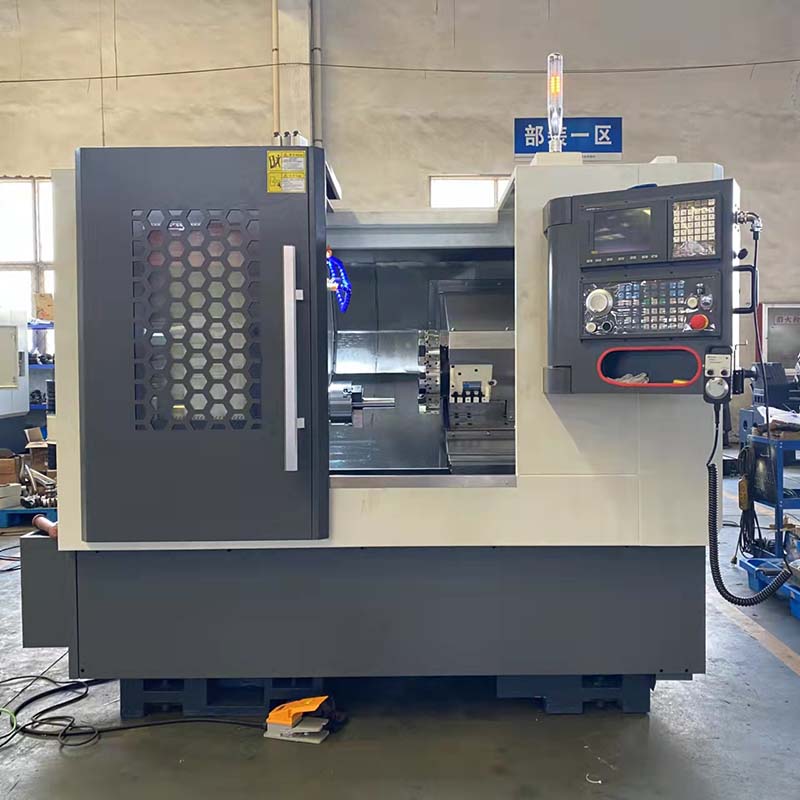

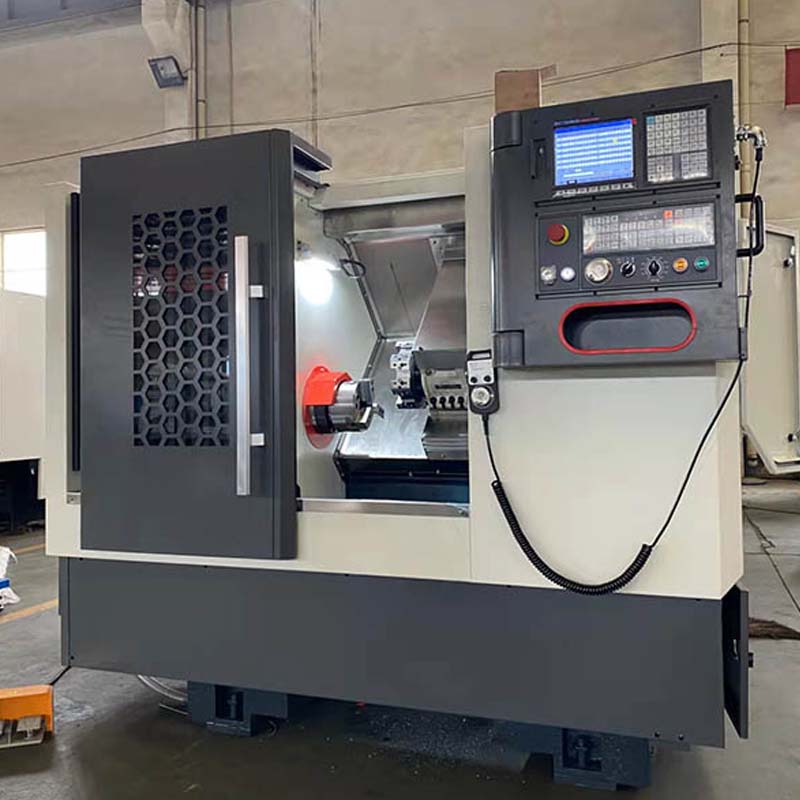

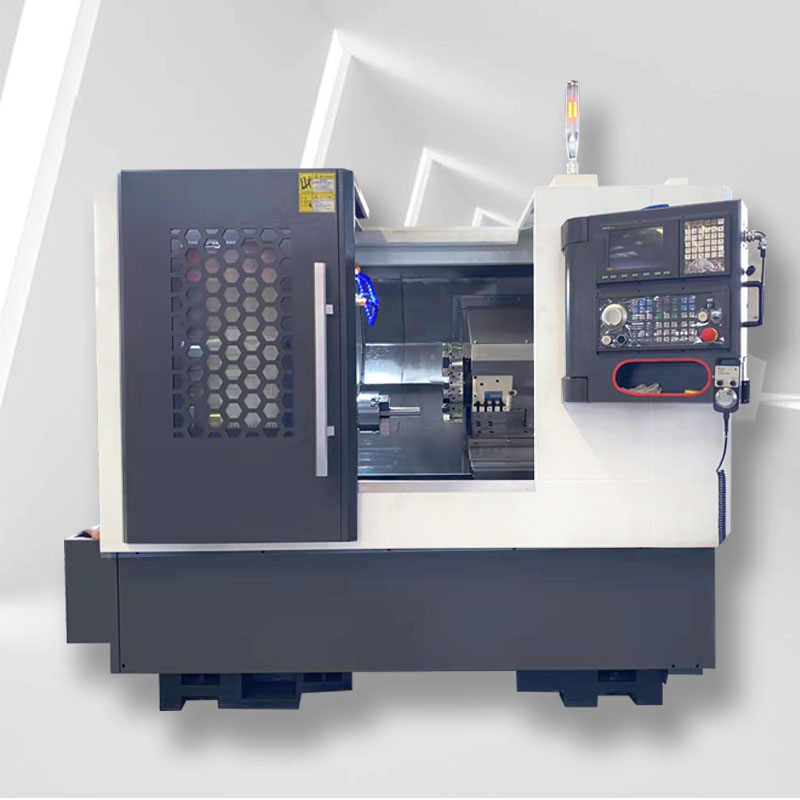

The TCK series cnc slant bed lathe machine provides a platform to achieve greater impact in terms of high productivity and superior surface finish as it stems from continuous development and innovation since Aldoosanlecnc started CNC machine manufacturing.
Product Features:
This series is for the most demanding due to its robust stepped structure and construction, and covers a wide range of applications, covering the optimum size range of workpieces.
Main features of slant bed cnc lathe machine:
Rigid bed and one-piece 30° inclined saddle construction.
High precision guide rail.

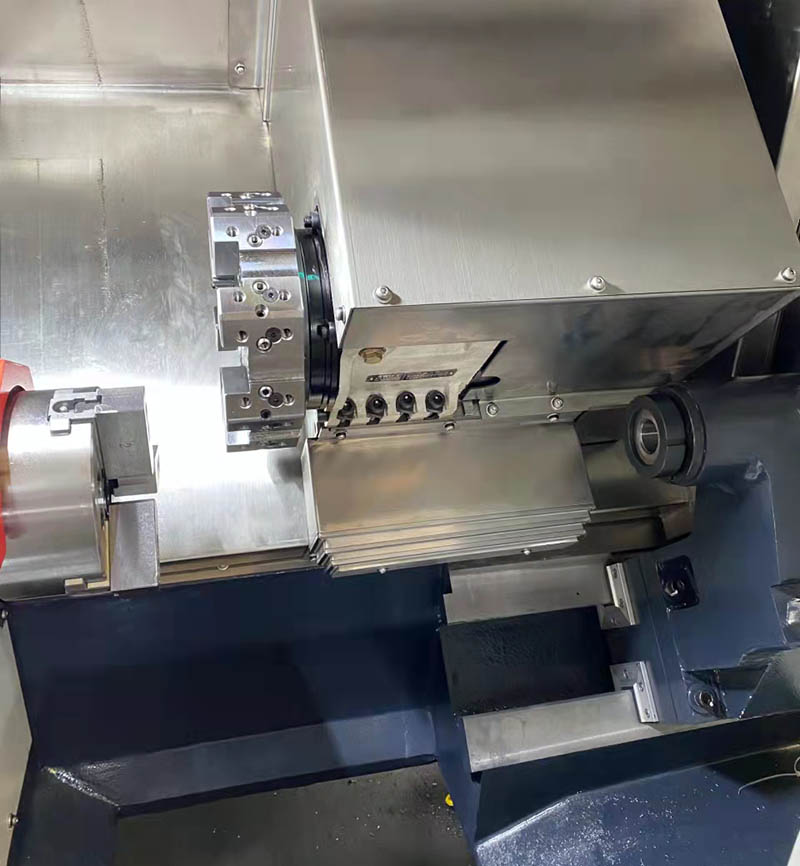

High speed servo turret.
Efficient chip handling.
Tailstock with hydraulic sleeve.
Hydraulic Chuck.
Automatic and manual cooling systems.
Electrical equipment with quality equipment and panels with AC
Centralized and programmable lubrication.
Product Application Industry
What are the common uses of cnc lathe?
Metal cnc lathe has a rotating spindle and stationary tooling and is used to create cylindrical parts for many industries in metalworking, making it almost as versatile as a cnc lathe machine.
As a production machine tool, a specific horizontal cnc lathe can produce thousands of machined parts in a single shift. Other smaller cnc lathe turnings are specified for machining smaller quantities and are suitable for maintenance and machine shops.
The mini cnc lathe machine can quickly remove material from parts that do not require a smooth surface, or slowly remove material when detailed features require a fine surface. CNC lathe fanuc is used in nearly every industry, including automotive, aerospace, firearms, and electronics.
Video
Product Parameter
| Item | Unit | TCK50A |
| Max. swing dia. over bed | mm | Φ560 |
| Max. swing dia. over slide | mm | Φ260 |
| Max. processing length | mm | 350/500/800 |
| Spindle speed | rpm | 3000 |
| Spindle hole diameter | mm | 66/66/86 |
| Weight | KG | 3200/3600/4500 |
| Machine size | mm | 2700/2700/3300×2000×2000 |
