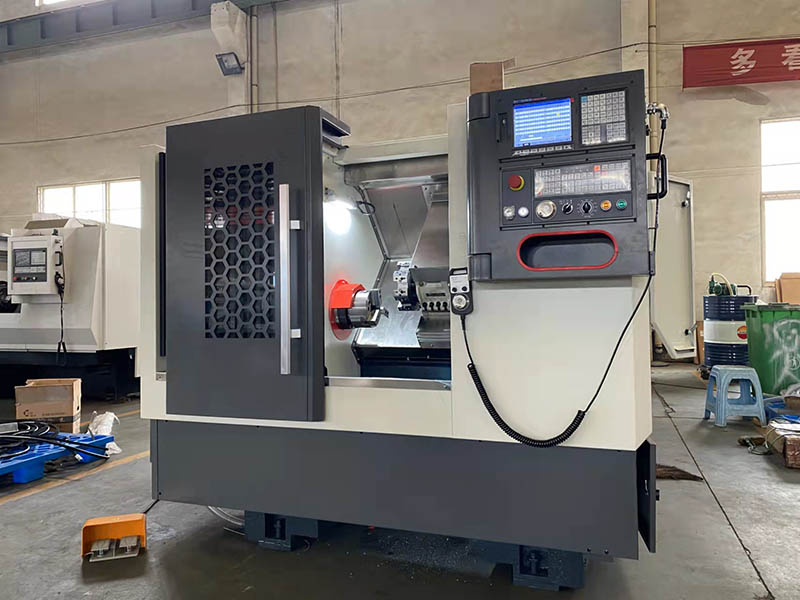

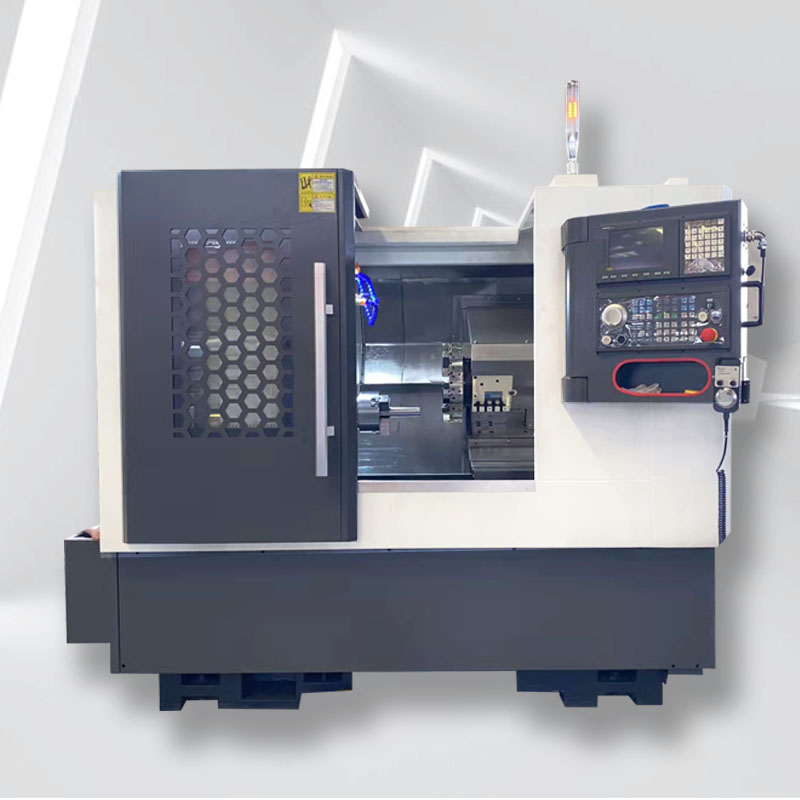

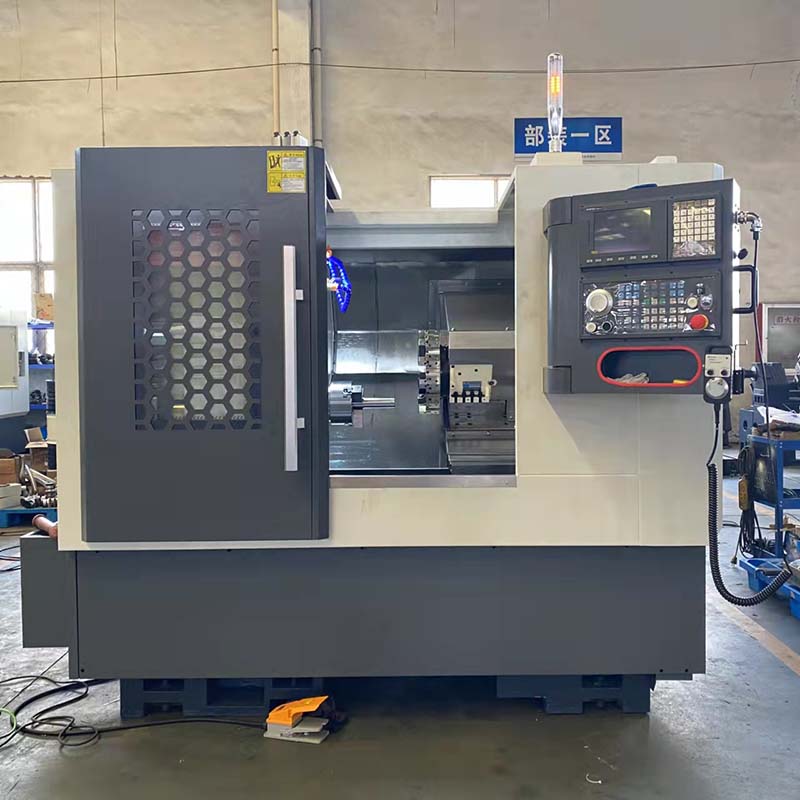

Slant Bed CNC Lathe Turning For Metal TCK50A
ALHAASES CNC Inclined Bed CNC Lathe is not only suitable for single-piece small batch processing, but also for high-volume parts processing. After adding automatic feeding and automatic loading and unloading mechanisms, the automatic cutting of bars can be realized; if automatic loading and unloading industrial robots or manipulators are added, automatic processing and even unmanned operation can be realized.
ALHAASES CNC Slant Bed CNC Lathe is an automatic CNC lathe with high precision and high efficiency. The bed of the Slant Bed CNC Lathe is a right triangle. In the case of the same guide rail width, the X-direction carriage of the inclined bed is longer than that of the flat bed, and the practical significance of applying it to the CNC lathe machine is that more tool positions can be arranged.
The cross-sectional area of the Slant Bed CNC Lathe is larger than that of the flat bed of the same size, and it is more resistant to bending and torsion. The cnc slant bed lathe developed by ALHAASES CNC is a monolithic bed structure, which adopts an integral spindle and large-angle chip removal, and has the advantages of high precision, high efficiency, and high rigidity. There are row knife type, turret type, tailless seat, automatic tailstock and other models to choose from.
Product Features:

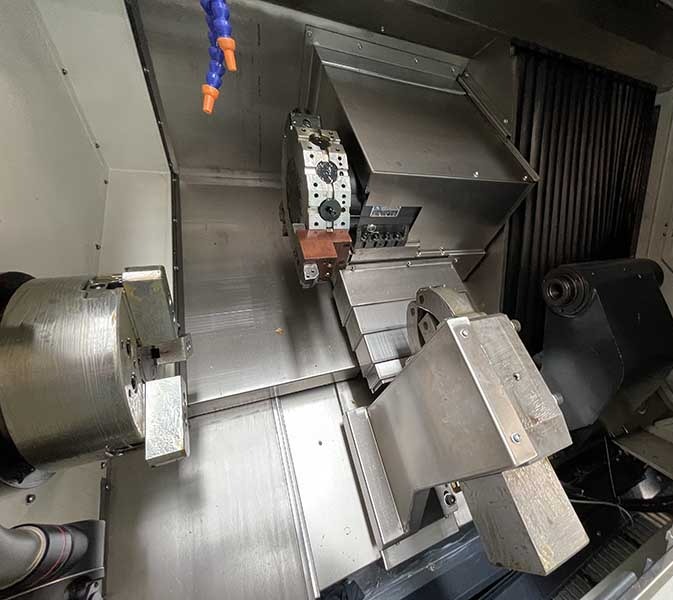

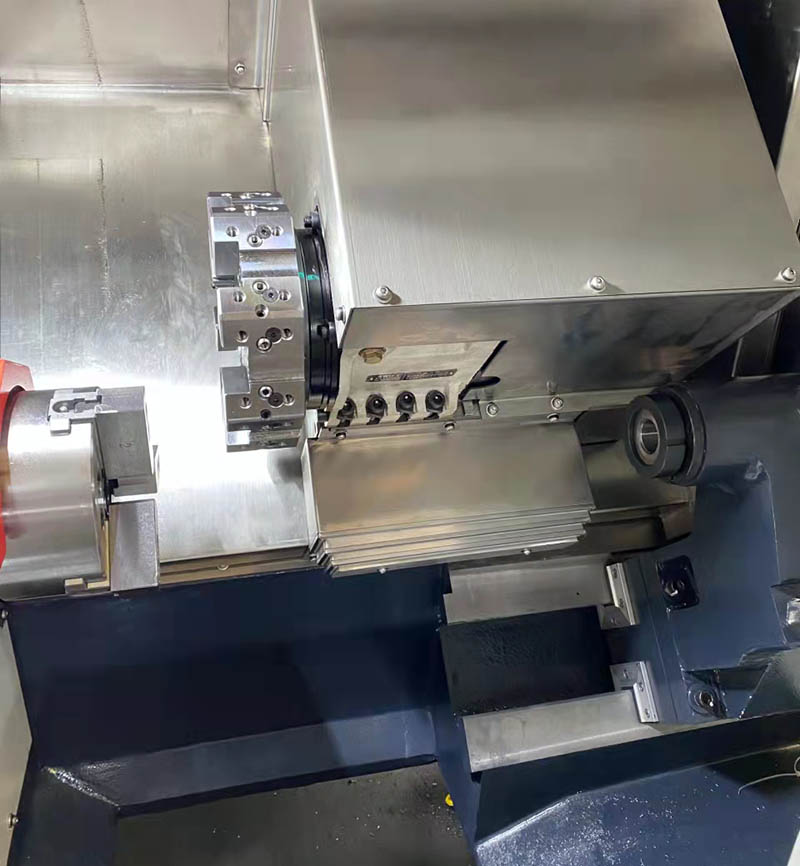

1.Inclined Bed CNC Lathe integral bed, 30° saddle, low center of gravity high and low rail design, CNC turning lathe overall structure is firm and stable.
2. The CNC slant bed lathe headstock adopts a high rigidity structure to ensure the stability and precision of the spindle.
3. Z-axis 55 roller linear guides ensure higher positioning accuracy, and X-axis hard rails ensure higher vibration reduction performance.
4. The heavy cutting tool can withstand intermittent turning.
5. Unique lead screw support design is adopted in both directions to ensure accuracy.
6. The programmable tailstock adopts a unique hydraulic moving and locking mechanism, which provides sufficient support when turning long shafts.

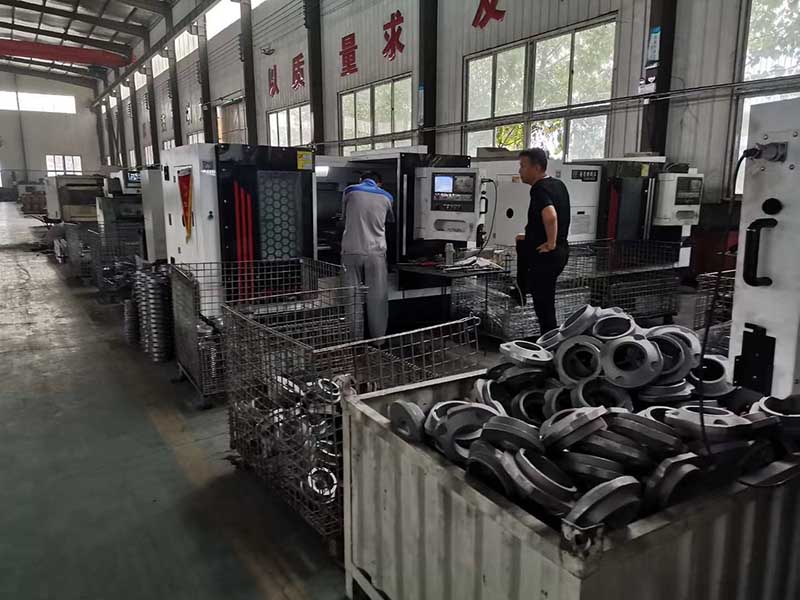

Product Application Industry
TCK series CNC slant bed lathe adopts electromechanical-hydraulic integrated design, which has the characteristics of high precision and high rigidity.

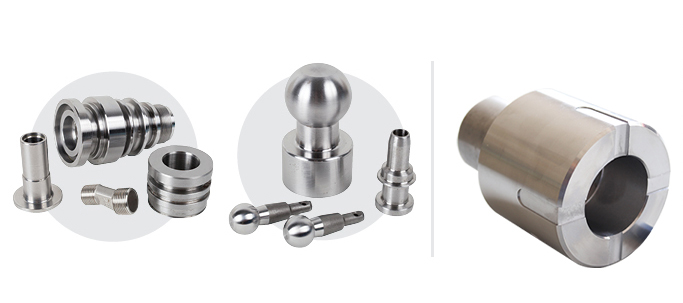

CNC slant bed lathe is most suitable for machining complex-shaped rotary parts, and can perform turning of cylindrical, curved, tapered and stepped surfaces. It can not only perform external turning and internal turning, but also turn various internal and external threads, as well as drilling, reaming, reaming and rolling.
Video
Product Parameter
| Item | Unit | TCK50A |
| Max. swing dia. over bed | mm | Φ560 |
| Max. swing dia. over slide | mm | Φ260 |
| Max. processing length | mm | 350/500/800 |
| Spindle speed | rpm | 3000 |
| Spindle hole diameter | mm | 66/66/86 |
| Weight | KG | 3200/3600/4500 |
| Machine size | mm | 2700/2700/3300×2000×2000 |
