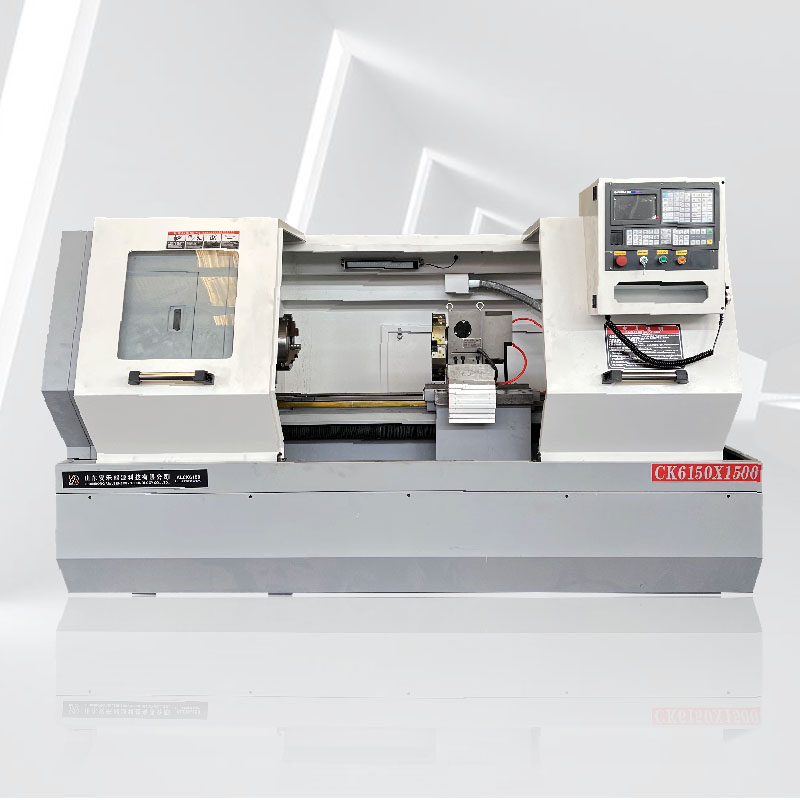

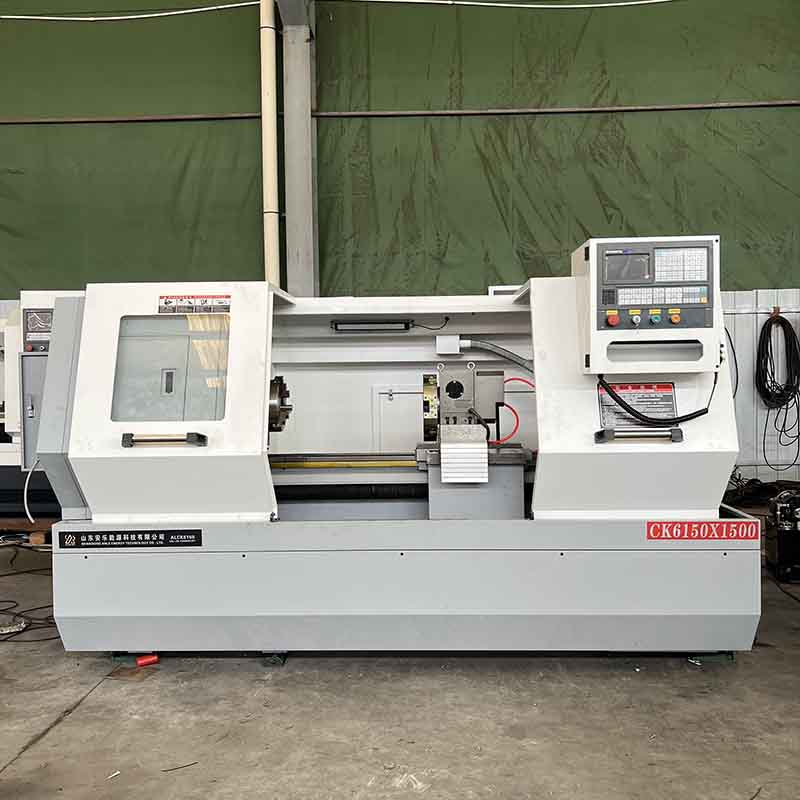

Flat Bed CNC Lathe CK6150X1500
CNC automatic lathe processing has been increasingly widely used in mechanical processing due to its advantages of high precision, high efficiency, and the ability to adapt to the processing of small batches of multi-variety and complex parts.
Strong adaptability
CNC automatic lathe's ability to adapt to changes in production objects.
High precision and stable quality.
CNC automatic lathe is processed according to the instructions given in digital form. Generally, the working process does not require manual intervention, which eliminates the artificial errors caused by the operator.
High production efficiency
Due to the good rigidity of the horizontal cnc lathe machine structure, it allows powerful cutting with a large amount of cutting, which improves the cutting efficiency of the CNC lathe and saves maneuvering time.
1. Flat Bed CNC Lathe has high processing precision and can have relatively stable processing quality;
2. Flat Bed CNC Lathe can carry out multi-coordinate linkage, and can process parts with complex shapes;
3. The Flat Bed CNC Lathe itself has high precision and high rigidity, and can choose a favorable processing amount, and the production efficiency is 3 to 5 times that of ordinary machine tools;
4. CNC Lathe has a high degree of automation, which can reduce labor intensity and greatly reduce the pressure of workers;
Product application industry

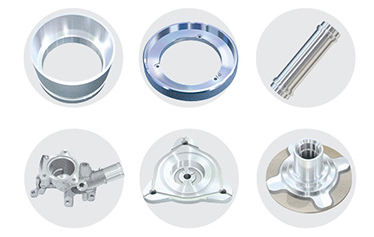

CNC lathes can process complex parts synchronously on outer circles, spherical surfaces, conical surfaces, arc surfaces, steps, grooving, drilling, tapping, dies, embossing, cutting, etc., and all processing procedures can be completed at one time. Extremely high, no manual operation, automatic feeding is fully automated. At the same time, the milling device can also be used to process external threads, which completely solves the problem that dies are difficult to process, and can process double-start threads.
CNC lathes are used for turning various inner holes, outer circles, conical surfaces, arc surfaces, and threads. It is especially suitable for rough and fine machining of shafts and disk parts in small and medium batches. It has a high degree of automation, simple programming, and high precision. Advanced advantages.
Video
Product Parameter
| Item | Unit | CK6150X1500 |
| Max swing over bed | mm | Φ500 |
| Maximum swing over slide | mm | Φ290 |
| Maximum cutting diameter | mm | Φ500 |
| Maximum processing length | mm | 1500 |
| X/Z axis maximum stroke | mm | 1500 |
| X/Z axis minimum displacement unit | mm | 0.001 |
| Spindle hole diameter | mm | Φ82 |
| Diameter of tailstock sleeve | mm | Φ65 |
