ALHAASES CNC has a high rigidity, high performance CNC turning center with a wide range of options available for every metal shop
The ALHAASES CNC CK series of high-performance CNC turning centers have been completely redesigned to provide setup flexibility, extreme rigidity and high thermal stability. These machines offer the best performance at the best price/performance ratio in their class.
Features
1. The CK series of high performance CNC turning centers are newly designed to provide setup flexibility, extreme rigidity and high thermal stability.
2. The CNC lathe turning has an ultra-small footprint but offers a wide working range. This CNC lathe turning offers the best performance at the best price/performance ratio in its class.
Product application industry

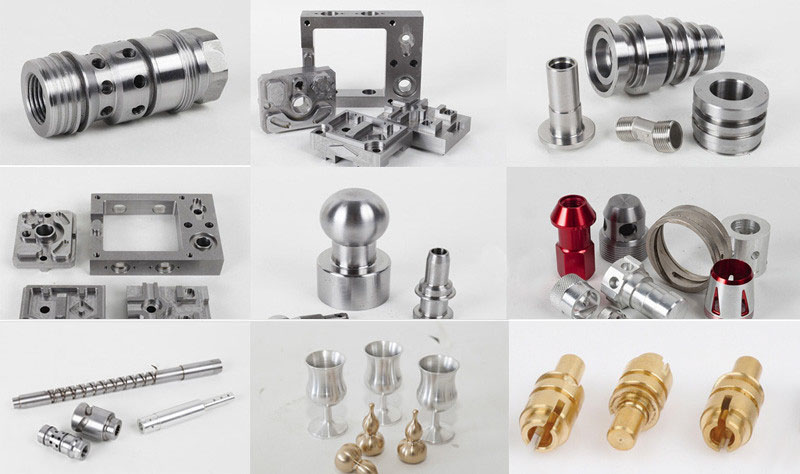

CNC lathe can machine very complex parts due to its large stroke and small footprint. Thanks to the astonishing rigidity of the CNC lathe, we achieved a mirror finish despite a near 10:1 aspect ratio without reducing feed/speed.
Video
Product Parameter
| Item | Unit | CK6136X750 |
| Max swing over bed | mm | Φ360 |
| Maximum turning diameter on the tool post | mm | Φ200 |
| Maximum workpiece length between two centers | mm | 750 |
| Spindle through hole diameter | mm | Φ52 |
| X stroke | mm | 200 |
| Z stroke | mm | 750 |
| Rapid traverse speed | mm/min | X: 6000 Z: 8000 |
| Overall dimensions of machine tool (length×width×height) | mm | 2350×1380×1640 |
