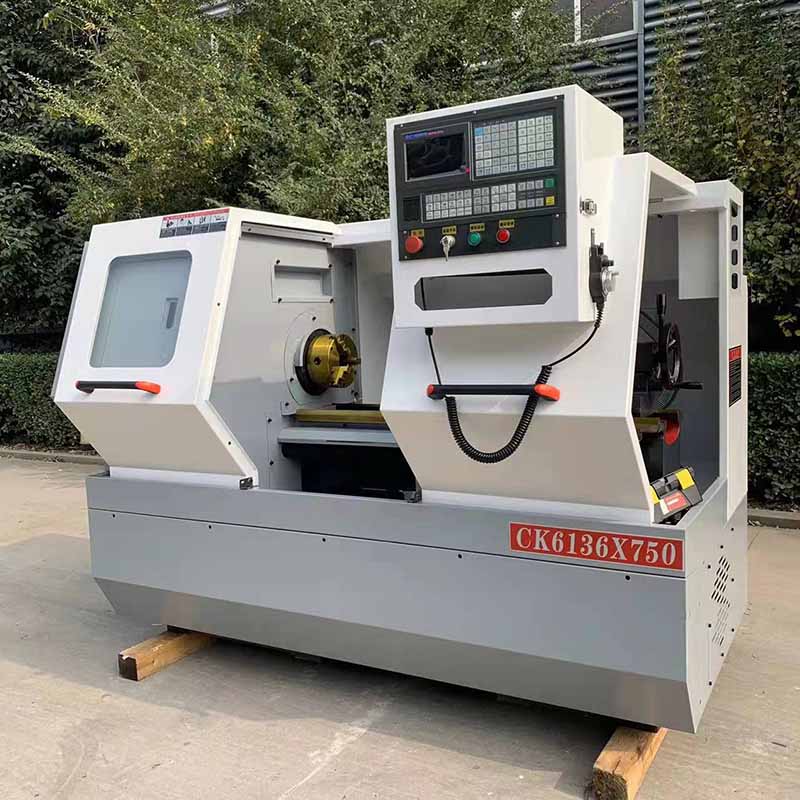

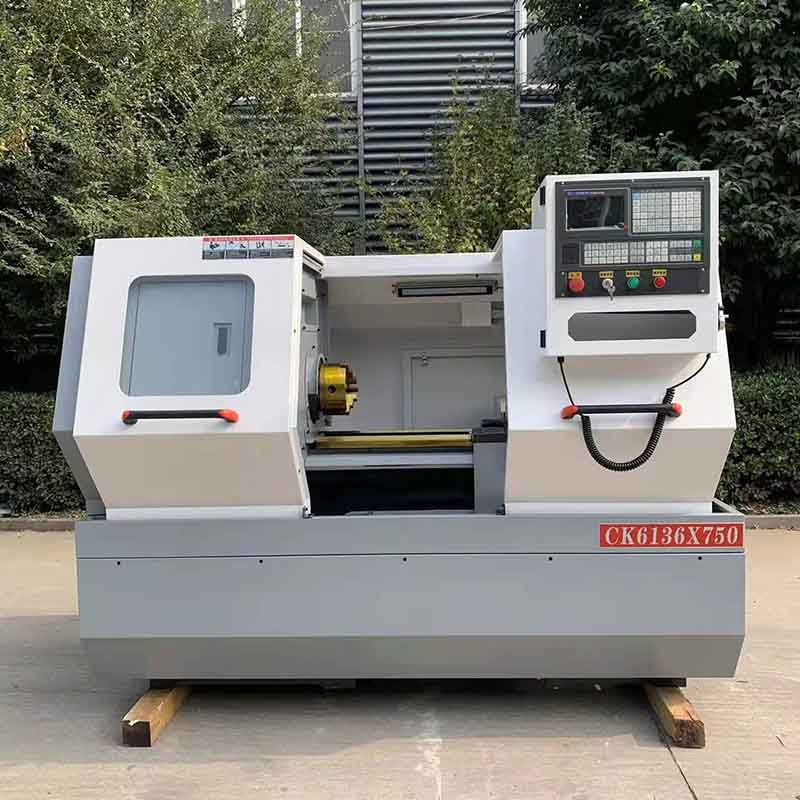

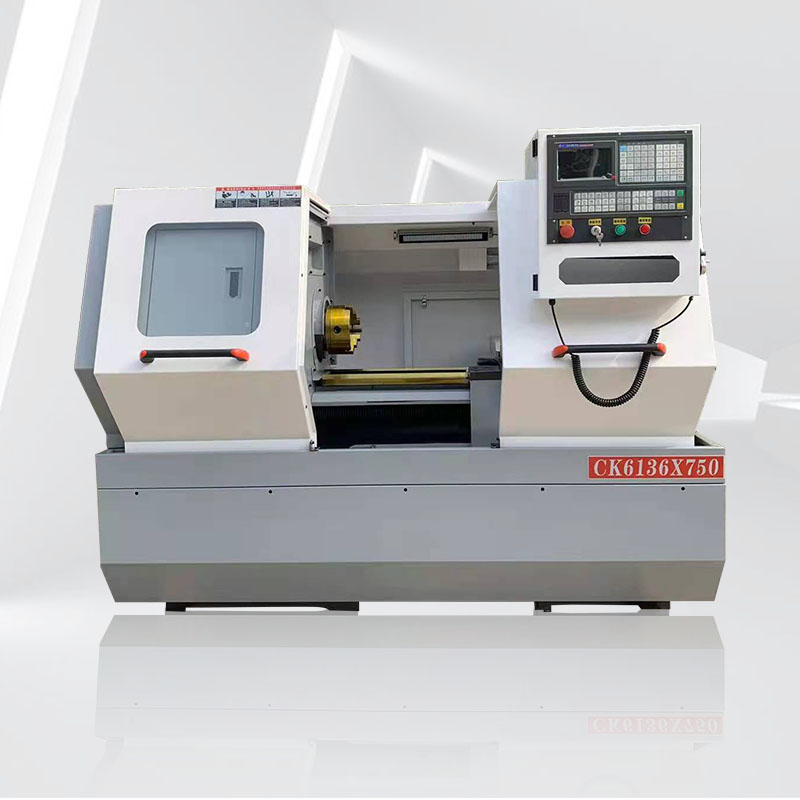

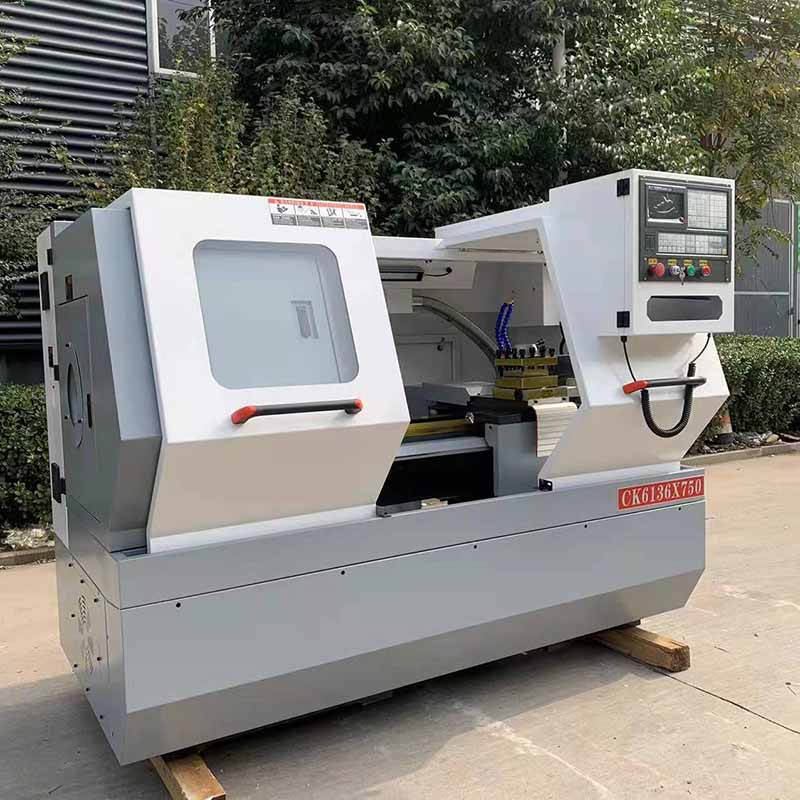

3 Axis Flat Bed CNC Lathe CK6136
CNC lathe 3 axis can automatically complete the processing of inner and outer cylindrical surfaces, conical surfaces, arc surfaces, end surfaces, etc. It can also realize the turning of male, British and various other forms of single and multi-thread threads.
CK series Flat bed CNC lathe has a complete range of specifications, which can realize the machining of the inner and outer surfaces of shafts and discs, taper surfaces, arcs, threads, boring holes, reaming holes, etc., as well as non-circular curve machining. According to the needs of users, different CNC systems and accessories can be selected.
Features
1. The CNC lathe turning machine has compact structure, beautiful appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent precision retention.
2. CNC lathe turning headstock optimized design, using high and low gears, stepless speed regulation in the gear; CNC lathe turning is suitable for turning of disc and shaft parts, and can be used for straight line, arc, metric and inch threads, The machining of multi-start threads is suitable for the machining of disc and shaft parts with complex shapes and high precision requirements.

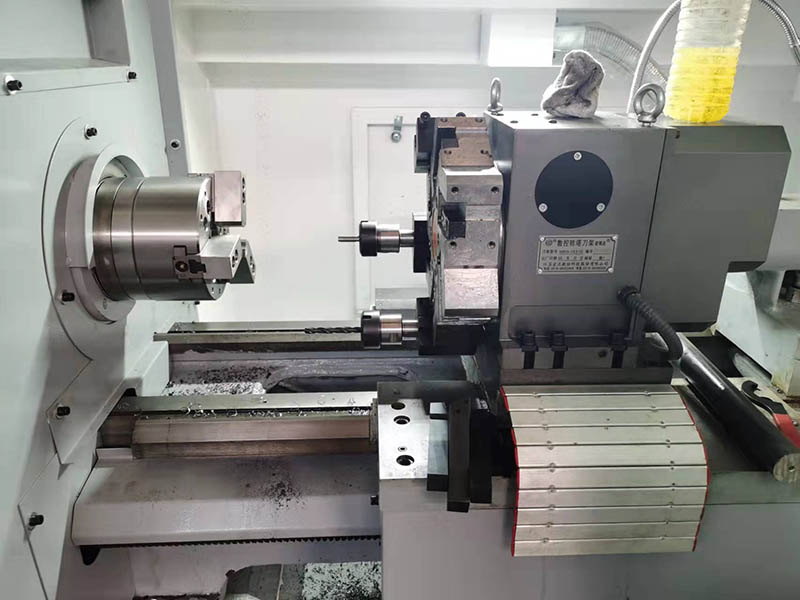

3. The guide rails and the saddle guide rails of the horizontal CNC lathe machine are made of hard guide rails made of special materials. After high frequency quenching, they are super-hard and wear-resistant, durable and have good machining accuracy.
4. Each lubricating point of the horizontal CNC lathe machine adopts a forced automatic lubricating device to lubricate the lead screw and guide rail at fixed point and quantitatively. When there is an abnormal state or the oil quantity is insufficient, a warning signal is automatically generated.
5. The guide rail of the horizontal CNC lathe machine is equipped with a scraping device to prevent the guide rail from being corroded by iron filings and coolant, and to facilitate the cleaning of the iron filings.
Product application industry

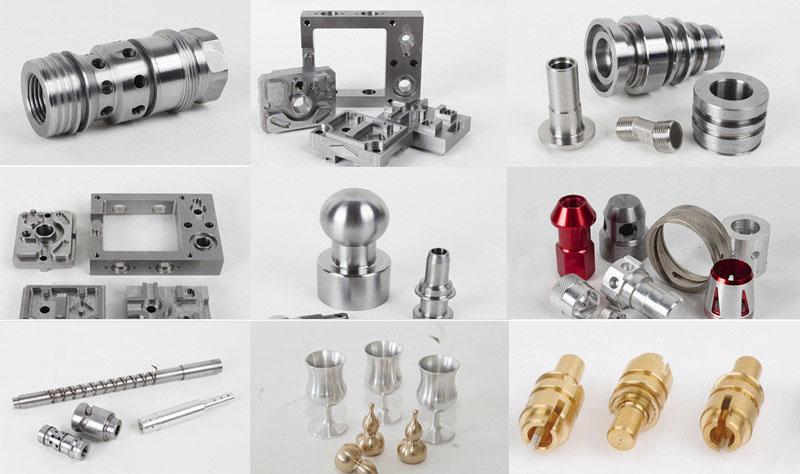

CNC turning center is suitable for batch processing of small and medium shaft and disc parts, and can turn various threads, arcs, cones, and inner and outer surfaces of rotary bodies. Flat bed CNC lathe is widely used in automobile, aerospace, motorcycle, and shipbuilding industries. , Bearing, hardware, advertising, petroleum and other industries.
Video
Product Parameter
| Item | Unit | CK6136-750 |
| Max swing over bed | mm | Φ360 |
| Maximum turning diameter on the tool post | mm | Φ200 |
| Maximum workpiece length between two centers | mm | 750 |
| Spindle through hole diameter | mm | Φ52 |
| X stroke | mm | 200 |
| Z stroke | mm | 750 |
| Rapid traverse speed | mm/min | X: 6000 Z: 8000 |
| Overall dimensions of machine tool (length×width×height) | mm | 2350×1380×1640 |
