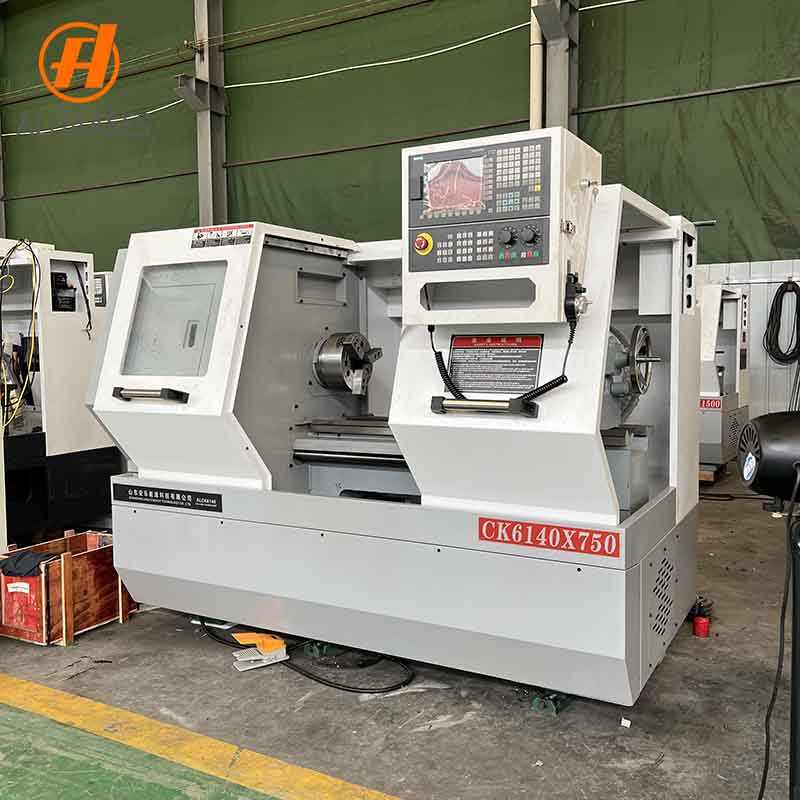

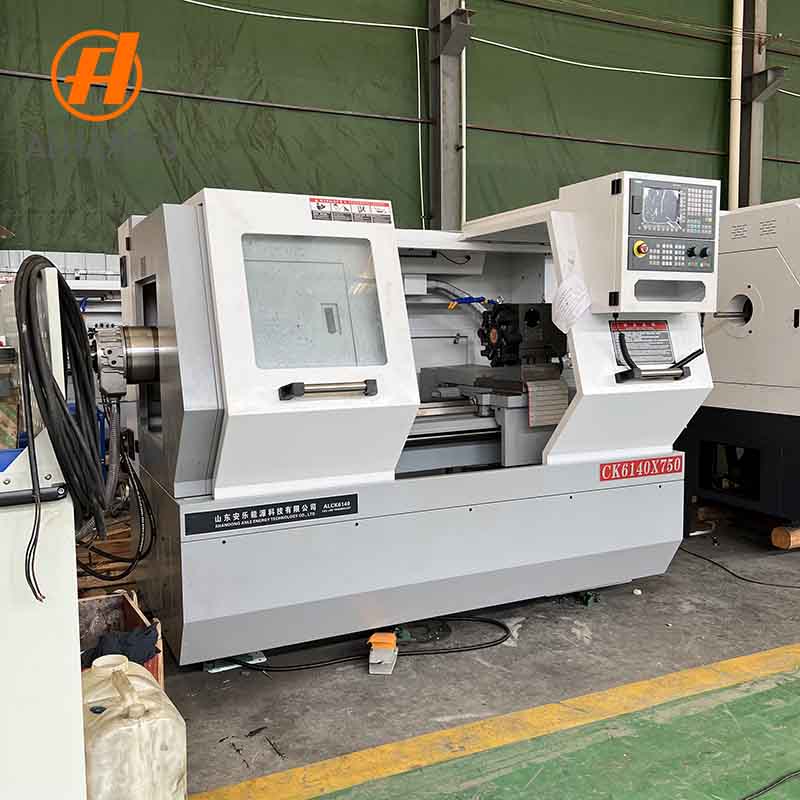

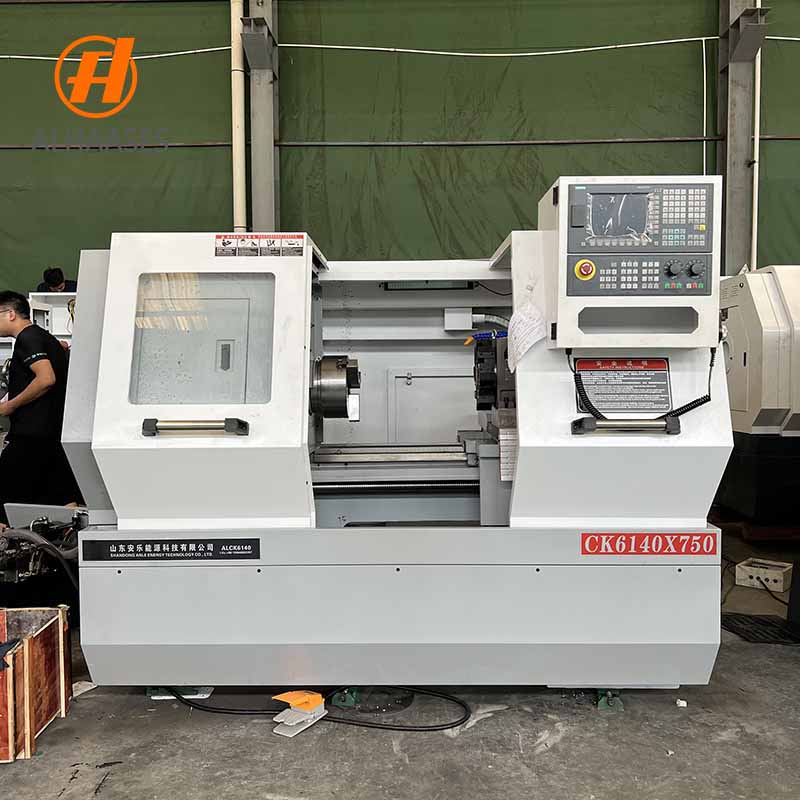

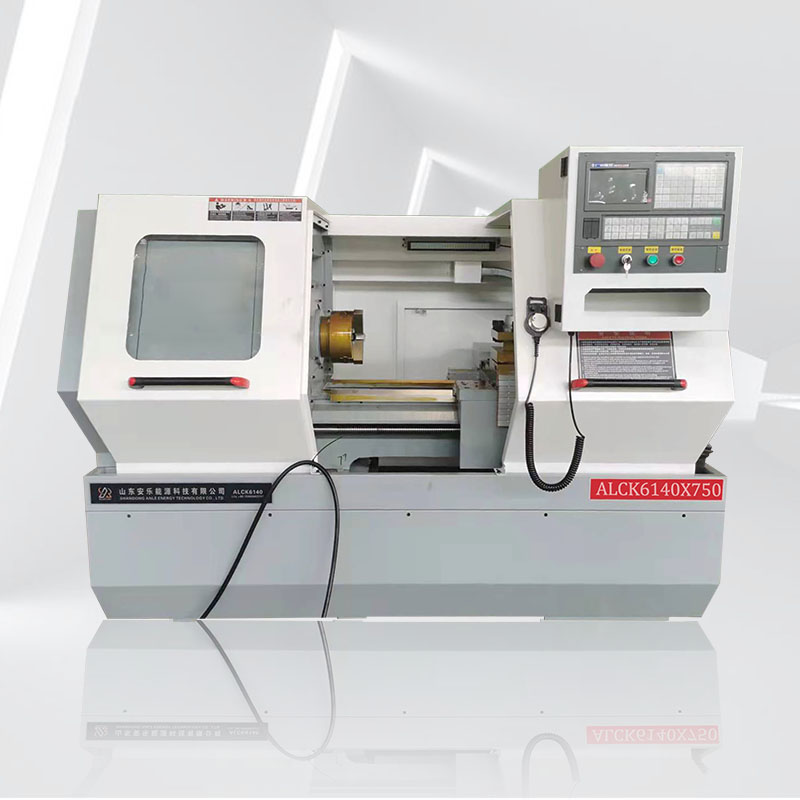

Horizontal Flat Bed CNC Lathe Bar Fedeer CK6140X750
CK6140 CNC automatic lathe is suitable for batch processing. The high precision and uniformity of CNC automatic lathe can also reduce manual labor and can improve the rate and ensure quality.
Flat Bed CNC Lathe is easy to operate and maintain; it is equipped with high-precision linear guides, lead screw sets, high-rigidity spindle units, and high-performance CNC systems, providing you with the ultimate machining experience.
The new generation Horizontal CNC lathe machine adopts an integral casting type bed structure, reasonable rib cavity arrangement, through finite element analysis, minimizes vibration, distortion and thermal deformation, with good thermal stability and long-term accuracy retention.

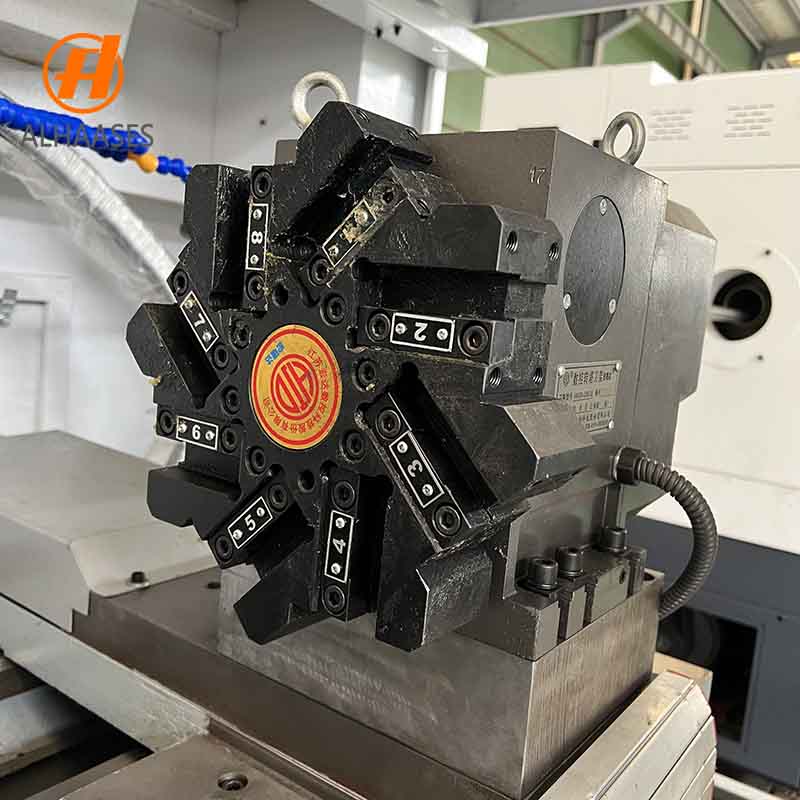

A full range of servo turrets (power turrets are optional)
The whole series of horizontal cnc lathe machines are equipped with servo turrets, which have fast indexing and reliable transmission.
Servo tailstock (option)
Servo motor control, quick response, precise control of position and jacking force. Easy to automate.
Product application industry
CNC lathe machine bar fedeer is a high-speed, high-precision CNC lathe, which has the functions of turning cylindrical surface, conical surface, arc surface, inner hole, grooving and various threads, etc. It is suitable for single, small batch or mass production. CNC lathe machine bar fedeer can also be used in optical equipment, electronic industry, automobile industry, hydraulic industry, precision instrument, fluid industry, petroleum industry, etc.
Video
Product Parameter
| Model | CK6140*750 | |
| Processing capacity | Maximum turning diameter of bed | 400mm |
| Maximum turning diameter on the tool post | 220mm | |
| Center distance | 750mm | |
| Rail width | 360mm | |
| X stroke | 250mm | |
| Z-stroke | 900mm | |
| Skateboard | Fast moving speed of carriage | X/Z: 5/8m/min |
| Repeatability | Z: 0.013mm X: 0.012mm | |
| PACKING(L*W*H) | 2350*1400*1800mm | |
