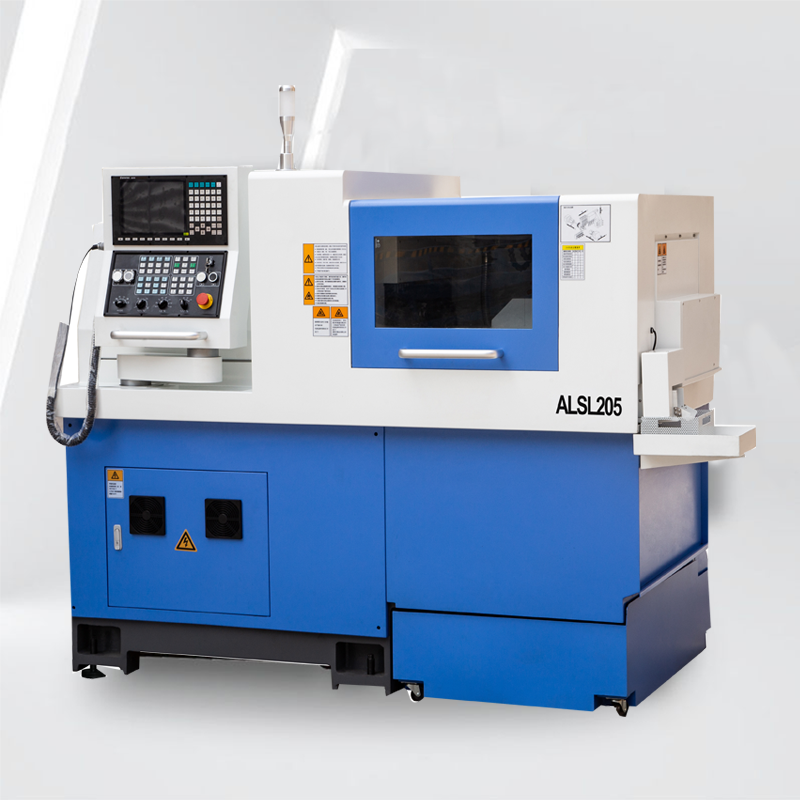

SL205 Swiss Type CNC Lathe
The SL205 Swiss Type CNC Lathe is a sliding headstock automatic lathe built for small, slender precision parts. With a Φ20 mm turning diameter, a Φ25 mm spindle through hole and 8000 r/min spindle speed, it machines complex small components in a single setup with high accuracy and repeatability.
SL205 Swiss Type CNC Lathe
The SL205 Swiss Type CNC Lathe is a sliding headstock automatic lathe designed for small, slender precision parts. With a maximum turning diameter of Φ20 mm, a Φ25 mm spindle through hole and a spindle speed up to 8000 r/min, it machines long, thin workpieces without deflection, because the guide bush supports the bar right at the cutting point. It is the dedicated solution for parts that a conventional CNC lathe cannot hold accurately.
Key Features

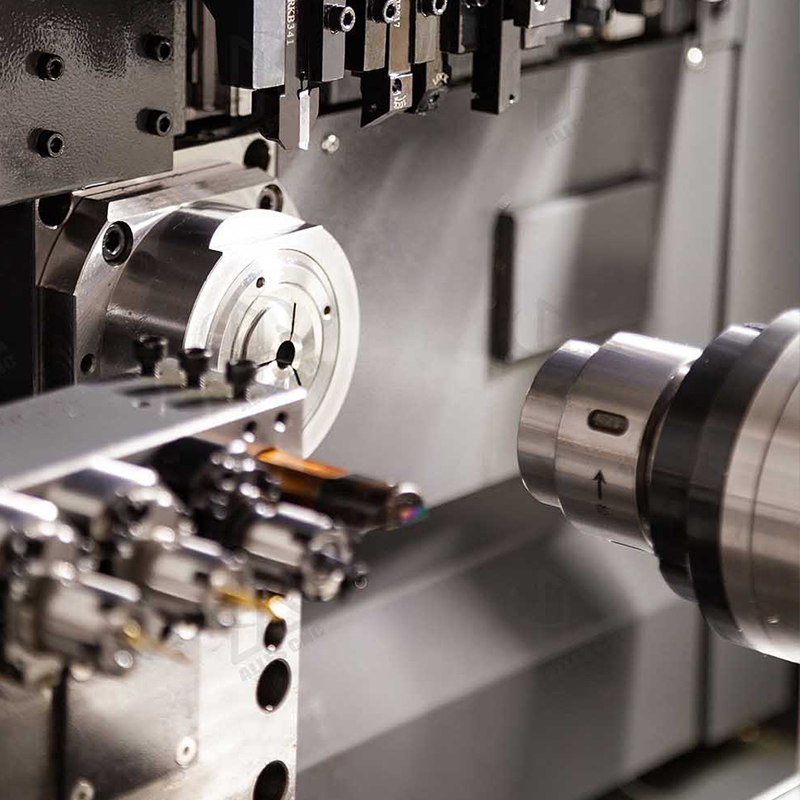

- Swiss type sliding headstock design with guide bush support at the cutting zone
- Max. turning diameter Φ20 mm for small precision parts
- Spindle through hole Φ25 mm, spindle speed up to 8000 r/min
- Max. machined workpiece length 50 mm for long slender parts

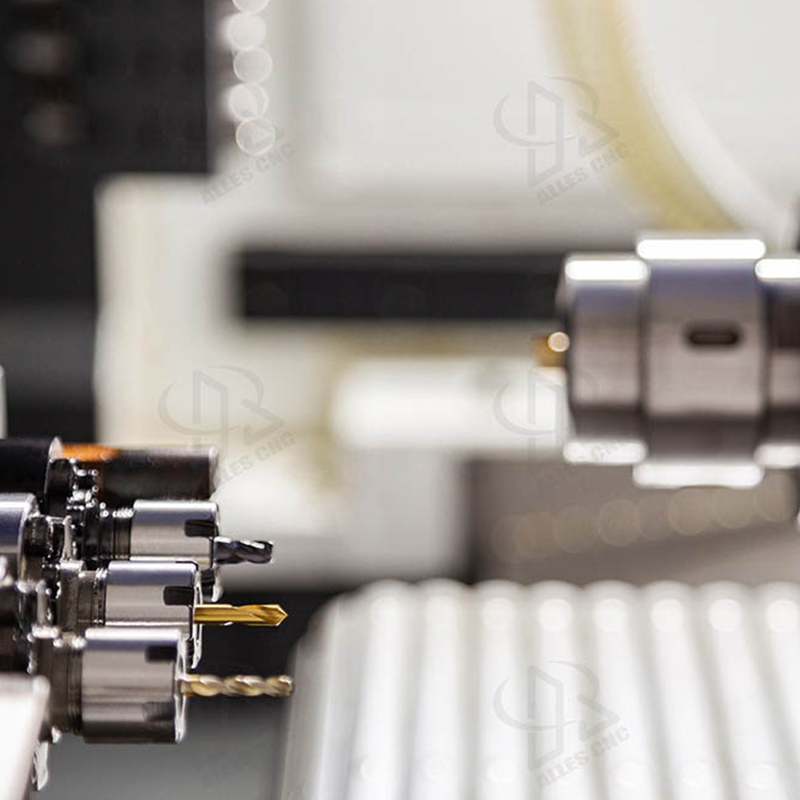

- Max. face drilling diameter Φ10 mm for cross and face work in one setup
- Back shaft up to 8000 r/min for rear-end machining without a second operation

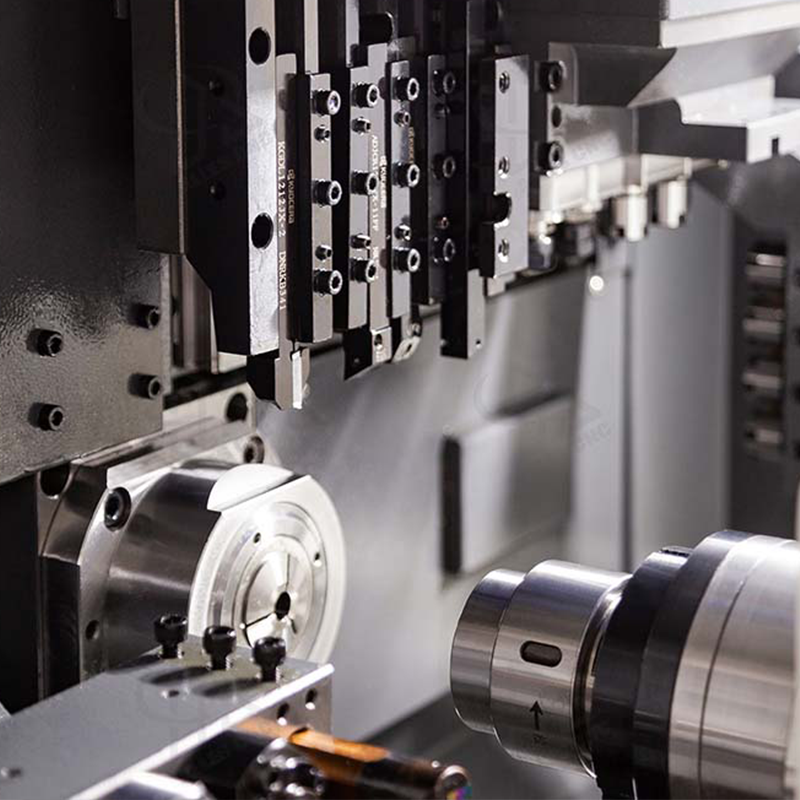

- 6 cylindrical turning tool positions on the tool post
- Compact machine size 2300 × 1300 × 1770 mm, net weight approx. 2400 kg
Applications
The SL205 swiss type lathe is used for small, long and thin precision parts where surface finish and dimensional accuracy are critical. Typical parts include shafts, pins, connectors, electronic and automotive small components, medical instrument parts, watch and instrument parts and other workpieces with a high length-to-diameter ratio. The actual application depends on the workpiece material, size and machining requirements.
Why Choose SL205
A conventional CNC lathe cannot machine long slender parts without chatter or deflection — the workpiece bends under cutting force. The SL205 solves this with a sliding headstock: the guide bush follows the bar and supports it directly next to the tool, so the unsupported length stays constant and very short. With a Φ20 mm turning capacity, a Φ25 mm spindle bore and a back shaft running up to 8000 r/min, the SL205 completes front and rear machining in one setup. Overseas after-sales service and CE certified machines are provided.
Technical Specifications
| Model | SL205 |
| Max. Turning Diameter | Φ20 mm |
| Spindle Through Hole Diameter | Φ25 mm |
| Spindle Maximum Speed | 8000 r/min |
| Max. Machined Workpiece Length | 50 mm |
| Max. Face Drilling Diameter | Φ10 mm |
| Max. Speed of Back Shaft | 8000 r/min |
| Cylindrical Turning Tool Position | 6 pcs |
| Dimensions (L×W×H) | 2300 × 1300 × 1770 mm |
| Machine Net Weight | ≈2400 kg |
Typical Applications
- Shafts, pins and slender turned parts
- Connectors and electronic components
- Automotive small precision parts
- Medical instruments and instrument parts
Request a Quote
Contact us for the SL205 swiss type CNC lathe price, delivery time and technical support. We provide overseas after-sales service and CE certified machines.
