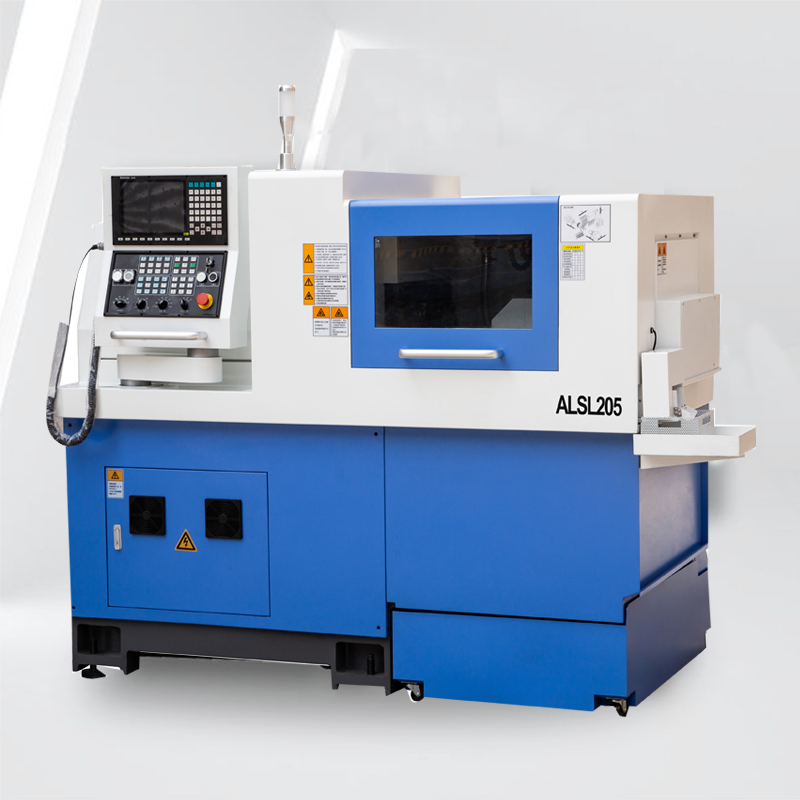

SL205 Swiss Type CNC Lathe | High Precision Sliding Headstock Turning Center
The SL205 sliding-headstock CNC lathe utilizes an advanced sliding headstock and guide-bushing support structure, effectively enhancing machining precision and surface quality for slender shafts and precision micro-components. Integrating multiple machining functions—such as turning, drilling, tapping, milling, and grooving—the machine enables the completion of all processing steps for complex parts in a single setup, thereby reducing workpiece handling time and boosting efficiency. Equipped with a high-performance spindle system and a precision servo control system, the machine delivers high speed, high precision, and exceptional stability. It also supports automatic bar feeders and automatic parts-unloading systems to facilitate continuous automated production, meeting the demands of modern precision manufacturing enterprises for high-efficiency, high-quality machining.
The SL205 Swiss-type CNC lathe features ultra-high machining accuracy and exceptional stability, making it particularly well-suited for the mass production of slender shafts, miniature components, and complex precision parts.
Automatic Swiss Type Lathe SL125 Features
Multi-tool synchronous machining technology effectively shortens machining cycles and boosts production efficiency. The equipment supports continuous, automated 24-hour operation, thereby reducing labor costs and increasing equipment utilization. Performing multiple machining processes in a single setup ensures dimensional consistency while minimizing capital investment and floor space requirements, ultimately delivering greater production benefits and a higher return on investment for the enterprise.
Product application industry
The SL205 Swiss-type CNC lathe is widely used across industries such as medical devices, electronics and telecommunications, automotive components, aerospace, precision instruments, optical equipment, new energy, and watchmaking. It is particularly well-suited for the mass production of medical implants, bone screws and plates, electronic connectors, sensor components, precision shafts, mobile phone accessories, drone parts, and various high-precision miniature metal components, meeting the modern precision manufacturing sector's demands for high efficiency, high precision, and high consistency.
Video
Product Parameter
| Item | Unit | SL205 |
| Max.Turning Diameter | mm | Φ20 |
| Spindle through hole diameter | mm | Φ25 |
| Spindle maximum speed | r/min | 8000 |
| Maximum machined workpiece length | mm | 50 |
| Maximum face drilling diameter | mm | Φ10 |
| Maximum speed of back shaft | r/min | 8000 |
| Cylindrical turning tool position | Pcs | 6 |
| Dimensions | mm | 2300×1300×1770 |
| Machine net weight | Kg | ≈2400 |
