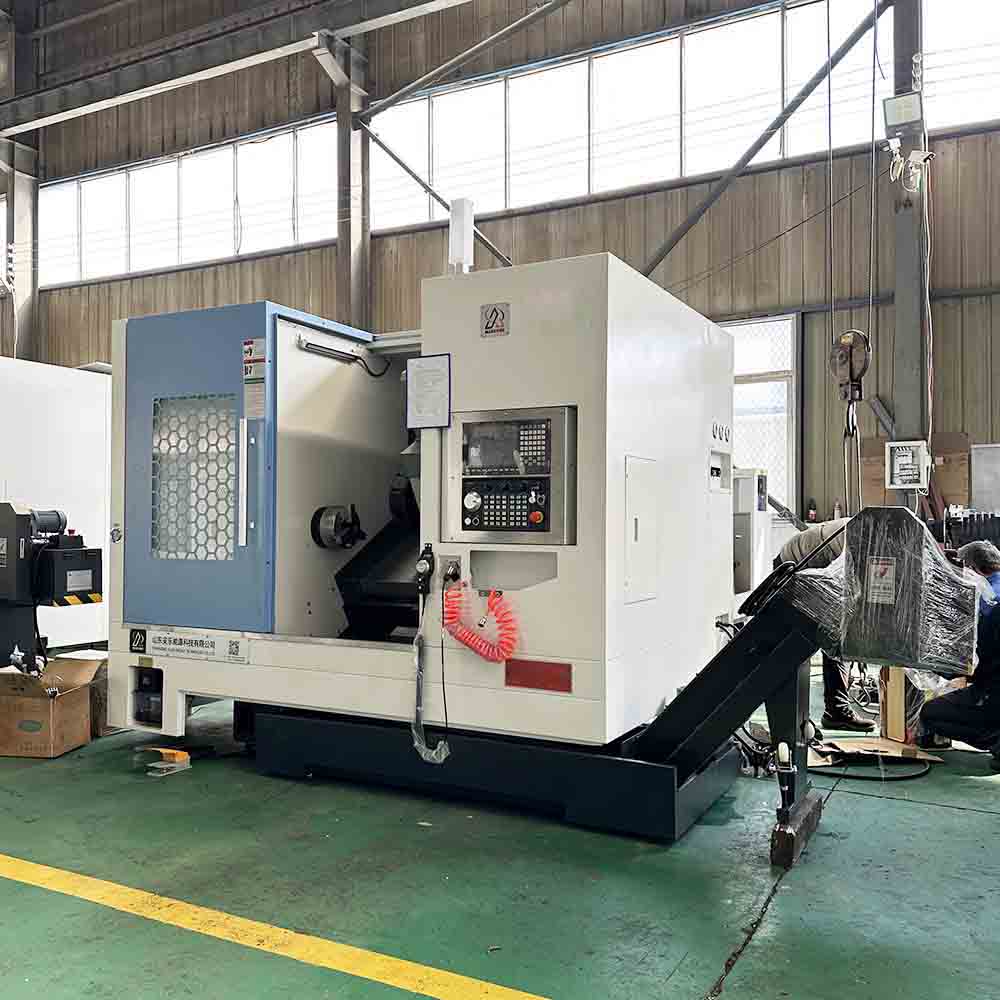

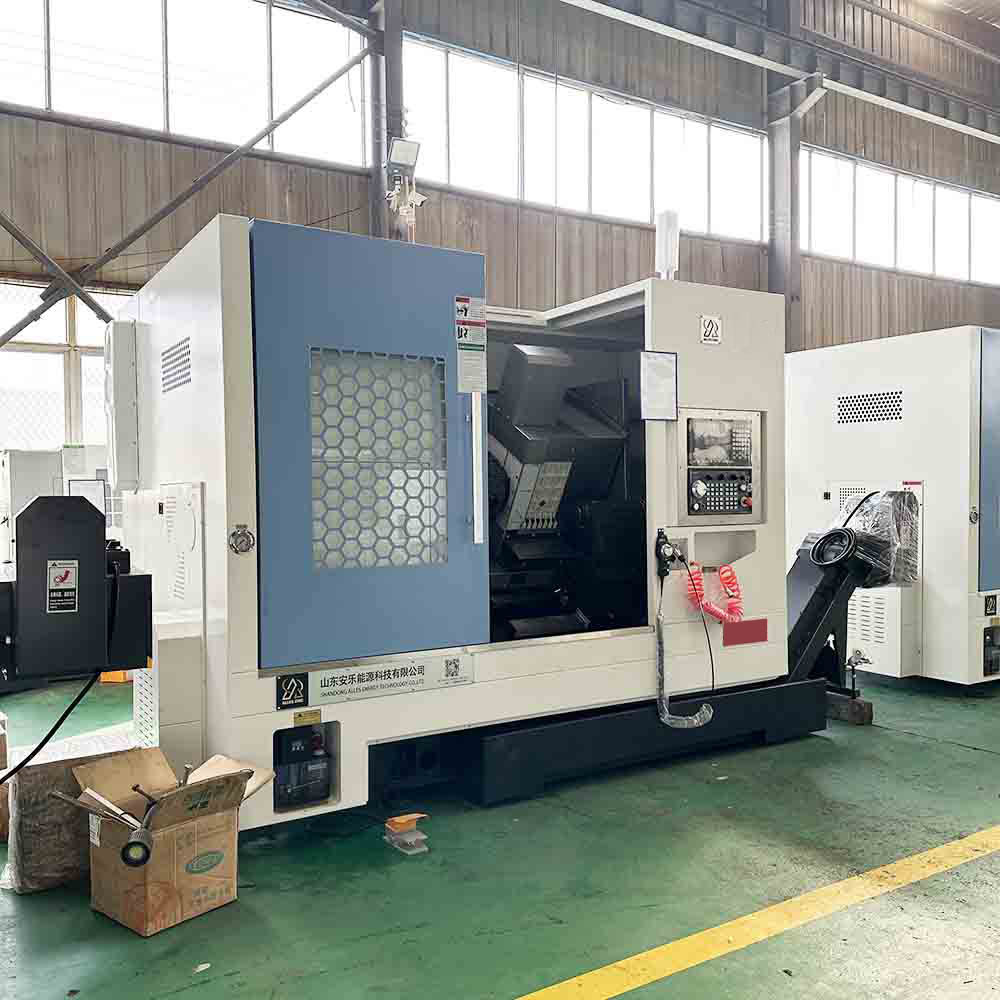

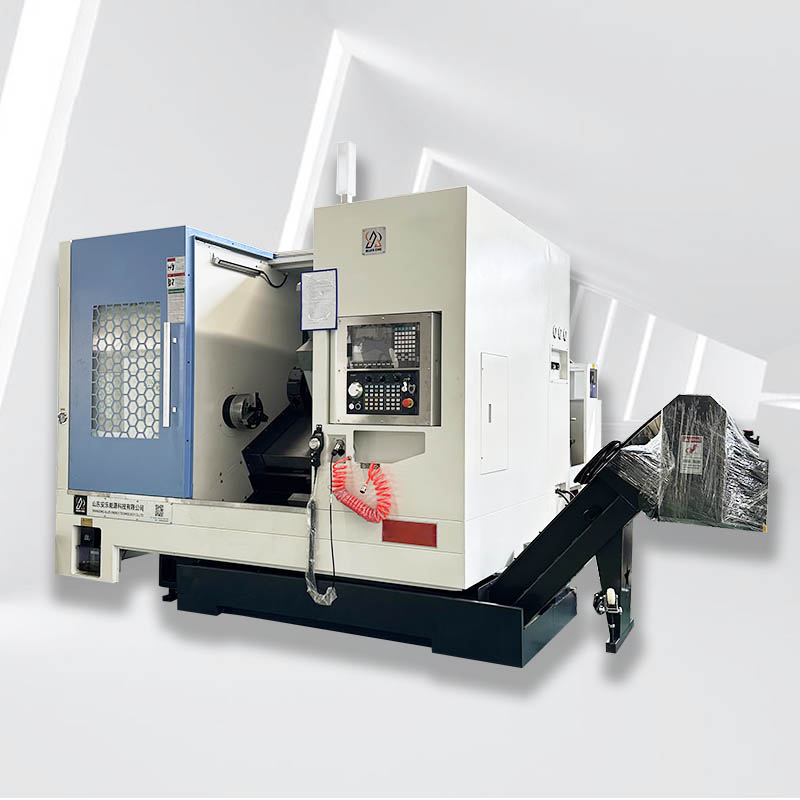

TCK600DY CNC Turning And Milling Compound Machine

TCK600DY CNC Turning And Milling Compound Machine

The TCK600DY CNC Turning And Milling Compound Machine is a heavy-duty turn-mill center that combines CNC turning with Y-axis milling and driven tools. With a Φ630 mm swing over bed and a Φ90/105 mm spindle bore, it handles large shafts, flanges and complex turned parts that also need cross milling, drilling and tapping — all without moving the workpiece to a second machine.

Key Features

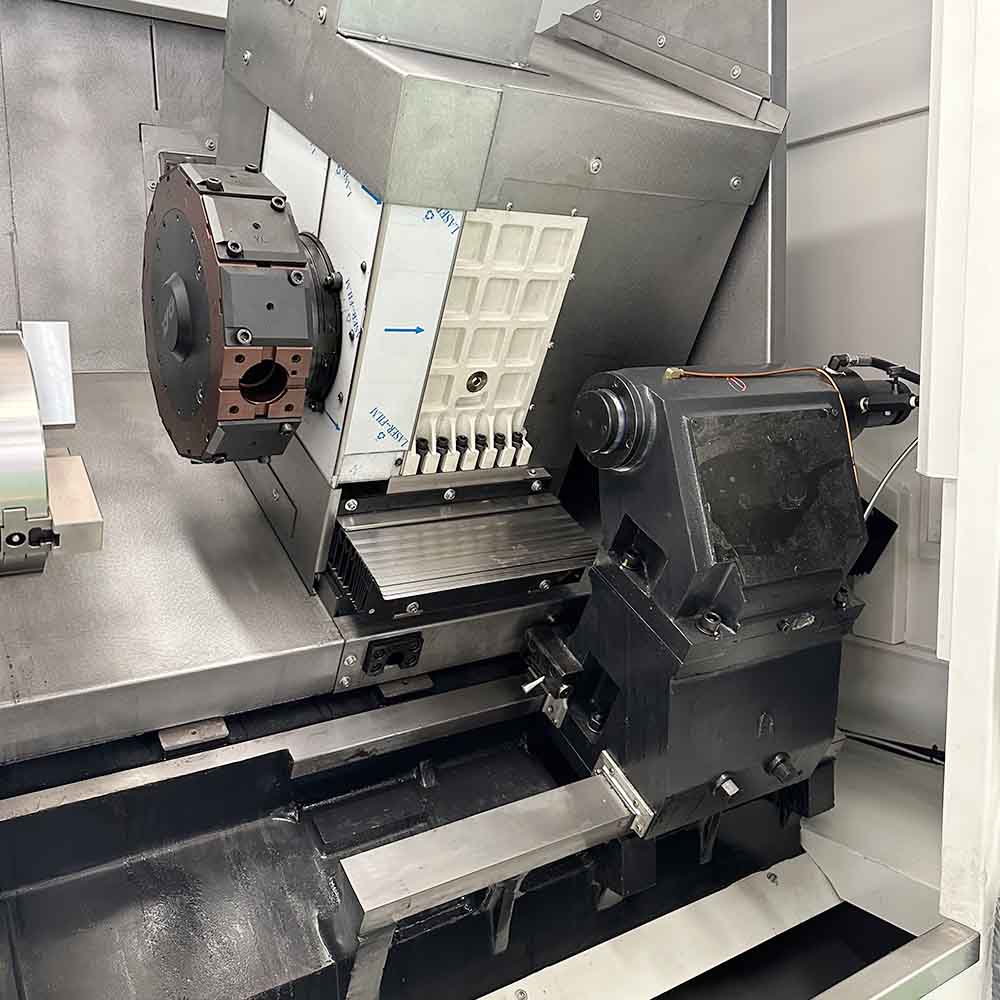

• Turning and milling combined in one machine, with Y axis and live tooling
• Driven tools for milling, drilling and tapping operations
• Swing over bed Φ630 mm and machining diameter on tool post Φ400 mm
• Spindle maximum speed 3500 rpm with Φ90/105 mm spindle bore
• Large bar stock capacity up to Φ75/92 mm
• C axis 360° for contour milling and cross-feature machining
• Z-axis travel 1000 mm for longer workpieces

Applications

The TCK600DY turning and milling compound machine is used for complex turned parts that also require milling, drilling or tapping. Typical parts include flanges, fittings, valve bodies, hydraulic components, shafts and other parts with cross features. The actual application depends on the workpiece material, size and machining requirements.

Why Choose TCK600DY

This turn-mill center reduces the number of setups and machines needed for complex parts. With a larger Φ630 mm swing and Φ90/105 mm bore than smaller models in the range, it takes bigger workpieces while still delivering turning, milling and drilling on one platform. That improves accuracy and productivity in batch production.

Technical Specifications

Typical Applications

• Flanges, fittings and valve bodies
• Hydraulic and pneumatic components
• Shafts and parts requiring cross drilling and milling
• Batch production of complex turned parts

Request a Quote

Contact us for the TCK600DY turning milling compound machine price, delivery time and technical support. We provide overseas after-sales service and CE certified machines.
