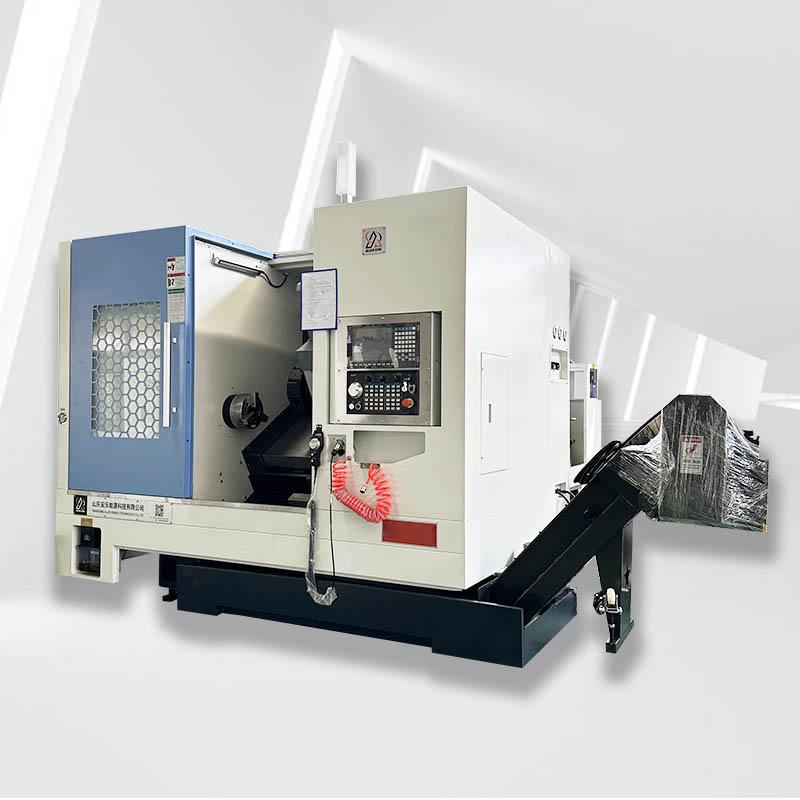

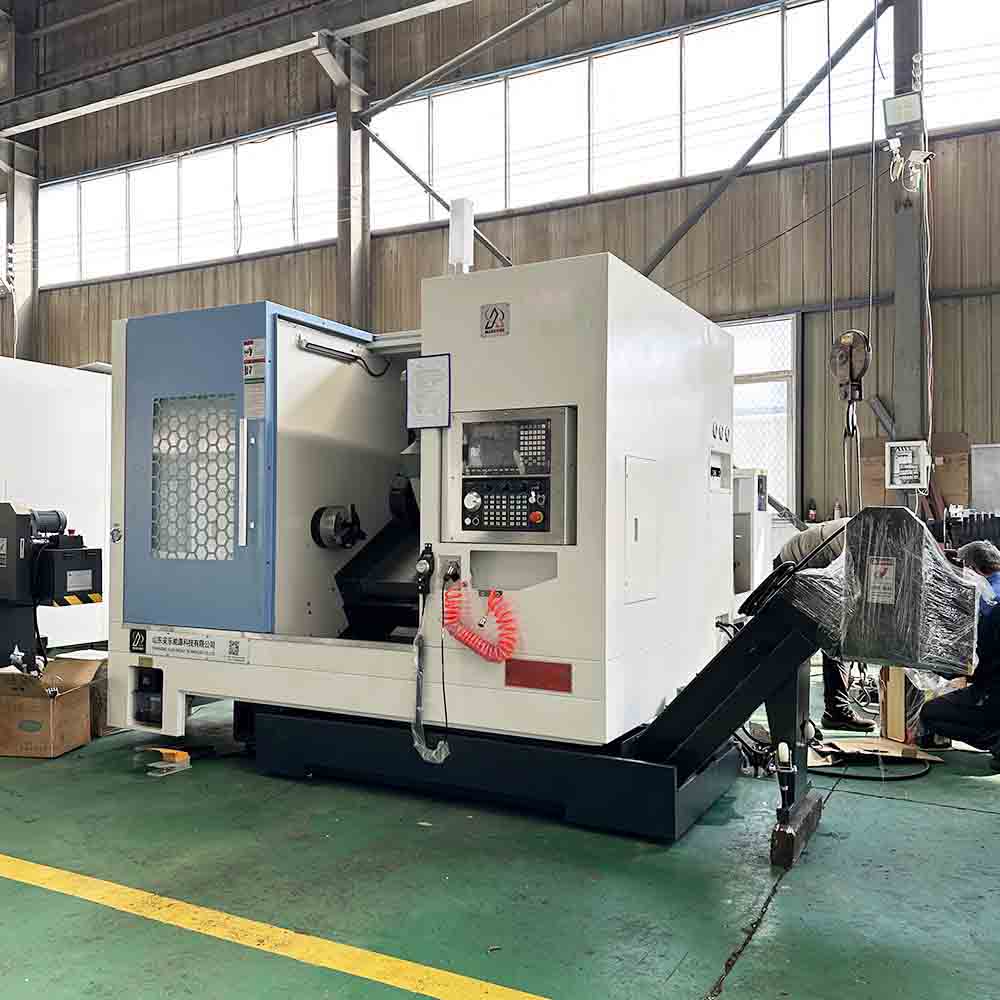

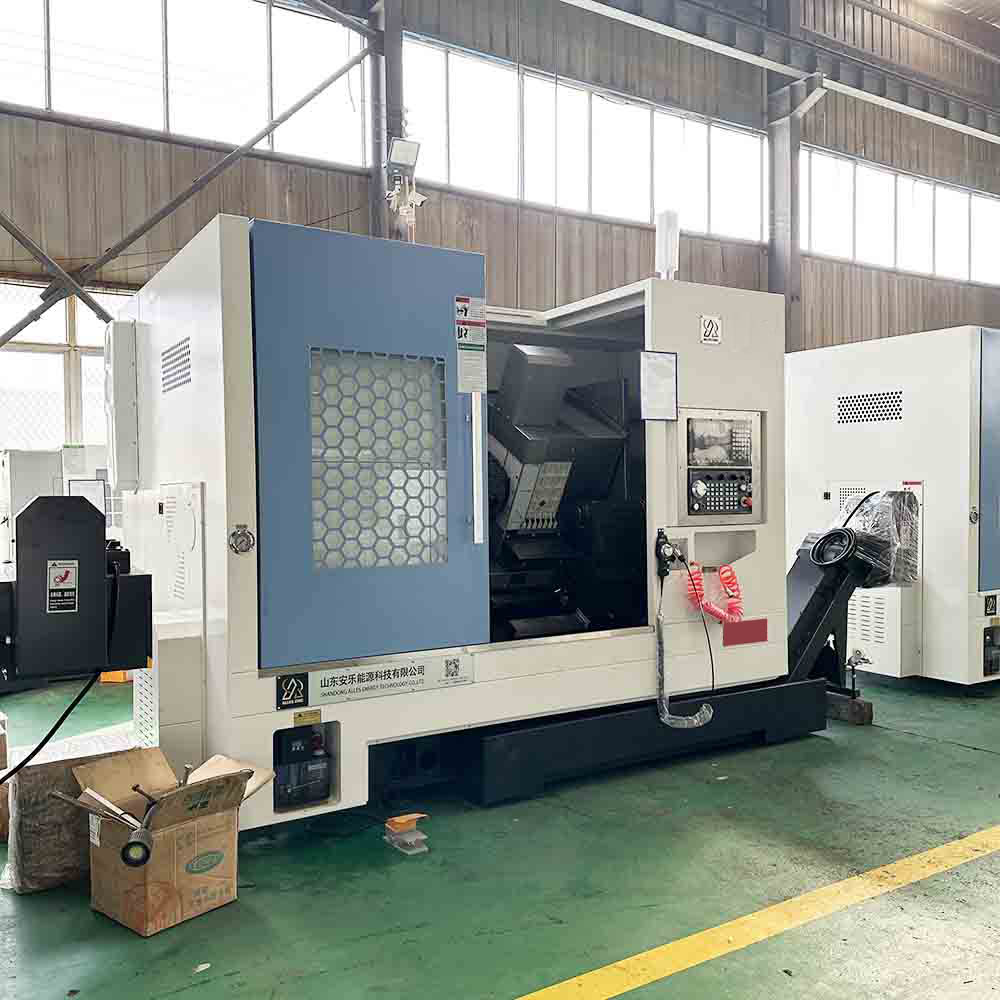

TCK600DY CNC Turn-Mill Center with Y Axis and Live Tooling

The TCK600DY features a high-performance spindle unit and a precision drive system, delivering exceptional heavy-duty cutting capabilities and long-term stability. Its Y-axis linkage function enables complex operations—such as off-center hole machining, keyway milling, side milling, drilling, and tapping—thereby significantly reducing workpiece handling and manual intervention to achieve efficient, intelligent production.

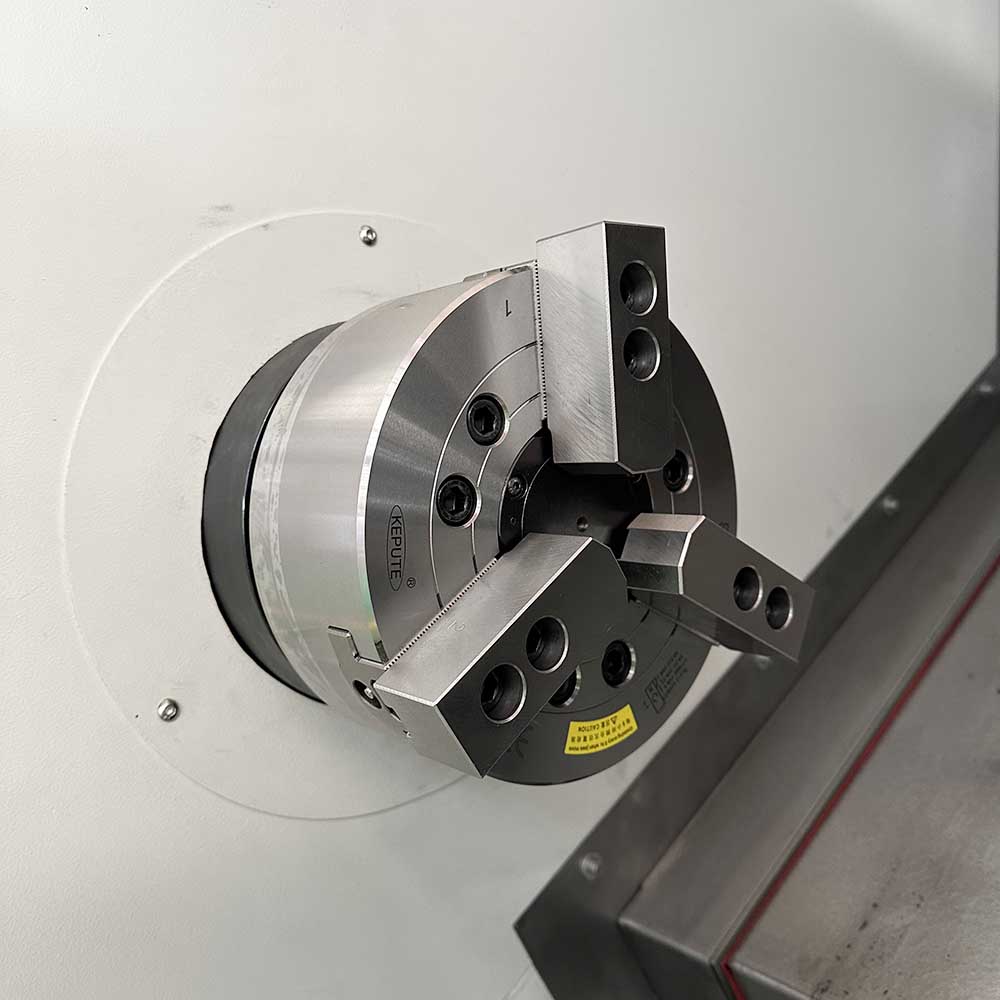

The machine supports mainstream international CNC systems such as FANUC, Siemens, and Mitsubishi. It offers optional configurations—including hydraulic chucks, automatic tailstocks, automatic chip conveyors, automatic bar feeders, and robotic loading/unloading systems—to meet the integration requirements of modern automated production lines.

Product Features:

High-Rigidity Slant Bed Structure

Features a one-piece cast iron 45° slant bed design that has undergone dual aging treatments, ensuring excellent vibration damping and thermal stability for sustained machining accuracy.

Y-Axis Turn-Mill Capability

Equipped with a Y-axis linkage system, enabling complex machining operations such as off-center hole drilling, keyway cutting, side milling, and end-face drilling and tapping.

Precision C-Axis Indexing

The spindle features high-precision C-axis control, allowing for synchronized turning and milling operations and enhancing the capability to machine complex parts.

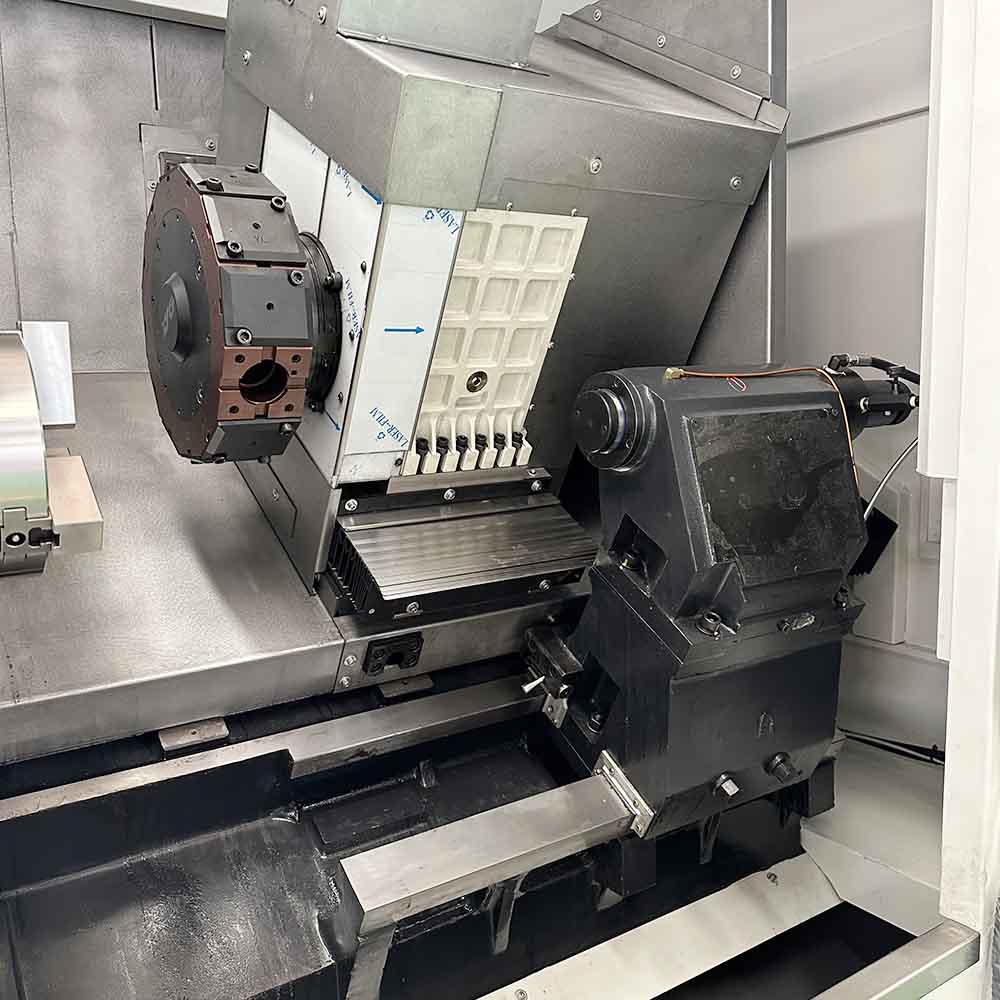

Driven Tool Turret System

Configured with a high-rigidity driven tool turret capable of performing turning, milling, drilling, and tapping, thereby reducing equipment investment costs.

Large-Bore Spindle Design

Suitable for machining long shafts, pipe fittings, and large rotary components, meeting the demands of heavy-duty cutting and high-efficiency production.

Strong Automation Compatibility

Supports integration with automation equipment such as automatic bar feeders, robotic arms, and automatic chip conveyors, facilitating intelligent manufacturing workflows.

Product Application Industry

Application Industries

Automotive Manufacturing

Machining of automotive shaft components, flanges, wheel hubs, and parts for steering and transmission systems.

Construction Machinery

Machining of hydraulic components, cylinder blocks, bushings, connectors, and heavy machinery parts.

Oil & Energy

Machining of valves, flanges, fittings, pump bodies, and energy equipment components.

Aerospace

Machining of high-precision aluminum and titanium alloys, as well as complex structural components.

General Machinery Manufacturing

Suitable for machining a wide range of high-precision shaft-type, disc-type, and irregularly shaped metal parts.
