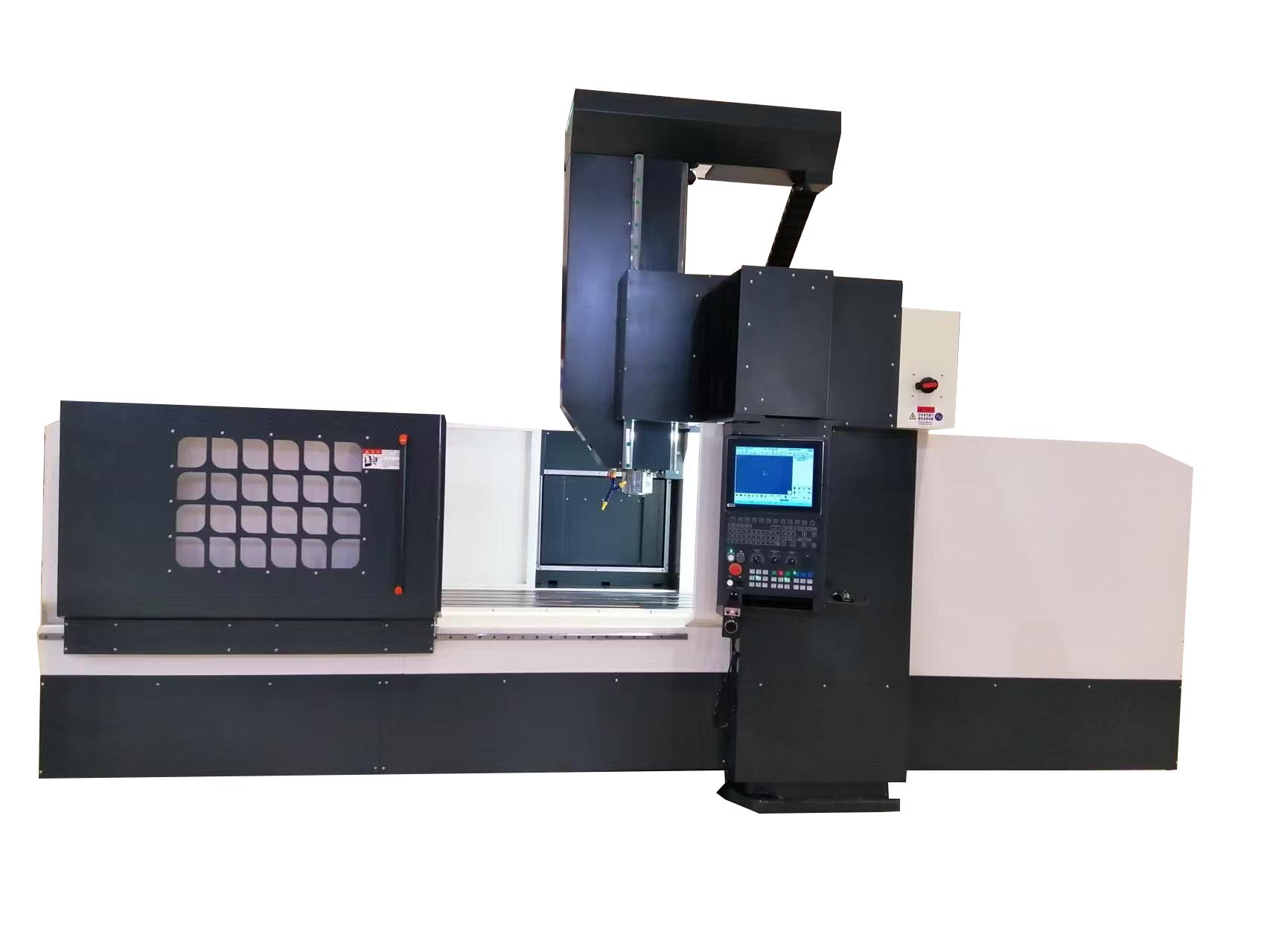

GMC1613 CNC Gantry Milling Machine
The GMC1613 CNC Gantry Milling Machine is a gantry type CNC machining center designed for machining large and heavy workpieces. Its double-column gantry structure and large working table make it suitable for large plates, moulds, frames and structural components.
GMC1613 CNC Gantry Milling Machine
The GMC1613 CNC Gantry Milling Machine is a gantry type CNC machining center built for machining large and heavy metal workpieces. With a working table of 2200 x 1300 mm, a load capacity of 3000 kg and a gantry width of 1350 mm, it is designed for large plates, moulds and structural parts that cannot be handled by a standard vertical machining center.
Key Features
- Gantry type structure with double columns for large workpieces
- Large working table 2200 x 1300 mm with 3000 kg load capacity
- Long travels: X 2000 mm, Y 1600 mm, Z 700 mm
- Cutting feed speed range up to 7 m/min for efficient milling
- Suitable for milling, drilling, boring and general machining
- Rigid gantry frame and guideways for stable heavy cutting
Applications
The GMC1613 gantry machining center is used for large plates, moulds, machine frames, structural steel parts and other oversized metal components. It performs milling, drilling and boring operations. The actual application depends on the workpiece material, size and machining requirements.
Why Choose GMC1613
This gantry type CNC milling machine provides a large working area, high load capacity and stable heavy cutting performance. It is a practical choice for manufacturers who need to machine large parts with a rigid gantry structure and reliable CNC control.
Technical Specifications
| Model | GMC1613 |
| Working Table Size | 2200 × 1300 mm |
| Workbench Load Capacity | 3000 kg |
| T-Slot Width | 7 × 18 × 165 mm |
| X-Axis Travel | 2000 mm |
| Y-Axis Travel | 1600 mm |
| Z-Axis Travel | 700 mm |
| Cutting Feed Speed Range | 7 m/min |
| Spindle End Face to Table Distance | 120 - 820 mm |
| Gantry Width | 1350 mm |
| Machine Dimensions (L×W×H) | 5300 × 3400 × 2800 mm |
| Machine Weight | 12.5 T |
Typical Applications
- Large mould bases and mould plates
- Machine tool frames and structural steel
- Large metal plates and fabricated parts
- Heavy machinery components
Request a Quote
Contact us for the GMC1613 CNC gantry milling machine price, delivery time and technical support. We provide overseas after-sales service and CE certified machines.
