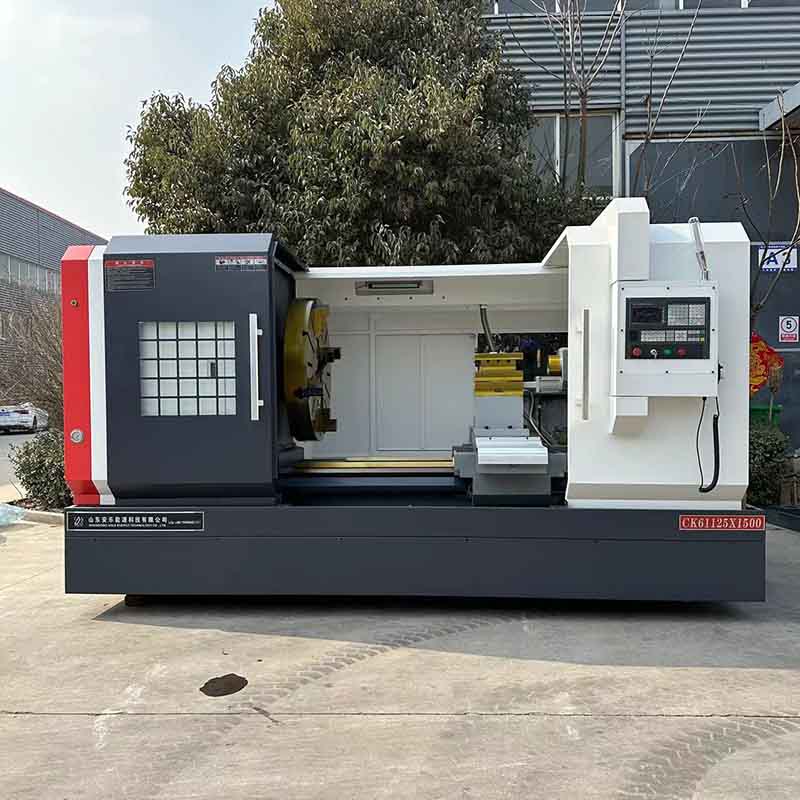

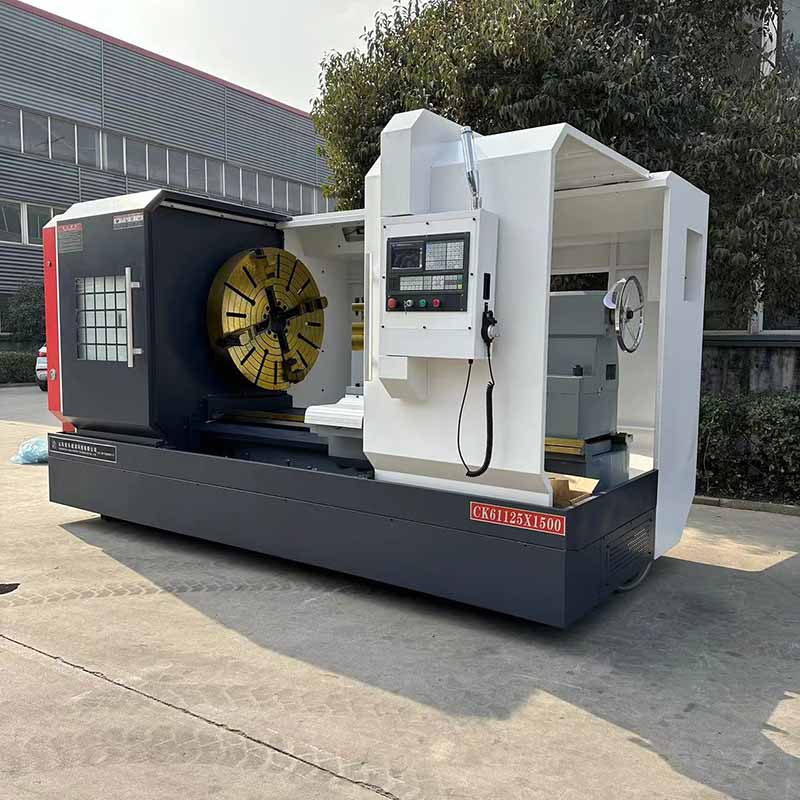

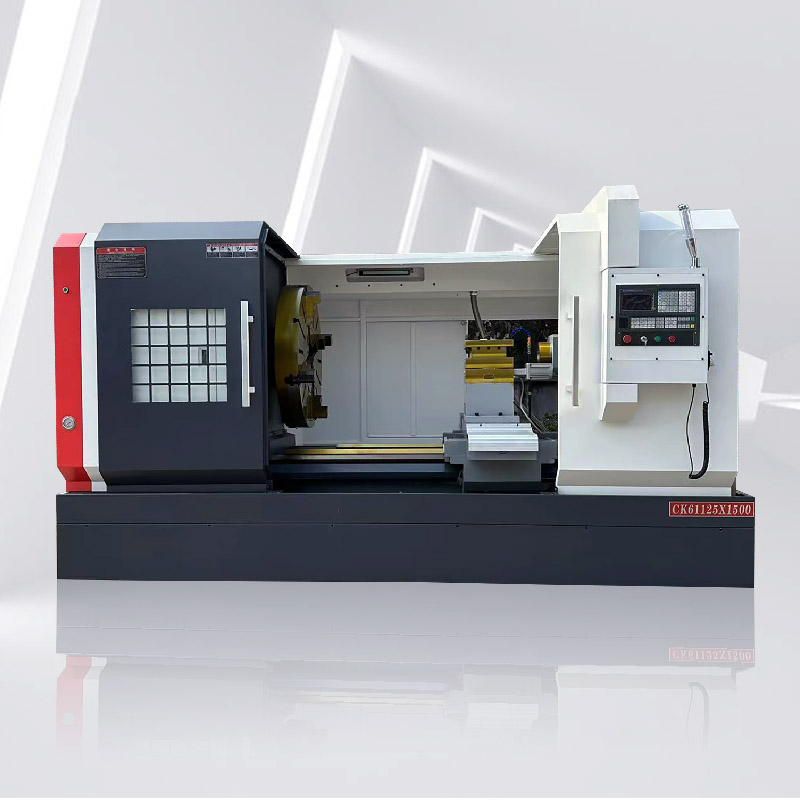

CK61125×1500 Heavy Duty CNC Lathe | Large Bore Horizontal Turning Machine for Large Parts
The CK61125×1500 is a large-scale, heavy-duty CNC lathe featuring a high-rigidity, wide bed and a large-bore spindle design, delivering powerful heavy-cutting capabilities and stable machining performance. With a machining length of 1,500 mm, it is suitable for processing large shafts, flanges, pipe fittings, and heavy-duty rotary components, finding extensive application in industries such as construction machinery, mining, energy, and heavy machinery manufacturing.

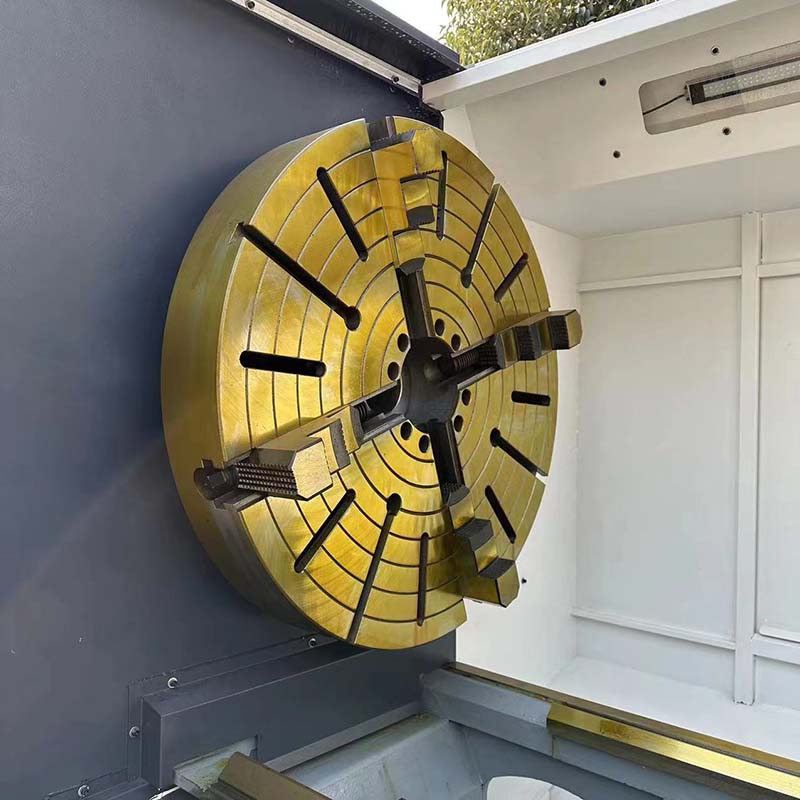

The CK61125×1500 CNC lathe features a wide, high-rigidity bed structure that offers excellent load-bearing capacity, vibration resistance, and machining stability, making it particularly suitable for processing large shaft-type, disc-type, and heavy rotary components. Equipped with a large-bore spindle and a high-performance spindle drive system, the machine meets the requirements for processing large workpieces and tubular parts. Its 1500mm machining length accommodates a wide range of medium-to-large workpiece applications, enabling various machining operations such as external turning, internal boring, facing, tapering, contouring (arcs), threading, and grooving. High-precision ball screws and a CNC servo system ensure smooth operation and machining accuracy, making the machine ideal for the continuous production of heavy-duty components.
Characteristics of large CNC lathes：

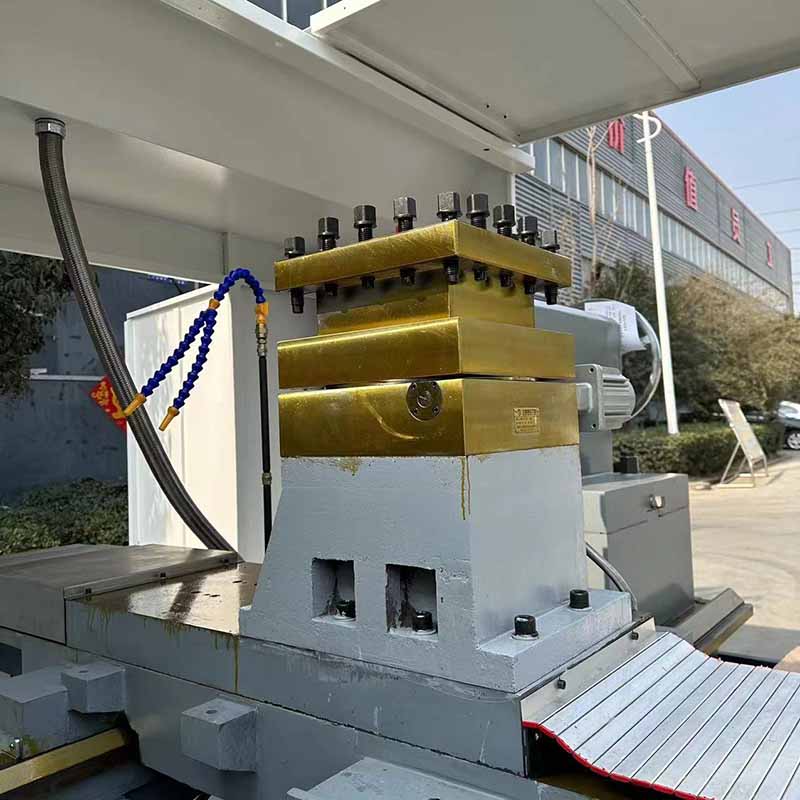

The CK61125×1500 offers the advantages of high rigidity, an extensive machining range, powerful cutting capabilities, and high stability. Its wide bed structure effectively minimizes vibration during heavy-duty cutting, thereby enhancing workpiece surface quality and dimensional stability. The large spindle bore design reduces clamping constraints for large workpieces and increases machining flexibility. Supporting various tool post and chuck configurations that can be customized to specific production needs, the machine is ideal for the batch processing of large, heavy-duty components.
Product application industry：
The CK61125×1500 CNC lathe is widely used in industries such as construction machinery, mining equipment, petroleum and energy equipment, shipbuilding, metallurgical equipment, heavy machinery, and the processing of large-scale components. It is particularly well-suited for machining large drive shafts, flanges, rollers, hydraulic cylinders, pipe fittings, sleeves, and various heavy-duty rotary parts, effectively meeting industrial requirements for the processing of large, high-strength, and high-precision metal components.
Video
Product Parameter
| Item | Unit | CK61125X1500 |
| Max swing over bed | mm | Φ1250 |
| Swing over cross slide | mm | 850 |
| Distance between centers | mm | 1500/3000/4000/5000/6000 |
| X axis travel | mm | 520 |
| Z axis travel | mm | 1350/2850/3850/4850/5850 |
| Spindle hole diameter | mm | Φ130 |
| Dimension | mm | 2250x2300x5000/6500/7500/8500/9500 |
| Net weight | T | 11.0/12.5/13.5/14.5/15.5 |
