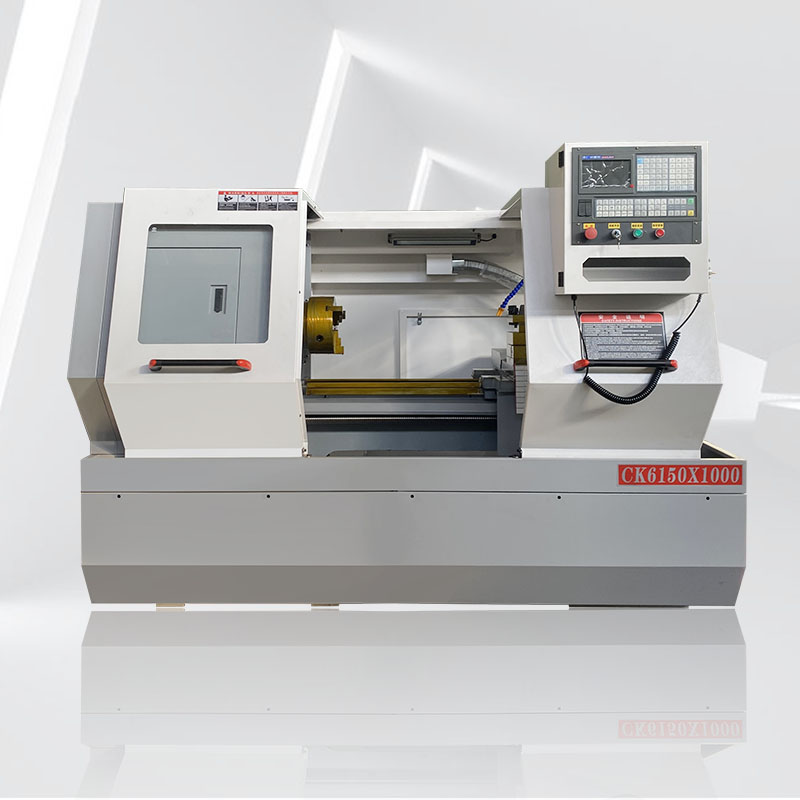

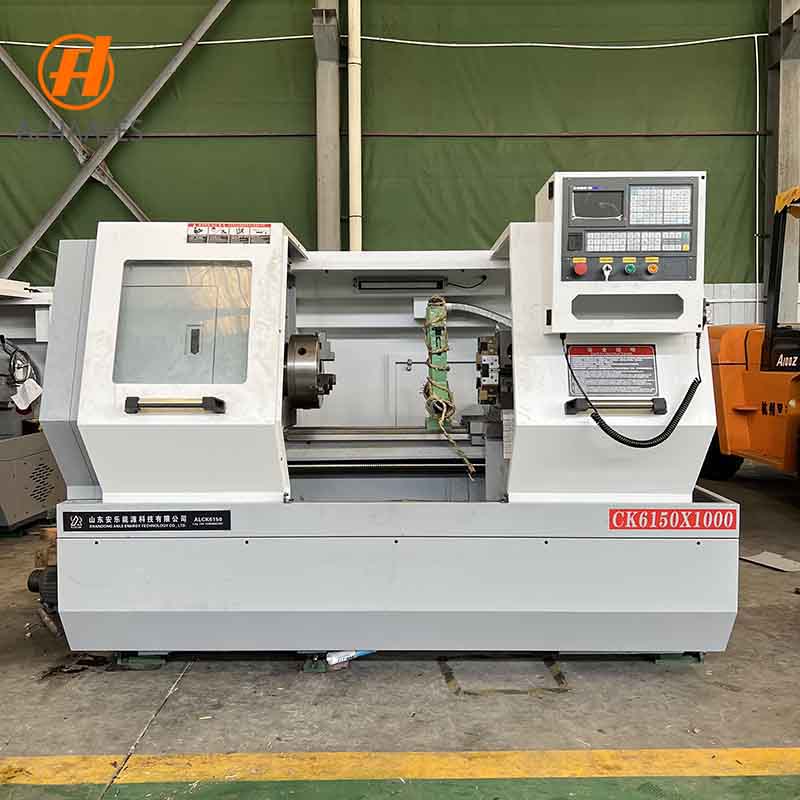

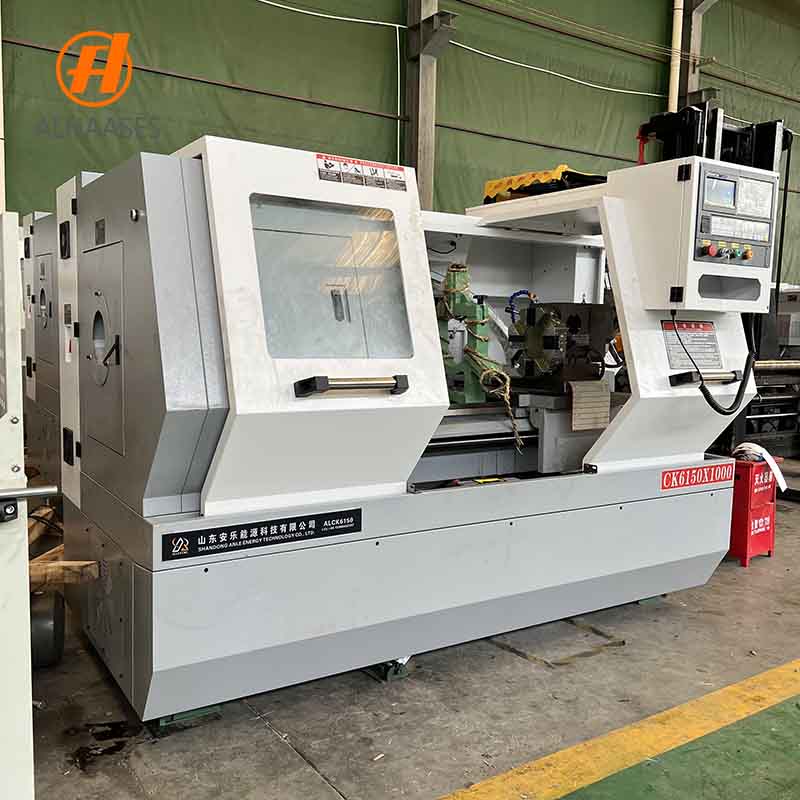

CK6150×1000 CNC Lathe Machine | High Precision Horizontal Turning Center for Heavy Metal Machining

The CK6150×1000 CNC lathe features a highly rigid, one-piece cast-iron bed structure that offers excellent vibration resistance and long-term machining stability, meeting the requirements for high-precision machining of medium-to-large components. Equipped with a high-precision spindle system, precision ball screws, and a servo drive system, the machine supports various operations such as external turning, internal boring, facing, grooving, and threading. With a machining length of 1000mm, it is suitable for processing long shafts, sleeves, and disc-type parts. Controlled by an advanced CNC system, the machine ensures ease of operation and stable performance; optional features—including hydraulic chucks, automatic tool turrets, automatic chip conveyors, and automatic bar feeders—can be added to enhance efficiency and enable high-speed, continuous production.

The features of CK6150X1000 Flat Bed CNC Lathe are as follows:

The CK6150×1000 CNC lathe offers the advantages of high rigidity, high precision, high efficiency, and high reliability, meeting the machining requirements for a wide range of complex metal parts. Its powerful cutting capability ensures stable machining results, while the high-precision drive system effectively enhances dimensional consistency. The machine's extensive working range makes it suitable for producing a diverse array of workpieces; furthermore, its reliable structure and ease of maintenance help enterprises reduce production costs while boosting machining efficiency and market competitiveness.

Product Application Industry

The CK6150×1000 CNC lathe is widely used in industries such as automotive parts, construction machinery, energy equipment, mold making, general machinery manufacturing, hydraulic equipment, mining equipment, and the processing of general-purpose components. It is particularly well-suited for machining shaft components, drive shafts, flanges, sleeves, hydraulic cylinder parts, threaded components, and various medium-to-large metal rotary parts. Capable of processing a wide range of materials—including carbon steel, stainless steel, aluminum alloys, and copper alloys—it is a vital piece of equipment for enterprises seeking to achieve high-precision, high-efficiency batch production.

CK6150 Flat Bed CNC Lathe – Standard and Optional Configurations

Standard Configurations

High-rigidity flat bed structure

GSK CNC system

Manual 3-jaw chuck

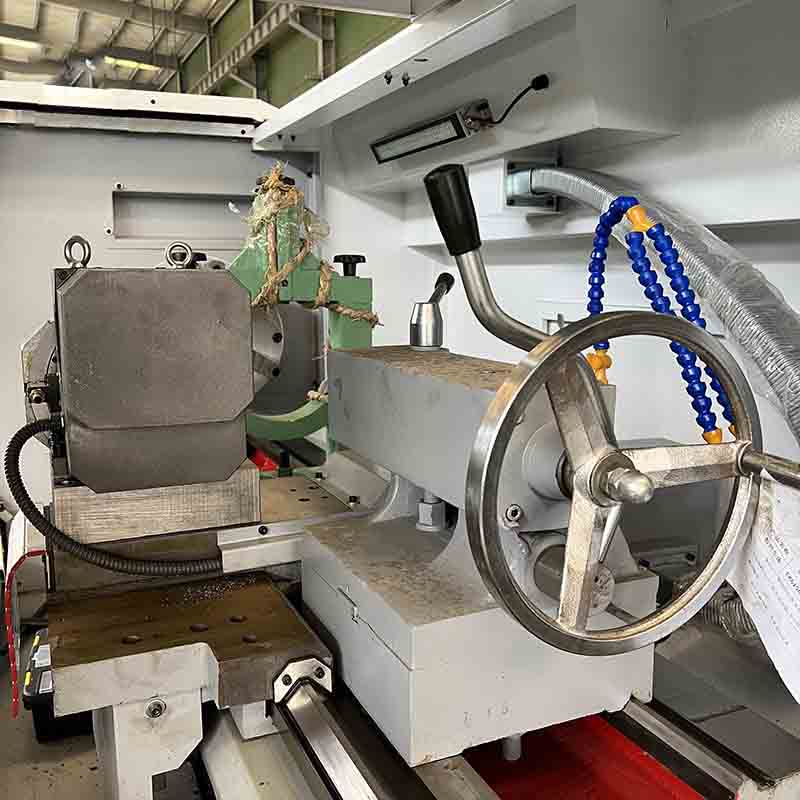

Tailstock with manual quill

Cooling system

Centralized lubrication system

Work light

Protective full enclosure

Standard tool post (manual tool post)

Optional Configurations

Hydraulic 3-jaw or 4-jaw chuck

Hydraulic tailstock

Hydraulic turret or servo turret (6 / 8 stations)

Automatic chip conveyor

Automatic tool changer (ATC)

Pneumatic system

Spindle oil cooler

Customized steady rest and follow rest

Bar feeder

Precision measuring probes

Siemens, Fanuc, KND CNC system (customized upon request)

Video

Product Parameter

CK6150 CNC Lathe Customer Notice

Dear Customer,
Thank you for choosing the CK6150 CNC Lathe manufactured by our company. To ensure safe and efficient operation of this equipment, please carefully read the following instructions:
1. Installation and Environmental Requirements
The machine should be installed on a solid and level foundation to prevent uneven flooring from affecting machining accuracy.
The operating environment should be clean and dry, avoiding excessive moisture, dust, or strong vibrations.
Recommended ambient temperature: 10℃–40℃, avoiding prolonged exposure to high or low temperatures.
Allow sufficient space around the machine for operation, maintenance, and heat dissipation.
2. Electrical and Operational Safety
The machine must be connected to a proper three-phase power supply (380V/50Hz or customer-specified voltage) with reliable grounding.
Operators must be professionally trained and familiar with CNC system operations and safety regulations.
Before starting the machine, check that the emergency stop switch is functioning properly and that all safety devices are in place.
Never reach into the working area or touch rotating parts while the machine is in operation.
3. Usage and Maintenance
Ensure that the workpiece is securely clamped, the correct tools are selected, and the program is properly set before machining.
Avoid overload cutting during operation to prevent damage to the spindle or tools.
Check the lubrication system daily, and keep guideways and lead screws adequately lubricated.
Regularly clean chips and coolant to maintain machine cleanliness and prevent blockages or corrosion.
Inspect electrical, hydraulic, and transmission components according to the maintenance schedule, and replace wear parts in a timely manner.
4. Warranty and Service
The machine has a 12-month warranty (starting from the date of arrival at the customer's site).
During the warranty period, we provide free repair or replacement for parts damaged due to product quality issues.
Damage caused by non-quality issues (such as misuse, improper operation, or power abnormalities) will incur service charges as appropriate.
Our company provides long-term technical support and spare parts supply to ensure smooth operation of your equipment.
5. Special Notes
Before use, please carefully read the Operation Manual and strictly follow all operating procedures.
It is recommended that customers maintain a machine record to track operation status and maintenance history.
In case of a fault, immediately stop the machine and contact after-sales service personnel. Do not attempt to disassemble or repair the machine yourself.
