PRODUCT

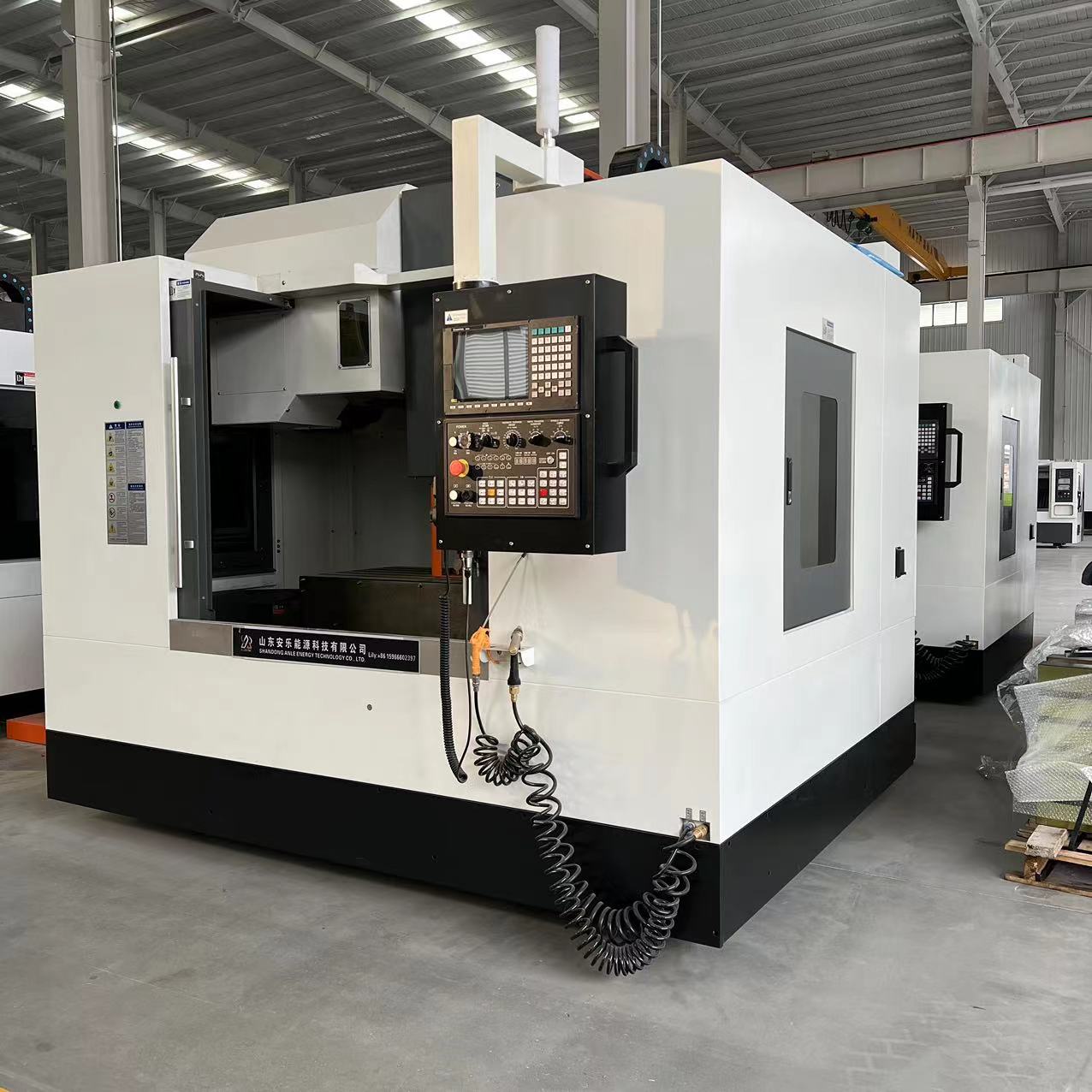

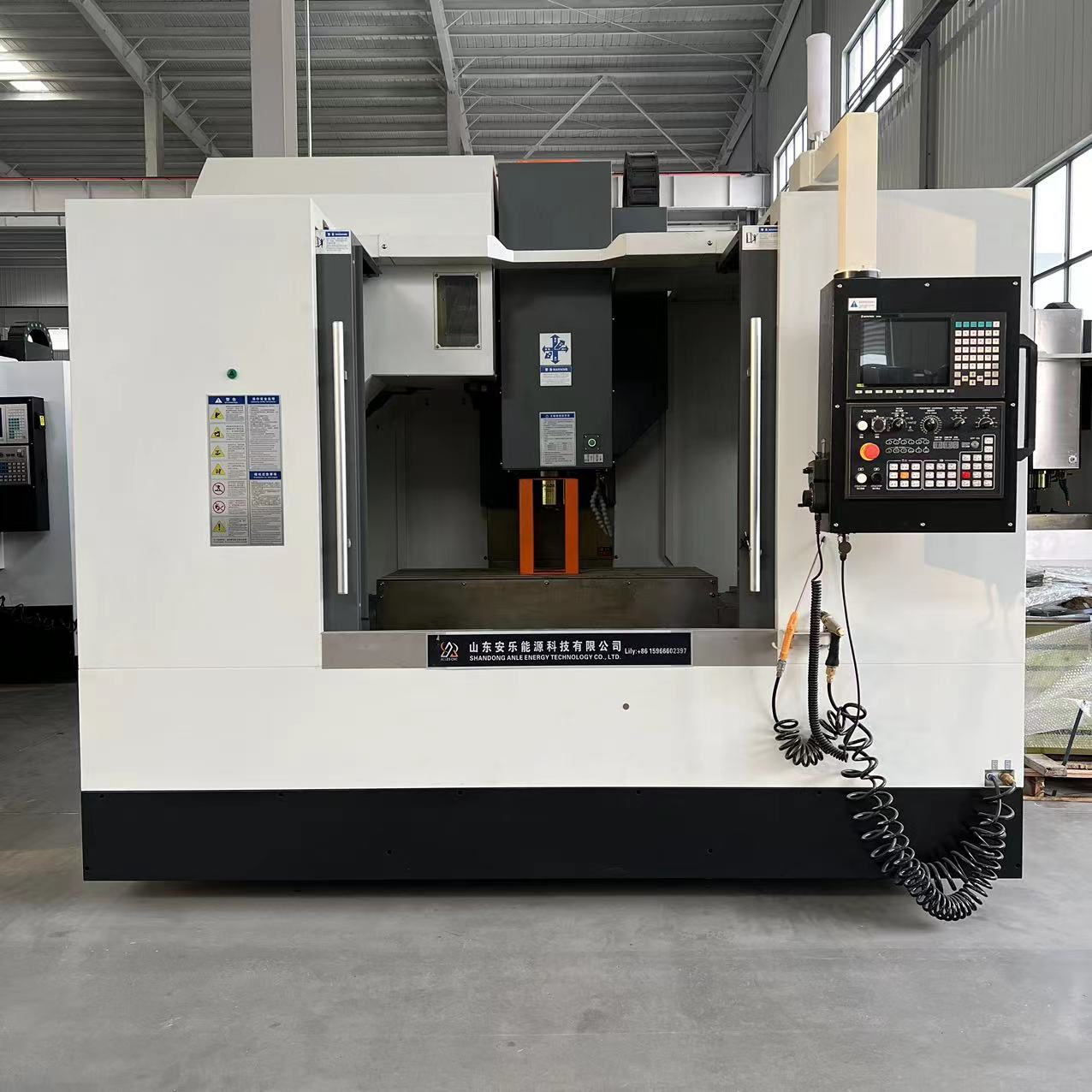

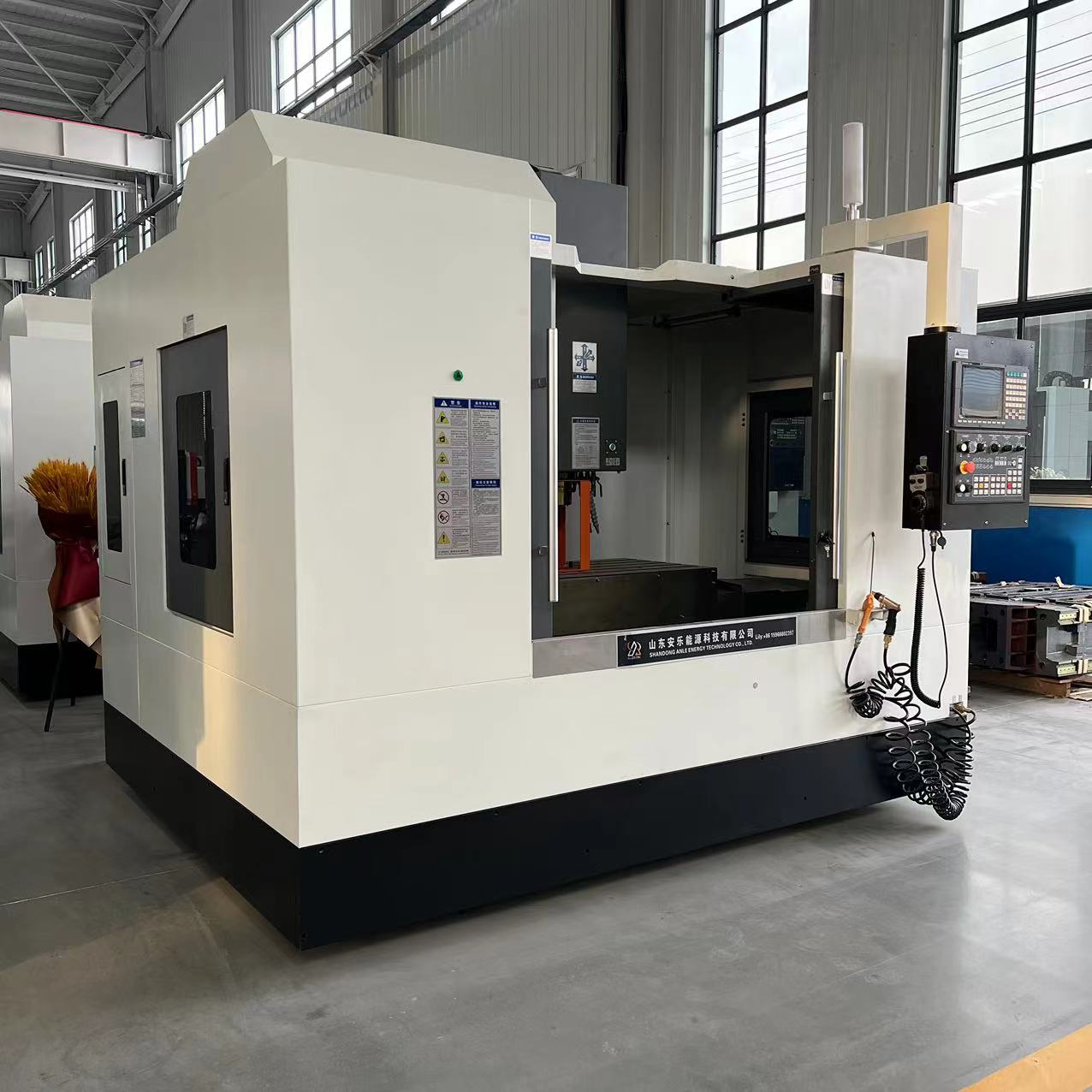

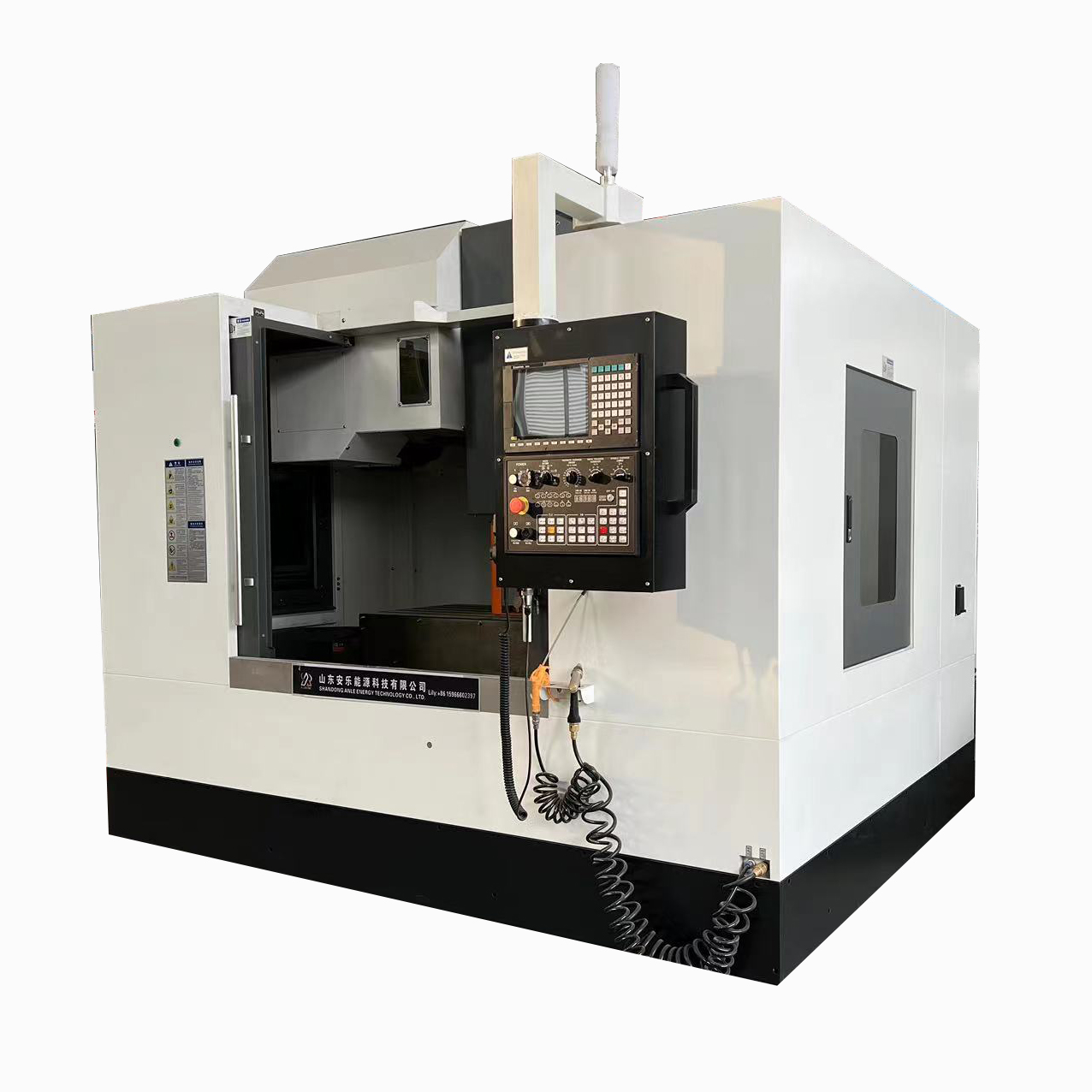

The VMC1160 vertical machining center is a high-performance, high-precision CNC machining machine.
The VMC1160 vertical machining center features a high-rigidity structural design, offering excellent stability and load-bearing capacity to meet the high-precision machining requirements for large and complex components.
Product Details:
Equipped with a high-performance spindle, precision ball screws, and a high-precision guideway system, the machine supports various machining processes—including milling, drilling, tapping, and boring—and enables the completion of multiple operations in a single setup, thereby effectively boosting production efficiency. With its powerful cutting capabilities, stable machining accuracy, and excellent automation scalability, the VMC1160 is suitable for industries such as mold manufacturing, automotive components, construction machinery, aerospace, and precision engineering, providing enterprises with efficient and reliable metal machining solutions.
Key Advantages:
The VMC1160 vertical machining center offers advantages such as a large machining envelope, high rigidity, high precision, and stable operation. It features a heavy-duty cast iron structure that effectively minimizes machining vibration and supports both high-speed cutting and heavy-load machining, thereby boosting productivity. An automatic tool changer reduces non-productive time and enables continuous multi-process machining. Additionally, the machine is easy to maintain and offers a long service life, making it an ideal choice for machining large precision parts and complex components.
Product application industry
The VMC1160 vertical machining center is widely used in industries such as mold manufacturing, automotive components, aerospace, construction machinery, energy equipment, precision machinery, and hardware manufacturing. It is capable of machining large plate-type components, box-type parts, molds, structural components, flanges, and various complex metal parts, meeting the needs of enterprises for high precision, high efficiency, and stable production.
Video
Product Parameter
| Item | Unit | VMC1160 |
| X axis Travel | mm | 1100 |
| Y axis Travel | mm | 600 |
| Z axis Travel | mm | 600 |
| Spindle nose to worktable | mm | 120-720 |
| Spindle center to coumn face | mm | 670 |
| Spindle speed |
rmp |
8000 |
| Max. tool weight | kg | 8 |
| Floor area and height | mm |
3000*2500*2500 |
| Machine weight | kg | 6500 |
Axis Movements:
X-Axis: Left and right movement
Y-Axis: Forward and backward movement
Z-Axis: Up and down movement
A/B-Axis: Rotation around the X-axis or Y-axis
C-Axis: Rotation around the Z-axis
