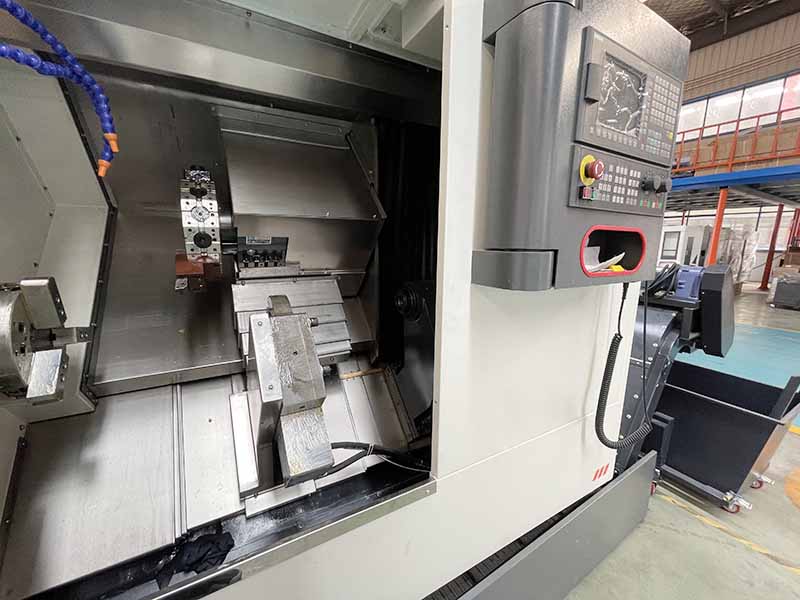

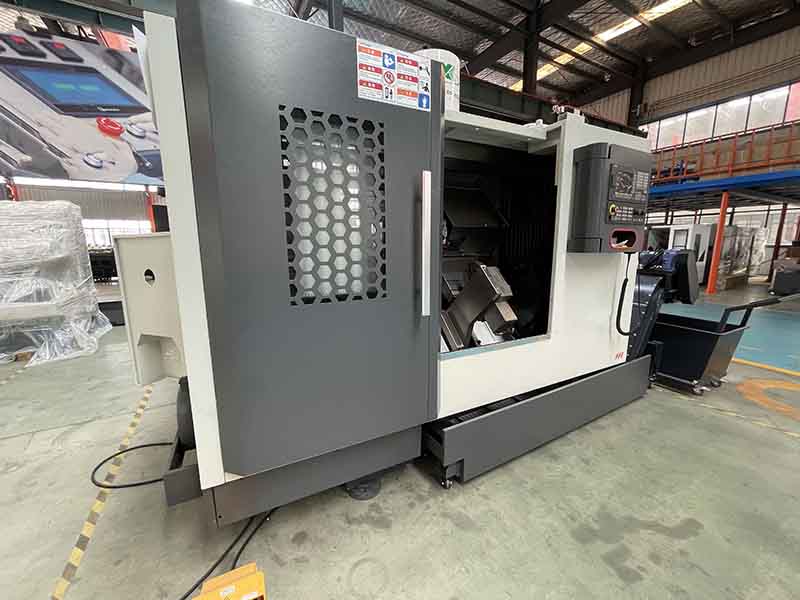

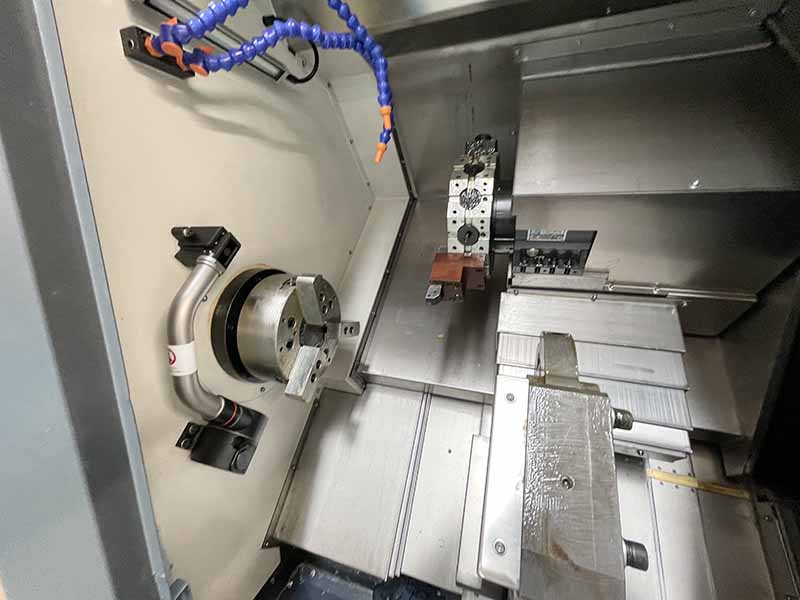

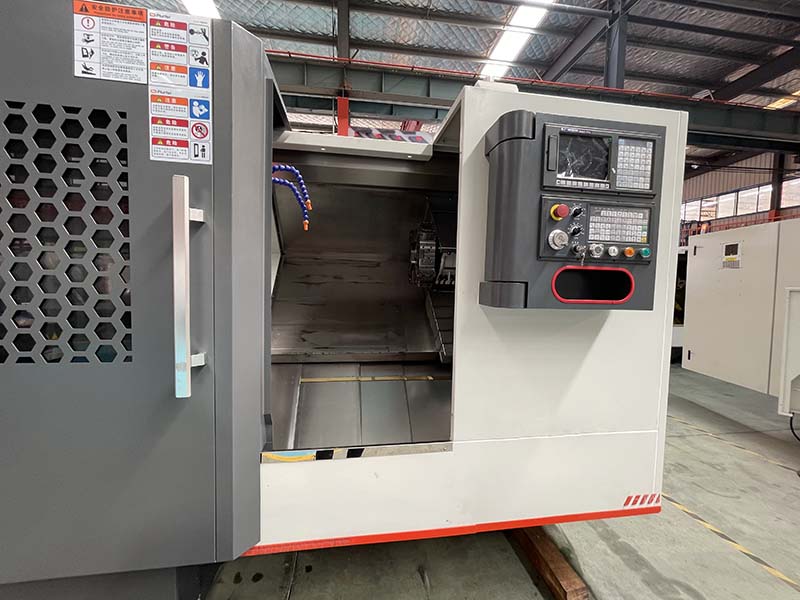

High-Performance Slant-Bed CNC Lathe TCK56A

Slant Bed CNC Turning TCK56A, The equipment is fitted with high-precision linear guides from Taiwan, featuring minimal frictional resistance and superior guiding accuracy; this effectively enhances feed precision and motion stability. Coupled with a precision ball screw featuring a pre-tensioned structure, positioning errors are further minimized. The X and Z axes achieve a repetitive positioning accuracy of ±0.003 mm, while machining accuracy meets Grade 7 standards. This enables precise control over part dimensional tolerances—preventing deviations during batch production—and fully satisfies the rigorous machining requirements for precision components. The spindle unit features a high-speed, high-precision design with a rotational speed range of 50 to 3500 rpm; an optional in-house manufactured spindle is also available. Characterized by smooth operation and robust vibration resistance, the spindle effectively mitigates vibration interference during the cutting process, thereby ensuring superior surface finish without the need for subsequent secondary grinding, and significantly boosting the overall production yield rate.

Features of Slant Bed CNC Turning Center TCK56A:

The TCK56A slant-bed linear-guide CNC lathe distinguishes itself through its core competencies of "high precision, high efficiency, high rigidity, and low wear." By seamlessly integrating advanced structural design with premium-quality components, it effectively resolves the inherent limitations of traditional lathes—specifically their insufficient machining precision and low efficiency—while simultaneously balancing practicality with cost-effectiveness to meet the diverse machining requirements of various industries and applications. Whether selected by individual entrepreneurs launching a new venture or by small and medium-sized enterprises upgrading their production equipment, the TCK56A empowers manufacturing operations through its stable performance, user-friendly operation, and comprehensive after-sales support—ultimately driving enhanced machining efficiency, superior product quality, and maximized economic returns.

Product Application Industry

Diverse Application Scenarios: Covering Multiple Industries and Enabling Precision Machining

Thanks to its flexible machining capabilities and stable performance, the TCK56A is widely utilized in precision machining scenarios across numerous industries. It is particularly well-suited for the mass production of small to medium-sized parts. Specific applications include:

1. Automotive and Motorcycle Industries

Primarily used for machining automotive and motorcycle components—such as engine shafts, transmission gears, wheel hubs, and brake discs—it can precisely execute machining operations involving surfaces of revolution and threads. This meets the high-precision and high-consistency requirements for automotive parts, thereby helping to enhance assembly accuracy and extend component service life.

2. Plumbing Fixtures and Valve Industries

Ideal for machining plumbing fixtures, valves, and similar products, it can process various components such as valve bodies, valve cores, and connectors. It ensures precise dimensional control over inner bores, outer diameters, and threads, guaranteeing excellent valve sealing performance and catering to the customization needs of plumbing and valve products across various specifications.

3. Electrical Appliances and Instrumentation Industries

Used for machining precision shaft-type and disc-type components found in electrical appliances and instruments—such as instrument pointer shafts, electrical terminals, and small gears—its high-precision machining capabilities ensure exact part dimensions, thereby meeting the evolving industry demands for product miniaturization and precision.

4. Bearing and Hardware Industries

Capable of machining products such as bearing inner and outer rings, hardware connectors, and fasteners, it efficiently executes operations including turning, chamfering, and threading. It offers high efficiency in batch processing and ensures excellent part consistency, effectively reducing production costs for hardware manufacturing enterprises.

5. Aerospace and Electronics Industries

Well-suited for machining small, precision components within the aerospace and electronics sectors—such as auxiliary aerospace parts, electronic component housings, and precision connectors—it leverages its advantages of high rigidity and high precision to meet the rigorous machining requirements demanded by these high-end industries.
