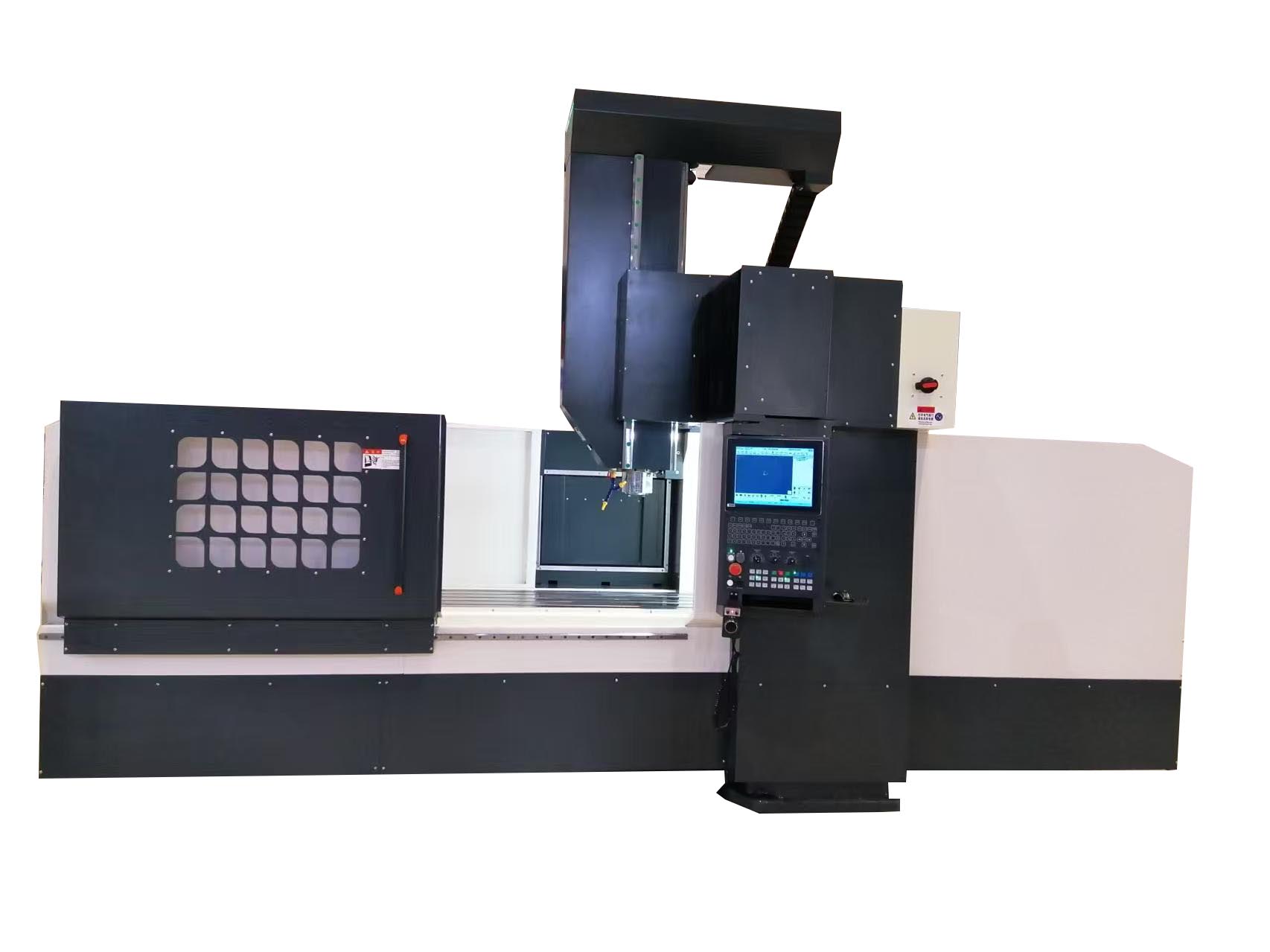

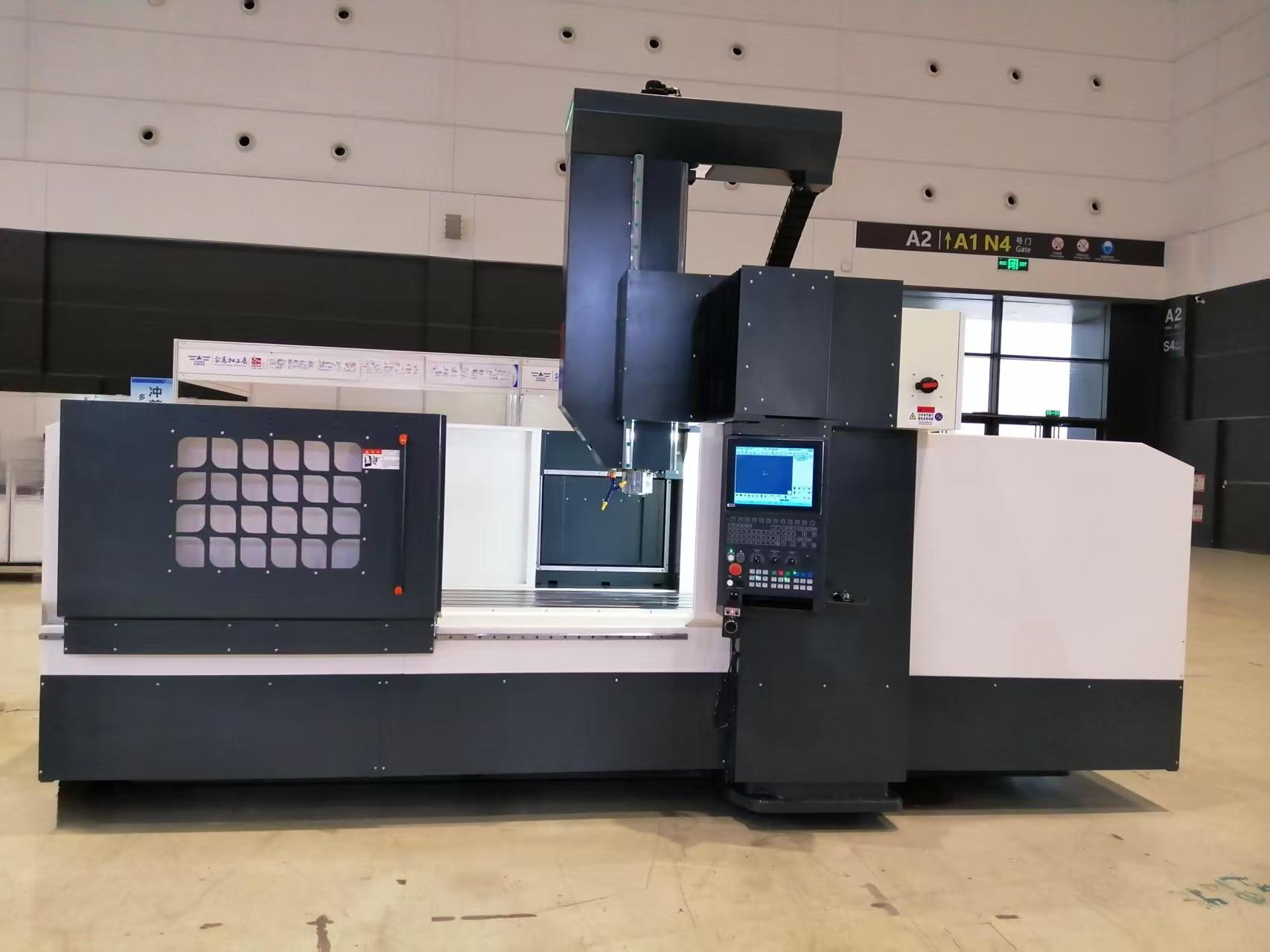

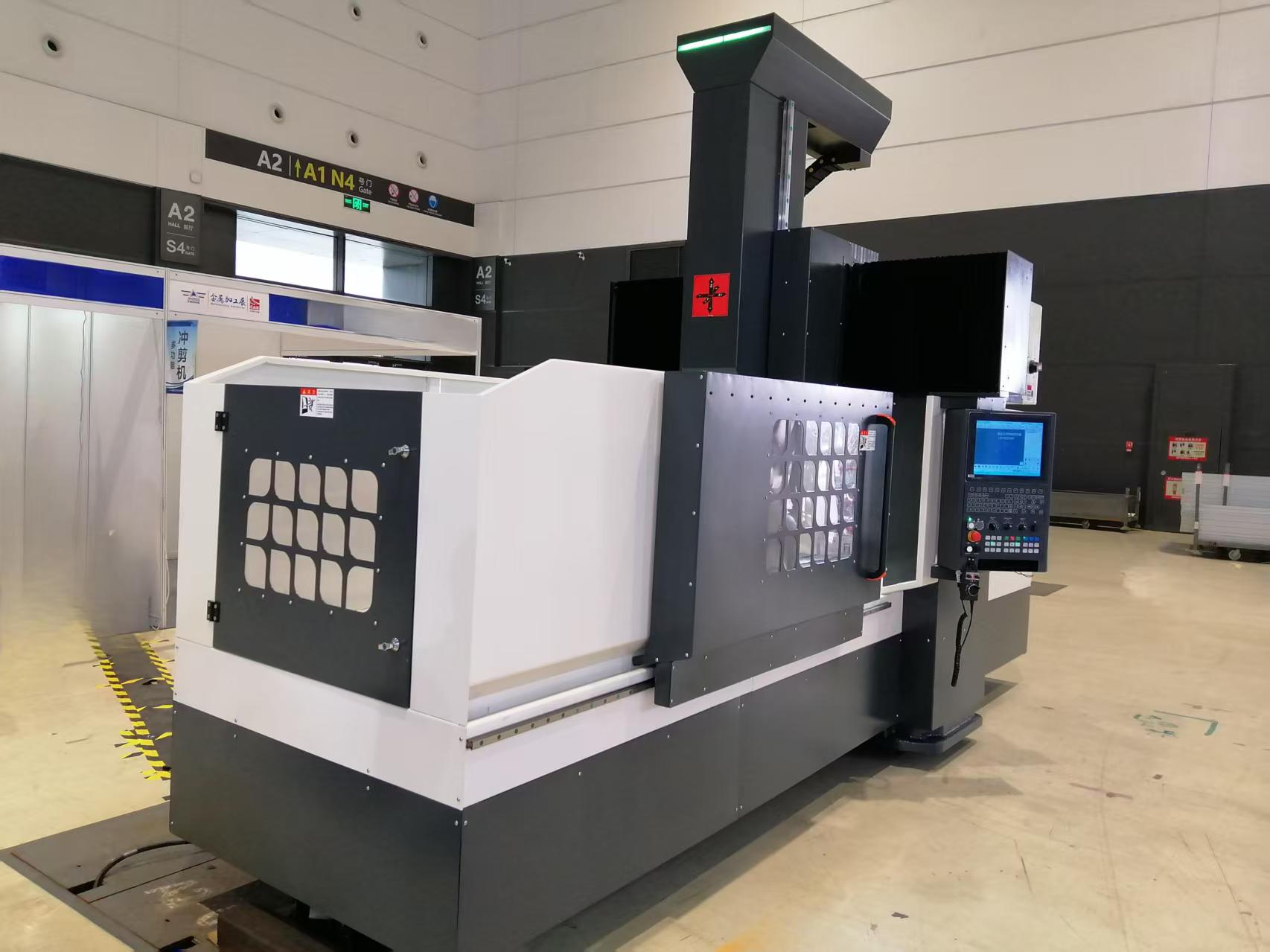

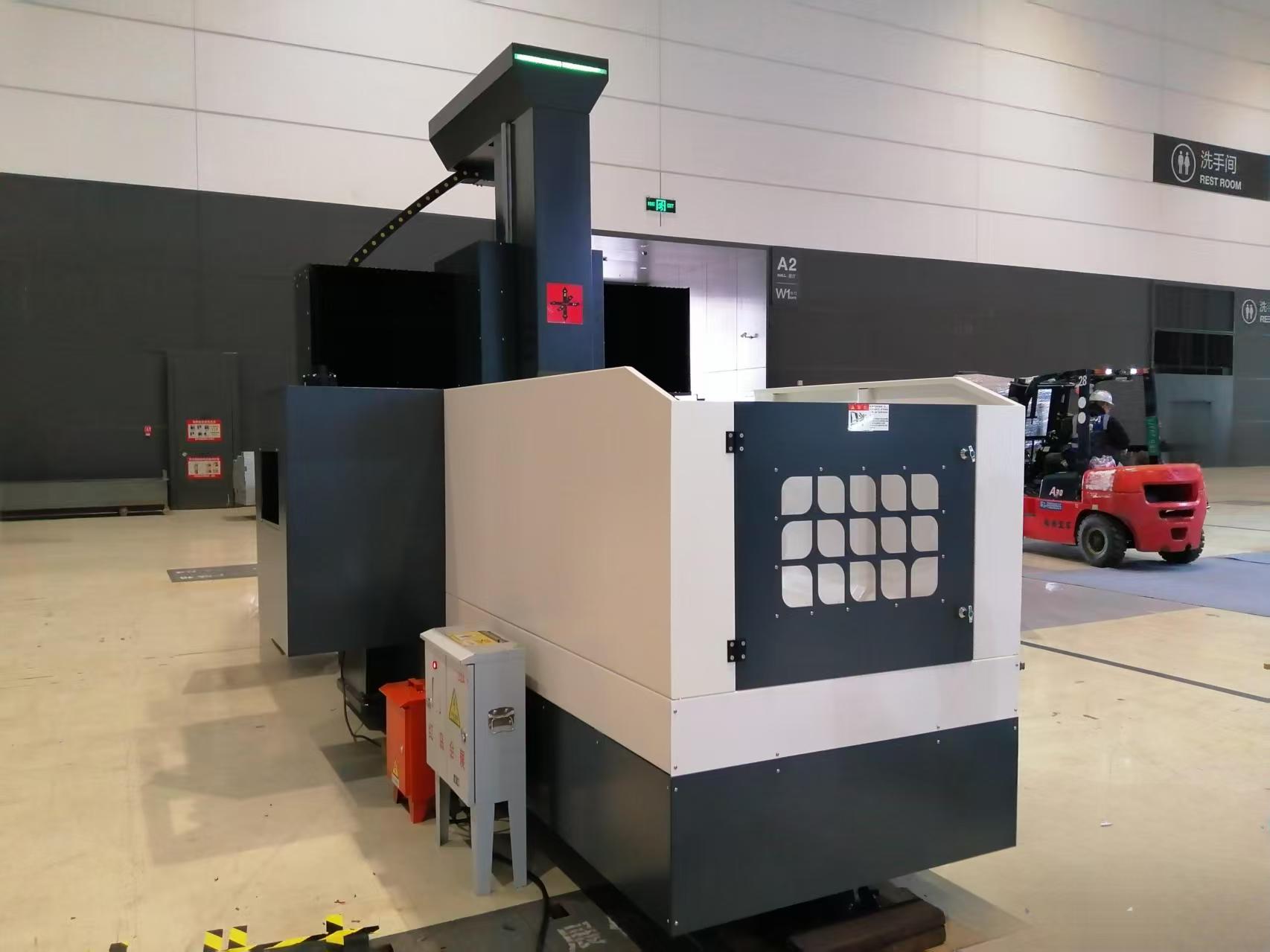

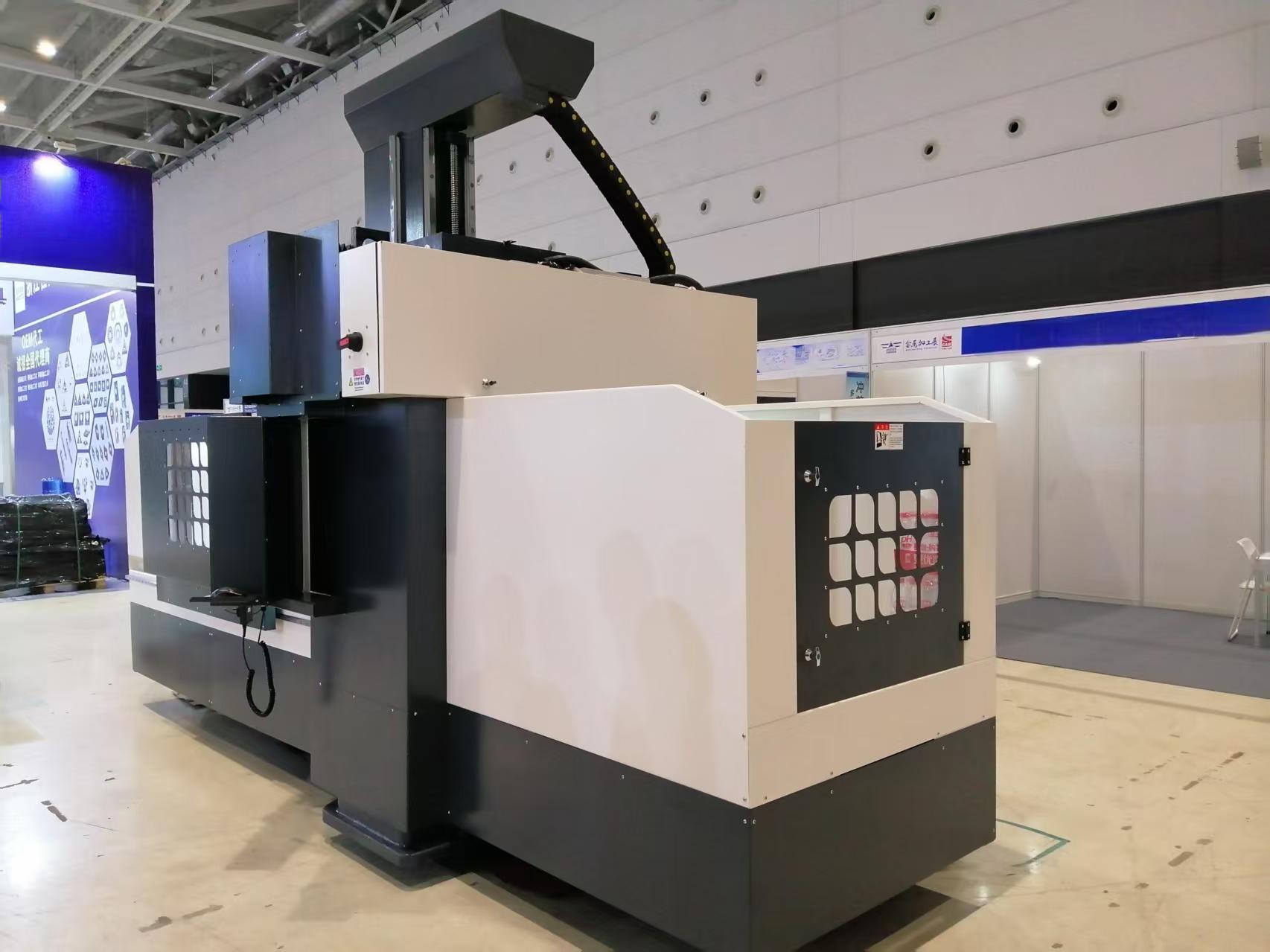

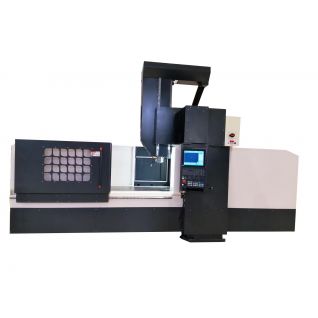

Gantry type cnc milling machine ALGMC1613
The Gantry-type CNC milling machine ALGMC1613 is designed for high-precision, large-scale workpiece machining. Its stable design, efficient machining performance, and intelligent control system make it widely used in industries such as molds, automotive, and aviation, making it an ideal choice for your journey into high-end manufacturing!
The fixed crossbeam and movable worktable enhance overall machine stability. Key structural components, such as the columns and crossbeam, are constructed from high-strength cast iron and undergo a secondary aging treatment, ensuring long-term stability and deformation resistance.
The machine boasts a wide machining stroke of 1600mm on the X-axis and 1300mm on the Y-axis, making it suitable for machining a wide range of large molds and components. Customizable Z-axis travel (e.g., 800mm) allows for 3D machining at varying depths.
Features of Gantry type CNC milling machine
The ALGMC1613 Gantry-Type CNC Milling Machine can be configured with a powerful BT50 spindle, offering high power and speed, making it suitable for heavy cutting and high-speed finishing. It supports oil-cooling for stable machining accuracy.
The imported guideway and high-precision lead screw drive system, with high-precision ball screws and linear roller guides on the X/Y/Z axes, ensures positioning accuracy and repeatability.
The intelligent CNC system supports multiple brands (such as FANUC, Siemens, Mitsubishi, Huazhong, and Guangshu).
Multi-axis linkage control enables precision machining of complex surfaces and curves.
Product application industry
The Gantry type CNC milling machine ALGMC1613 is widely used in the following industries:
Mold manufacturing: injection molds, die-casting molds, stamping molds, etc.
Automotive manufacturing: engine housings, frame molds, chassis components
Aerospace: aluminum alloy structural parts, titanium alloy support components, complex and special-shaped parts
Rail transportation: vehicle frames, large connectors, welded components
Construction machinery: large machinery bases, flanges, sliders, and other structural parts
New energy equipment: wind turbine nacelle parts, hydropower equipment frames, etc.
Video
Product Parameter
| Item | Unit | ALGMC1613 |
| Working desk size | mm | 2200*1300 |
| Workbench bearing | kg | 3000 |
| T-slot width | mm | 7*18*165 |
| X-axis travel | mm | 2000 |
| Y-axis travel | mm | 1600 |
| Z axis travel | mm | 700 |
| Cutting feed speed range | m/min | 7 |
| Spindle end face to table distance | mm | 120-820 |
| Gantry is too wide | mm | 1350 |
| Machine Dimensions | mm | 5300*3400*2800 |
| Machine weight | T | 12.5 |
