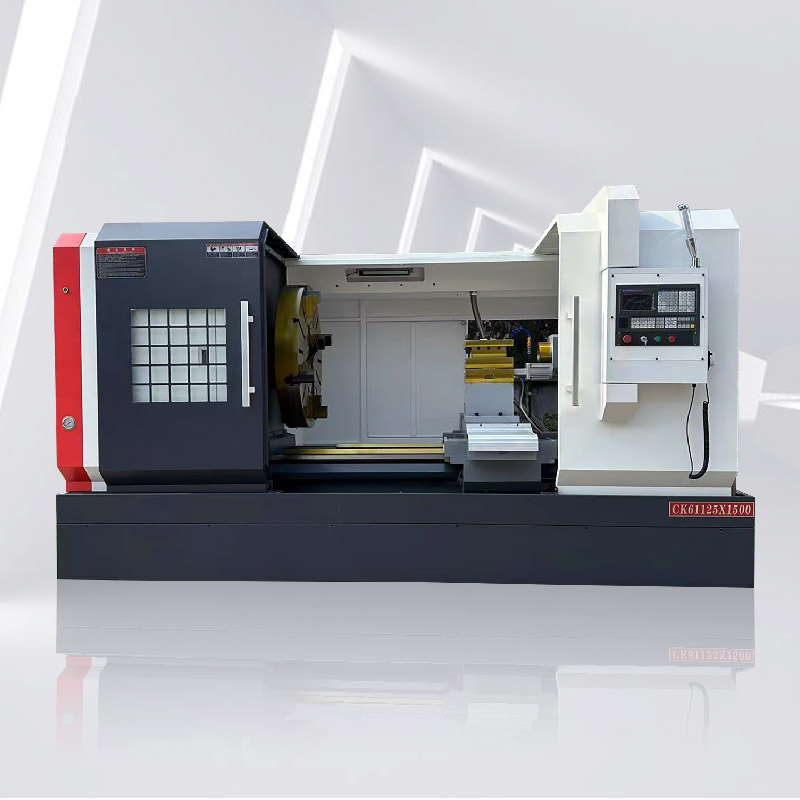

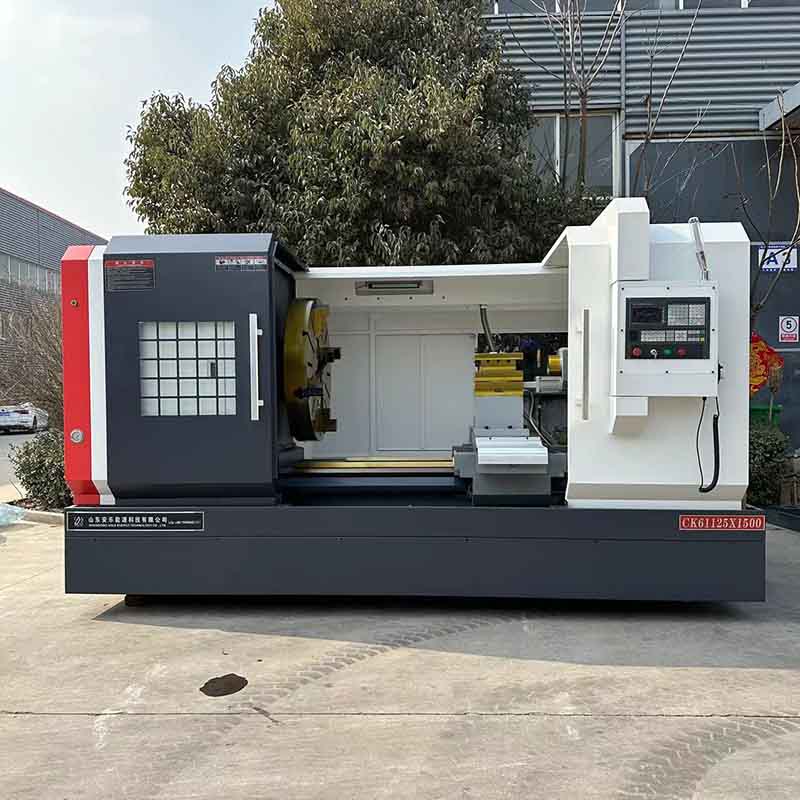

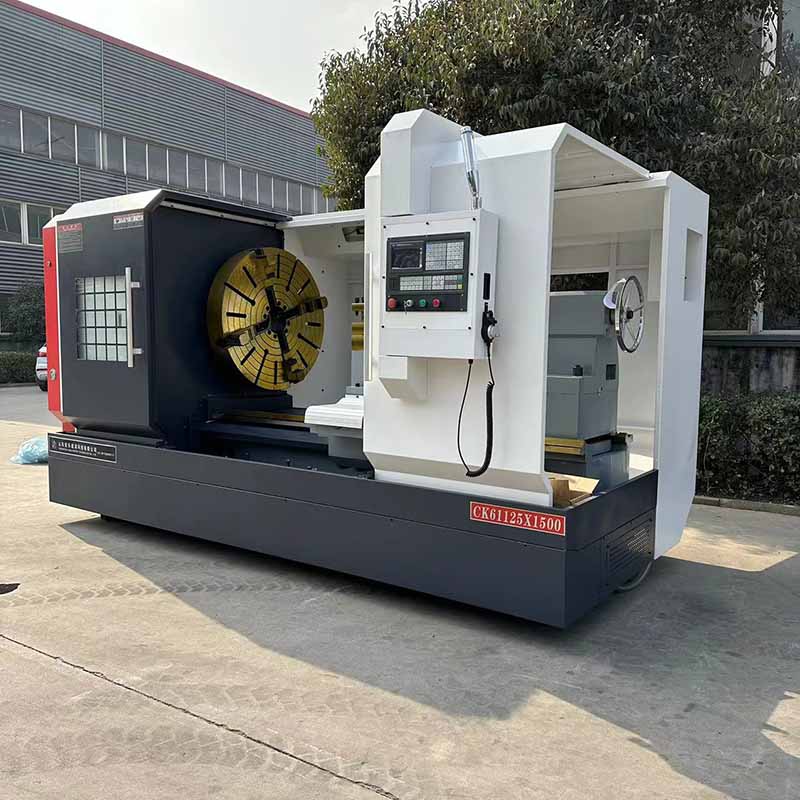

CK61125X1500 heavy duty CNc lathe
CNC lathe 61125×1500 is a large-sized CNC horizontal lathe and a heavy-duty CNC machine tool. In the parameters, 61125 indicates that the maximum spindle rotation diameter is 1250mm, and 1500 indicates the maximum processing length is 1500mm.
Controlled by CNC system, high feed accuracy and small repeated positioning error. It can process complex curved surfaces and high-precision threads and conical surfaces.
High degree of automation, automatic programming and automatic operation, reducing human operating errors. It can realize mass production and improve production efficiency.
Characteristics of large CNC lathes：
CK61125X1500, made of high-quality cast iron, internal stress elimination treatment, strong stability.
Good heavy cutting performance, suitable for large-tonnage workpiece processing.
High-rigidity bed, made of high-quality cast iron, internal stress elimination treatment, strong stability.
Good heavy cutting performance, suitable for large-tonnage workpiece processing.
CNC control system, supports multiple programming languages
Optional domestic and foreign mainstream CNC systems
Product application industry：
CK61125X1500 Shipbuilding: Propeller shafts, large flanges processing
Electric power: Wind turbine main shafts, generator rotors processing
Mining machinery: Large mining equipment shafts, rollers processing
Engineering machinery: Excavator rotary shafts, large gear blanks processing
Metallurgical equipment manufacturing: Continuous casting rollers, support shafts and other large parts processing
Petrochemical equipment: Oil drill pipes, couplings, flanges processing
Military manufacturing: Large military parts, high-strength complex structural parts processing
Heavy machinery manufacturing: Large transmission shafts, gear shafts, high-strength bearing seats, etc.
Video
Product Parameter
| Item | Unit | CK61125X1500 |
| Max swing over bed | mm | Φ1250 |
| Swing over cross slide | mm | 850 |
| Distance between centers | mm | 1500/3000/4000/5000/6000 |
| X axis travel | mm | 520 |
| Z axis travel | mm | 1350/2850/3850/4850/5850 |
| Spindle hole diameter | mm | Φ130 |
| Dimension | mm | 2250x2300x5000/6500/7500/8500/9500 |
| Net weight | T | 11.0/12.5/13.5/14.5/15.5 |
