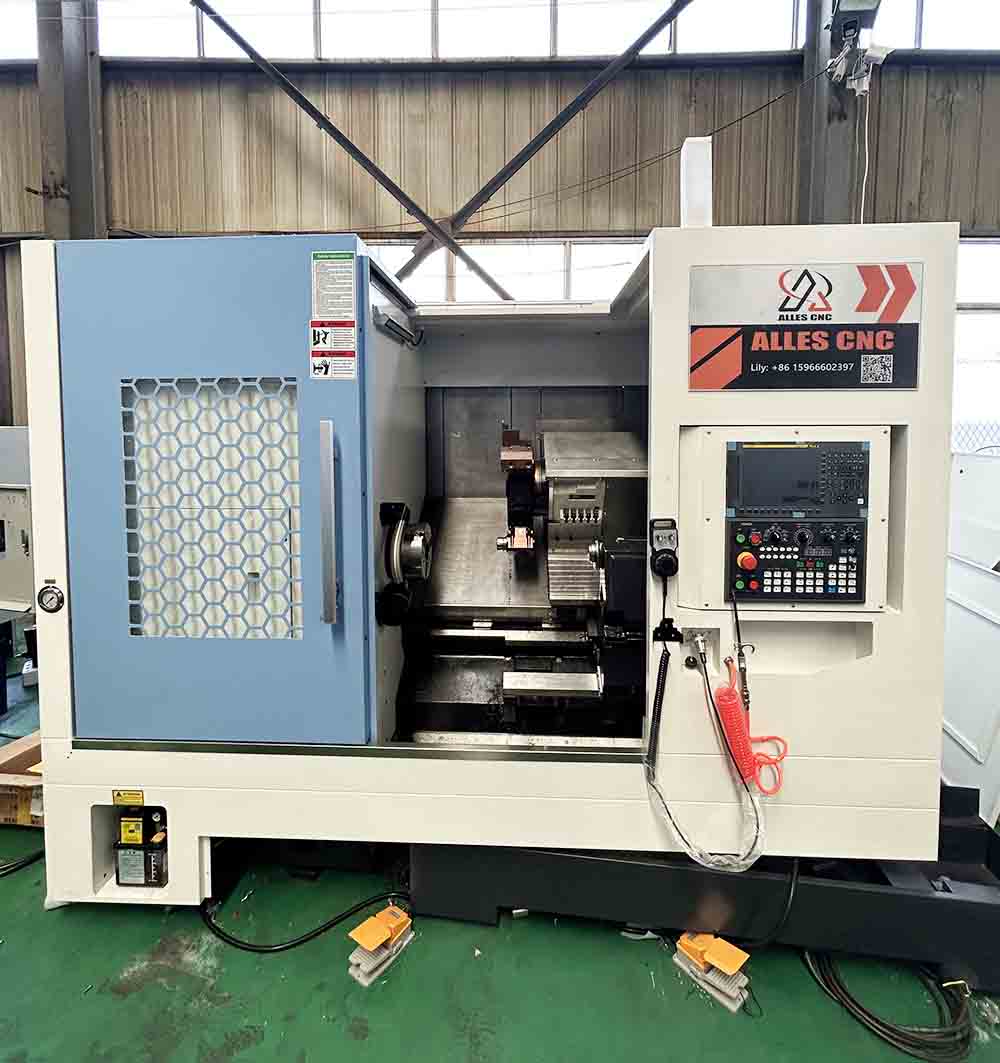

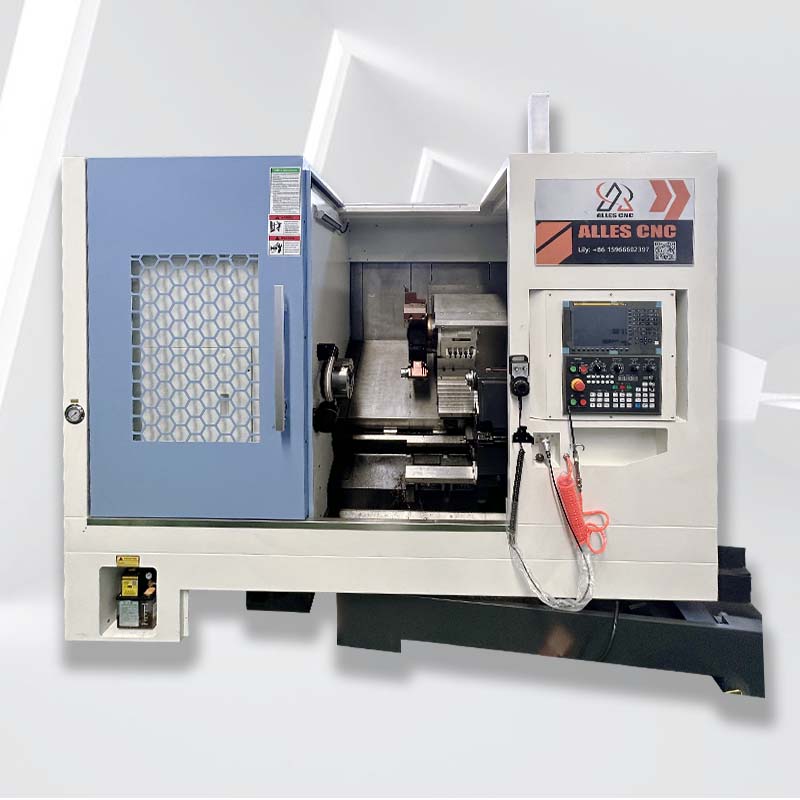

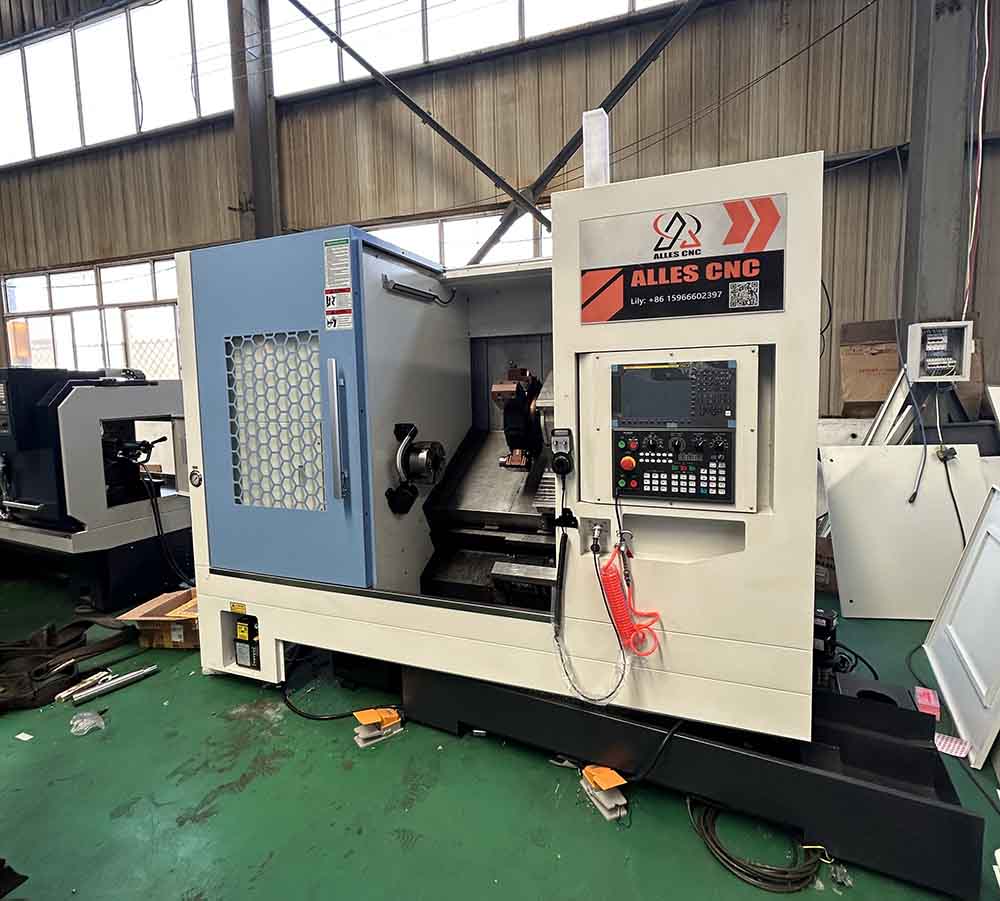

TCK52D CNC Turning And Milling Compound
The characteristics of CNC turning and milling machine tools include high-precision machining, versatility, improved machining efficiency and process saving. It combines turning and milling functions, can complete the machining of complex parts on the same equipment, and reduces the number of fixtures and machining time of the workpiece. In addition, it also has the characteristics of automation and intelligence, which facilitates efficient production.
CNC turning and milling can complete a variety of processing procedures such as turning, milling, drilling, etc., reducing equipment investment and conversion time between processes.
Processing accuracy: The high-precision CNC system ensures high processing accuracy and is suitable for the production of complex workpieces.
CNC turn-mill hybrid significantly improves production efficiency by reducing process changeover time and the number of processes.
Product Features:
CNC turn-mill hybrid significantly improves production efficiency by reducing process changeover time and the number of processes.
Adapt to diverse workpiece shapes and materials, improving production flexibility.
Frequent replacement of fixtures is usually not required, which reduces the cost of equipment use.

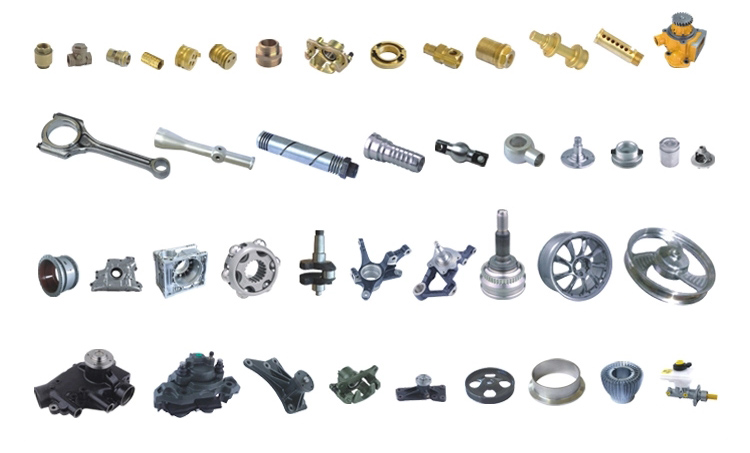

Product Application Industry
CNC turning and milling are used to make precision molds and fixtures, improving mold processing efficiency and accuracy.
Processing complex medical device parts such as surgical instruments and implants.
Used to manufacture high-precision electronic components and housings to meet the needs of miniaturization and high performance.
In the wind and nuclear energy industries, manufacturing turbines and other key components.
Video
Product Parameter
| Item | Unit | TCK52D |
| The maximum upper rotation diameter of the bed surface | mm | Φ520 |
| The maximum processing diameter on the tool post | mm | Φ280 |
| Maximum processing length | mm | 520/750 |
| Spindle maximum speed | rpm | 4200 |
| Spindle hole diameter | mm | 79 |
| bar stock diameter | mm | 65 |
| X-axis maximum travel | mm | 270 |
| Z-axis maximum travel | mm | 550/750 |
| C axis | 360° | |
| Length X width X height | mm | 3000X1850X1710 |
| weight | kg | 3800/4100 |
