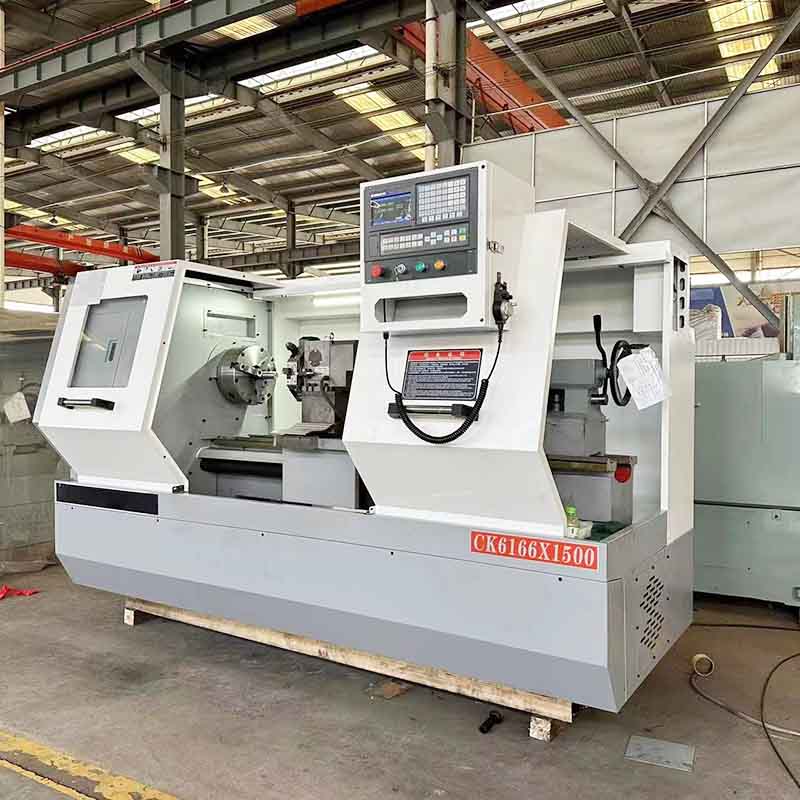

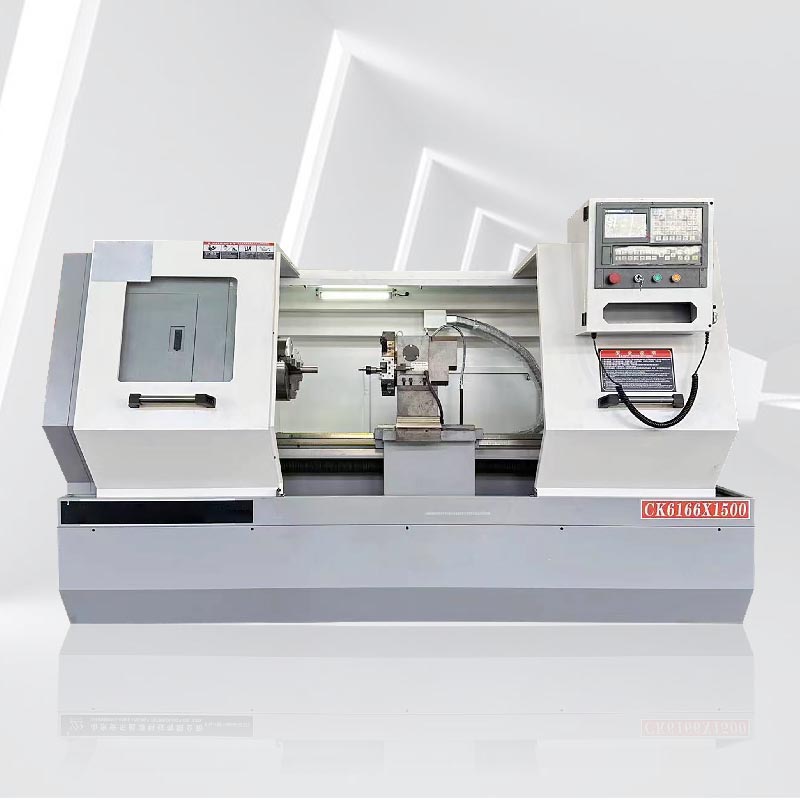

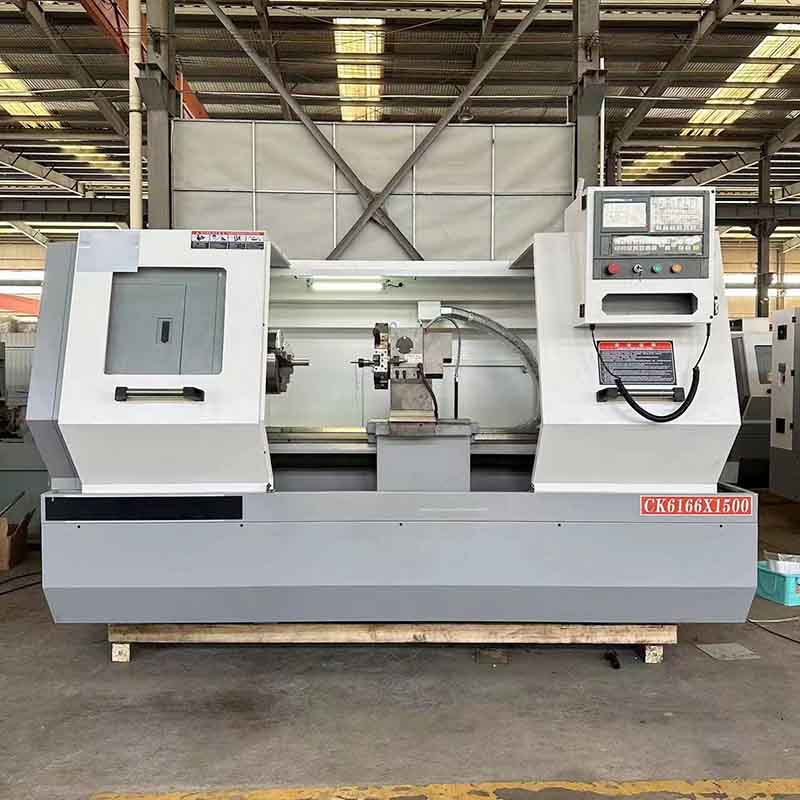

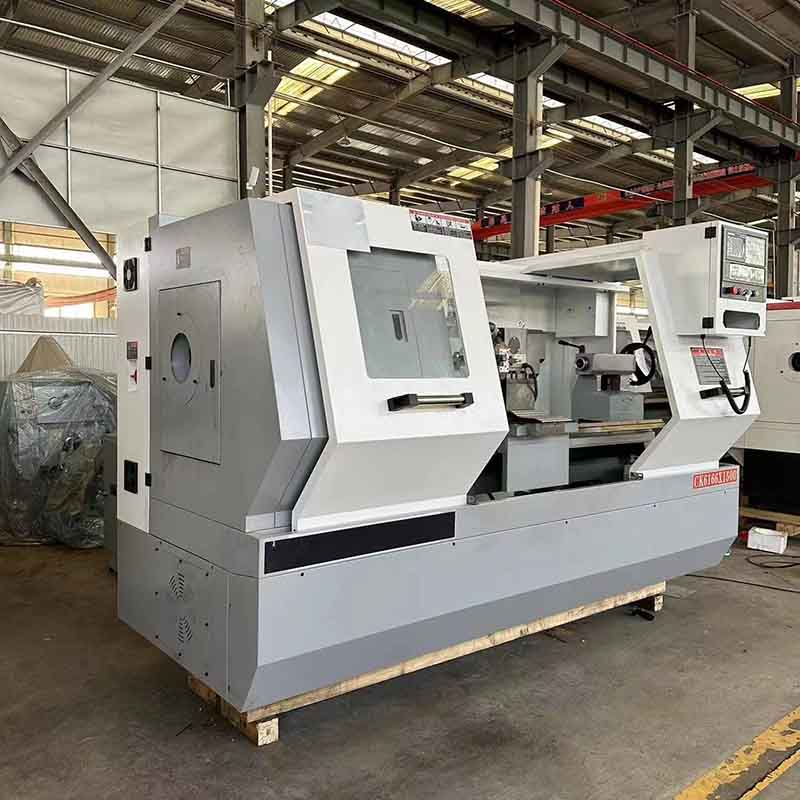

Flat Bed CNC Lathe CK6166X1500
ALHAASES CNC lathes have high flexibility and are suitable for automatic processing of various types and small batches of parts. CNC military lathe can be used for both roughing and finishing, and can complete all or most of its processes in one clamping.
cnc automatic lathe is mainly used for cutting machining of inner and outer cylindrical surfaces of shaft parts or disk parts, inner and outer conical surfaces of arbitrary cone angles, complex rotary inner and outer curved surfaces, cylinders, and conical threads, etc., and can perform grooving, drilling, and reaming , reaming and boring and other types of processing.
CNC Lathe Features
A high strength, widening the carriage, suitable for heavy cutting

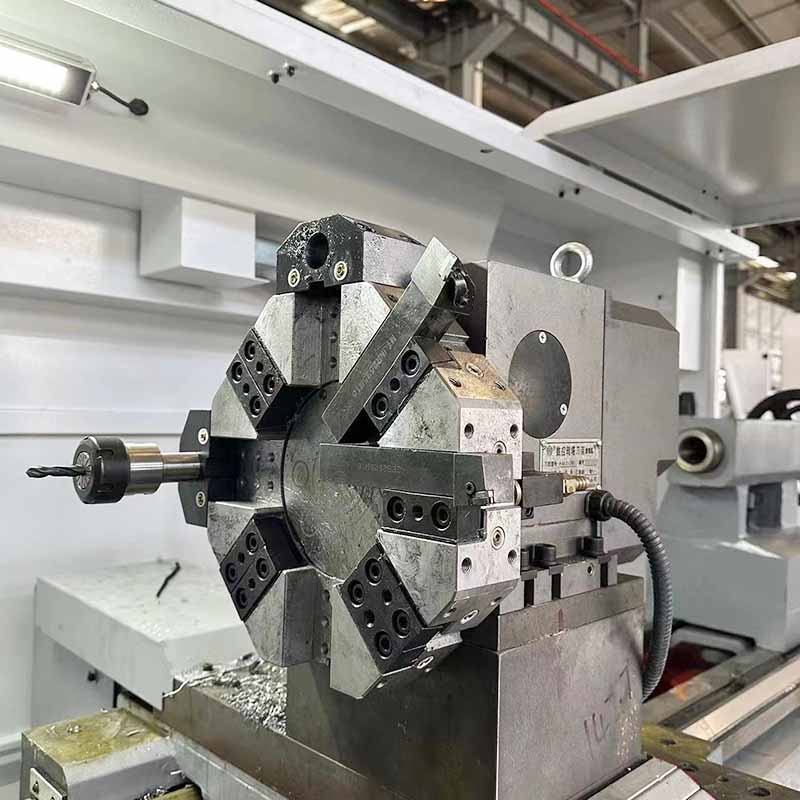

Four position electric turret (8-station turret can be selected)
Frequency conversion stepless speed regulation

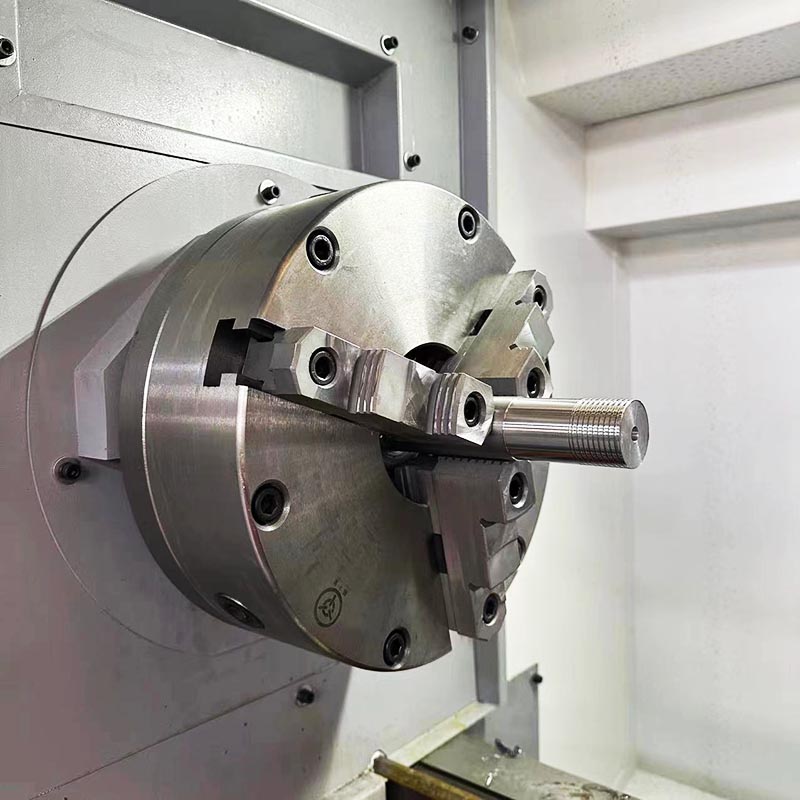

Standard configuration: manual chuck
Optional configuration : hydraulic chuck

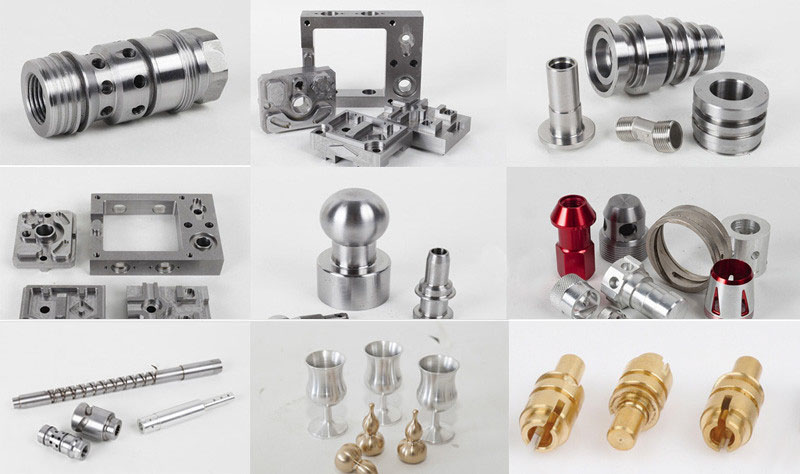

Product application industry
The horizontal cnc lathe machine can automatically complete the processing of inner and outer cylindrical surfaces, conical surfaces, arc surfaces, end surfaces, etc.
Horizontal cnc lathe machine is suitable for processing all kinds of steel, cast iron and non-ferrous metal large and medium-sized parts. The machine tool has high power and good rigidity. It is especially suitable for powerful cutting, cutting inner circle, outer circle, end face, and metric and inch threads of various workpieces. etc., and can undertake drilling and boring processes.
Video
Product Parameter
| Item | Unit | CK6166X1500 |
| Max swing over bed | mm | Φ660 |
| Maximum swing over slide | mm | Ф310 |
| Maximum cutting diameter | mm | Φ660 |
| Maximum processing length | mm | 1500 |
| Spindle speed | rpm | 2000 |
| X/Z axis minimum displacement unit | mm | 0.001 |
| Spindle hole diameter | mm | Φ100 |
