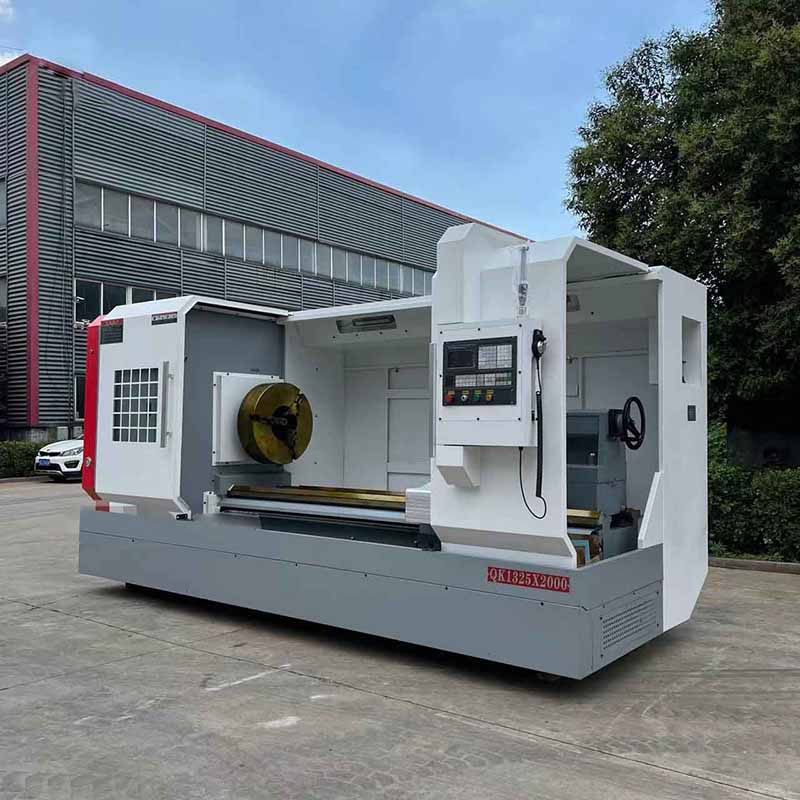

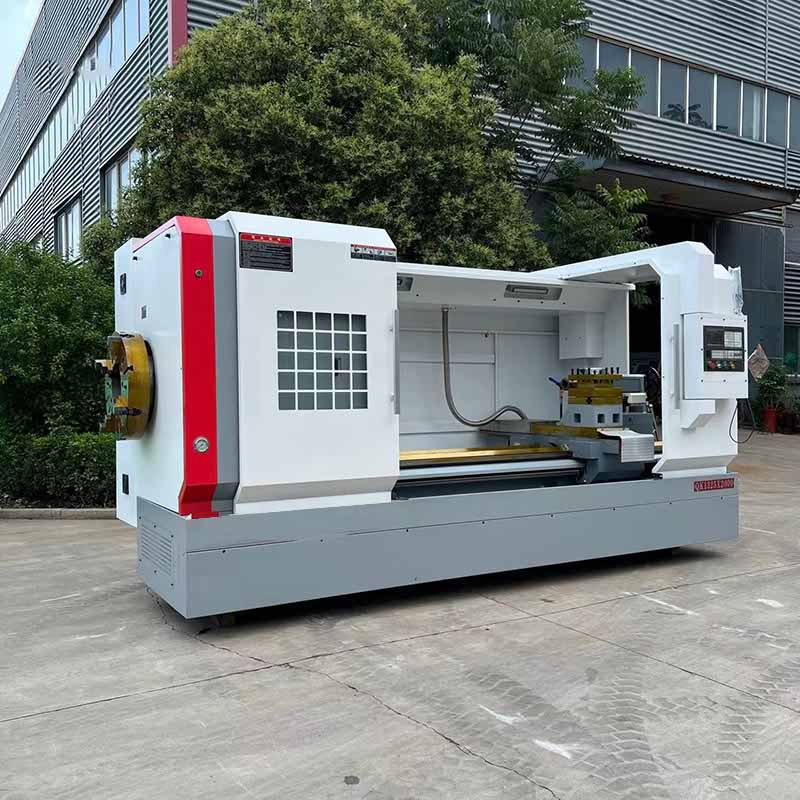

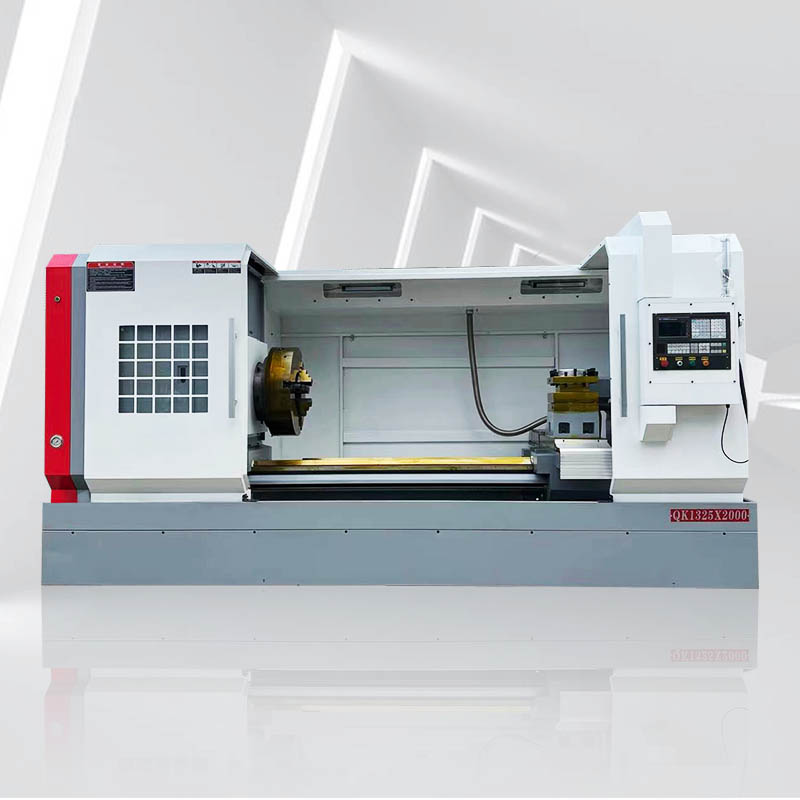

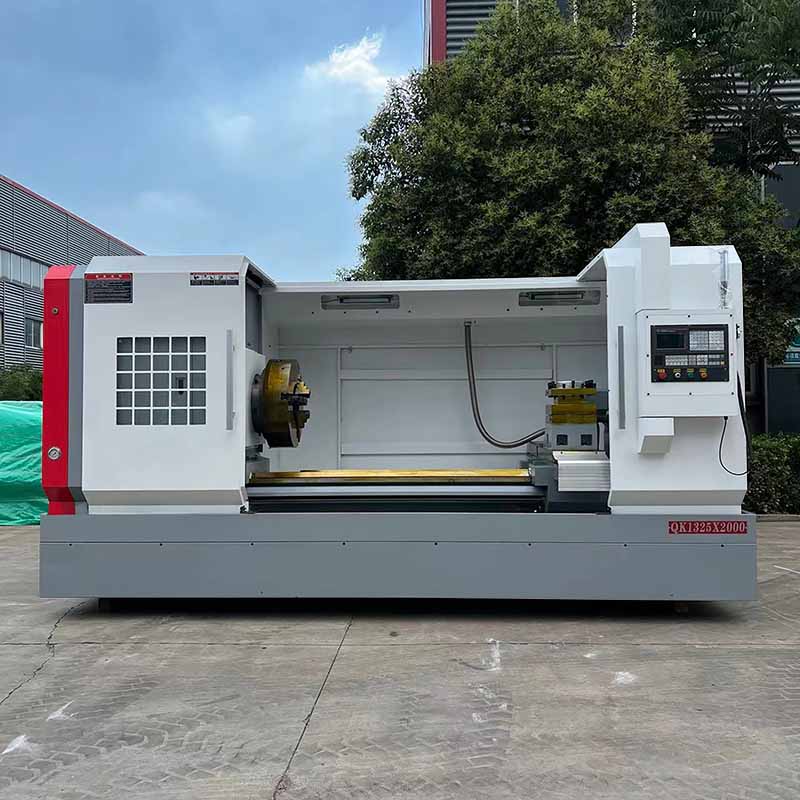

CNC Pipe Threading Lathe Machine For Oil QK1325

ALHAASES CNC Pipe Threading Lathe is a horizontal lathe designed for turning large-diameter pipe fittings. Clamping and processing of rods,

ALHAASES CNC Pipe Threading Lathe is used in machining operations in machinery manufacturing, petroleum, chemical, coal, geological exploration, urban water supply and drainage and other industries.

Product Features:

1. The bed of CNC Pipe Threading Lathe Machine is made of high-quality and high-strength cast iron, and the guide rails are quenched by ultra-audio, with high precision;

2. The Oil Industry CNC Lathes pallet adopts the guide rail surface pasting process, which is carefully researched and scraped, and cooperated with precise lubrication, which has good processing dynamic performance and high precision retention;

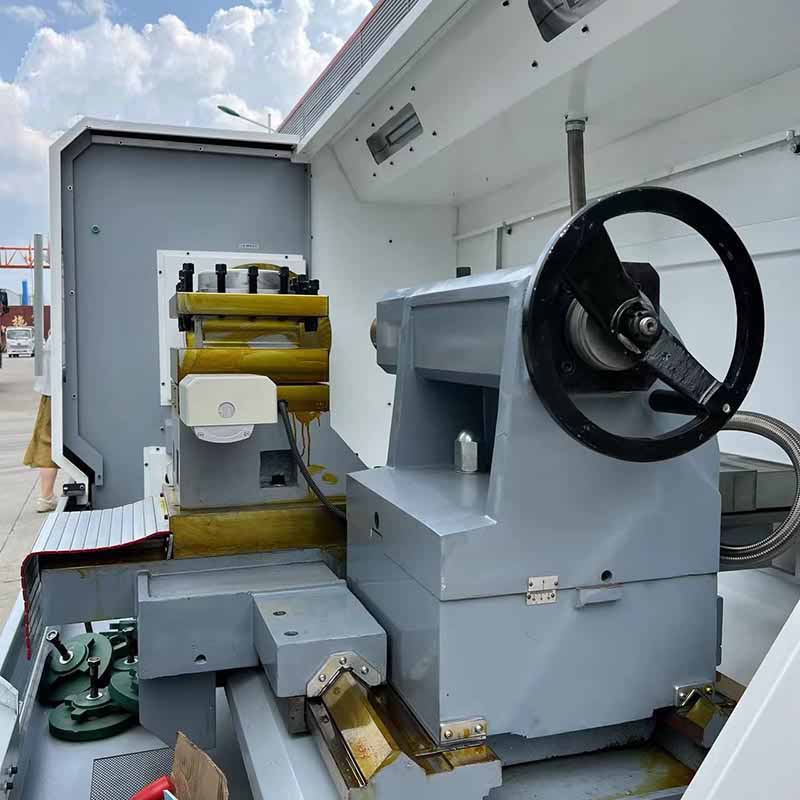

3. Oil Industry CNC Lathes spindle adopts advanced spindle structure, large aperture, high rigidity, equipped with gearbox, low-speed torque, suitable for heavy cutting; stepless frequency conversion speed regulation in each gear;

4. Pipe Thread CNC Lathe guide rail pair, ball screw pair, etc. are lubricated by a single-line damping centralized lubrication pump, which is accurate and reliable;

5. Pipe Thread CNC Lathe semi-enclosed or fully enclosed protection, safety glass windows, bright work lights, humanized operation height, pleasant appearance;

Product Application Industry

Pipe Thread CNC Lathe is a horizontal lathe specially designed for turning large-diameter pipes and bars. It has all the functions of ordinary lathes and is specialized in processing large-diameter pipes and bars.

Oil Industry CNC Lathes are widely used in machining operations in machinery manufacturing, petroleum, chemical, coal, geological exploration, urban water supply and drainage and other industries;

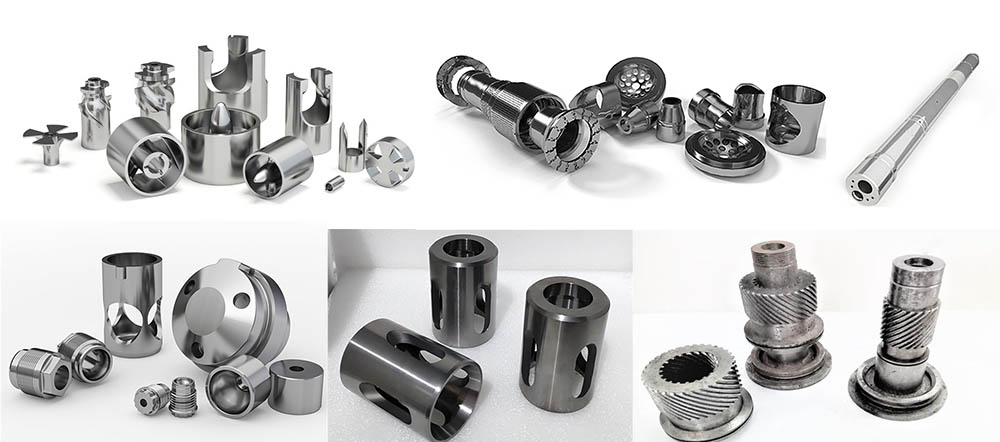

Pipe Thread CNC Lathe has a large through hole for the spindle, a double chuck on the headstock, and a taper bar on the bed. It can be used to process internal and external threads of various diameters, including metric, inch, and taper threads. It can also be used for shaft and disc parts. Machining of outer circle, inner hole and end face, using corresponding tools and accessories, can also be used for drilling, reaming, tapping and knurling.

Video

Product Parameter
