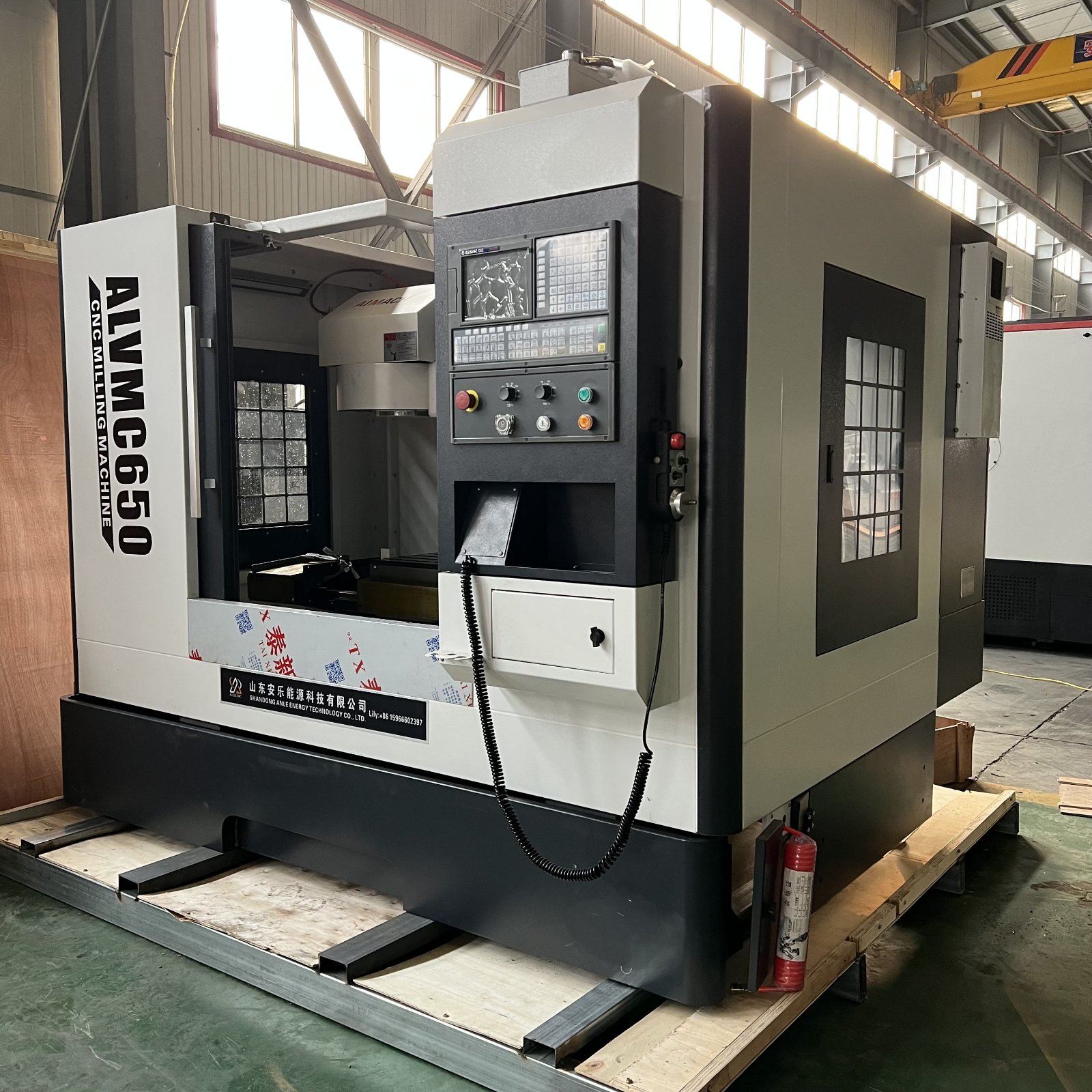

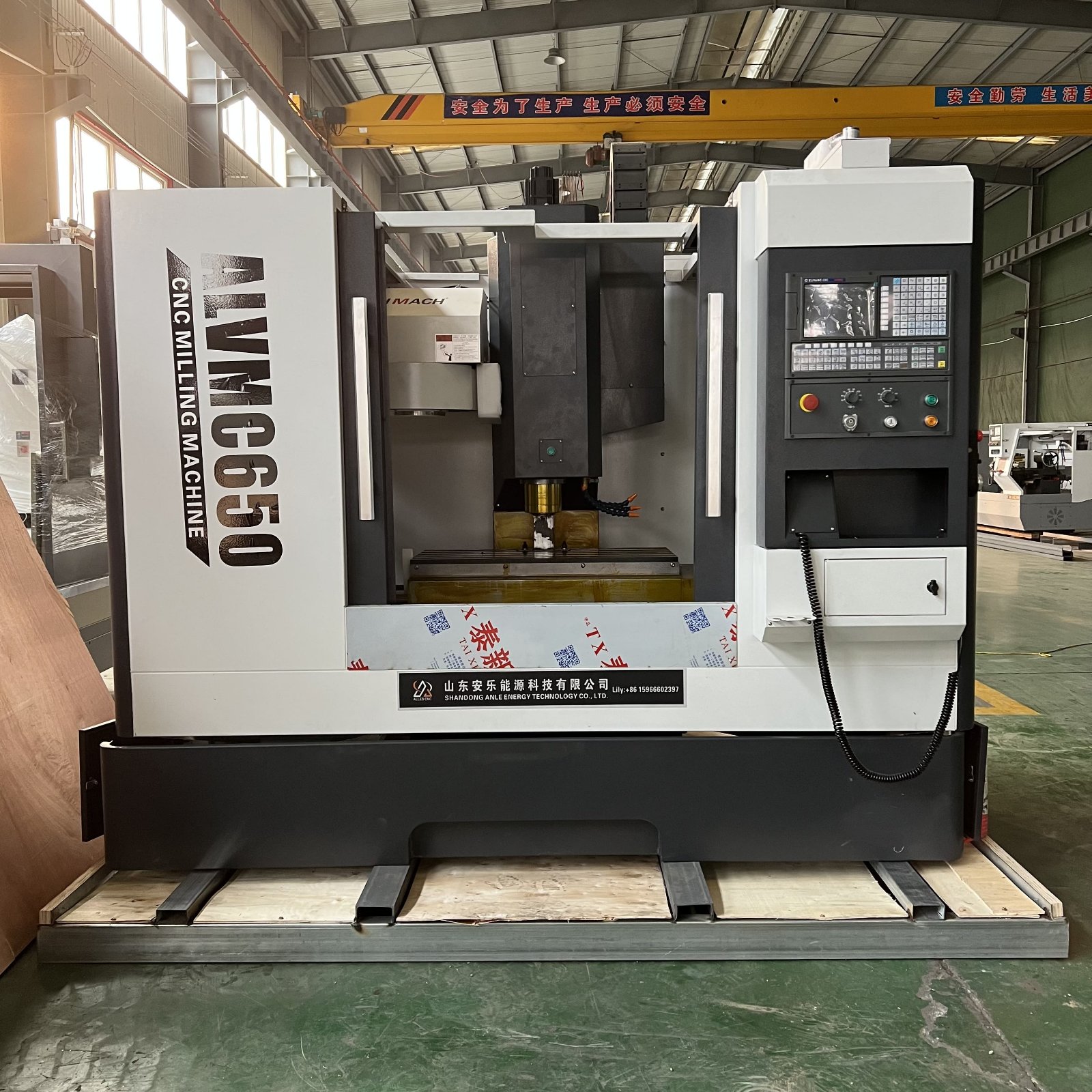

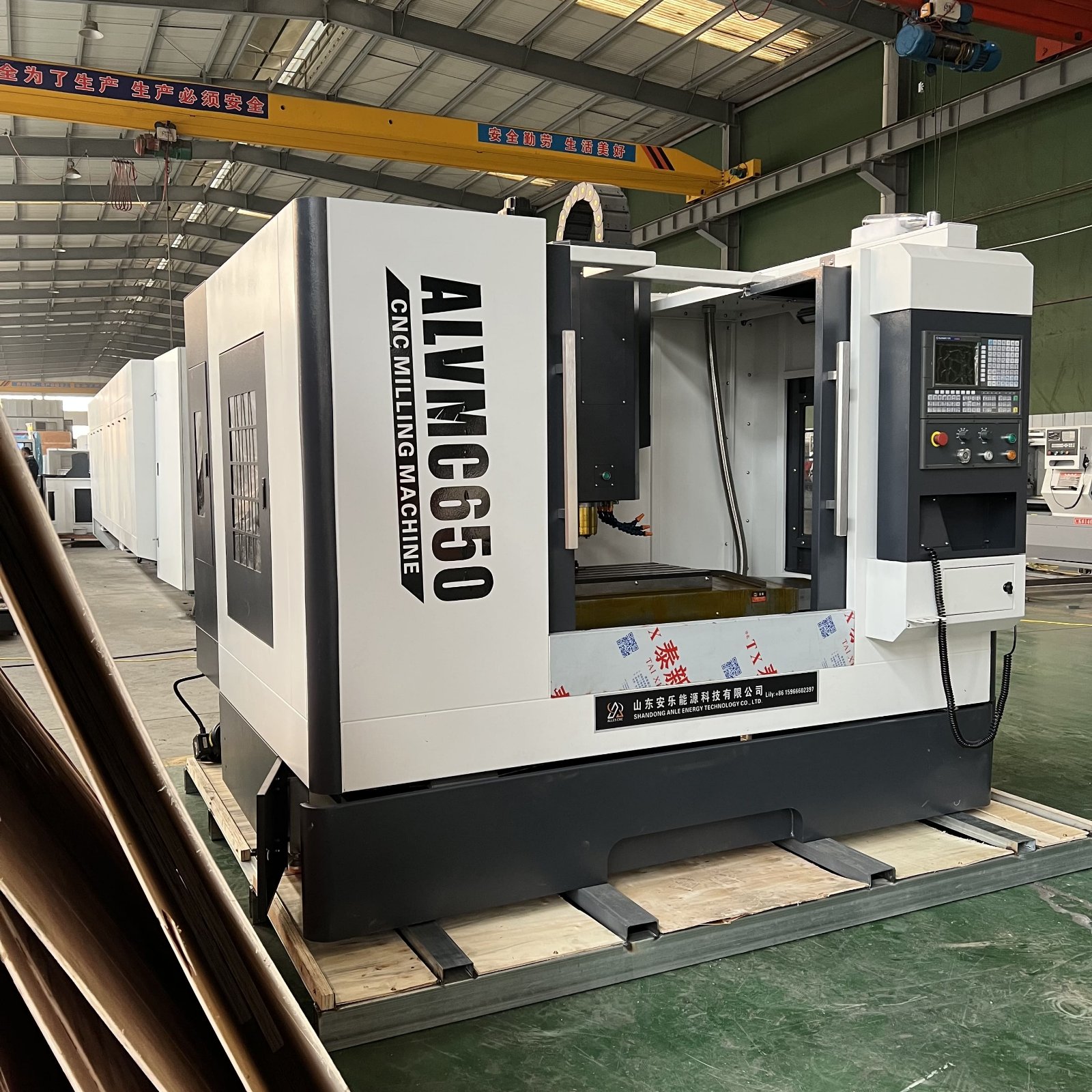

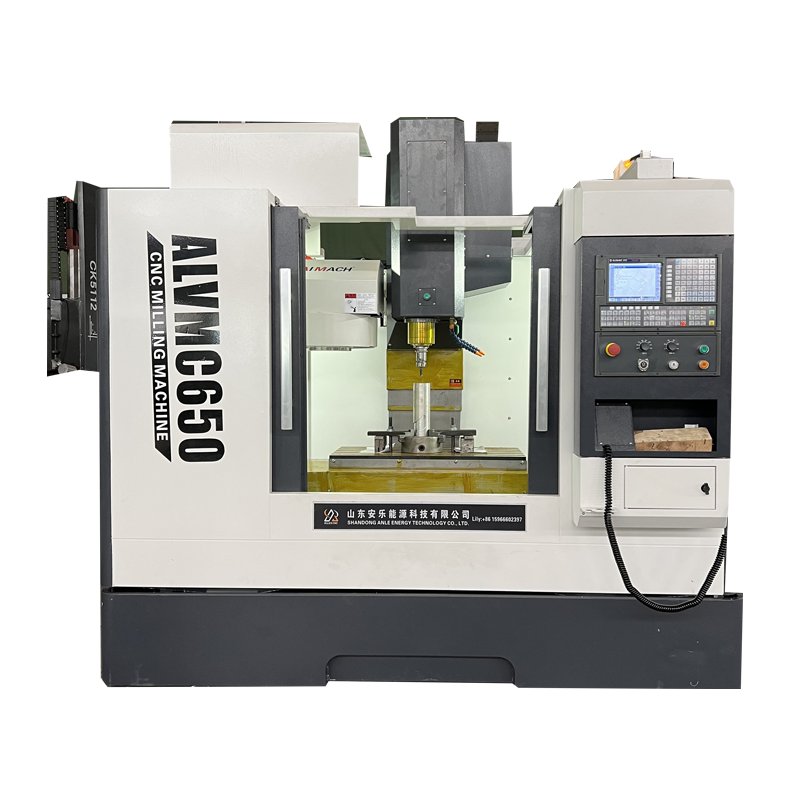

VMC650 Vertical Machining Center

VMC650 Vertical Machining Center

The VMC650 Vertical Machining Center is a high-precision CNC milling machine designed to complete milling, drilling, tapping and boring on complex metal parts in a single setup. With 650 mm X-axis travel, 500 mm Y-axis and Z-axis travel, and an 800 × 500 mm worktable that carries up to 400 kg, it handles moulds, housings, plates and precision components with stable accuracy. A one-piece cast-iron bed, precision linear guideways and high-precision ball screws keep the machine rigid and thermally stable through long production runs.

Key Features

• X-axis travel 650 mm, Y-axis and Z-axis travel 500 mm
• Worktable size 800 × 500 mm with max. loading capacity 400 kg
• T-slots 5 × 18 × 90 mm for fast, repeatable fixturing
• Spindle speed 800 rpm, distance from spindle nose to table 100-600 mm
• Distance from spindle centre to column 550 mm for large workpiece clearance
• One-piece cast-iron bed with aging treatment for vibration resistance and thermal stability
• High-precision ball screws and precision linear guideways on all axes

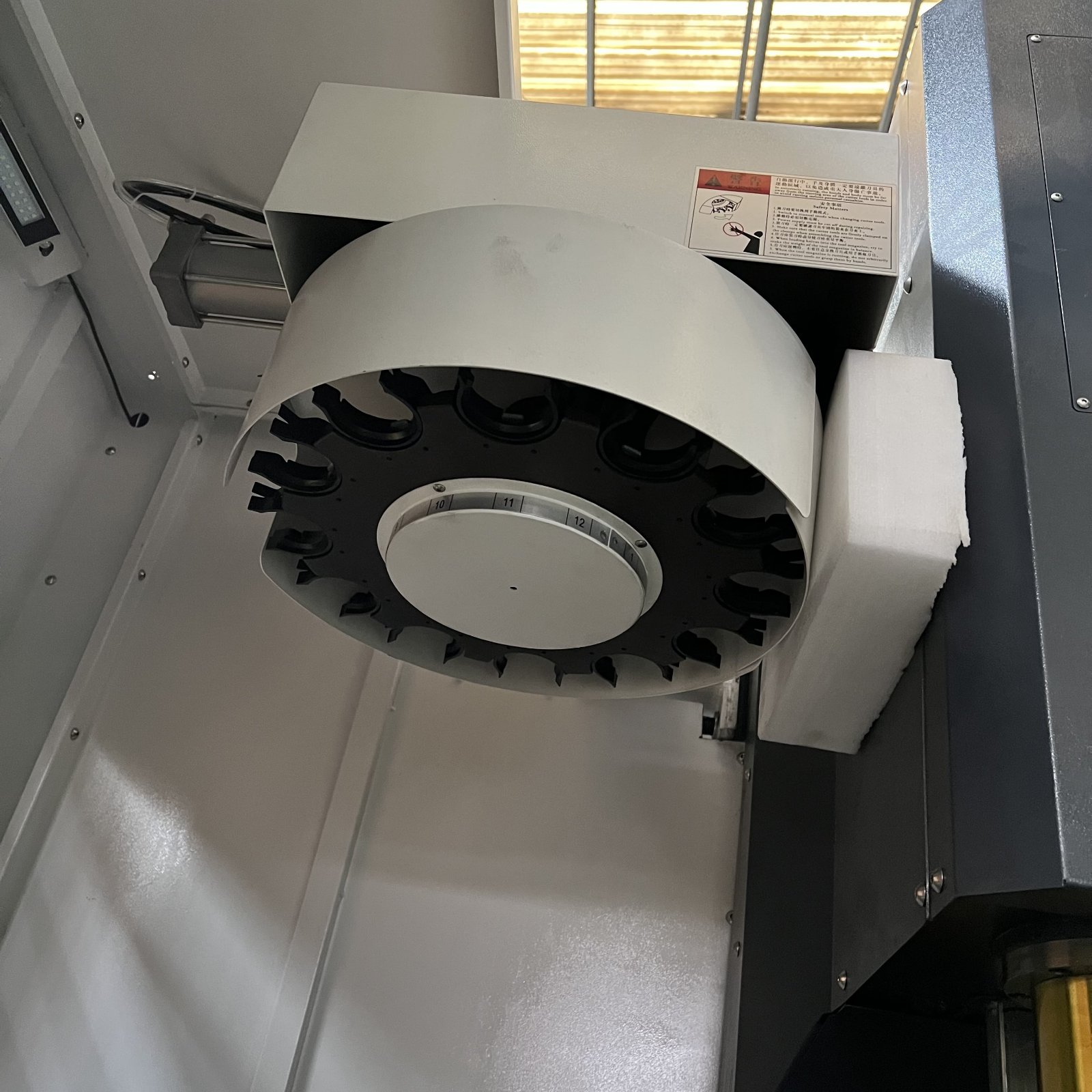

• Automatic tool changer for fast tool switching and less non-productive time
• Compatible with mainstream CNC systems such as FANUC, Siemens and Mitsubishi

Rigid Structure and Precision Drive

The machine is built on a highly rigid, one-piece cast-iron bed that has undergone aging treatment, so residual stress is released before machining. This gives the VMC650 excellent vibration resistance and thermal stability, which is what keeps dimensional accuracy stable across a long shift. Precision linear guideways and high-precision ball screws on all axes provide smooth, low-friction motion and repeatable positioning, while the 550 mm distance from spindle centre to column leaves enough clearance for large and irregularly shaped workpieces.

CNC System and Automation Options

The VMC650 works with mainstream CNC systems including FANUC, Siemens and Mitsubishi, so operators can work with the control they already know. Beyond the standard automatic tool changer, the machine supports optional configurations such as 4th and 5th axes, automatic chip conveyors and automated loading and unloading systems. This means the same platform can start as a stand-alone machining centre and later be scaled into a flexible or lightly automated production cell without replacing the machine.

Applications

The VMC650 vertical machining center is used in automotive parts, mould manufacturing, electronic equipment, aerospace, medical devices, construction machinery, precision machinery and hardware processing. It machines aluminium alloys, stainless steel, carbon steel and copper alloys, and performs high-precision work on moulds, housings, plates, casings, flanges and mechanical components. The actual application depends on the workpiece material, size and machining requirements.

Technical Specifications

Why Choose VMC650

A smaller machining centre runs out of X travel and table capacity as soon as the workpiece grows, forcing a second setup and losing accuracy at every re-clamping. The VMC650 gives 650 mm of X-axis travel and an 800 × 500 mm table rated to 400 kg, so moulds, plates and housings that would need a larger and more expensive machine can be finished in one setup. Rigid cast-iron construction, precision guideways and a 550 mm spindle-centre-to-column distance keep accuracy on heavy and awkward parts. Overseas after-sales service and CE certified machines are provided.
