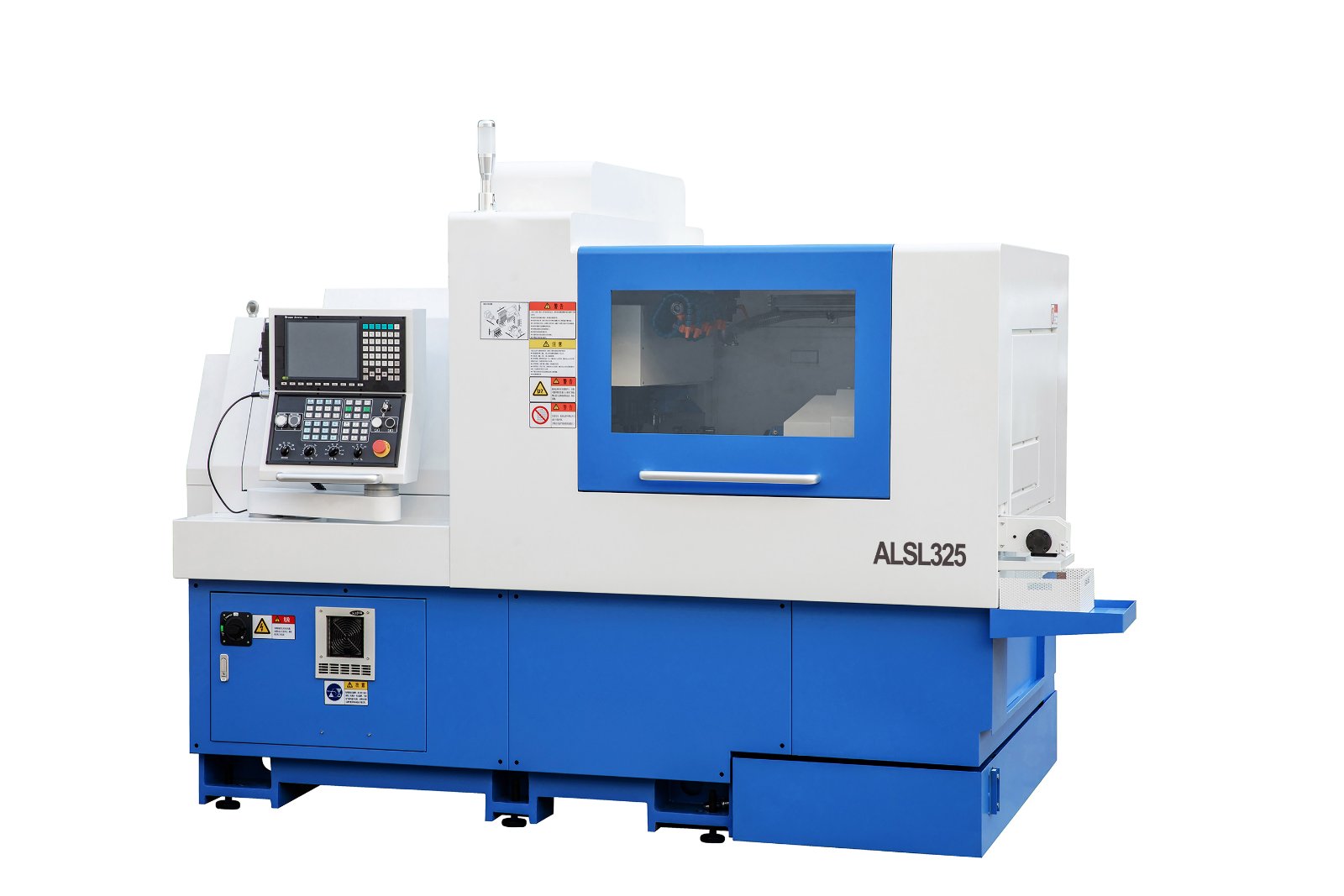

SL325 Swiss Type CNC Lathe

SL325 Swiss Type CNC Lathe

The SL325 Swiss Type CNC Lathe is a sliding headstock automatic lathe designed for precision parts up to Φ32 mm. With a maximum processing bar diameter of Φ32 mm, a Φ36 mm spindle through hole and a spindle speed of 6000 r/min, it machines long, slender workpieces without deflection, because the guide bush supports the bar right at the cutting point. It is the dedicated solution for parts that a conventional CNC lathe cannot hold accurately.

Key Features

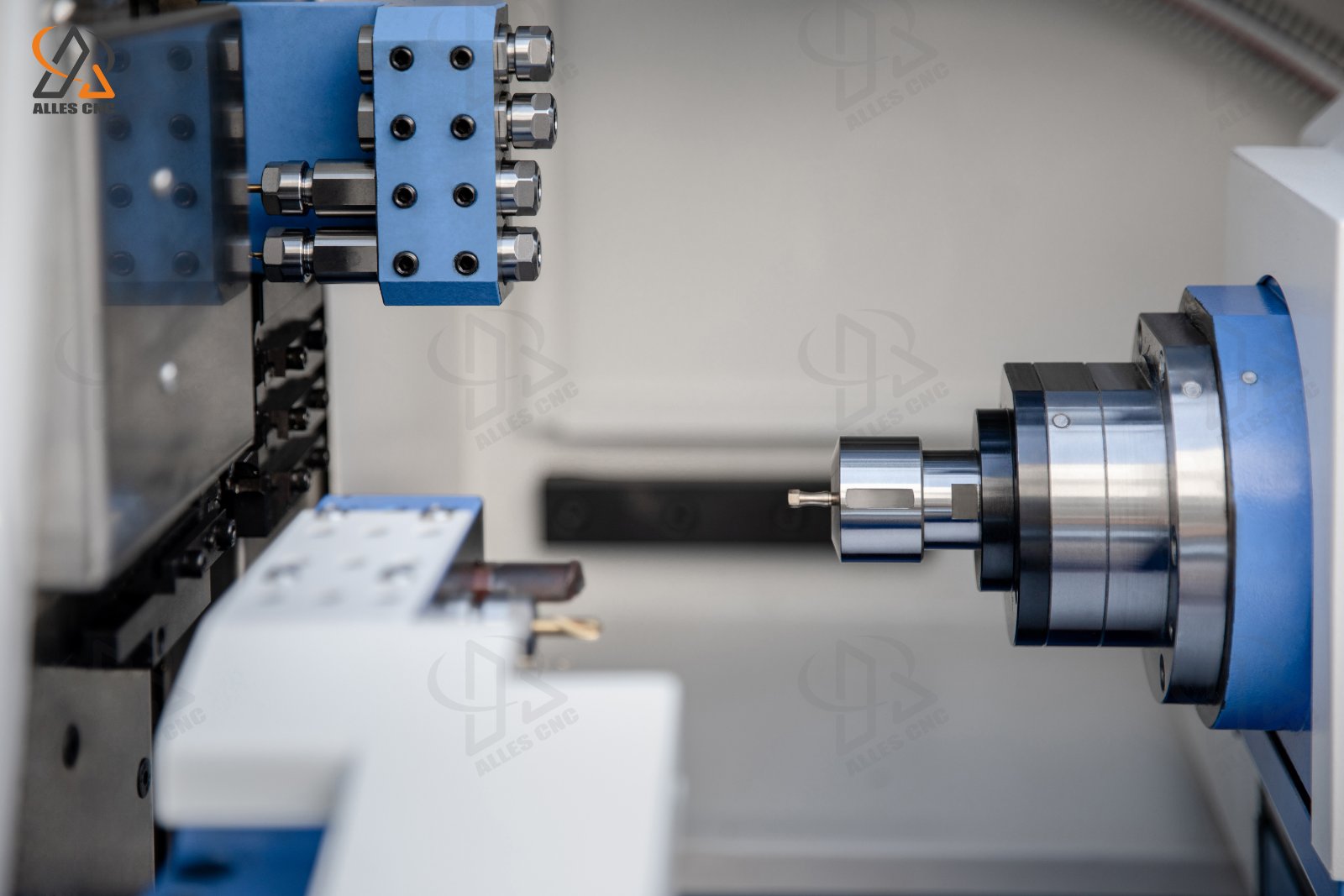

• Swiss type sliding headstock design with guide bush support at the cutting zone
• Max. processing bar diameter Φ32 mm for medium-small precision parts
• Spindle through hole Φ36 mm, spindle speed 6000 r/min

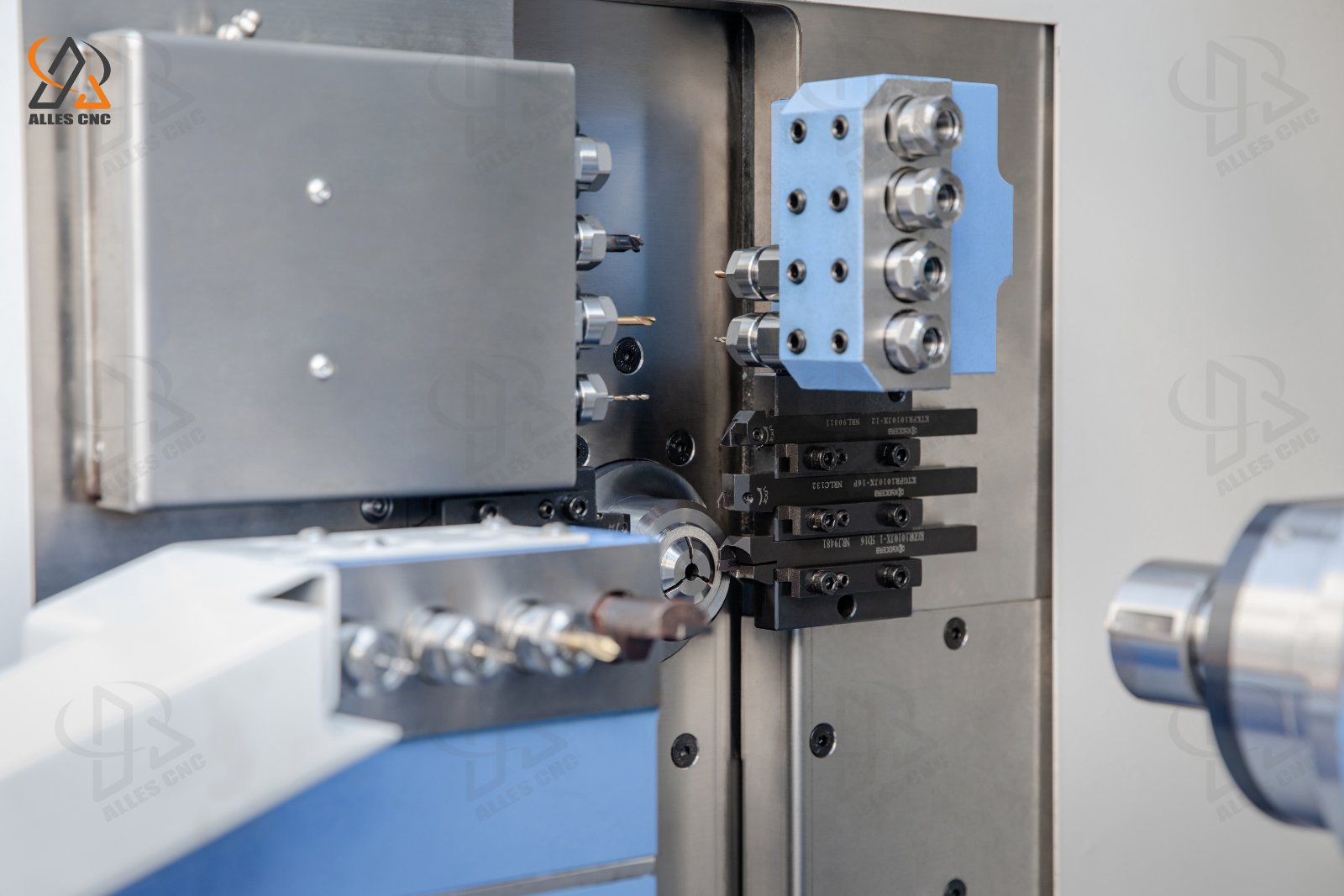

• 6 external turning tool positions on the tool post
• Max. end face drilling diameter Φ13 mm for cross and face work in one setup

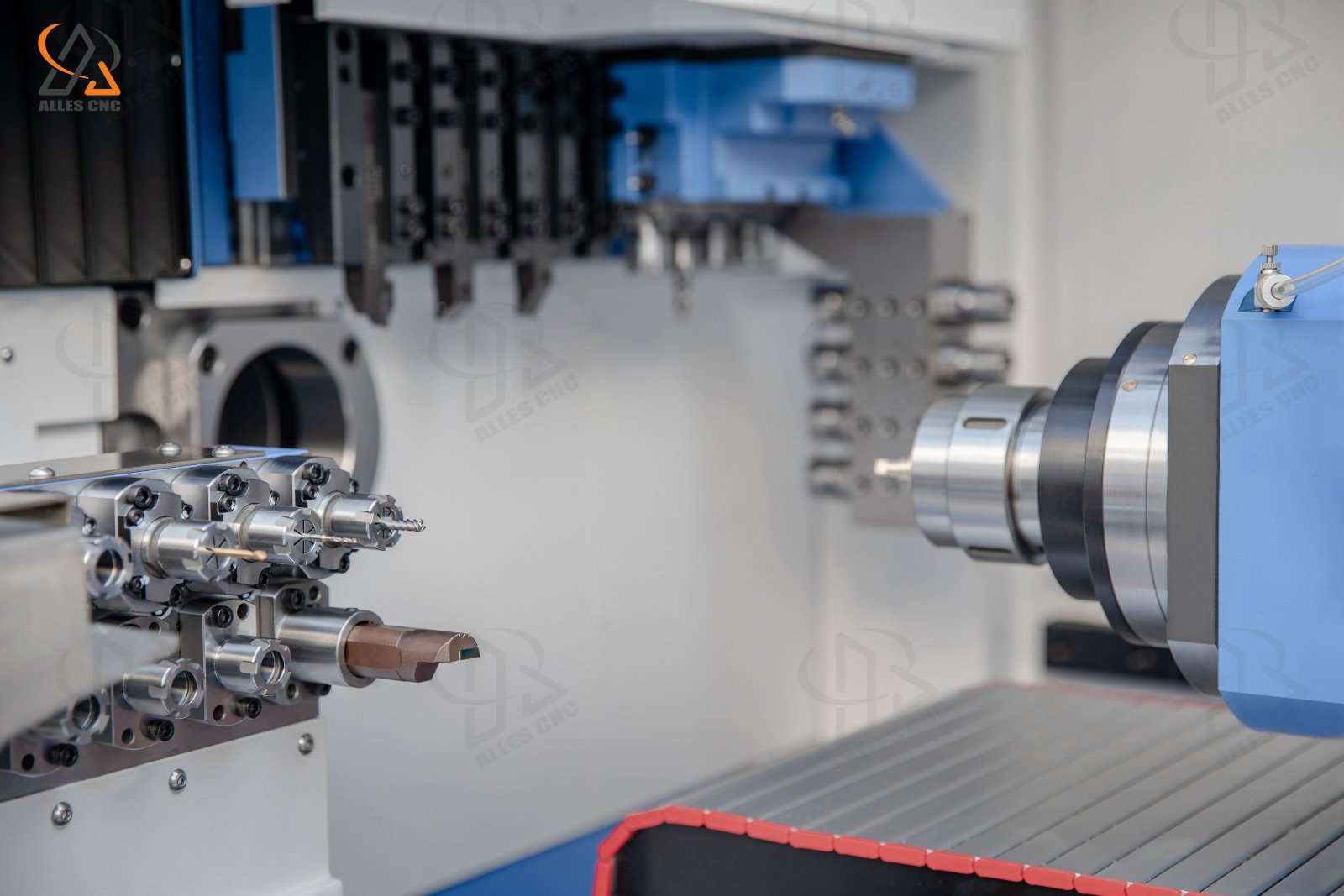

• Radial live tool speed up to 4800 r/min for cross drilling and milling without a second operation
• External turning tool shank 16 × 16 mm
• Compact machine size 2610 × 1640 × 1920 mm, net weight approx. 3700 kg

Applications

The SL325 swiss type lathe is used for long, slender precision parts where surface finish and dimensional accuracy are critical. Typical parts include shafts, pins, connectors, electronic and automotive small components, medical instrument parts, watch and instrument parts and other workpieces with a high length-to-diameter ratio. The actual application depends on the workpiece material, size and machining requirements.

Why Choose SL325

A conventional CNC lathe cannot machine long slender parts without chatter or deflection — the workpiece bends under cutting force. The SL325 solves this with a sliding headstock: the guide bush follows the bar and supports it directly next to the tool, so the unsupported length stays constant and very short. With a Φ32 mm bar capacity, a Φ36 mm spindle bore and a radial live tool running up to 4800 r/min, the SL325 completes front and side machining in one setup. Overseas after-sales service and CE certified machines are provided.

Technical Specifications

Typical Applications

• Shafts, pins and slender turned parts
• Connectors and electronic components
• Automotive small precision parts
• Medical instruments and instrument parts

Request a Quote

Contact us for the SL325 swiss type CNC lathe price, delivery time and technical support. We provide overseas after-sales service and CE certified machines.
