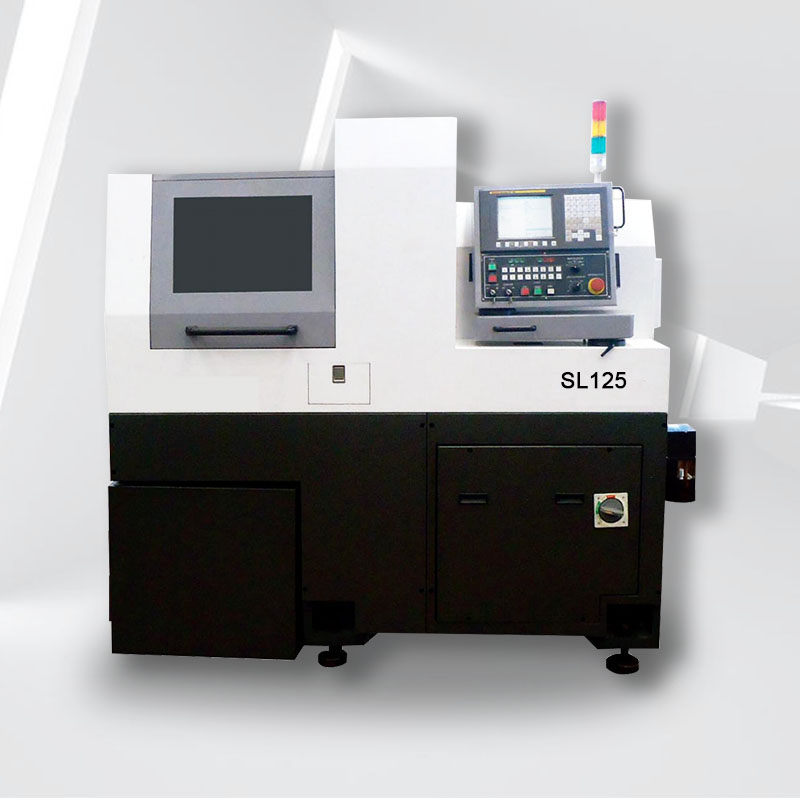

SL125 Swiss Type CNC Lathe

SL125 Swiss Type CNC Lathe

The SL125 Swiss Type CNC Lathe is a sliding headstock automatic lathe designed for small, slender precision parts. With a maximum turning diameter of Φ16 mm, a 150 mm main spindle stroke and a rapid traverse speed of 24 m/min, it machines long, thin workpieces without deflection, because the guide bush supports the bar right at the cutting point. It is the dedicated solution for parts that a conventional CNC lathe cannot hold accurately.

Key Features

• Swiss type sliding headstock design with guide bush support at the cutting zone
• Max. turning diameter Φ16 mm for small precision parts
• Main spindle stroke 150 mm for long slender workpieces
• Rapid traverse speed 24 m/min for short cycle times

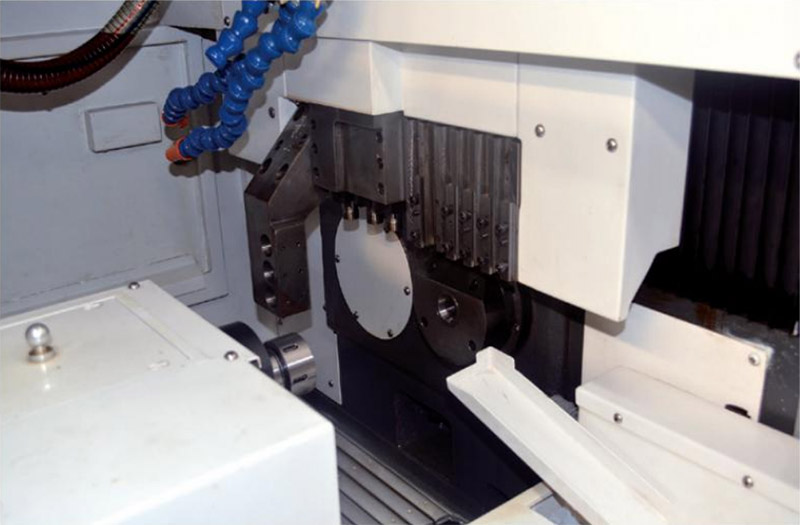

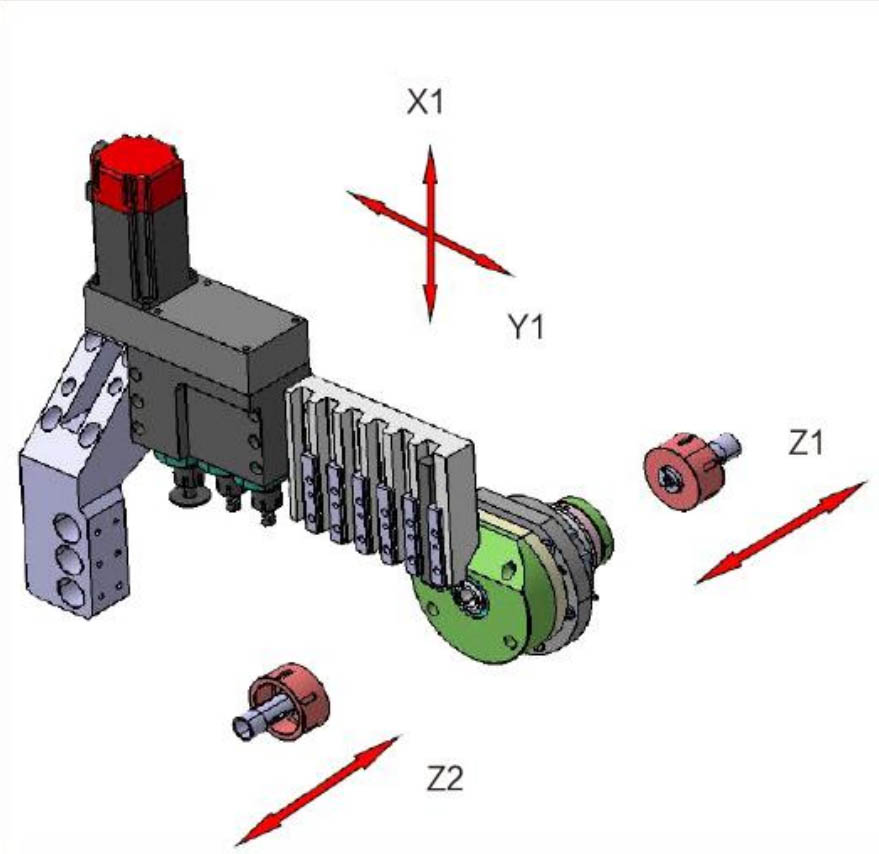

• 6 O.D. tools (□12×12) and 3 I.D. tools (Φ25-ER16) on the tool post
• High accuracy and repeatability in continuous automatic production
• Compact machine size 1985 × 1321 × 1692 mm, weight 3,000 kg
• Automatic bar feeding for unmanned batch production

Applications

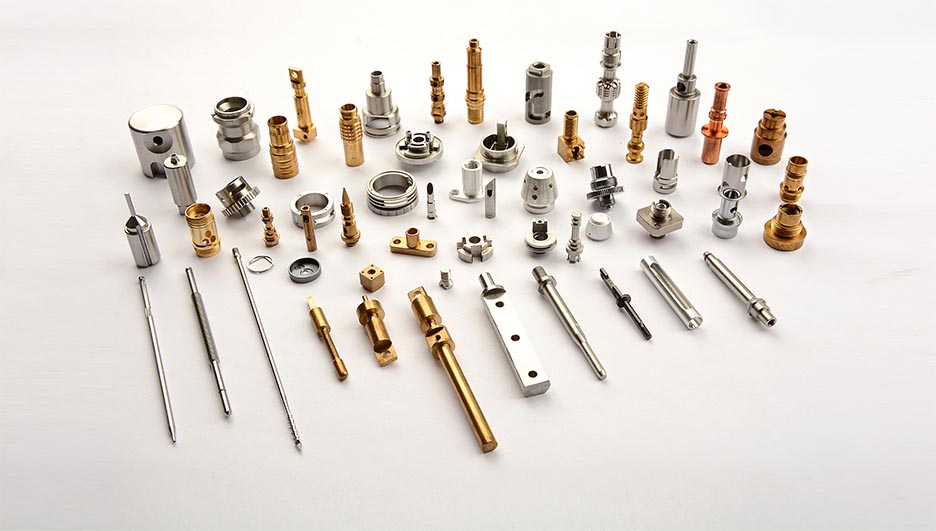

The SL125 swiss type lathe is used for small, long and thin precision parts where surface finish and dimensional accuracy are critical. Typical parts include shafts, pins, connectors, electronic and automotive small components, medical instrument parts, watch and instrument parts and other workpieces with a high length-to-diameter ratio. The actual application depends on the workpiece material, size and machining requirements.

Why Choose SL125

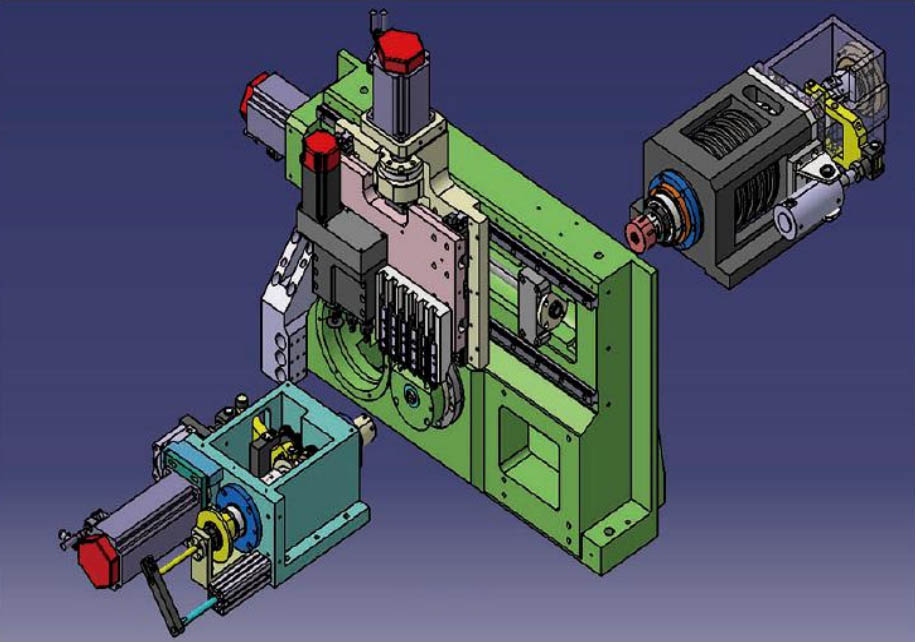

A conventional CNC lathe cannot machine long slender parts without chatter or deflection — the workpiece bends under cutting force. The SL125 solves this with a sliding headstock: the guide bush follows the bar and supports it directly next to the tool, so the unsupported length stays constant and very short. Combined with a 24 m/min rapid traverse and a compact 6+3 tool layout, the SL125 gives stable accuracy and short cycle times for small parts produced in large batches. Overseas after-sales service and CE certified machines are provided.

Technical Specifications

Typical Applications

• Shafts, pins and slender turned parts
• Connectors and electronic components
• Automotive small precision parts
• Medical instruments and instrument parts

Request a Quote

Contact us for the SL125 swiss type CNC lathe price, delivery time and technical support. We provide overseas after-sales service and CE certified machines.
