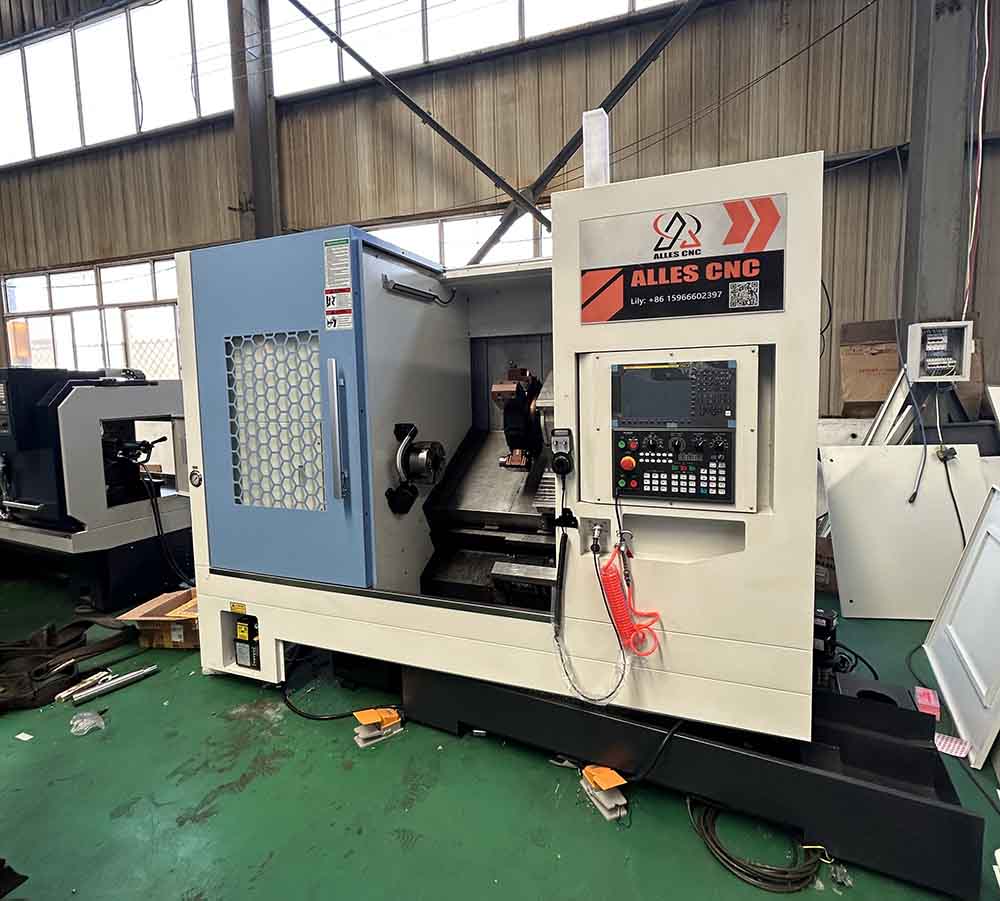

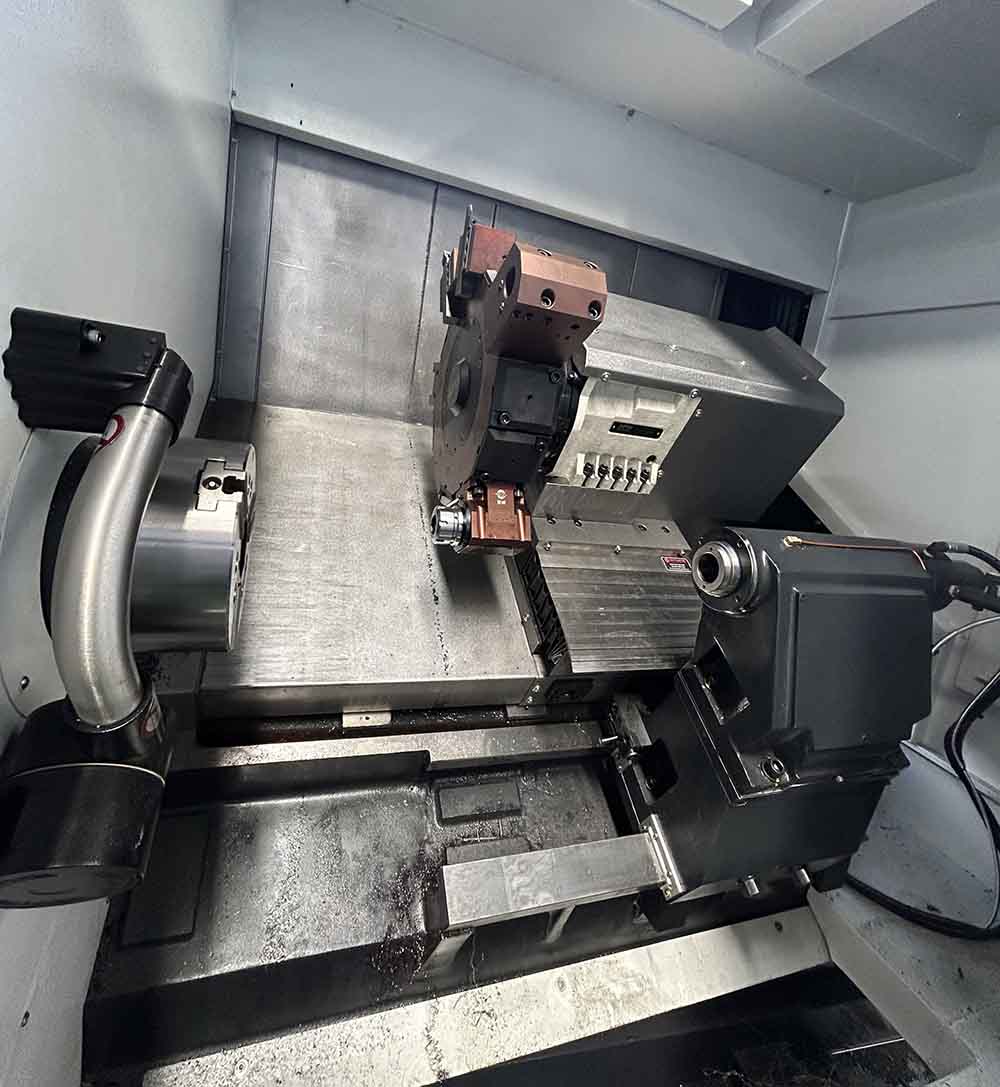

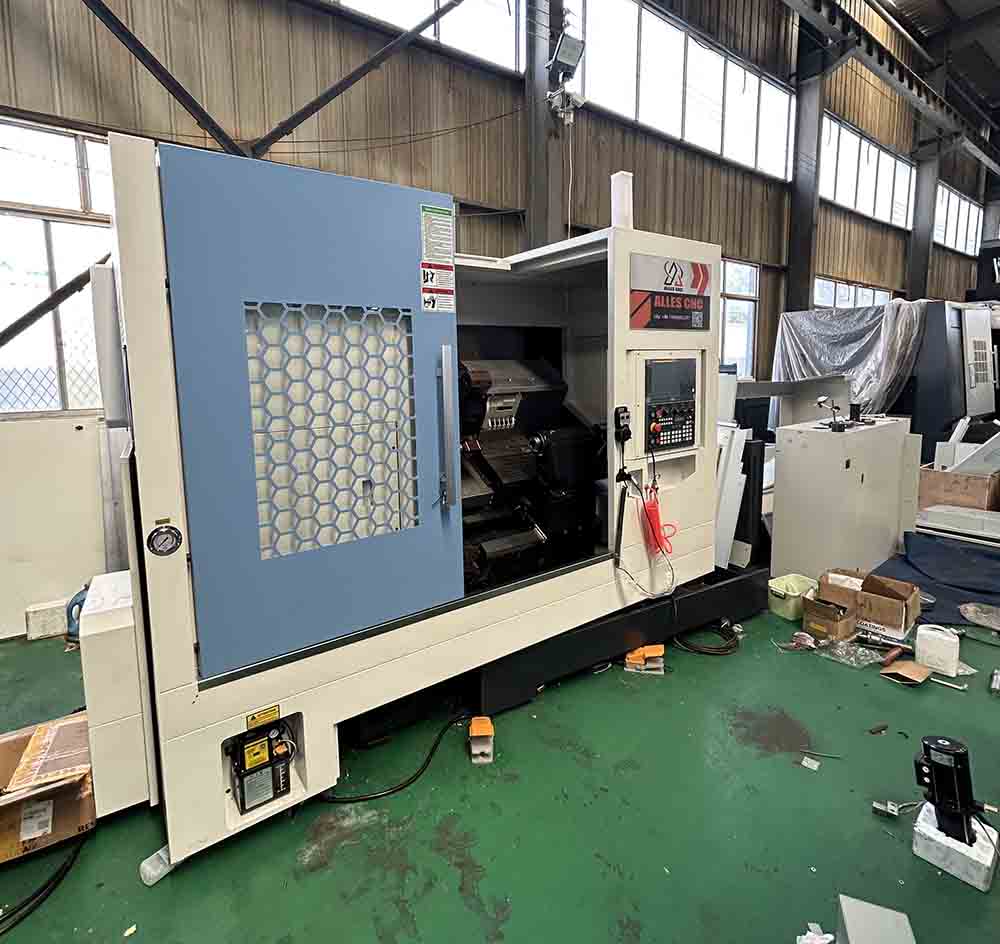

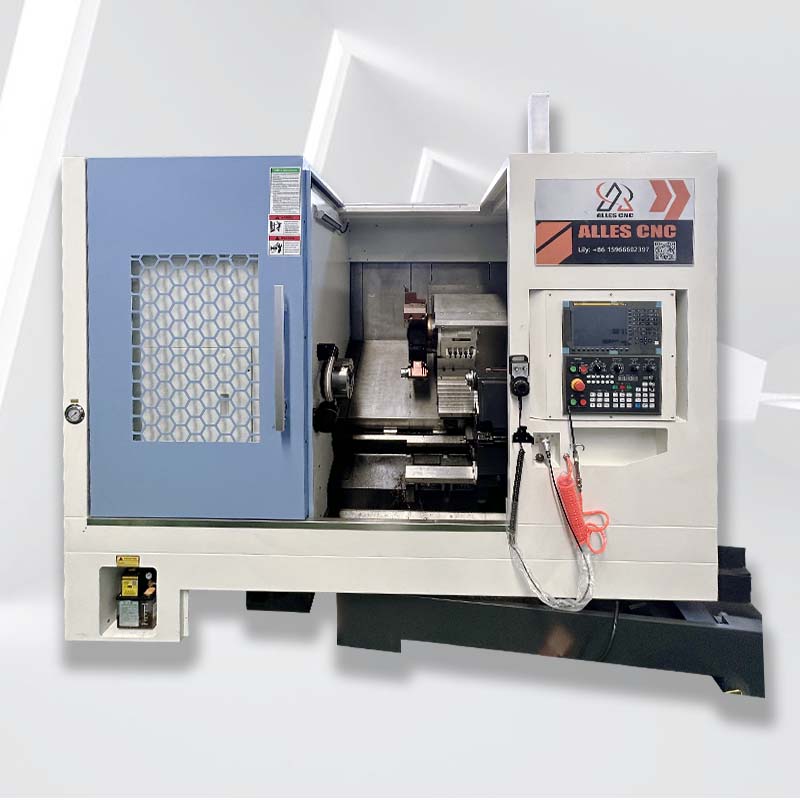

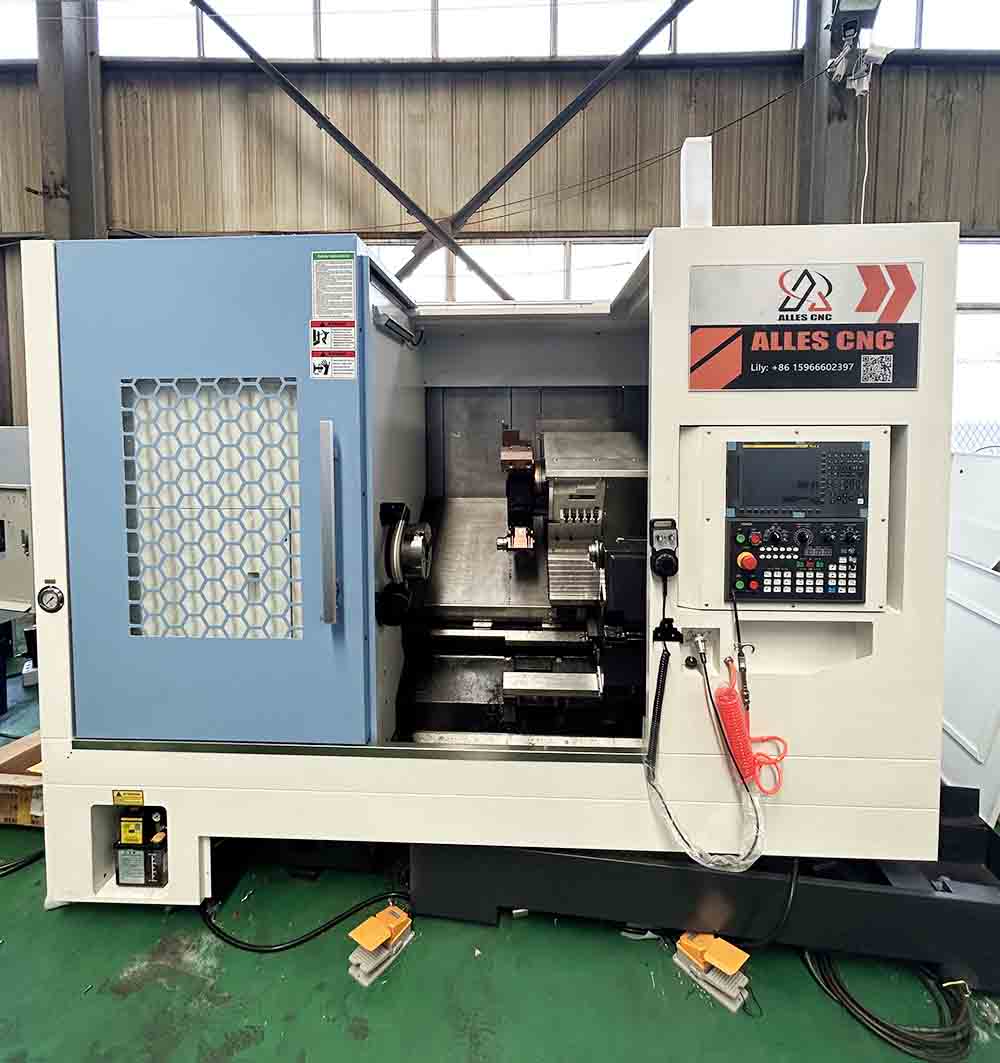

TCK52D CNC Turning And Milling Compound Machine
The TCK52D CNC Turning And Milling Compound Machine combines CNC turning with C-axis milling and live tooling on a slant bed structure. It completes turning, milling, drilling and tapping in a single setup with high rigidity and accuracy.
TCK52D CNC Turning And Milling Compound Machine
The TCK52D CNC Turning And Milling Compound Machine is a slant bed turn-mill lathe that combines CNC turning with C-axis contour milling and driven tools. With a Φ520 mm swing over bed, a Φ79 mm spindle bore and a 4200 rpm spindle, it handles small and medium precision parts that also need cross milling, drilling and tapping — without moving the workpiece to a second machine.
Key Features
- Turning and milling combined in one machine with C axis and live tooling
- Driven tools for milling, drilling and tapping operations
- Slant bed structure for high rigidity and easy chip evacuation
- Swing over bed Φ520 mm and machining diameter on tool post Φ280 mm
- High-speed spindle up to 4200 rpm with Φ79 mm bore
- Bar stock capacity up to Φ65 mm for automatic bar feeding
- C axis 360° for contour milling and cross-feature machining
- Compact footprint 3000 × 1850 × 1710 mm, machine weight 3800 / 4100 kg
Applications
The TCK52D turning and milling compound machine is used for precision parts that require both turning and cross milling, drilling or tapping. Typical parts include fittings, bushings, hydraulic components, small flanges, shafts and other parts with cross features. The actual application depends on the workpiece material, size and machining requirements.
Why Choose TCK52D
The TCK52D is the compact model in our turn-mill range. Its 4200 rpm spindle and Φ79 mm bore suit high-speed finishing of small and medium parts, while the slant bed layout gives the rigidity needed for driven-tool milling. Combining turning, milling and drilling in one machine cuts setups, reduces handling and improves accuracy in batch production.
Technical Specifications
| Model | TCK52D |
| Max. Swing Over Bed | Φ520 mm |
| Max. Machining Diameter on Tool Post | Φ280 mm |
| Max. Machining Length | 520 / 750 mm |
| Spindle Max. Speed | 4200 rpm |
| Spindle Bore | Φ79 mm |
| Bar Stock Diameter | Φ65 mm |
| X-Axis Max. Travel | 270 mm |
| Z-Axis Max. Travel | 550 / 750 mm |
| C-Axis | 360° |
| Machine Dimensions (L×W×H) | 3000 × 1850 × 1710 mm |
| Machine Weight | 3800 / 4100 kg |
Typical Applications
- Fittings, bushings and small flanges
- Hydraulic and pneumatic components
- Shafts and parts requiring cross drilling and milling
- Batch production of precision turned and milled parts
Request a Quote
Contact us for the TCK52D turning milling compound machine price, delivery time and technical support. We provide overseas after-sales service and CE certified machines.
