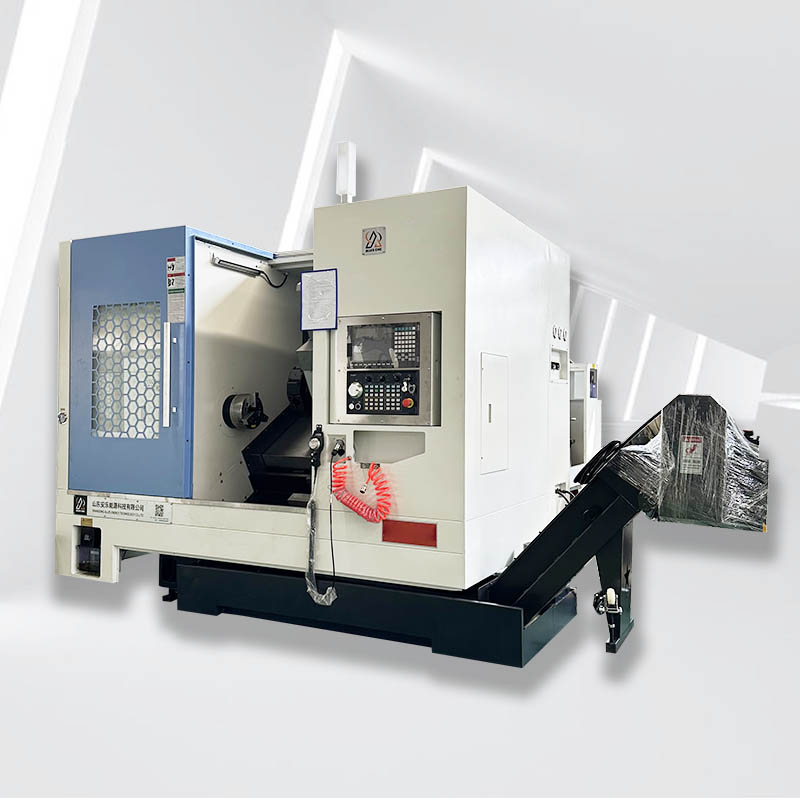

TCK550D CNC Turning And Milling Compound Machine
The TCK550D CNC Turning And Milling Compound Machine combines turning and milling in one machine. With driven tools and a high-speed spindle, it completes turning, milling, drilling and tapping operations in a single setup.
TCK550D CNC Turning And Milling Compound Machine
The TCK550D CNC Turning And Milling Compound Machine is a multi-function turning center that combines CNC turning with driven-tool milling capability. It machines complex parts in one setup, reducing handling and improving accuracy for turned and milled features.
Key Features
- Combined turning and milling in one machine

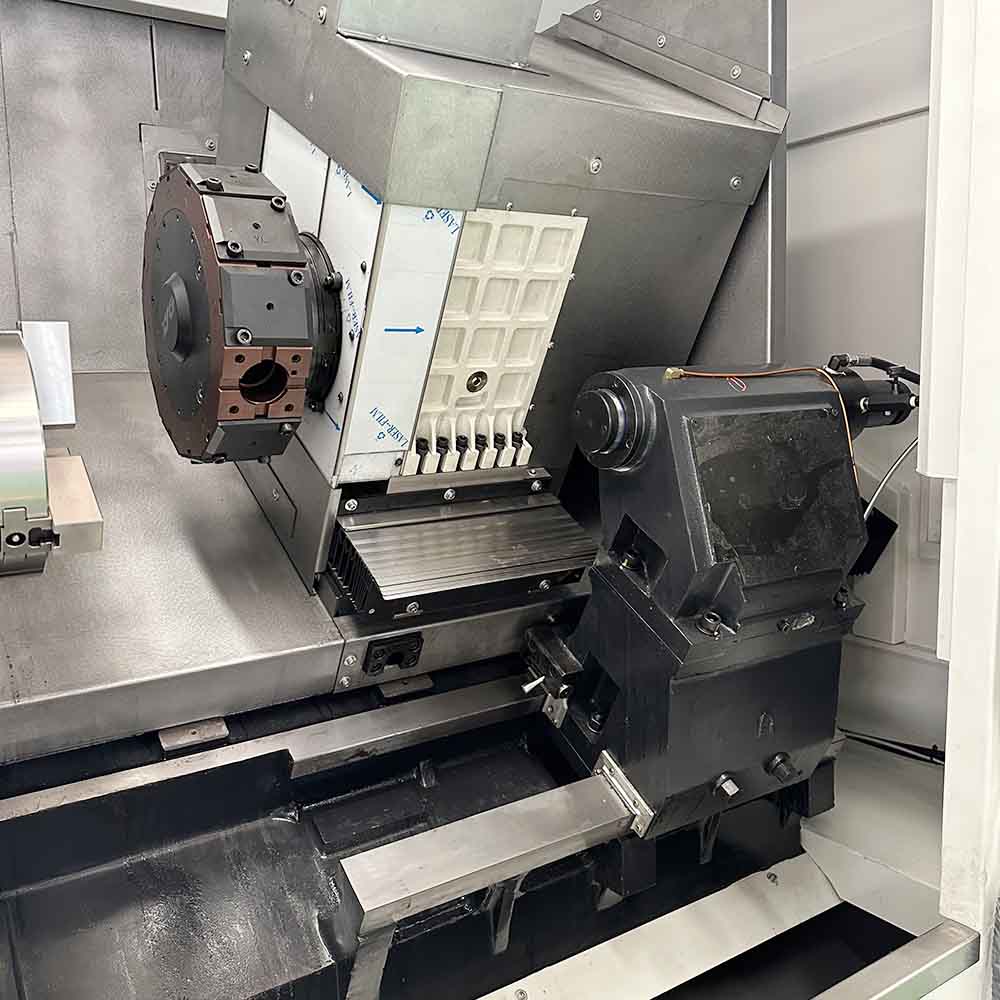

- Driven tools for milling, drilling and tapping operations
- Swing over bed Φ550 mm and machining diameter Φ320 mm
- Spindle maximum speed 3500 rpm with Φ82 mm spindle bore
- Bar stock capacity up to Φ70 mm
- Z-axis travel options: 650 / 1000 mm
Applications
The TCK550D turning and milling compound machine is used for complex turned parts that also require milling, drilling or tapping. Typical parts include flanges, fittings, valves, hydraulic components and other parts with cross features. The actual application depends on the workpiece material, size and machining requirements.
Why Choose TCK550D
This turning milling compound machine reduces the number of setups and machines needed for complex parts. It provides turning, milling and drilling on one platform, which improves accuracy and productivity for batch production.
Technical Specifications
| Model | TCK550D |
| Max. Swing Over Bed | Φ550 mm |
| Max. Machining Diameter on Tool Post | Φ320 mm |
| Max. Machining Length | 550 / 900 mm |
| Spindle Max. Speed | 3500 rpm |
| Spindle Bore | Φ82 mm |
| Bar Stock Diameter | Φ70 mm |
| X-Axis Max. Travel | 315 mm |
| Z-Axis Max. Travel | 650 / 1000 mm |
| Machine Dimensions (L×W×H) | 2800/3300 × 1900 × 2200 mm |
| Machine Weight | 4600 / 5500 kg |
Typical Applications
- Flanges, fittings and valve bodies
- Hydraulic and pneumatic components
- Parts requiring cross drilling and milling
- Batch production of complex turned parts
Request a Quote
Contact us for the TCK550D turning milling compound machine price, delivery time and technical support. We provide overseas after-sales service and CE certified machines.
