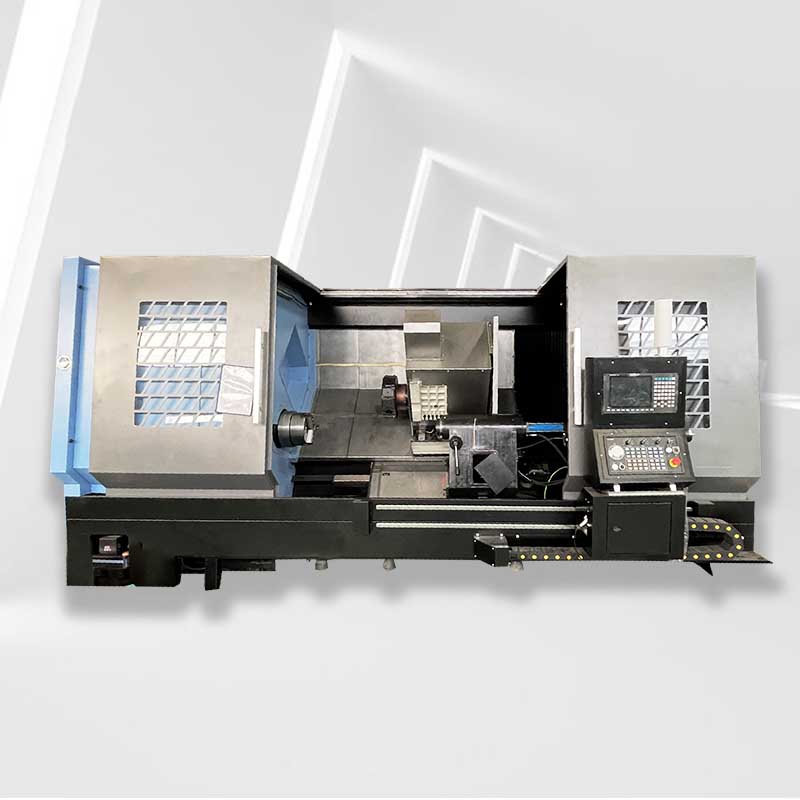

TCK700DY CNC Turning And Milling Compound Machine
The TCK700DY CNC Turning And Milling Compound Machine combines turning and milling in one machine. With driven tools and a powerful spindle, it completes turning, milling, drilling and tapping operations in a single setup.
TCK700DY CNC Turning And Milling Compound Machine

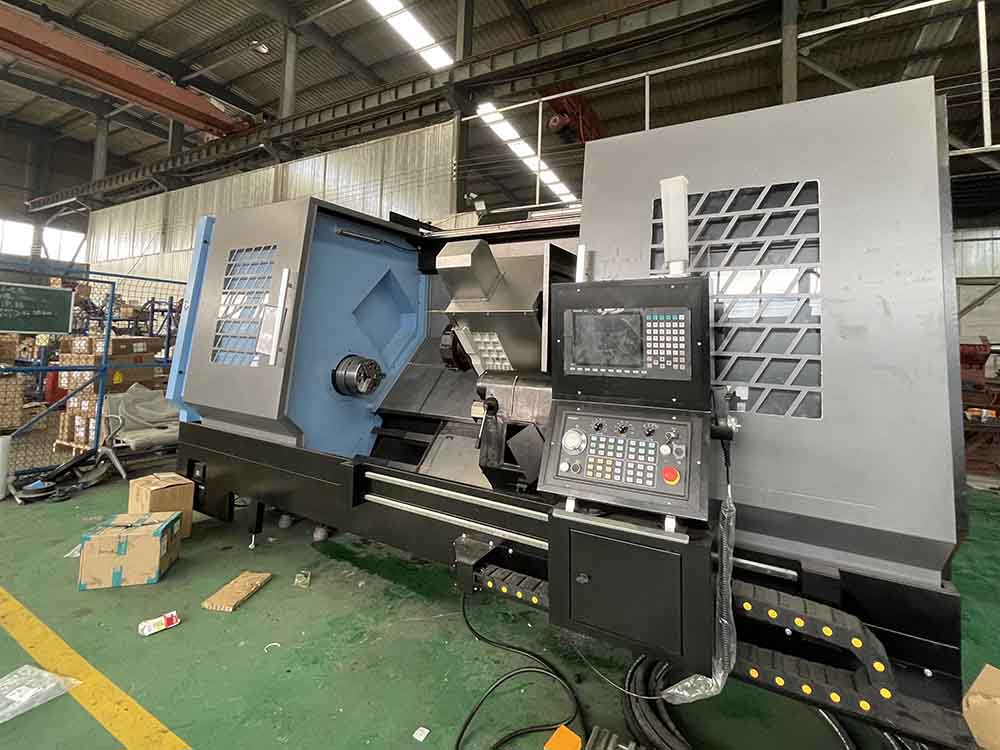

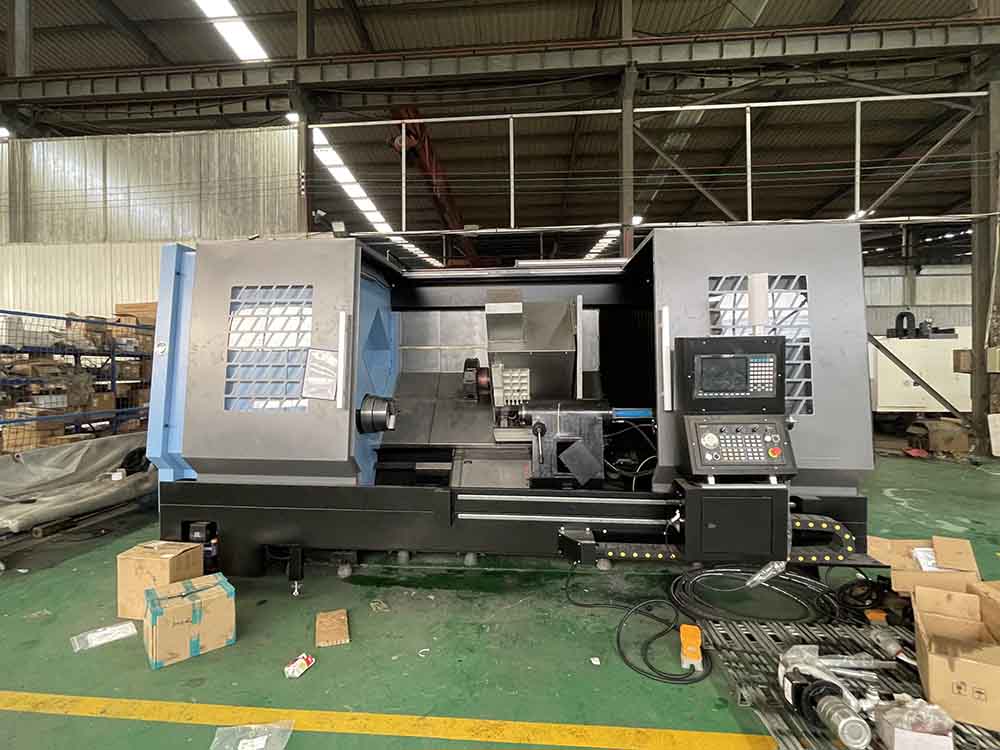

The TCK700DY CNC Turning And Milling Compound Machine is a multi-function turning center that combines CNC turning with driven-tool milling capability. It machines complex parts in one setup, reducing handling and improving accuracy for turned and milled features.
Key Features
- Combined turning and milling in one machine

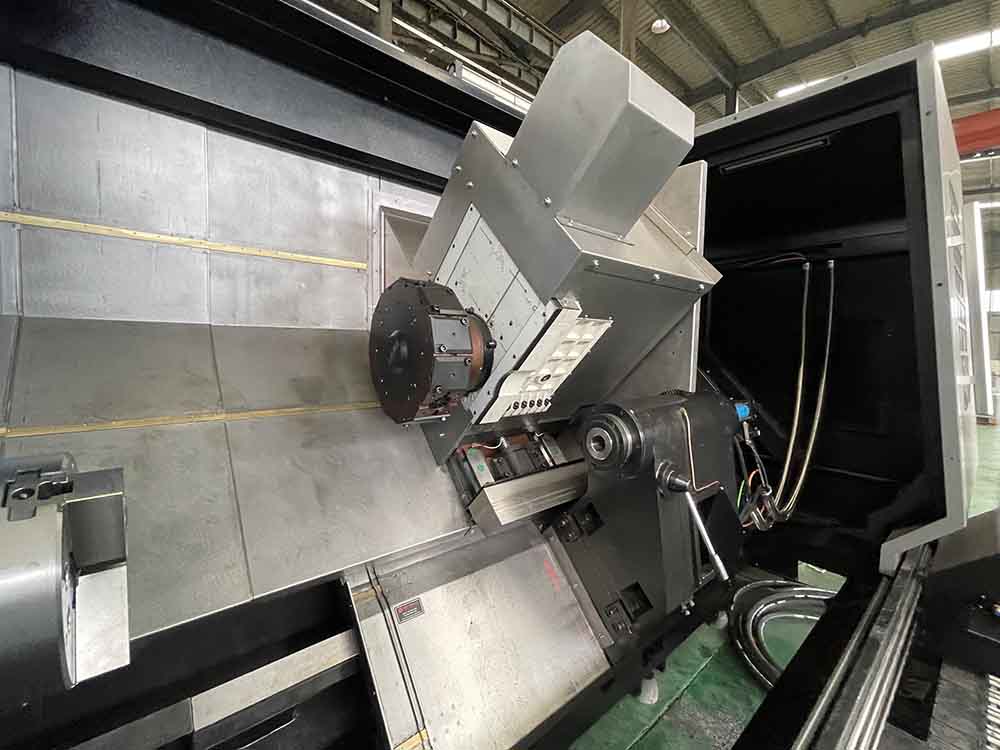

- Driven tools for milling, drilling and tapping operations
- Large swing over bed Φ780 mm and machining diameter Φ500 mm
- Spindle maximum speed 3000 rpm with Φ132 mm spindle bore
- Bar stock capacity up to Φ115 mm
- Long Z-axis travel options: 1050 / 1650 / 2100 / 3100 mm
Applications
The TCK700DY turning and milling compound machine is used for complex turned parts that also require milling, drilling or tapping. Typical parts include flanges, fittings, valves, hydraulic components and other parts with cross features. The actual application depends on the workpiece material, size and machining requirements.
Why Choose TCK700DY
This turning milling compound machine reduces the number of setups and machines needed for complex parts. It provides turning, milling and drilling on one platform, which improves accuracy and productivity for batch production.
Technical Specifications
| Model | TCK700DY |
| Max. Swing Over Bed | Φ780 mm |
| Max. Machining Diameter on Tool Post | Φ500 mm |
| Max. Machining Length | 1000 / 1500 / 2000 / 3000 mm |
| Spindle Max. Speed | 3000 rpm |
| Spindle Bore | Φ132 mm |
| Bar Stock Diameter | Φ115 mm |
| X-Axis Max. Travel | 350 + 20 mm |
| Z-Axis Max. Travel | 1050 / 1650 / 2100 / 3100 mm |
| Machine Dimensions (L×W×H) | 7500 × 2300 × 2550 mm |
| Machine Weight | 11500 / 12300 kg |

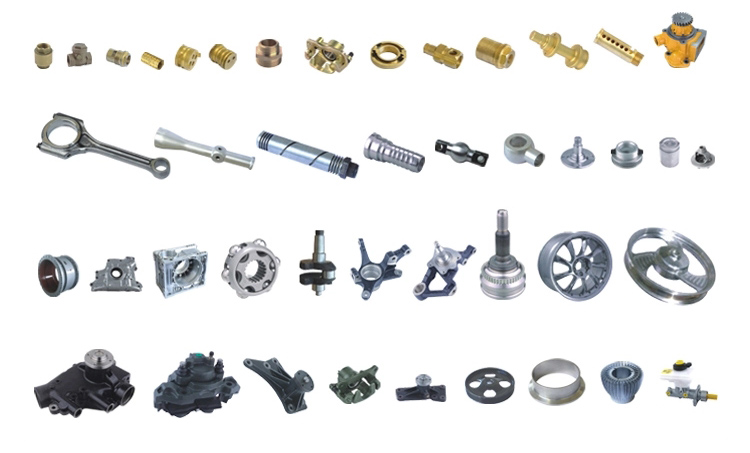

Typical Applications
- Flanges, fittings and valve bodies
- Hydraulic and pneumatic components
- Parts requiring cross drilling and milling
- Batch production of complex turned parts
Request a Quote
Contact us for the TCK700DY turning milling compound machine price, delivery time and technical support. We provide overseas after-sales service and CE certified machines.
