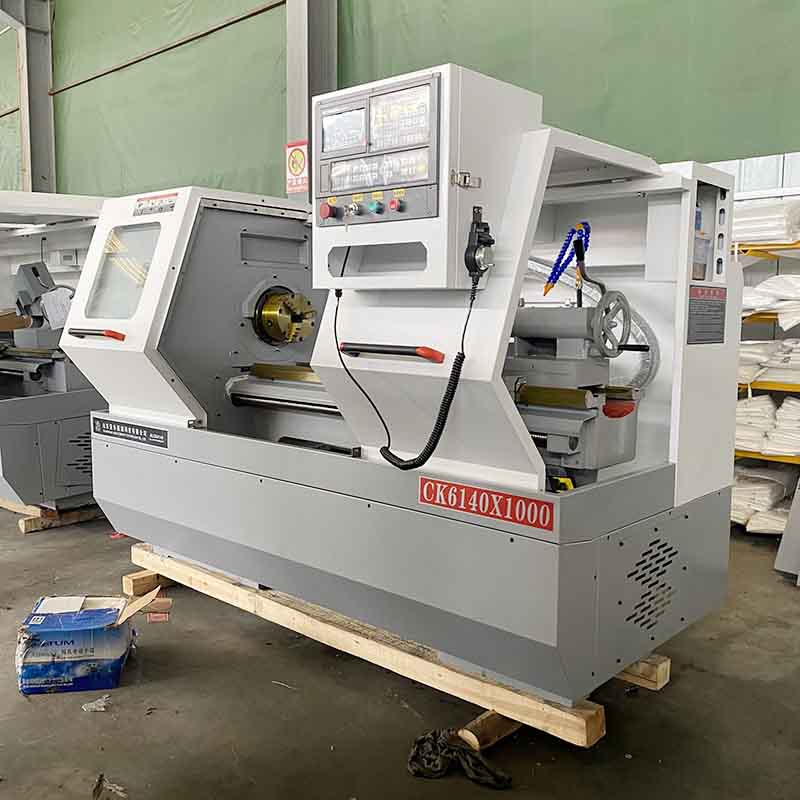

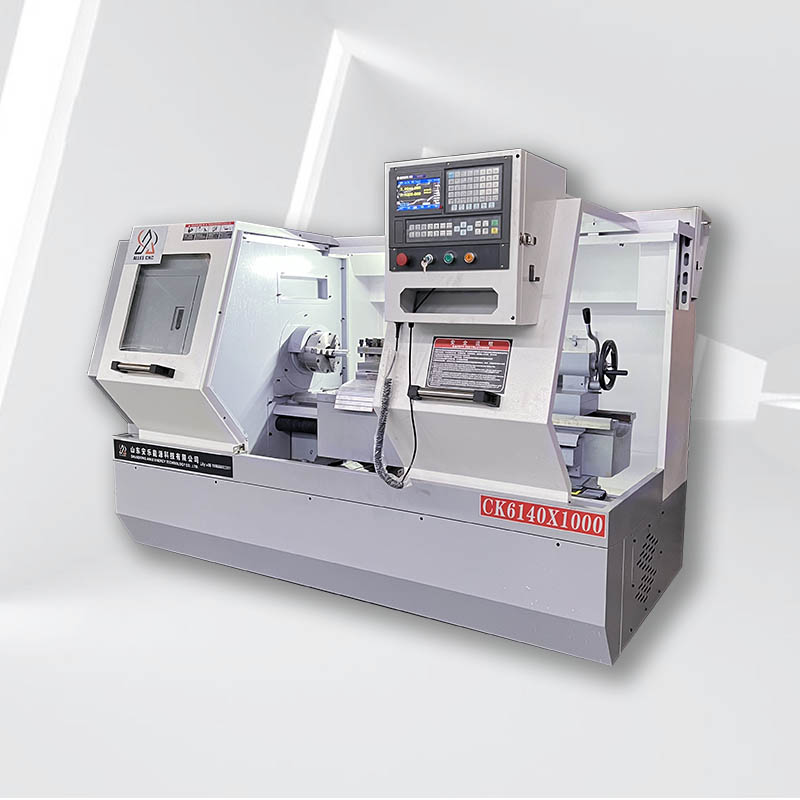

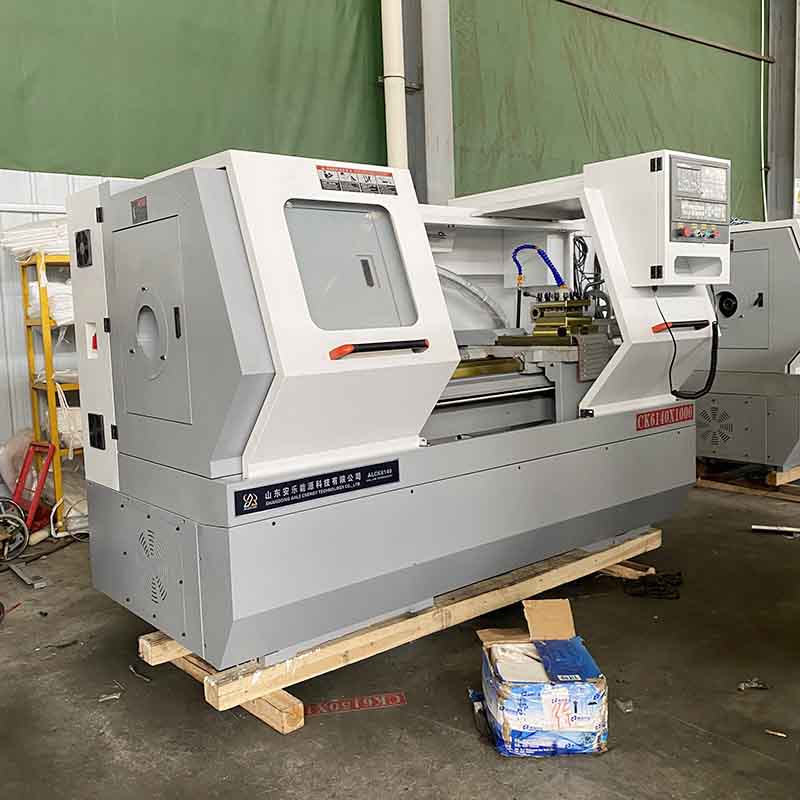

CK6140X1000 CNC Lathe
The CK6140X1000 CNC Lathe is a flat bed CNC turning machine built for reliable metal machining. It combines CNC control with a rigid flat bed structure, making it suitable for workshops and production lines that need consistent turning quality.
Key Features
- Flat bed CNC lathe design for stable metal turning
- Suitable for turning, facing, threading, drilling and related machining operations
- CNC control for repeatable machining accuracy
- Rigid machine bed and guide rail structure for stable cutting
- Ideal for small-batch production, repair workshops and general machining
Applications
The CK6140X1000 CNC Lathe can be used to machine shafts, bushings, sleeves, flanges, discs and other metal components. The actual application depends on the workpiece material, size and machining requirements.
Why Choose CK6140X1000
This CNC lathe offers a practical combination of machining capacity, bed length and CNC control for manufacturers who need stable performance in metal turning. Configuration and tooling can be selected according to the workpiece and production task.
Technical Specifications
| Model | CK6140X1000 |
| Maximum Turning Diameter of Bed | Φ400 mm |
| Maximum Turning Diameter on Tool Post | Φ220 mm |
| Center Distance | 1000 mm |
| Rail Width | 360 mm |
| X Axis Stroke | 250 mm |
| Z Axis Stroke | 900 mm |
| Fast Moving Speed of Carriage | X / Z: 5 / 8 m/min |
| Repeatability | X: 0.012 mm / Z: 0.013 mm |
| Packing Dimensions (L × W × H) | 2350 × 1400 × 1800 mm |
Typical Applications
Typical applications include metal shaft machining, sleeve machining, flange turning, bushing production, general turning, threading and other flat bed CNC machining processes.
Request a Quote
Contact us for the complete technical specifications, configuration options, delivery information and quotation for the CK6140X1000 CNC Lathe.
