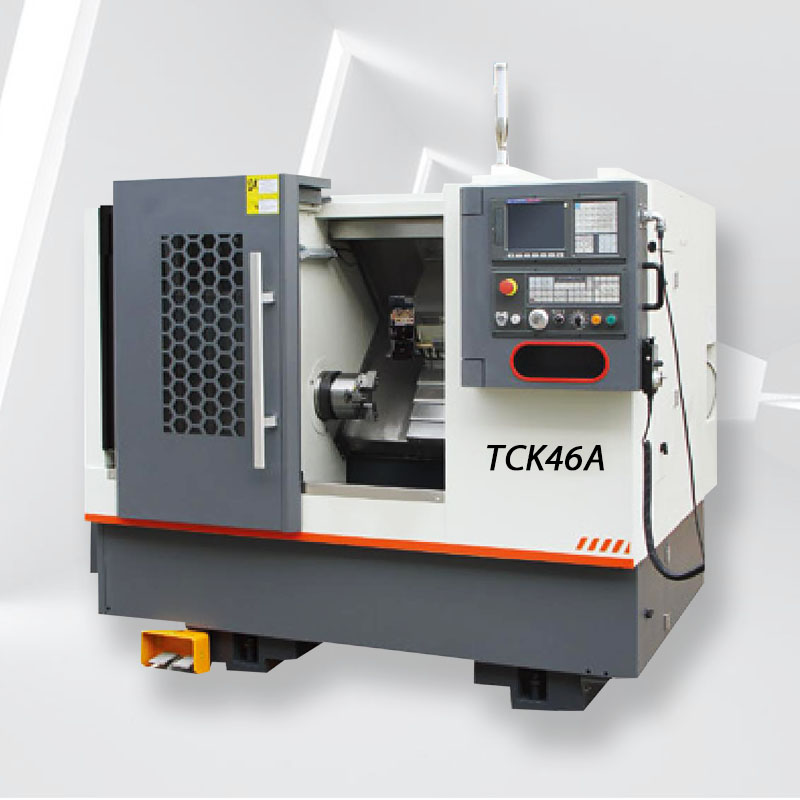

TCK46A Slant Bed CNC Lathe | High Precision Automatic Turning Machine for Metal Parts

The TCK46A slant-bed CNC lathe features an integral, high-rigidity slant-bed structure and high-precision linear guideways, offering excellent vibration resistance, machining stability, and chip evacuation performance. Equipped with a high-speed spindle system, precision ball screws, and servo drives, it is capable of performing various machining operations, including external turning, internal boring, facing, contouring, grooving, and threading. Standard specifications include a maximum swing over the bed of approximately 460 mm, a maximum machining length of 350 mm, a spindle bore of 56 mm, and a maximum spindle speed of 3,500 rpm; it can also be configured with an 8-station or 12-station turret, making it suitable for high-efficiency, continuous machining.

Product Features

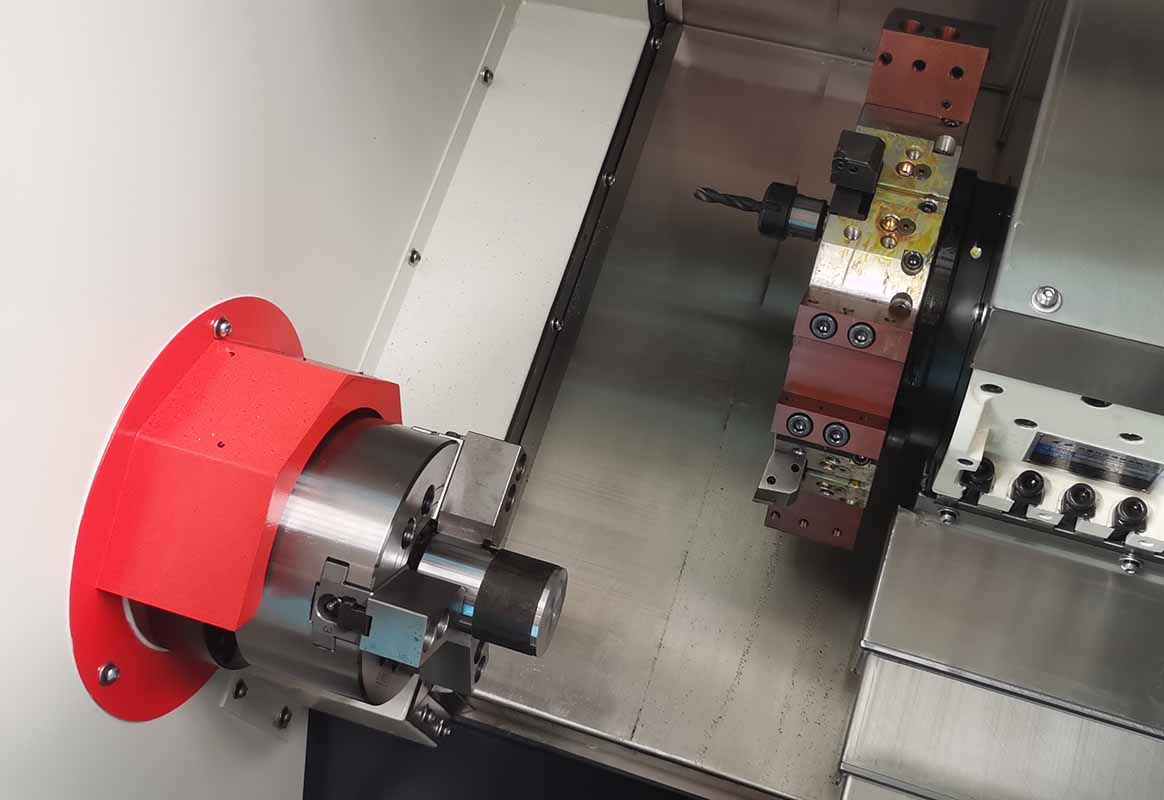

The TCK46A offers advantages such as high rigidity, high precision, high efficiency, and a high degree of automation. Its slant-bed design enhances cutting stability and facilitates chip evacuation, while the high-speed spindle and rapid feed system effectively shorten machining cycles. Features such as a hydraulic chuck, hydraulic tailstock, and automatic tool turret reduce manual intervention and boost mass production efficiency; additionally, the machine's compact structure makes it well-suited for modern precision machining workshops.

Product application industry

The TCK46A is widely used in industries such as automotive and motorcycle parts, electronics and telecommunications, aerospace, medical devices, instrumentation, hardware, and precision machinery manufacturing; it is particularly well-suited for the batch processing of shafts, discs, sleeves, connectors, threaded components, and other high-precision rotary parts.

Video

Product Parameter
