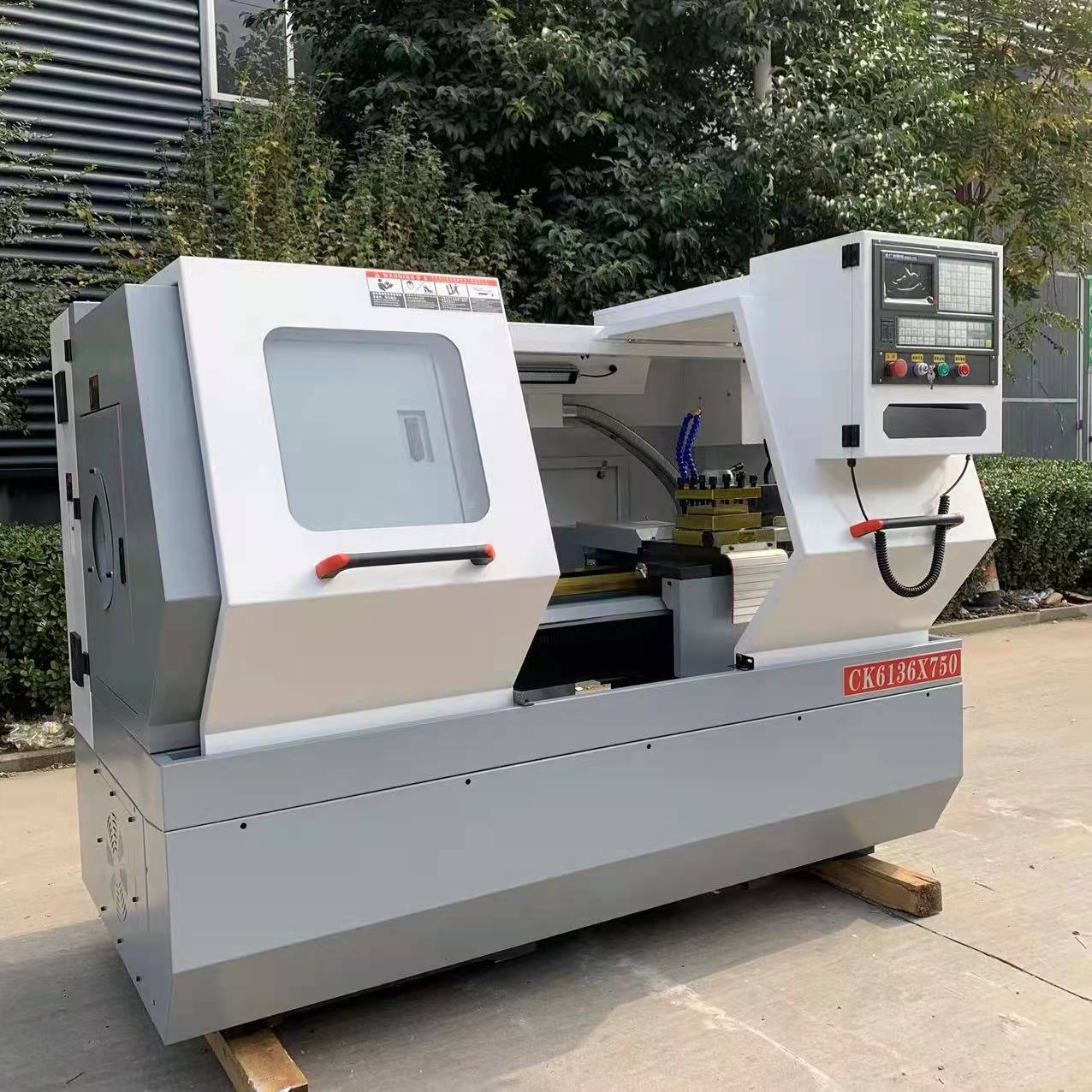

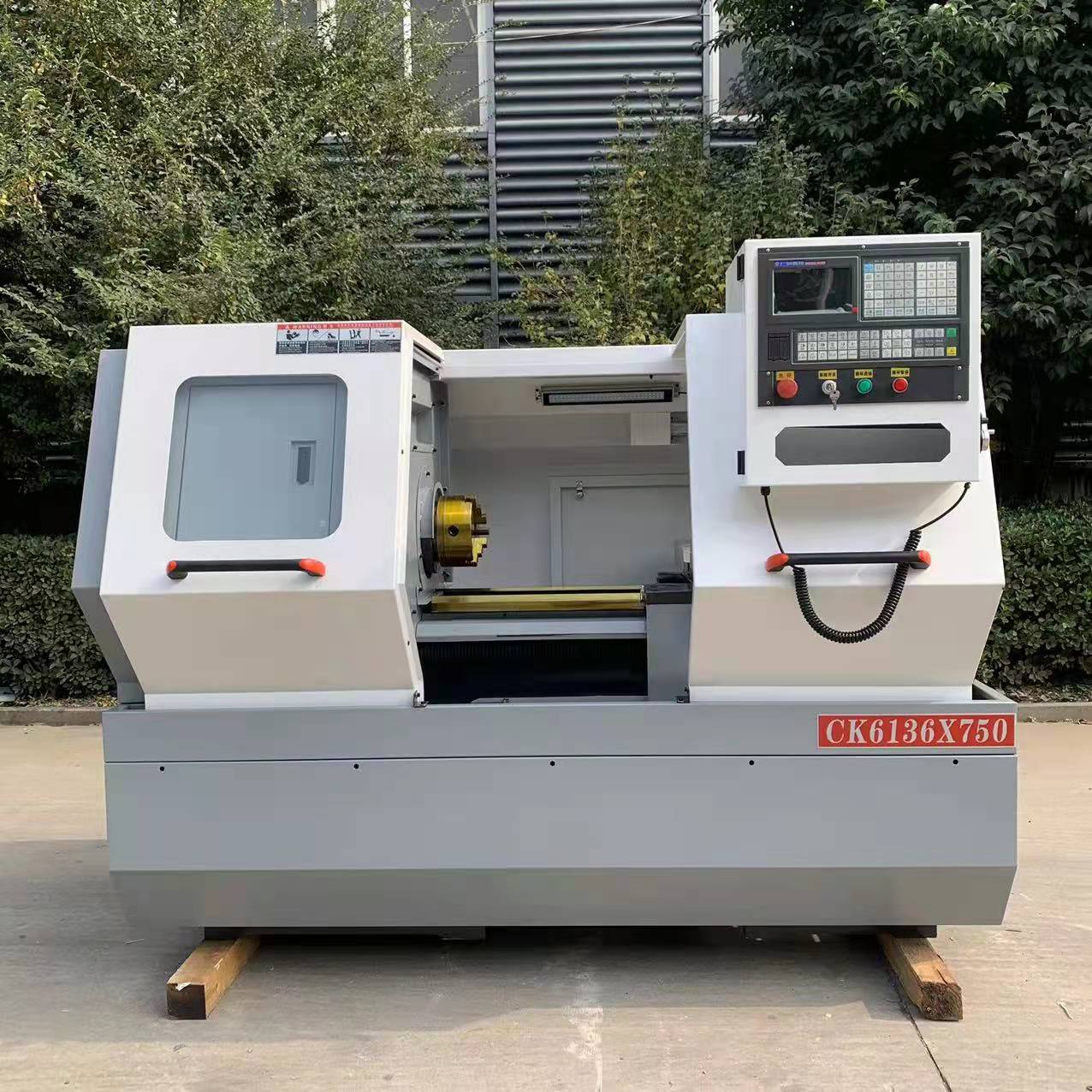

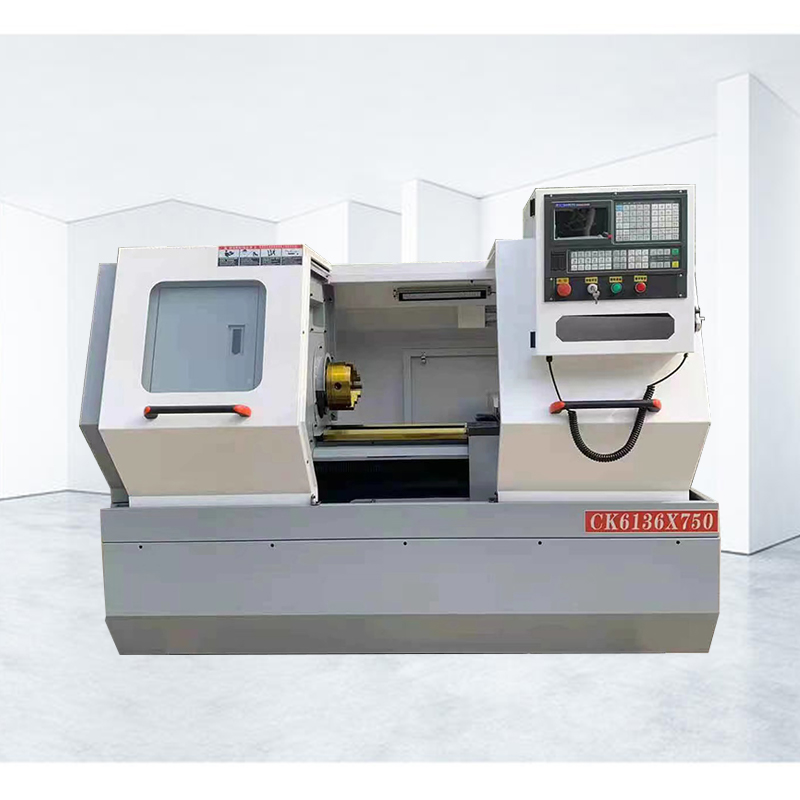

CK6136 CNC Lathe Machine | High Precision CNC Turning Center for Industrial Metal Machining
The CK6136 CNC lathe features a highly rigid, one-piece bed structure that offers excellent vibration resistance and machining stability, making it suitable for the high-precision machining of small-to-medium-sized shaft and disc components, as well as complex parts.
Equipped with a high-precision spindle system, precision ball screws, and high-performance servo drives, the machine tool supports various machining processes, including external turning, internal machining, facing, grooving, and threading. Controlled by an advanced CNC system, it offers ease of operation and rapid response, enabling efficient, high-precision continuous machining. It also supports functional expansions such as hydraulic chucks, automatic chip conveyors, and automatic bar feeders to meet the needs of automated production.
CK6136X750 CNC Lathe Of Features
The CK6136 CNC lathe offers advantages such as high machining precision, stable operation, robust cutting capability, and high production efficiency. Compared to standard CNC lathes, this machine features superior rigidity and enhanced machining stability, effectively minimizing errors and ensuring greater product consistency. Its high-speed spindle and rapid feed system shorten machining cycles and boost productivity. With a compact structure and ease of maintenance, the machine is well-suited for long-term, continuous production, helping enterprises reduce labor costs and improve overall manufacturing efficiency.
Product application industry
The CK6136 CNC lathe is widely used in industries such as automotive and motorcycle parts, machinery manufacturing, hardware processing, mold components, instrumentation, hydraulic components, and precision parts manufacturing. It is suitable for machining shaft and sleeve components, flanges, gear shafts, connectors, threaded parts, and various small-to-medium-sized metal components. Capable of processing a wide range of materials—including steel, stainless steel, aluminum alloys, and copper alloys—it is an ideal piece of equipment for enterprises engaged in batch precision machining looking to enhance production efficiency and product quality.
CNC Lathe Specifications
| Item | Unit | CK6136X750 |
| Max swing over bed | mm | Φ360 |
| Maximum turning diameter on the tool post | mm | Φ200 |
| Maximum workpiece length between two centers | mm | 750 |
| Spindle through hole diameter | mm | Φ52 |
| X stroke | mm | 200 |
| Z stroke | mm | 750 |
| Rapid traverse speed | mm/min | X: 6000 Z: 8000 |
| Overall dimensions of machine tool (length×width×height) | mm | 2350×1380×1640 |
Standard：
CNC systems: GSK CNC systems

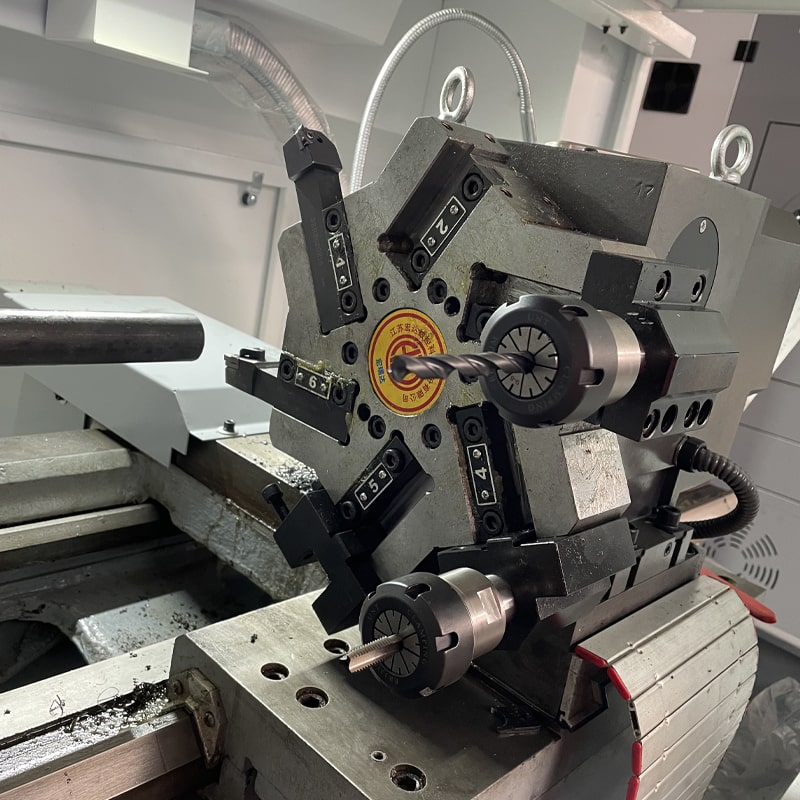

Turret: Four-station turret

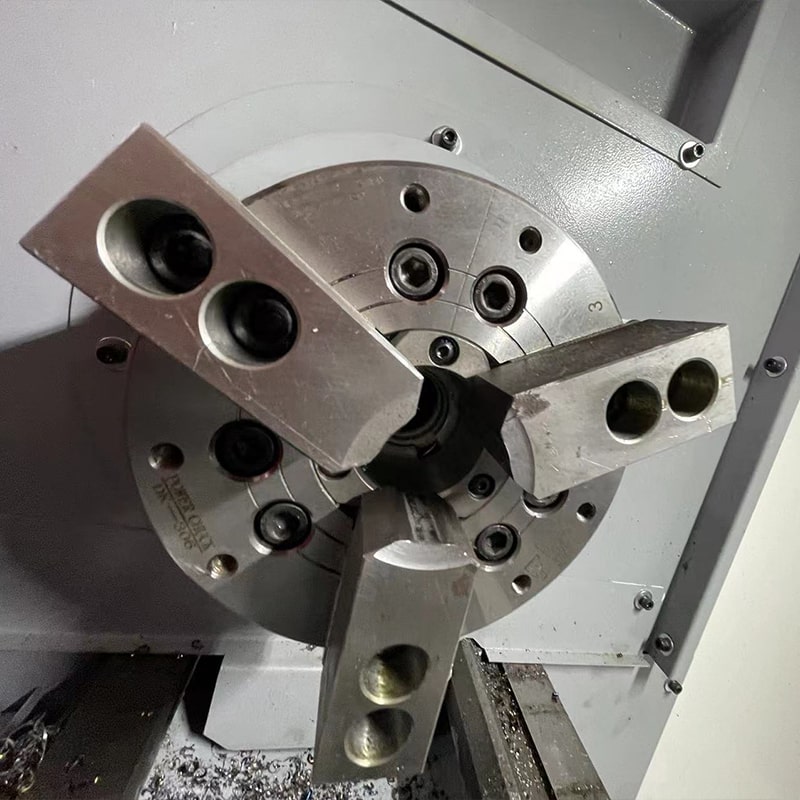

Chuck: Manual three-jaw chuck
Optional：
CNC systems: Fanuc, Siemens and other CNC systems
Chuck: Hydraulic chuck
Turret: 6/8/12 station turret
Feeding device: Automatic Bar Feeder
