PRODUCT

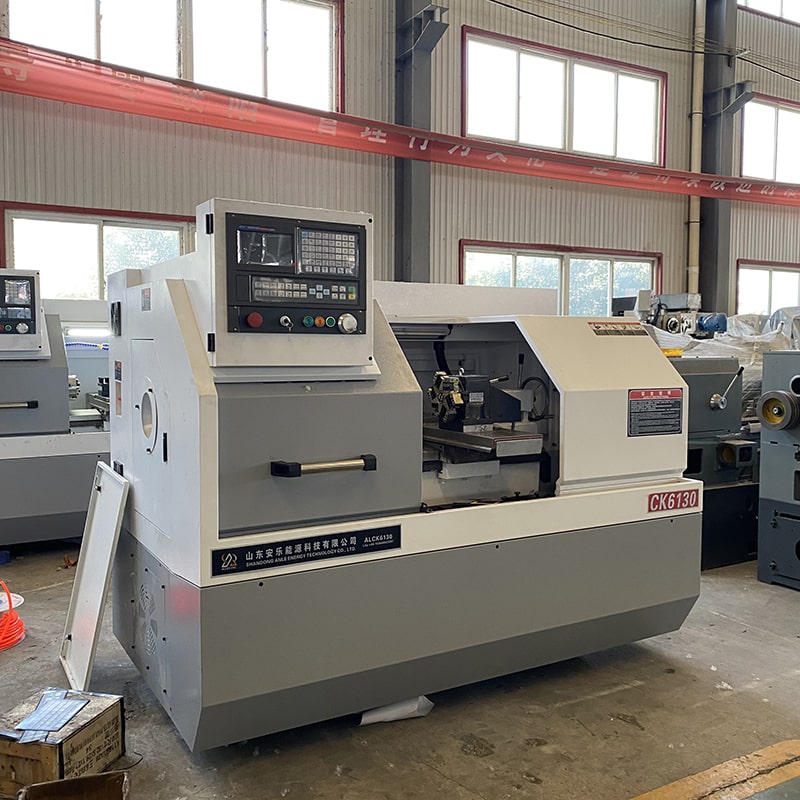

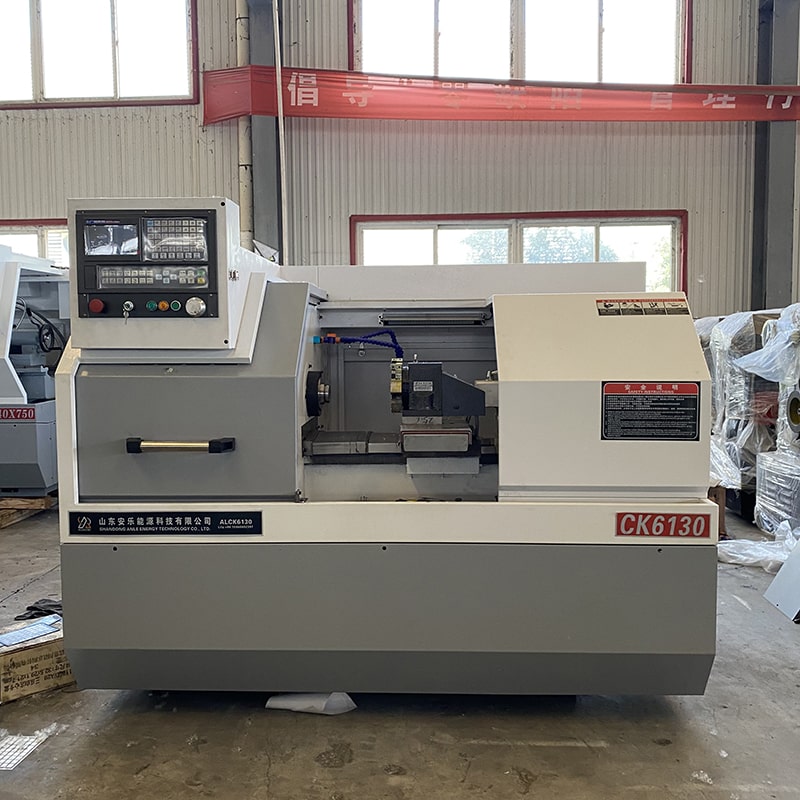

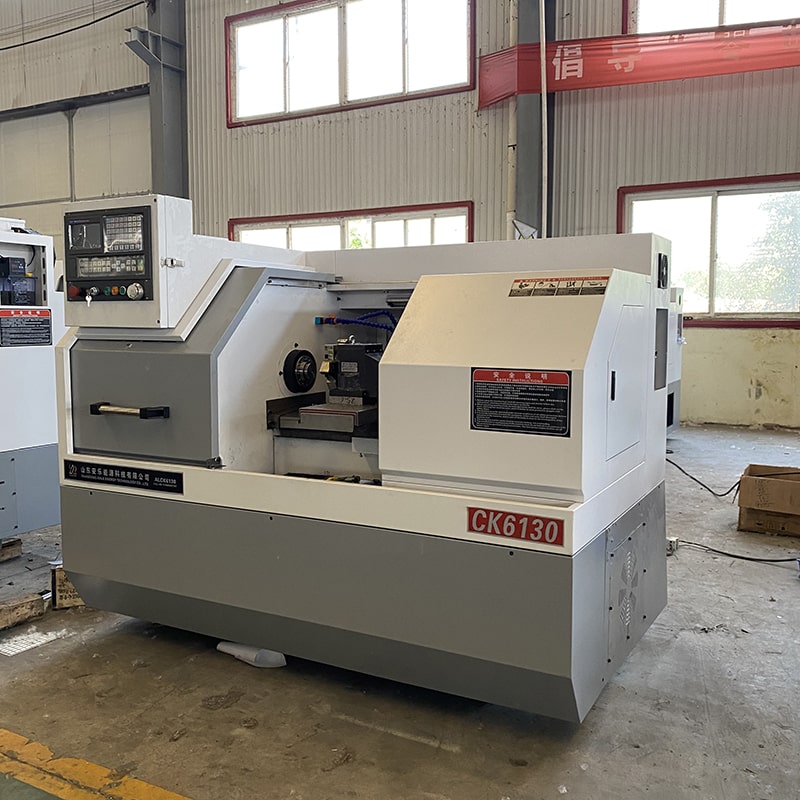

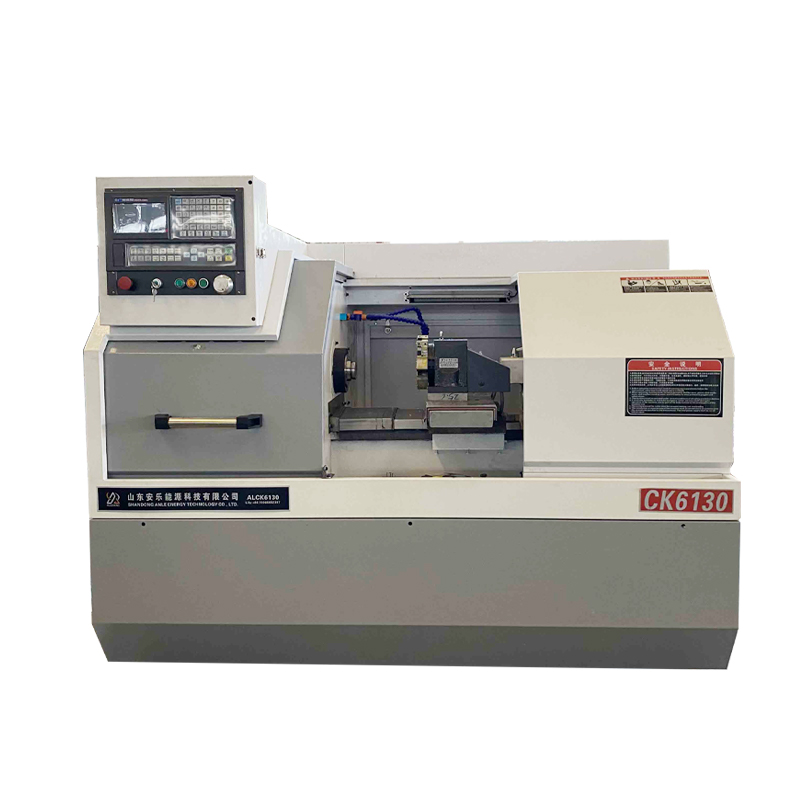

CK6130 CNC Lathe Machine | High Precision CNC Turning Machine for Metal Parts Manufacturing
The CK6130 CNC lathe features a high-rigidity bed structure and a precision drive system, ensuring excellent stability and machining accuracy. Equipped with a high-performance spindle, precision ball screws, and high-precision guideways, the machine efficiently performs various operations such as external turning, internal machining, facing, grooving, and threading.
The equipment supports high-speed feed and automatic tool changing (optional), enabling multi-process continuous machining of complex parts in a single setup, thereby effectively boosting production efficiency. It offers simple operation and stable performance, and can be configured with hydraulic chucks, automatic bar feeders, and automatic chip removal systems to meet diverse production requirements.
CK6130 CNC Lathe Of Features
The CK6130 CNC lathe offers high precision, efficiency, rigidity, and reliability, meeting the demands for the continuous machining of precision parts. Featuring stable operation and robust cutting capabilities, it effectively enhances machining quality and product consistency. Its compact, well-optimized design saves production space and reduces maintenance costs; furthermore, it supports automation upgrades to ensure continuous, stable production, providing a reliable foundation for enterprises to boost efficiency, lower labor costs, and strengthen market competitiveness.
CNC Lathe Specifications
| Item | Unit | CK6130 |
| Max swing over bed | mm | Φ300 |
| Maximum swing over slide | mm | Φ130 |
| Spindle hole diameter | mm | Φ48 |
| With hollow chuck pull rod through hole | mm | Φ40 |
| Spindle speed limit | rpm | 2200 |
| X stroke | mm | 280 |
| Z stroke | mm | 500 |
| X axis repeat positioning accuracy | mm | 0.01 |
| Z axis repeat positioning accuracy | mm | 0.01 |
| Dimensions (length × width × height) | mm | 1600×1100×1650 |
Standard：
CNC systems: GSK CNC systems

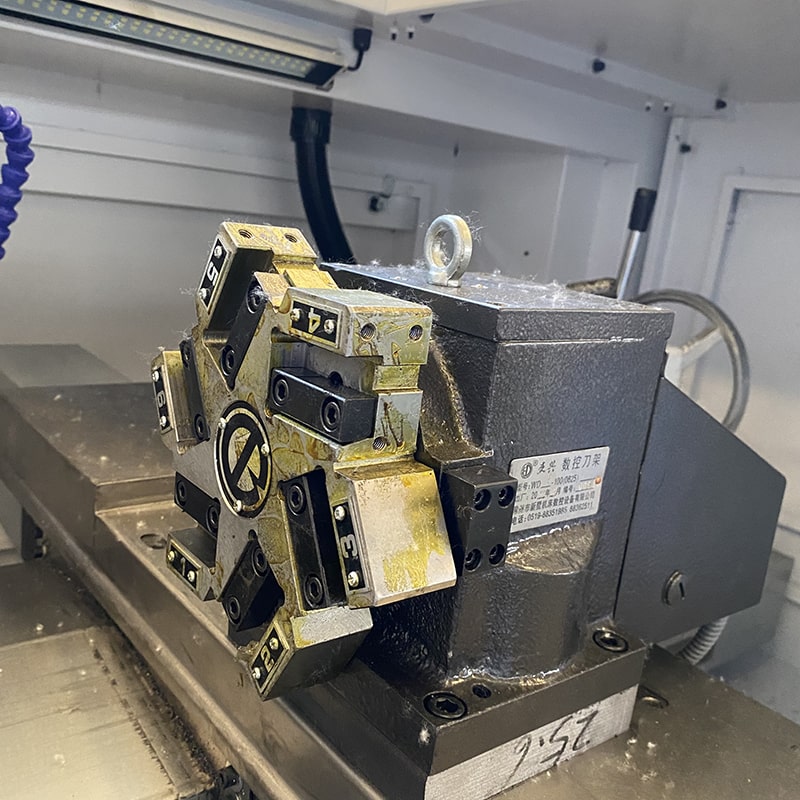

Turret: Four-station turret
Chuck: Manual three-jaw chuck
Optional：
CNC systems: Fanuc, Siemens and other CNC systems
Chuck: Hydraulic chuck
Turret: 6/8/12 station turret
Feeding device: Automatic Bar Feeder
