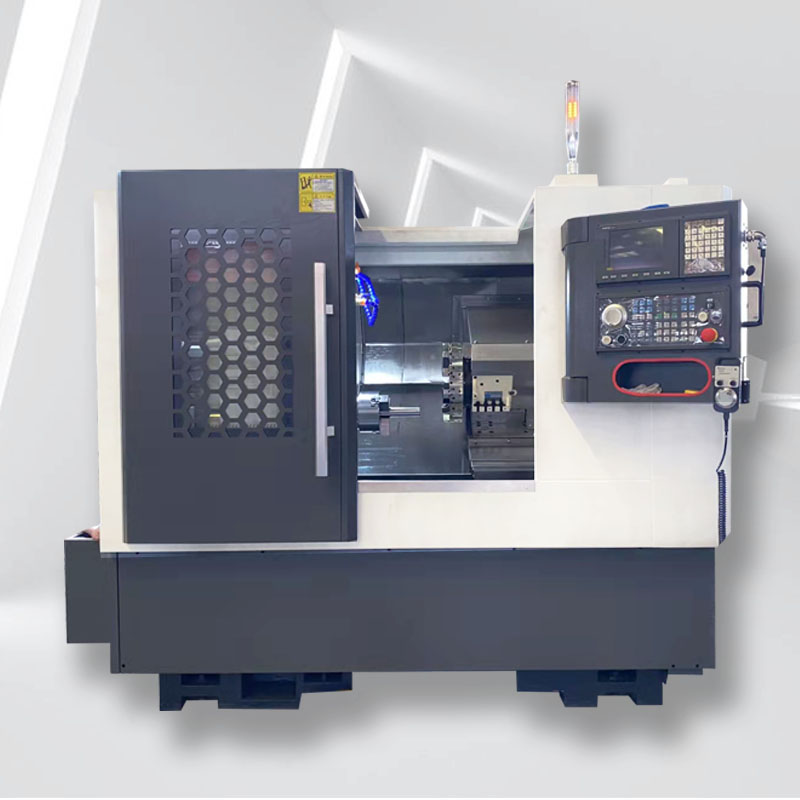

High-performance 45° slant bed CNC lathe TCK50A
Brand - ALLESCNC
Model - TCK50A
Inventory - 400 units in stock monthly
Certifications - Meets CE quality and safety standards
Payment Method - Wire transfer/Credit card
One-year limited warranty on the whole machine (extended warranty available for major components)
The TCK50A features a 45° inclined bed structure, giving it a more robust and rigid design. Its high rigidity and excellent vibration resistance allow it to withstand heavy cutting and high-speed machining, ensuring processing stability and accuracy.
The machine utilizes imported linear guides and high-precision ball screws, along with a high-precision lead screw, to achieve high positioning accuracy and repeatability, making it ideal for machining high-precision parts.

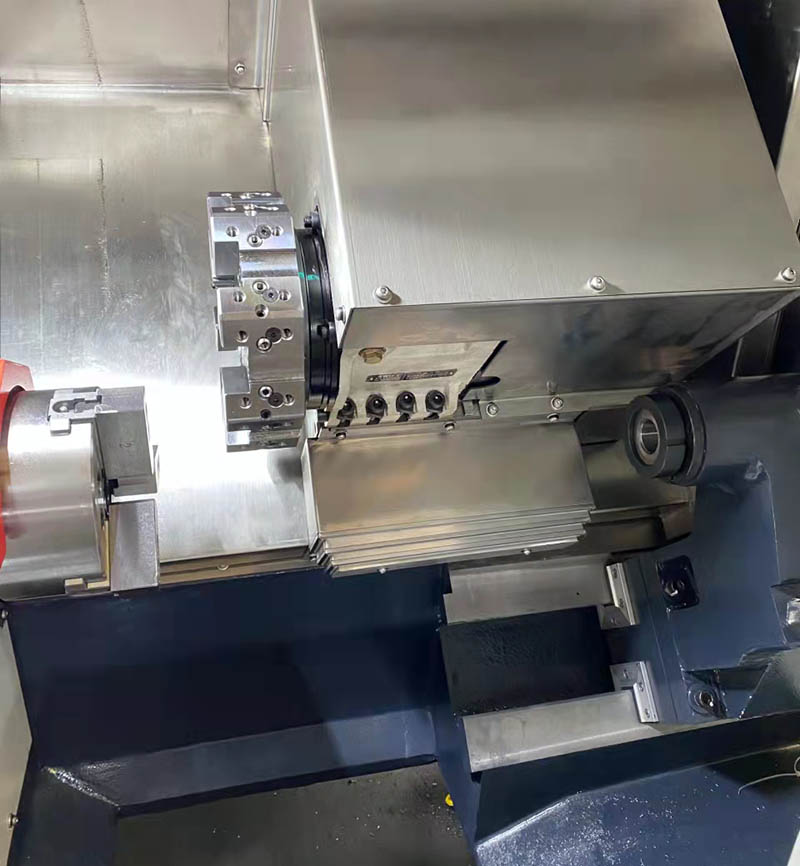

The TCK50A slant-bed CNC lathe features a servo-driven hydraulic turret and a servo-driven tool magazine, offering fast and precise tool changes to meet the demands of continuous multi-stage machining and significantly improve production efficiency.
The optimized bed and chip-extraction channel design, along with a high-efficiency coolant system, ensures smooth chip evacuation and more stable machining.
It utilizes conventional CNC systems (optional, such as Fanuc/Siemens), with an intuitive interface, simple operation, and a rapid learning curve, making it ideal for mass production workshops.
Product Features:
The TCK50A slant-bed CNC lathe features a 45° slant bed and a high-rigidity cast iron frame for enhanced vibration resistance and increased load capacity. High-precision linear guides and precision feed leads ensure accurate positioning and repeatability. A high-performance spindle unit is available in high-speed or heavy-duty configurations. A hydraulic tool magazine with servo turret enables quick tool changes and facilitates the machining of composite materials. An efficient chip removal and coolant system is included. An integrated automatic lubrication system extends the machine tool's lifespan. A fully enclosed guard structure maintains a clean and safe workshop environment. Automation options include automatic feeding, robotic arms, and automatic loading and unloading devices.
Product Application Industry
The TCK50A slant-bed CNC lathe is a high-performance, general-purpose slant-bed CNC lathe ideal for batch processing of shafts, sleeves, discs, and other medium-to-large-sized parts. It is widely used in the following industries:
✔ Automotive parts manufacturing
✔ Mechanical transmission component processing
✔ Hydraulic and pneumatic industry
✔ Aerospace parts processing
✔ Petrochemical equipment manufacturing
✔ General machinery manufacturing
✔ Hardware parts processing
✔ Motor and bearing industry
Typical processed parts (examples):
Drive shafts
Spindle-type parts
Flanges
Sleeves and bushings
Cylinder block end faces
Precision threaded parts
Hydraulic seals
Eccentric sleeves, etc.
Video
Product Parameter
| Item | Unit | TCK50A |
| Max. swing dia. over bed | mm | Φ560 |
| Max. swing dia. over slide | mm | Φ260 |
| Max. processing length | mm | 350/500/800 |
| Spindle speed | rpm | 3000 |
| Spindle hole diameter | mm | 66/66/86 |
| Weight | KG | 3200/3600/4500 |
| Machine size | mm | 2700/2700/3300×2000×2000 |
