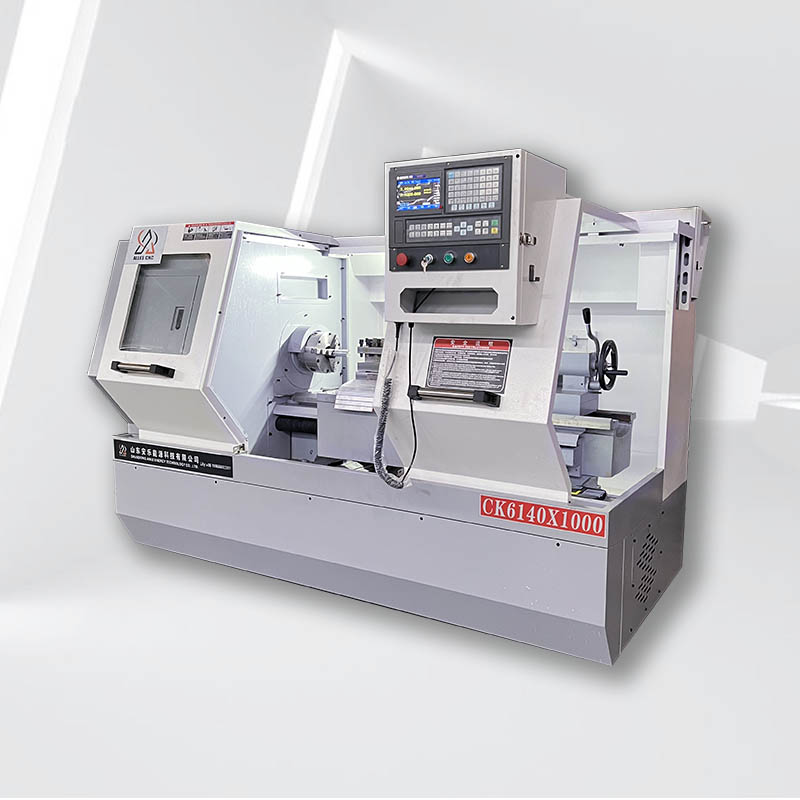

ALCK6140X1000 CNC Lathe
The ALCK6140X1000 CNC Lathe is a CNC turning machine designed for efficient and reliable machining of metal components. It is suitable for general turning operations such as external and internal turning, facing, threading and other machining applications, depending on the machine configuration and workpiece requirements.
ALCK6140X1000 CNC Lathe
The ALCK6140X1000 CNC Lathe is designed for efficient CNC turning and metal machining applications. It is suitable for manufacturers and machining workshops requiring stable turning performance, repeatable processing and flexible machining capabilities.
Key Features
- CNC-controlled turning operations
- Suitable for general metal turning applications
- Stable machine structure for reliable machining
- Suitable for turning, facing, threading and related machining operations
- Designed for efficient and repeatable CNC machining
- Suitable for different workpiece materials and production requirements, depending on the configuration
Machining Applications
The ALCK6140X1000 CNC Lathe can be used for machining a variety of metal components, including shafts, sleeves, bushings, flanges, discs and other cylindrical workpieces.
Typical operations may include:
- External turning
- Internal turning
- Facing
- Threading
- Drilling
- Other CNC turning operations
Technical Specifications
The following technical parameters are based on the standard CK6140X1000 configuration as published in our existing product data. Specific values for the ALCK6140X1000 configuration are available on request.
| Model | ALCK6140X1000 |
| Maximum Turning Diameter Over Bed | 400 mm |
| Maximum Turning Diameter Over Tool Post | 220 mm |
| Distance Between Centers | 1000 mm |
| Rail Width | 360 mm |
| X-axis Travel | 250 mm |
| Z-axis Travel | 900 mm |
| Carriage Rapid Feed (X / Z) | 5 / 8 m/min |
| Repeatability (X / Z) | 0.012 / 0.013 mm |
| Packing Dimensions (L × W × H) | 2350 × 1400 × 1800 mm |
Applications
The ALCK6140X1000 CNC Lathe is suitable for general metal machining and CNC turning applications. It can be used in machining workshops and industrial production for components such as shafts, bushings, sleeves, flanges and other rotational parts.
Why Choose ALCK6140X1000
The ALCK6140X1000 is designed for manufacturers looking for a practical CNC turning solution for reliable metal machining. The machine configuration can be selected according to workpiece dimensions, material and production requirements.
Request a Quote
Contact us for detailed technical specifications, machine configuration, available options, delivery information and quotation for the ALCK6140X1000 CNC Lathe.
